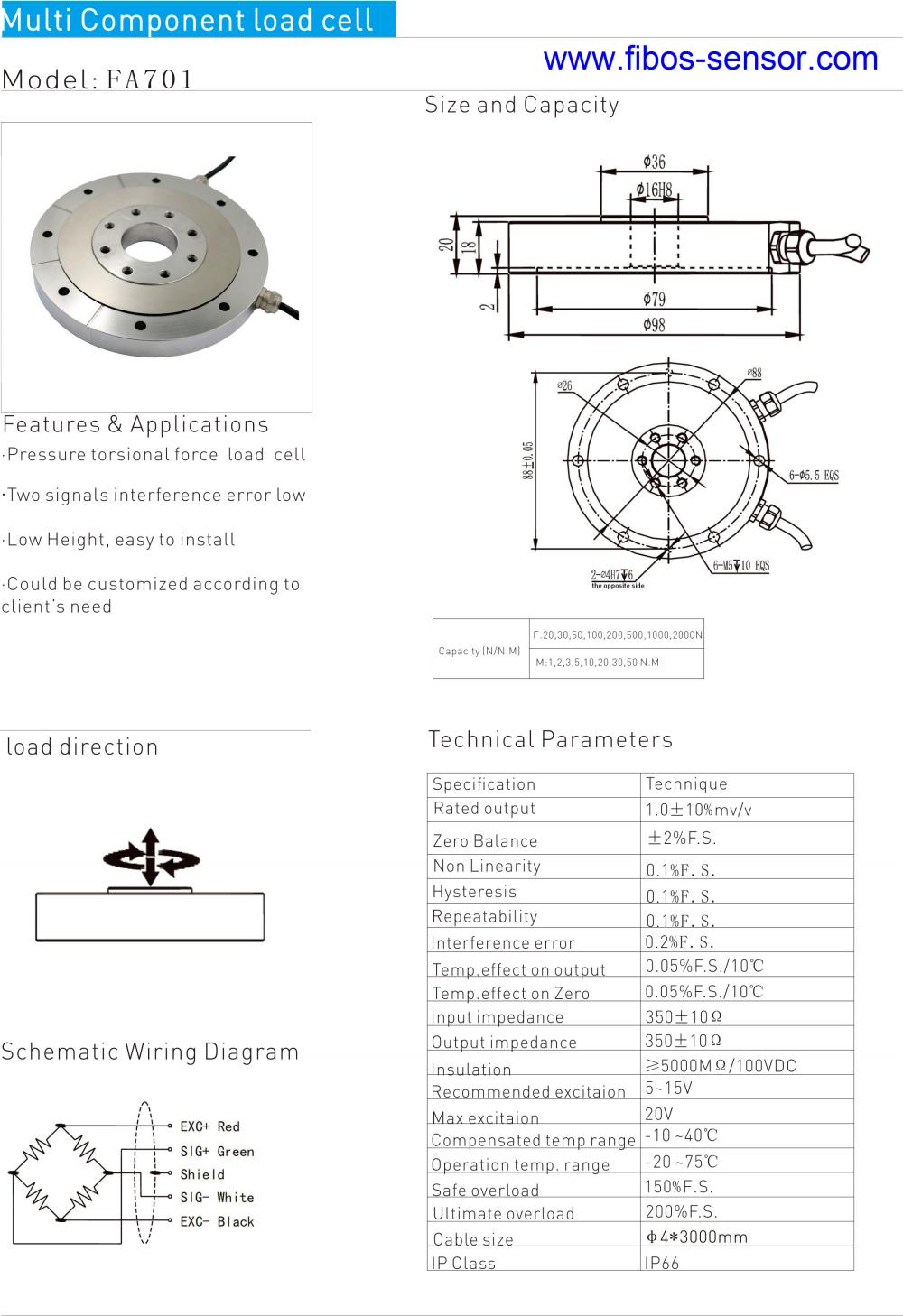

three dimension force load cell sensor factory supply

·Pressure torsional force load cell

·Two signals interference error low

·Low Height, easy to install

·Could be customized according to client`s need

technical parameters
Specifications	Technique
Rated output	1.0±10%mv/v
Zero balance	±2%F.S.
Non-linearity	0.1%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.1%F.S.
Interference error	0.2%F.S.
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Input impedance	350±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5-15V
Maximum excitation	20V
Compensated temp range	-10~40℃
Operation temp range	-20~75℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Cable size	φ4*3000mm
IP Class	IP66
