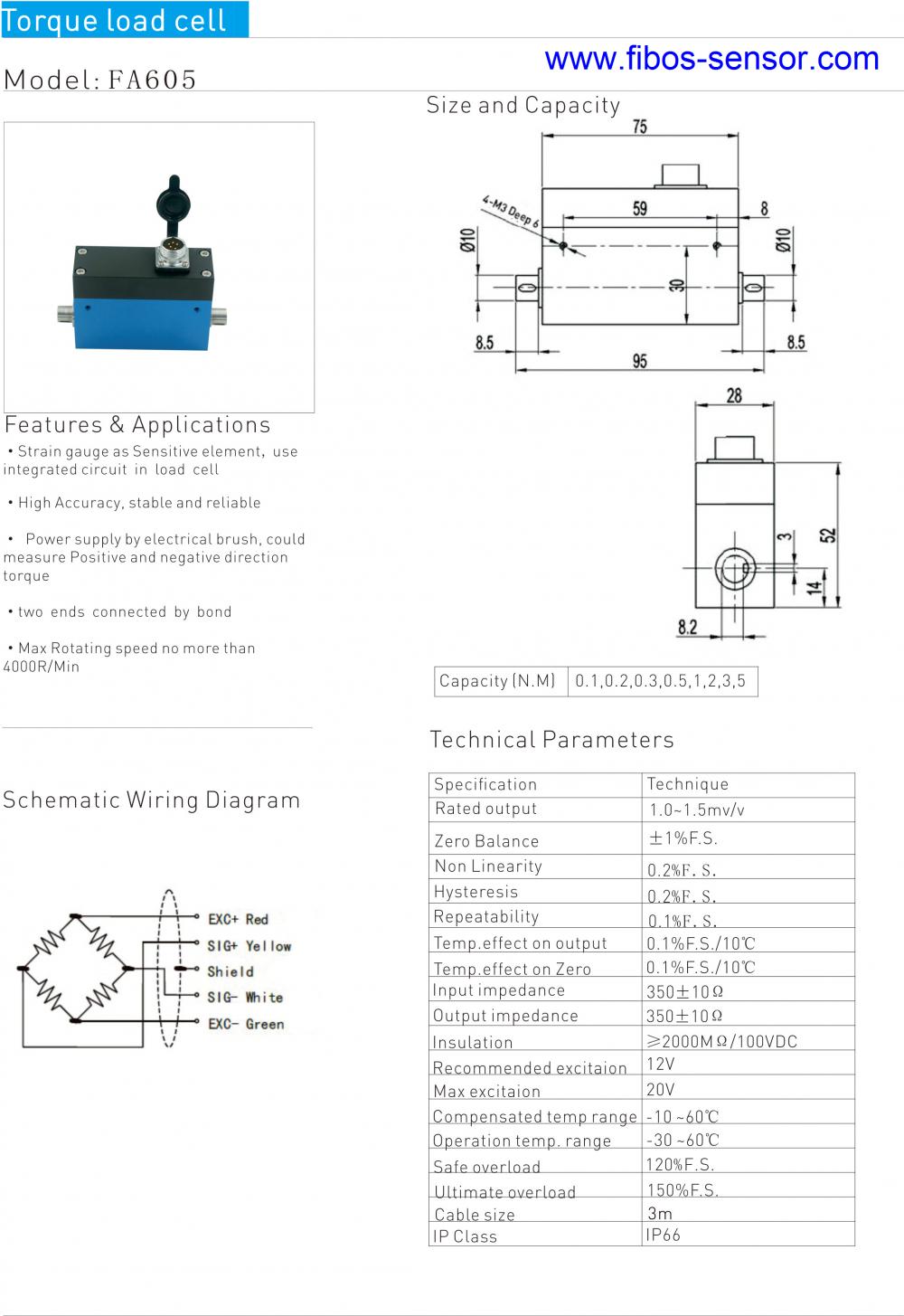

Dynamic torque load cell sensor

·Strain gauge as Sensitive element,use integrated circuit in load cell

·High Accuracy, stable and reliable

· no Collector ring and other wear parts,could run for a long time, output Reversible torque signal

·two ends connected by bond

·Max Rotating speed no more than 4000R/Min

technical parameters
Specifications	Technique
Capacity	0.1,0.2,0.3,0.5,1,2,3,5N.M
Rated output	1.0~1.5mv/v
Zero balance	±1%F.S.
Non-linearity	0.2%F.S.
Hysteresis	0.2%F.S.
Repeatability	0.1%F.S.
Temp.effect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Input impedance	350±10Ω
Output impedance	350±10Ω
Insulation	≥2000MΩ/100VDC
Recommended excitation	12V
Maximum excitation	20V
Compensated temp range	-10~60℃
Operation temp range	-30~60℃
Safe overload	120%F.S.
Ultimate overload	150%F.S.
Cable size	3000mm
IP Class	IP66

Professional customized load sell solution provider



1. MOQ?

Different load cell ,different MOQ. Samples available

2. How long will client get reply from us?
Usually within 12 hours. Please call the sales directly under emergency

3. Price?
Quality first, price reasonable

4. Visit factory?
Visit factory is welcome

5. Lead time?
Load cell sensor in stock, shipped within 1-2 working days.
Load cell sensor not in stock, usually 10-20 work days.

6. Payment terms?
T/T, Western Union, L/C, Escrow, paypal or Cash



7. Delivery?
DHL, Fedex, TNT ,EMS, UPS or by Sea etc.

8. Load cell sensor warranty?
   12 months.

9. after-sale service?

After-sale service is available since the load cell sensors are received. The after-sales service will be done through e-mail, skype, trade manager, telephone, wechat or QQ.
