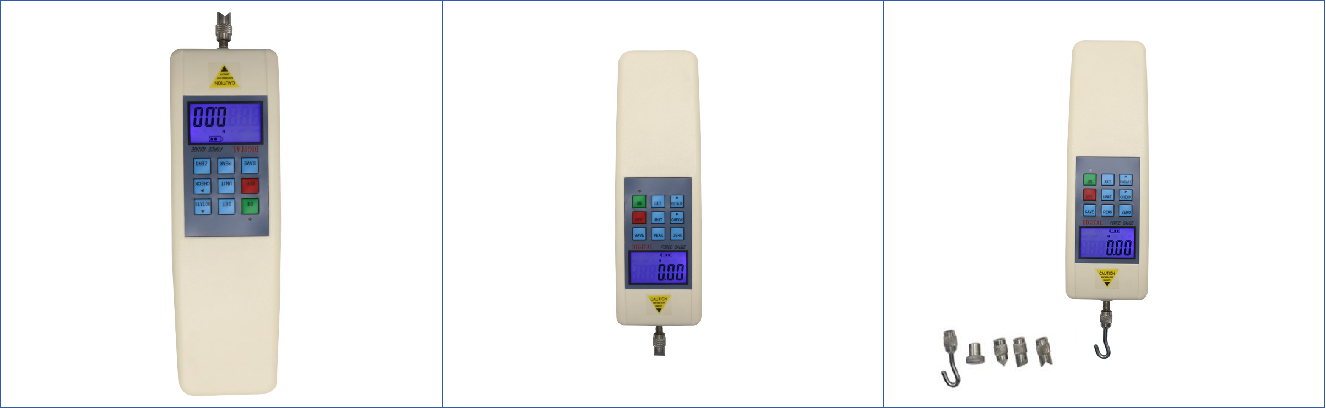

The Details of GSI315N Digital Force Gauge?

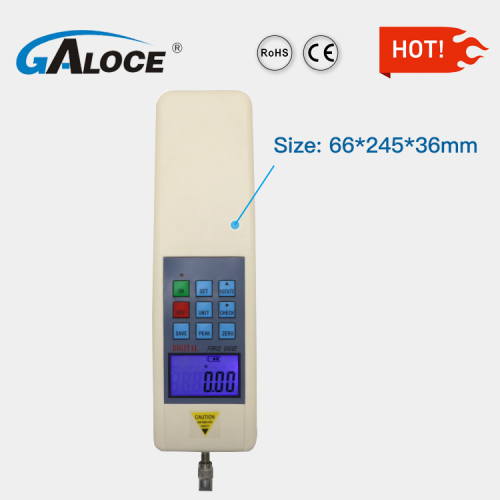

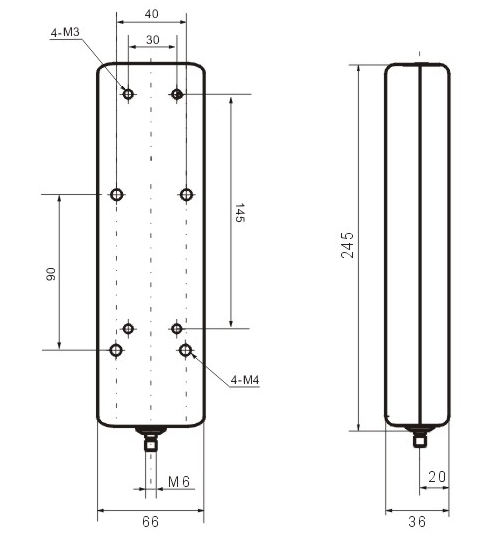

About Dimension

About Standard Functions


1. High precision and high resolution;
2. Five testing modes and three display methods for selection enhance testing efficiency to the maximum extent;

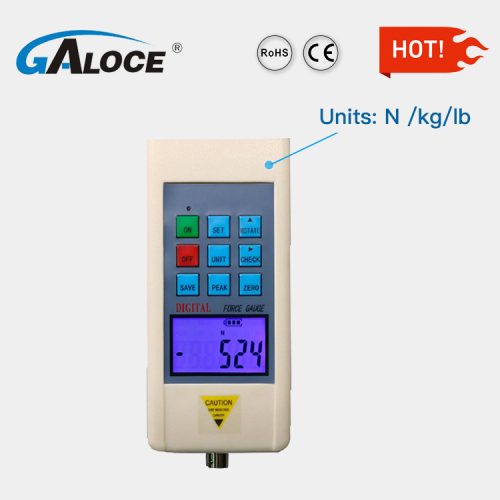

3. N (Newton), kg (Kilogram) and lb (Pound) three measuring units for selection and conversion;
4. Setting function of gravity acceleration--User can input at your option the accurate value of gravity acceleration at the using place so as to make the testing and unit conversion be more accurate;
5. Function of peak value maintaining. Maintain the display of peak value until manual zero clearing;
6.Automatic peak function. Maintain the display of peak value for 2 seconds and then release automatically;
7.Max and min and comparison value can be set for statistic analysis. The buzzer will alarm if exceeding comparison value;
8. Data storage function. 896 testing values can be stored;
9.Data output function. The data can be input into computer through data line for various analyses;
10. Environmental protection. The device will automatically stop if no operation within 10 minutes;
11. High quality chargeable power supply. The charging voltage is available from 100V to 240V, which can accommodate most areas in domestic and at abroad;
12. 2 sets mounting dimensions, it is applied for most testing platforms domestically and easy for users to install it to platform;
13. Special testing function of make-break ability of switch contact to make the make break testing be more ccurate
14. 6 digits large screen display;
15.Synchronous measuring software can connect computer measuring, the computer display measuring graph and the detailed testing records,and can preserve, print ,make analysis,input speed, area, displacement, pressure;
16. Contact control signal output setting comparative value,when the Measuring value is over comparative value, output signal control circuit Breaker's make-and break, thus realize the function of stop electromotor, And control automatically; it is also can be used for realize other control Functions.

About Technical Parameters

If your request is about more than 1000N, we recommend you to choose our GSI315W Portable Push Pull Force Gauge with External Load Cell, this model is more suitable for you.

Digital Force Gauge are widely used in:

1. extension spring test

2. Usb interface plug insertion force test

3. Cosmetic box tension and compression test

4. Medical syringe push and pull test

5. plastic paper Stripping Strength Test

6. Rope Tensile Strength Test

7. Wire terminal Pulling-out Force Test

8. Button Pull Off Force Test
