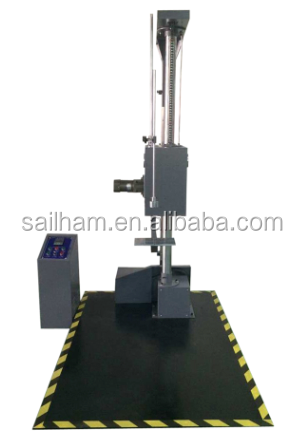

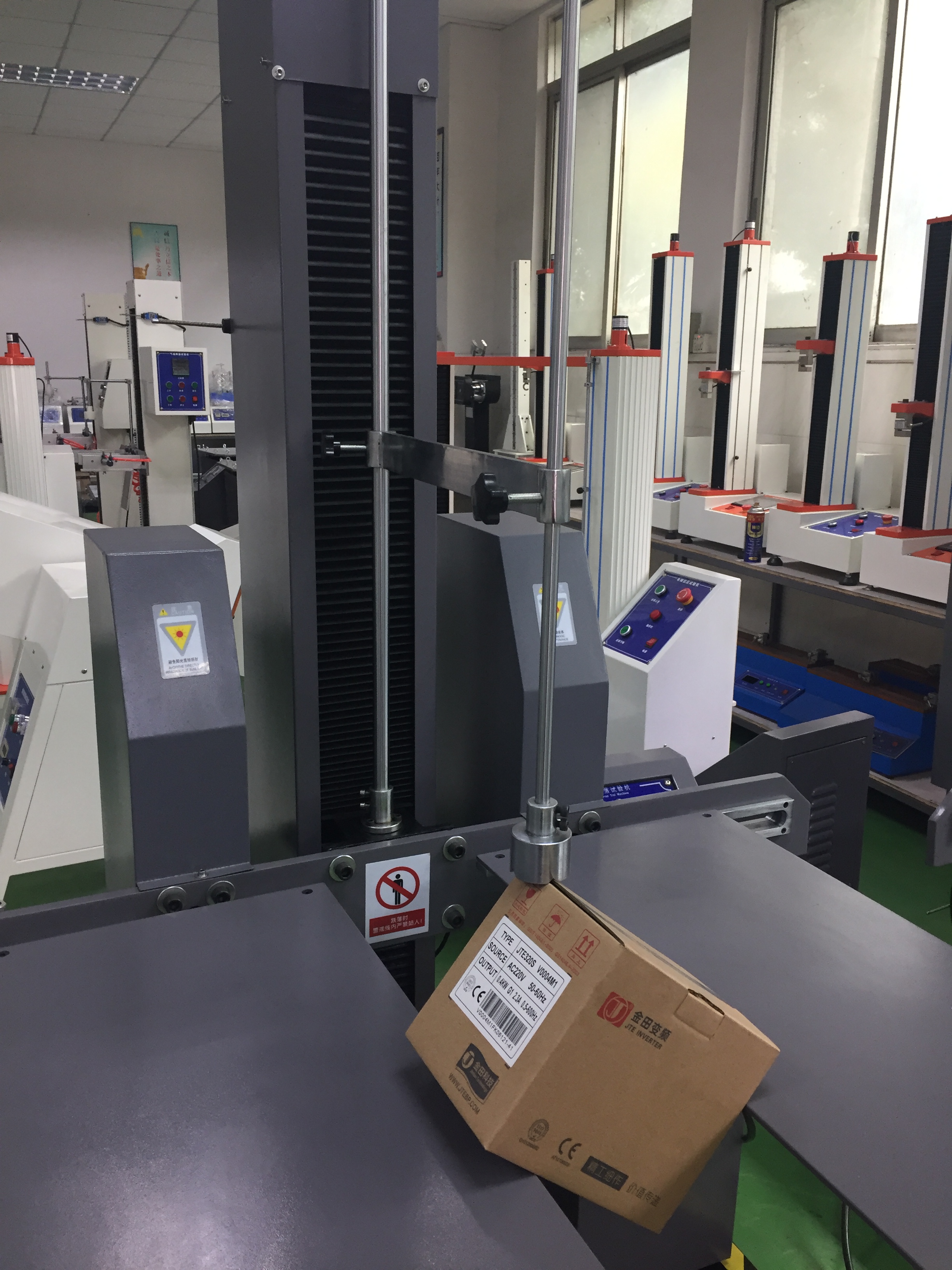

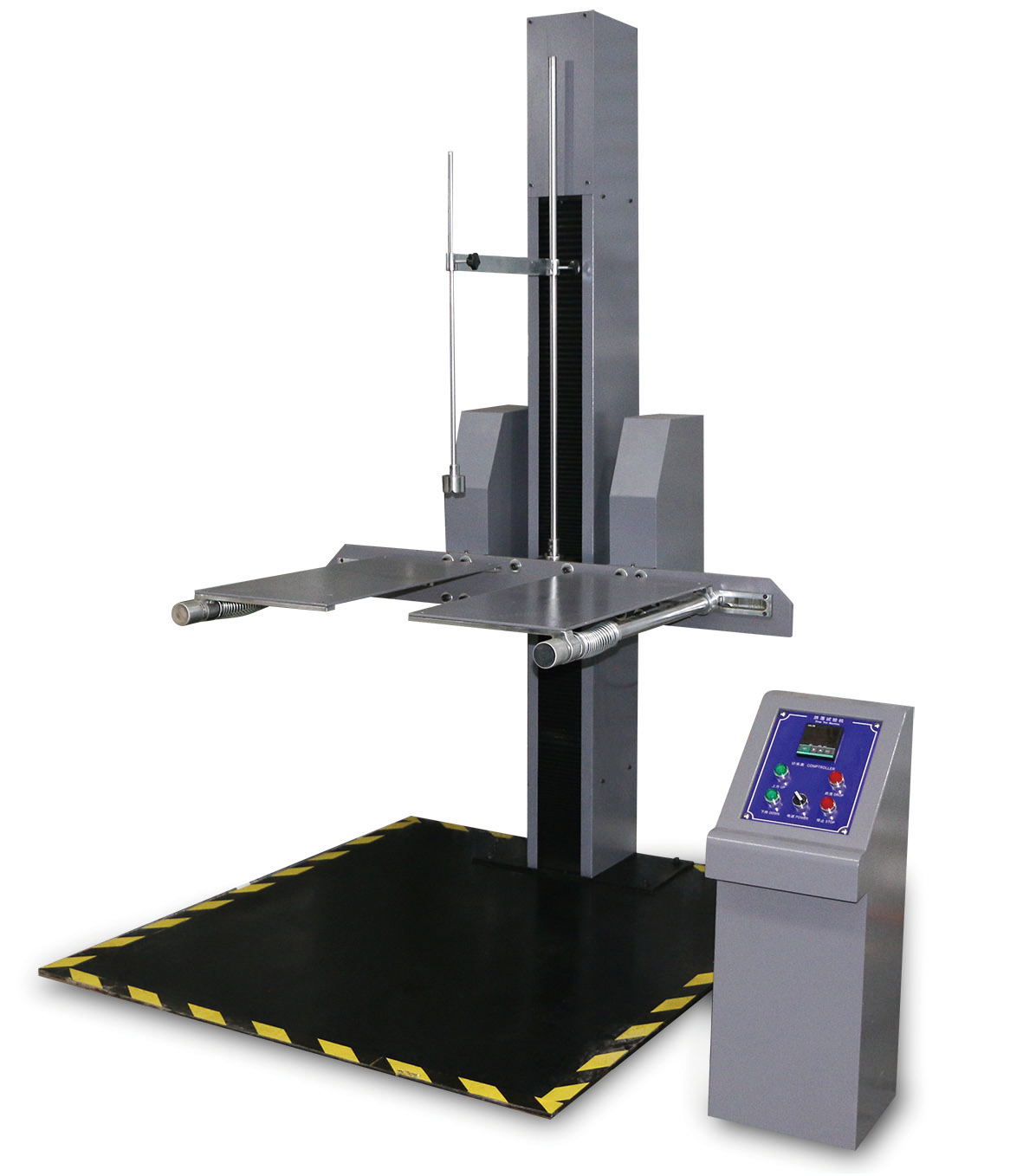

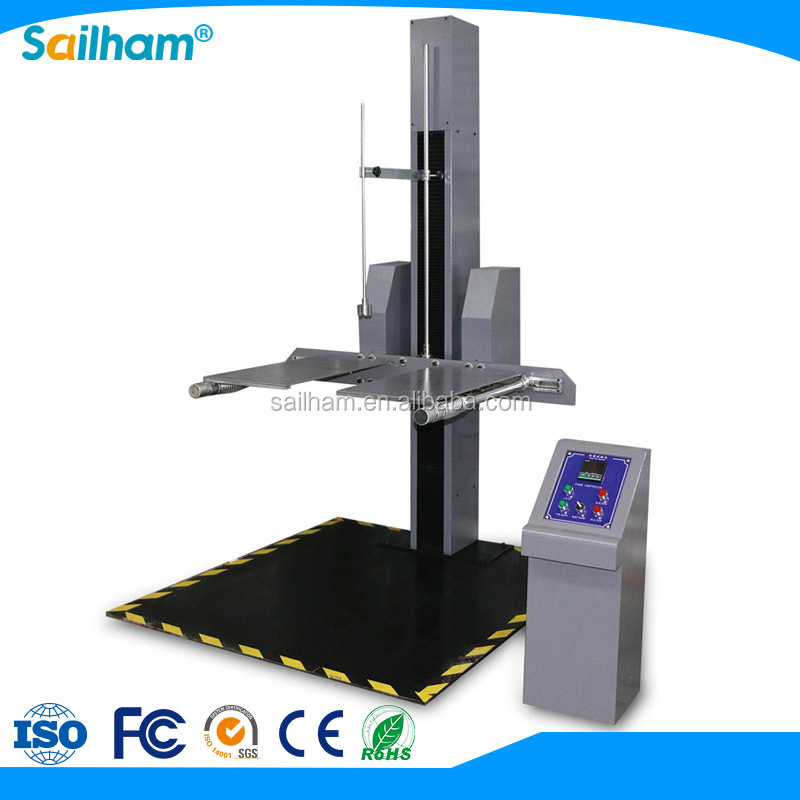

Drop testing machine is designed to test the impact strength and damage of product packaged during transportation and handling process. During dropping, the carrier will rotate to allow the packed products to fall freely. lt can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.

??

?

?

?

?

?

?

Specification parameter:

Model	ZH-AD-800 / ZH-BD-800 (Double beam)
Drop height range(mm)	300-1500 adjustable
Specimen max.weight(kg)	80
Thickness of bottom plate	10mm (solids steel plate)
Specimen max. size(mm)	800*800*1000
Drop mode	Freedom
Machine Dimension(mm)	1700*1200*2315
Machine weight (kg)	300
Power supply	AC 380V, 50Hz, 1.85KW
Standards	ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27
Height display	LED interface display
Driving method	Electric driving
Droping height deflection	±10mm
Impact panel parallel deflection	≤1 degree

?

?

?

High Accuracy Drop Tester for Packaged Freight Features

1.??Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.

2.??With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.

3.??Damping screw lifting mechanism, preventing drop institution unexpectedly glide.

4.??Pneumatic automatic chain, preventing swing arm unusual break away.

5.???Extensible support bracket and baseboard.?

?

?

?

?

?

?

?

?

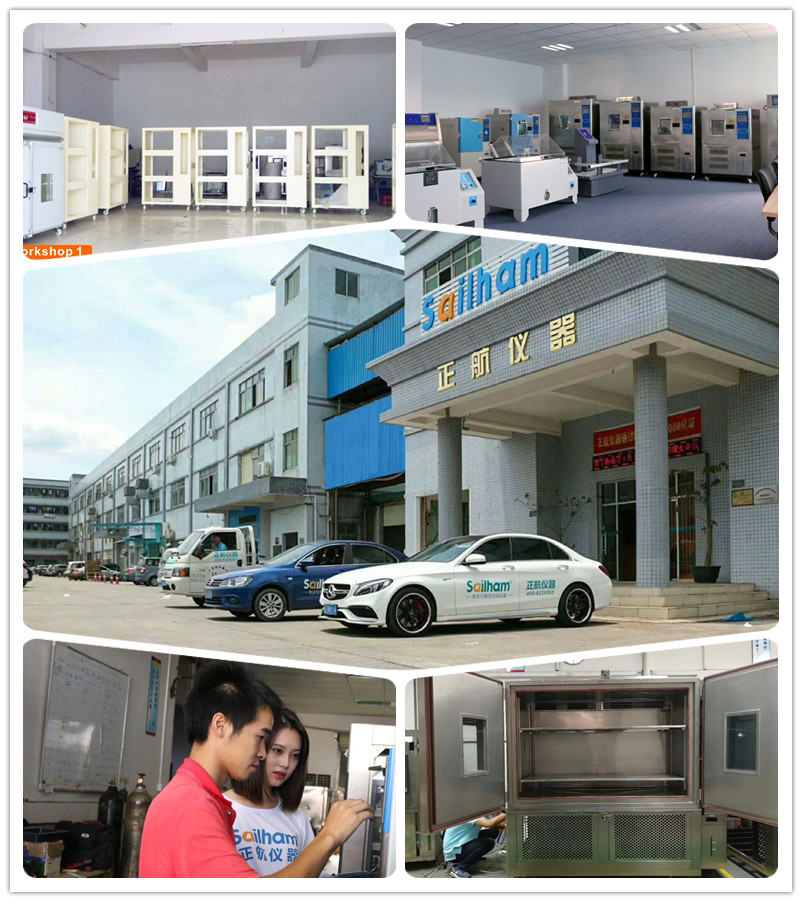

Our Team

?

?

?

?

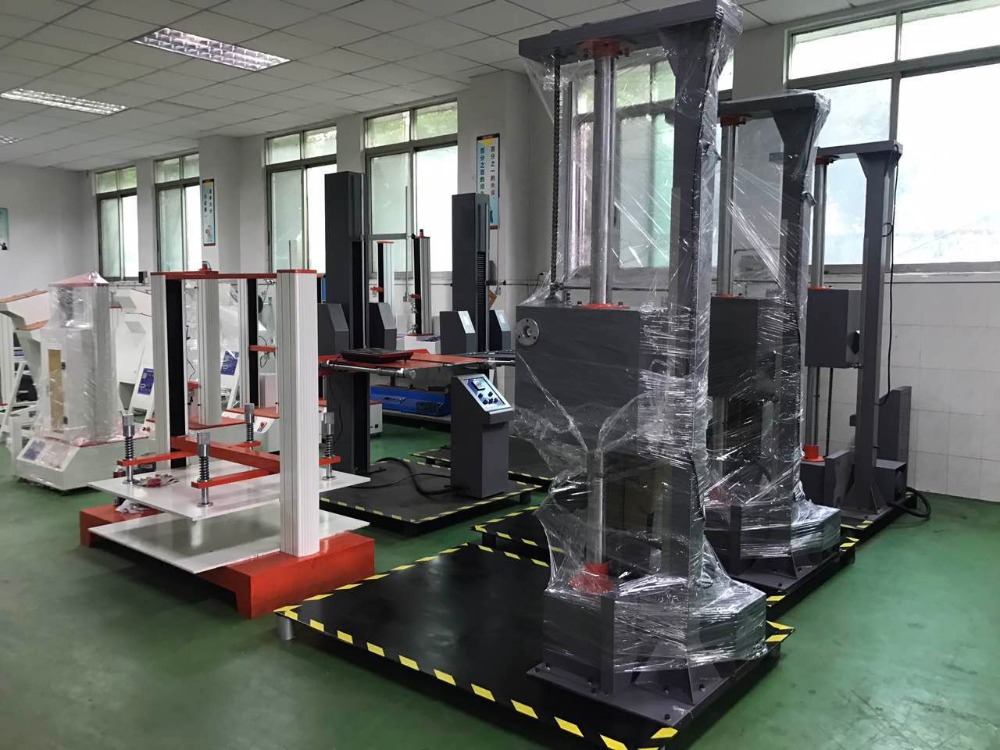

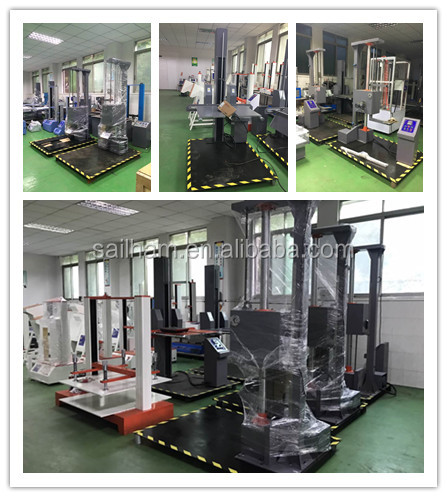

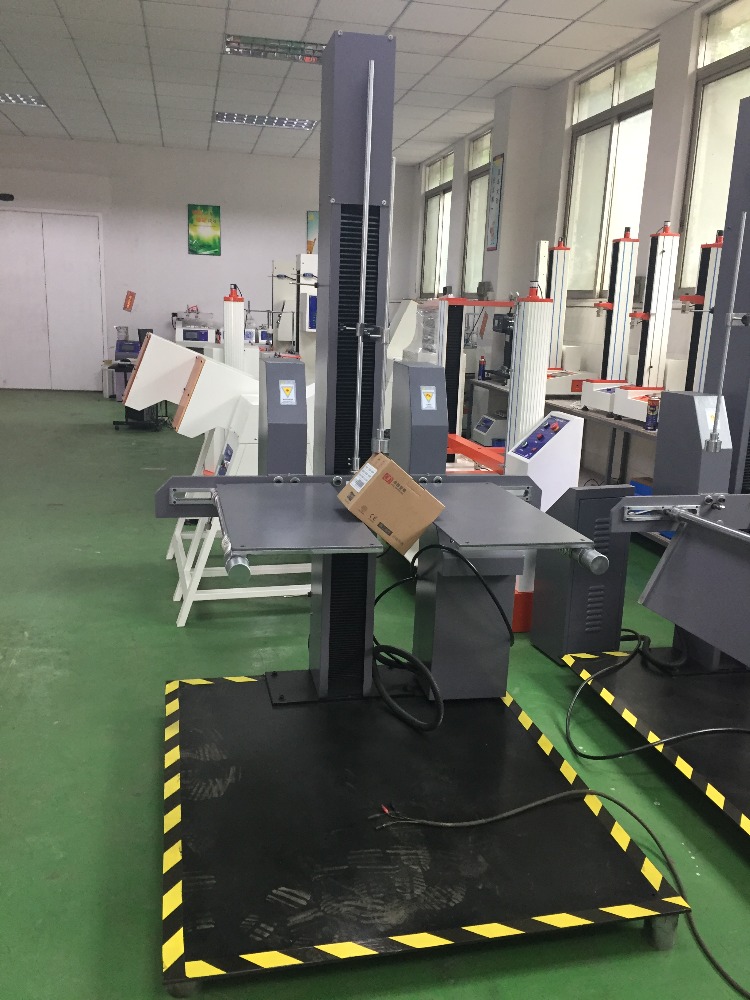

Maching workshop

?

?

?

?

?

?

?

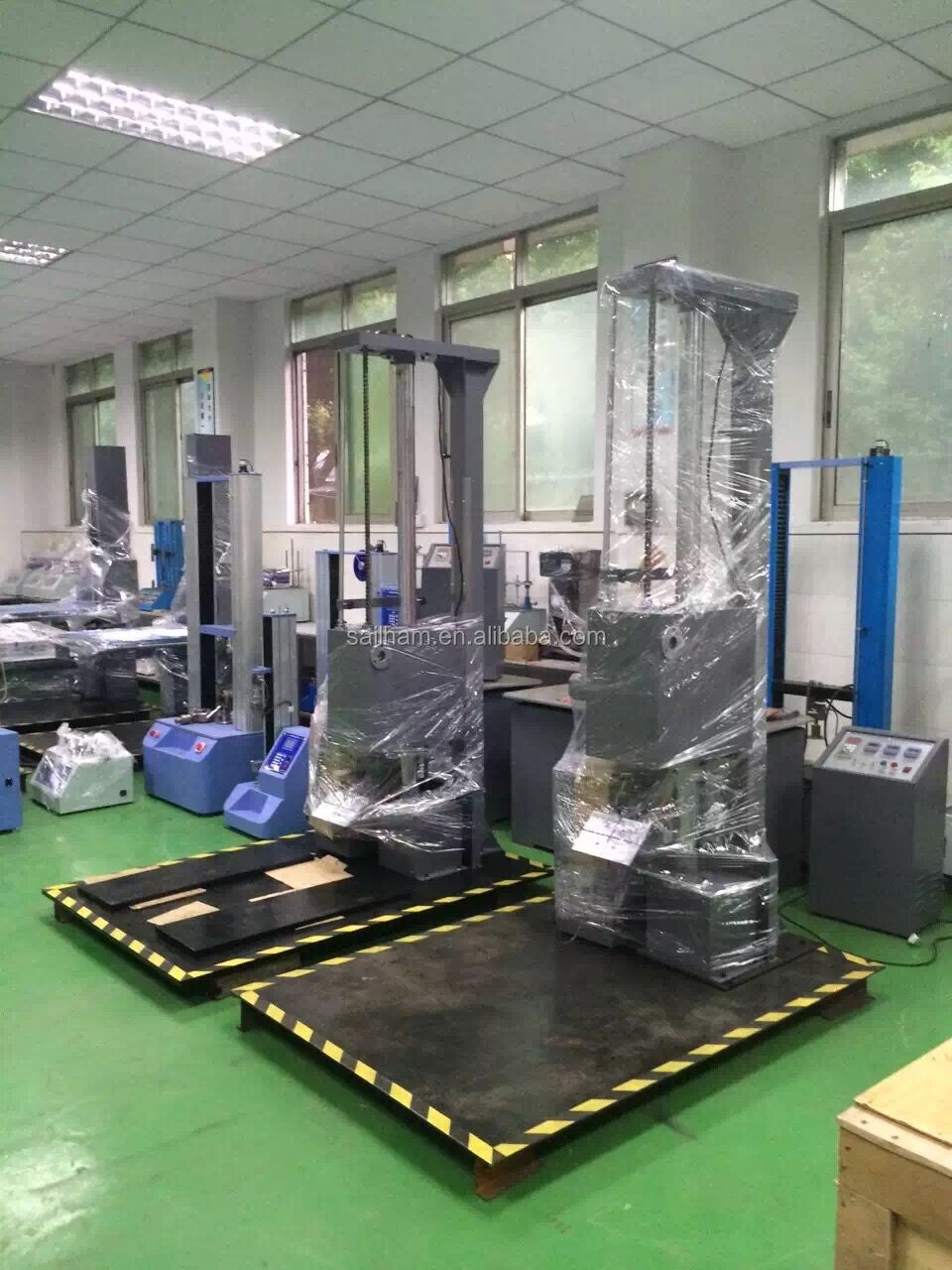

Packaging and shipping

?

?
