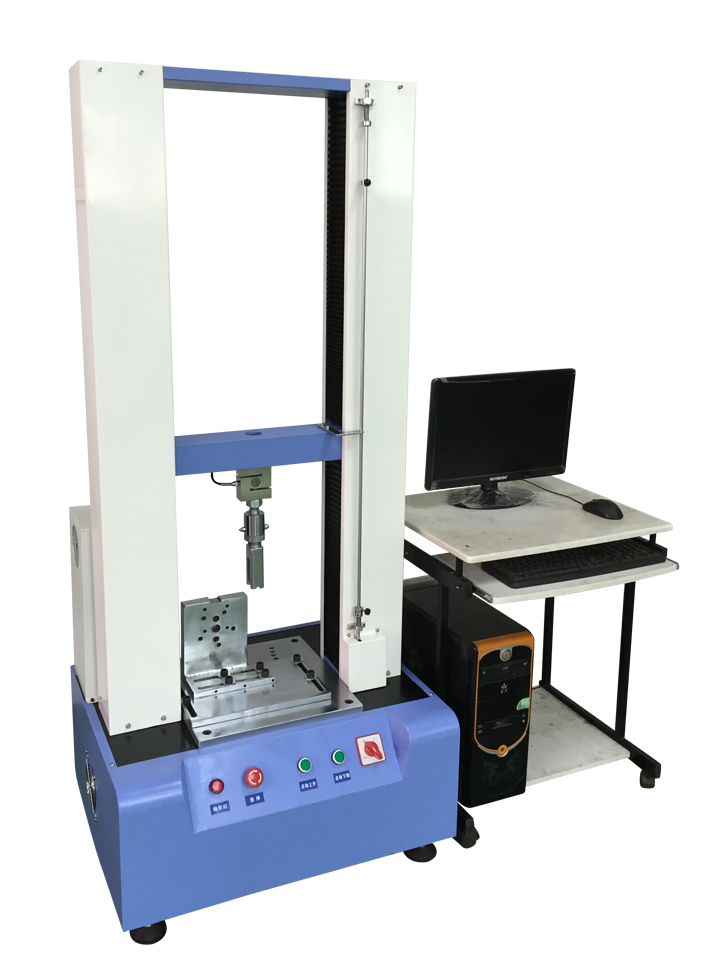

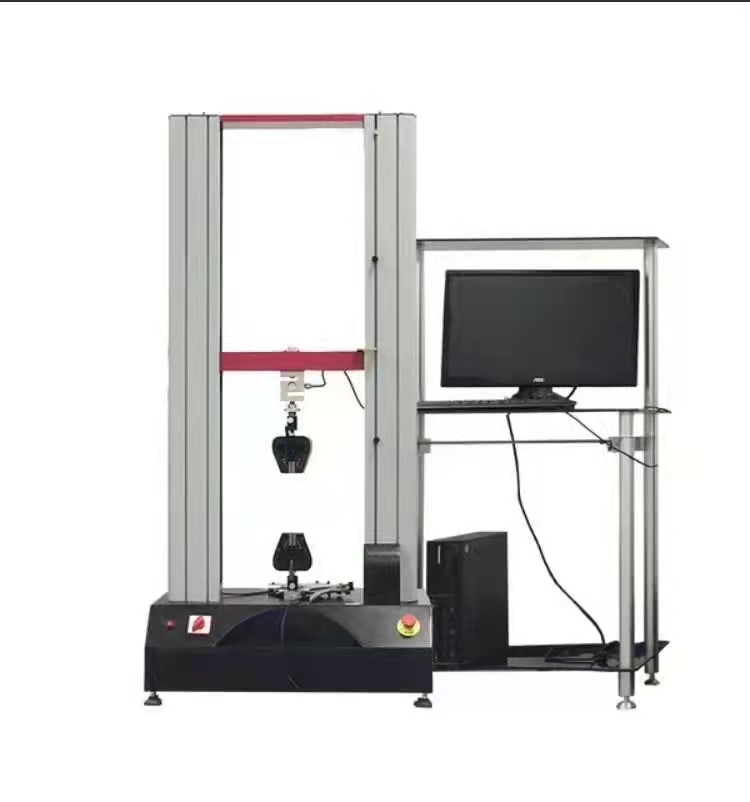

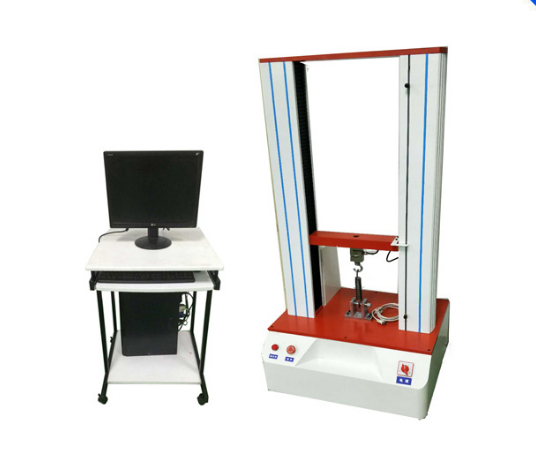

Application:
Compressive Strength Testing Machine is designed for conducting tensile, compression, bending, shearing, bonding, strength, peeling, tearing and other tests for rubber, plastic, leather, metal, also get data collection, preservation, processing and printing tests result, and calculate max force, yield strength, average peeling force,

?

?

?

?

?

Features

1. Using high-precision, fully digital speed control system and precision reducer, precision ball screw to drive the test with testing speed to achieve a wide range of adjustment, low noise during testing process and get smooth operation.
2. Universal joint cross pin structure has a tilt angle limitation, on the one hand, it facilitate the sample holder to ensure concentricity test, on the other hand it eliminates the effects from the testing of irregular sample.

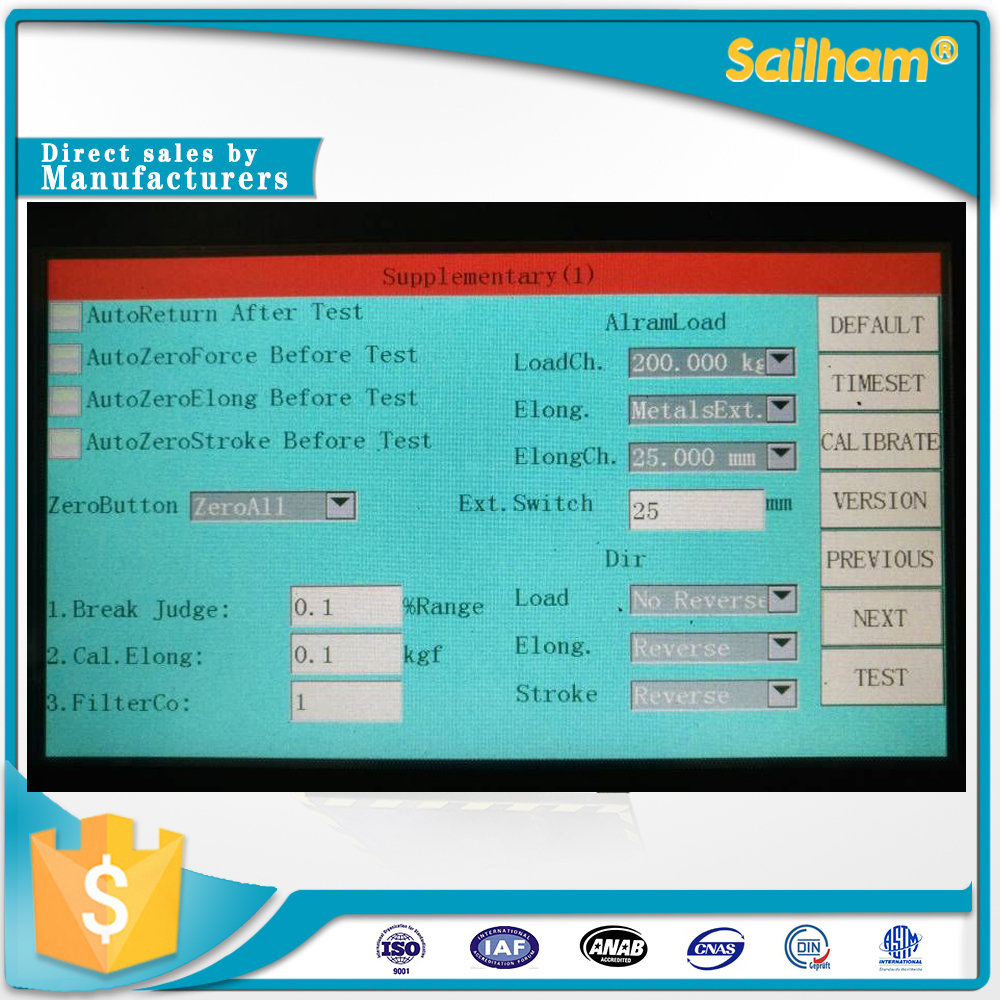

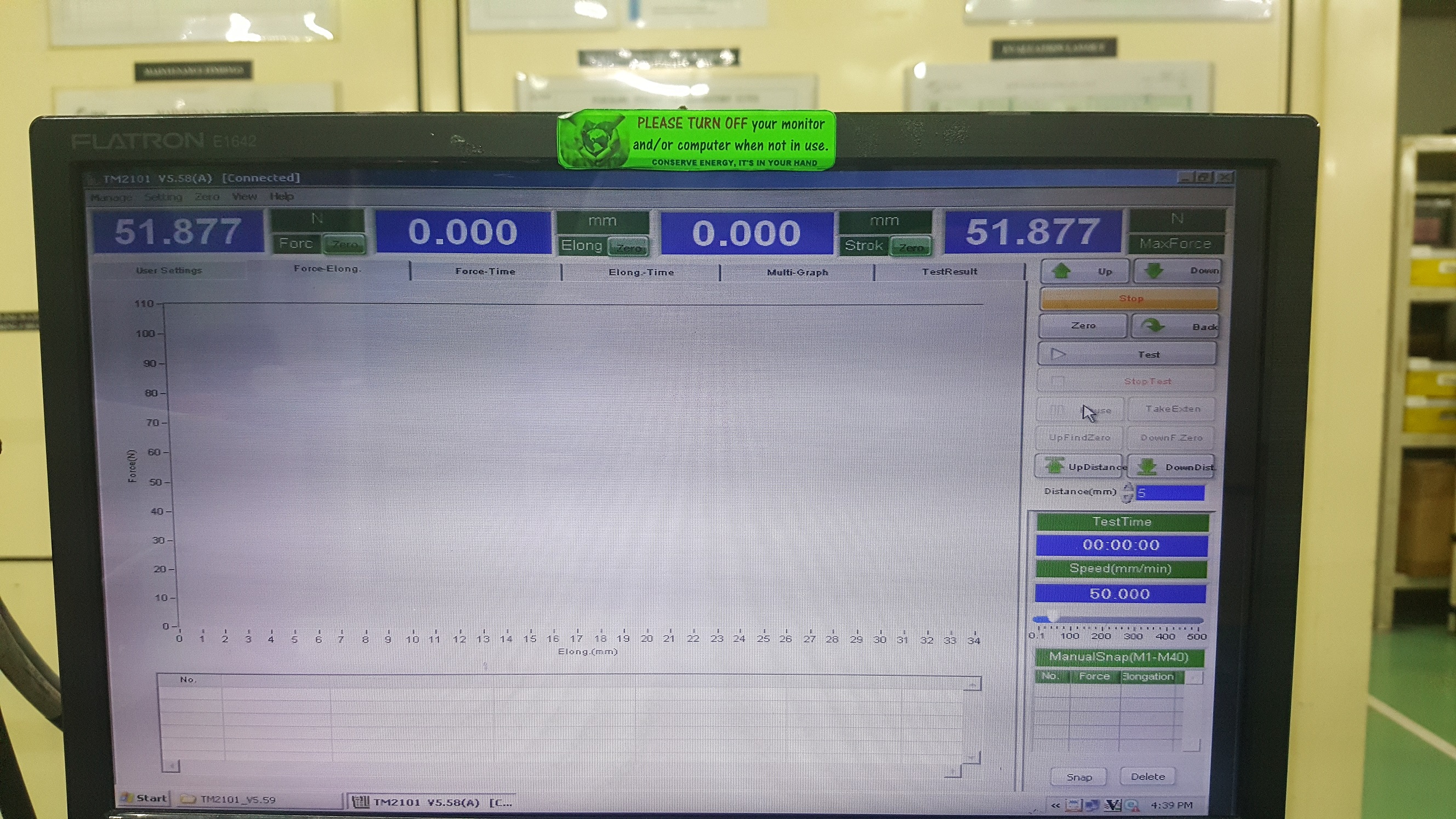

3. Touch button operation, LCD display with real-time display. The screen interface displays the testing method selection to select test parameters, test operation and results display and curve display interface which is very convenient.
4. Lifting speed adjustment of clamping beam during specimen testing is available, with protection from over-current, over-voltage and overload protection device.
5. For quick and reliable tests, TecQuipment can supply the optional Versatile Data Acquisition System (VDAS?). This gives accurate real-time data capture, monitoring and display, calculation and charting of all important readings on a computer.

6.100 kHz data sampling and Multilingual and multi-unit display options as standar

?

?

?

Technical paramters:

Model	ZH-DB-10KN
Machine type	Double?beam
Capacity (kN)	100
Measuring accuracy (%)	+/-0.1? ? ? ? ? ? ? ? ? ? ? ? ? ?
Test force resolution	1/20000
Total Cross-Head Movement (mm)	800 or 1000
Stroke Resolution (mm)	0.01
Speed Range (mm/min)	5-500
Testing Space (mm)	800mm
Pc-Port	TCP/IP or USB
Hardware safety protection	Up/down limit, emergency stop button
Motor type	Servo Motor
Dimension (mm)	460*500*1350
Weight (kg)	70
Power	220V, 50Hz AC

?

?

?

?

?

?

?

?

Our Team

?

?

?

?

Maching workshop

?

?

?

?

?

?

?

Packaging and shipping

?

?

Our partner?

?

?

FAQ

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.

?

Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

?

Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support,?Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory?

?

Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

?

Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

?

Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film?for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.

?

?

?
