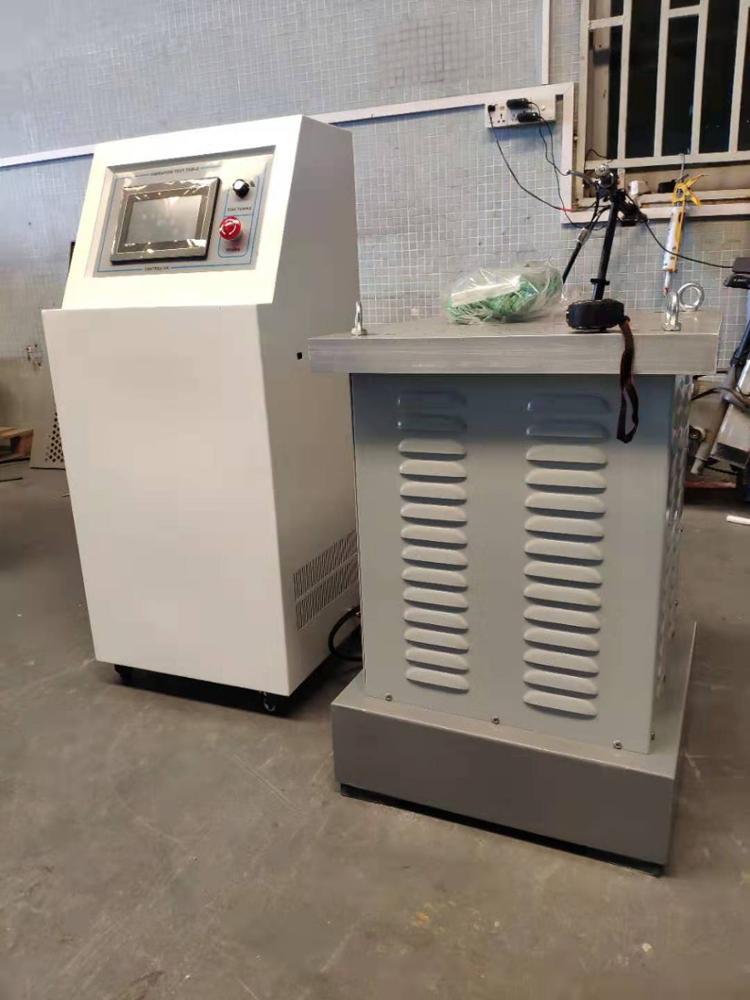

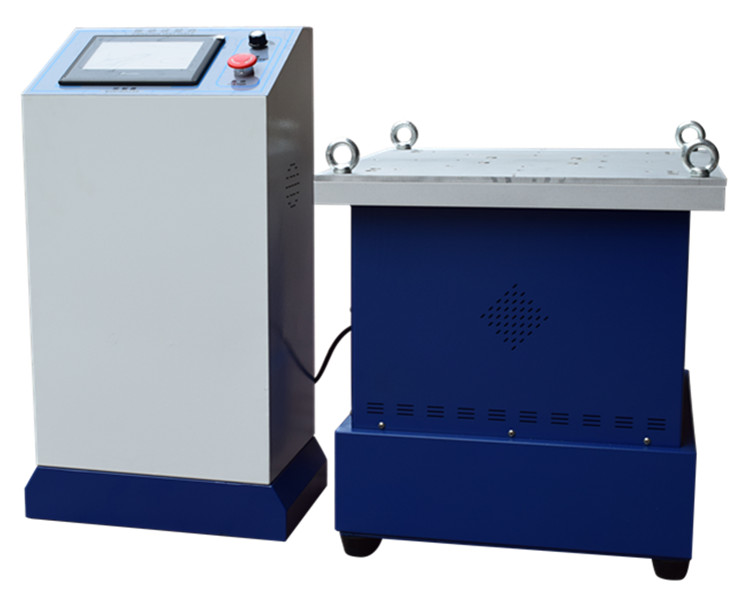

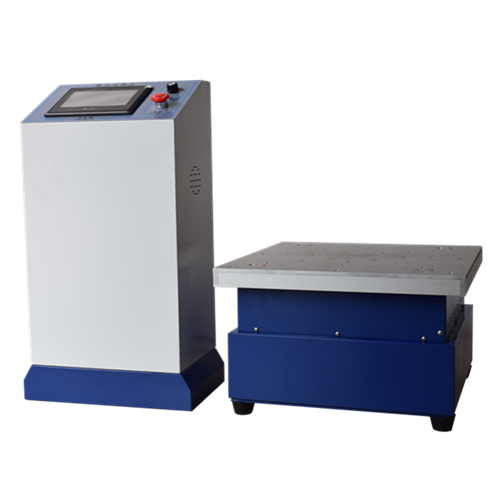

This High frequency electromagnetic vibration table is suitable for industrial production, research and development, such as testing of products for vertical and horizontal vibration test, vibration resistance and level test and anti-vibration performance. It’s used widely in electronic, electrical and other finished products or components, and thus to know the changes or structure generated when export products to simulate the vibration in subject to certain frequency after the vibration.

Function:

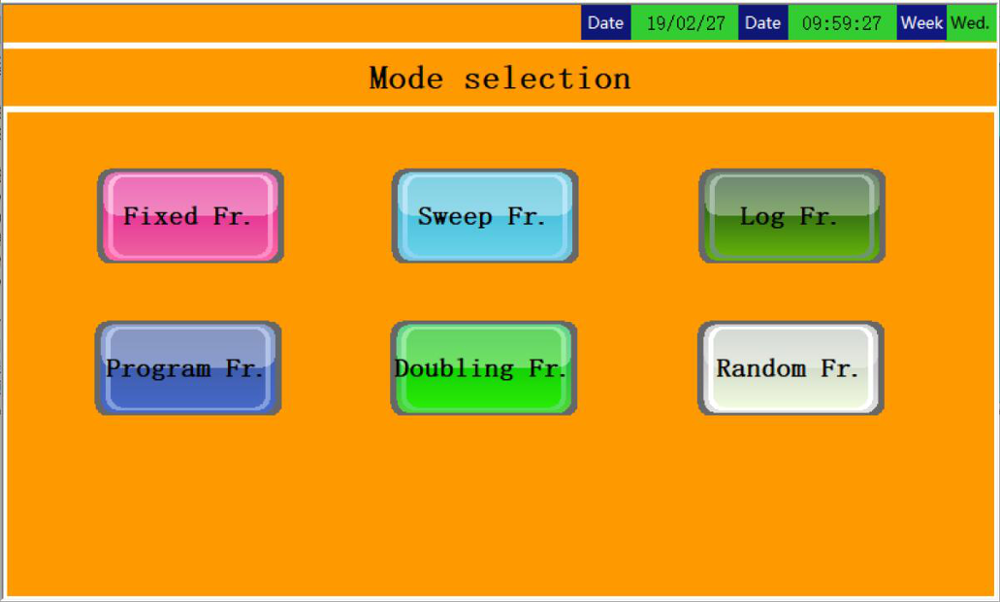

1)?? Adopts the most advanced and simple operation technology, fixed frequency, frequency sweep, the program at any time to facilitate switching, with timing and countdown display function;

2)?? Touch screen controller, easy to operate, to solve the shortcomings of digital operation which is inconvenient;

3)?? Real-time synchronous display of control parameters, without human intervention.

4)?? Machine base with shock absorber, easy installation, smooth operation, no need to install the anchor screws

5)?? Embedded amplitude prediction program and easy to adjust the amplitude

6)?? Four-point synchronous excitation, the table vibration evenly

7)?? Stepless adjustment amplitude, fixed frequency and frequency sweep operation can meet requirements of a variety of different industry;

8)?? Increase the anti-jamming circuit, to solve the strong electromagnetic field on the control circuit interference;

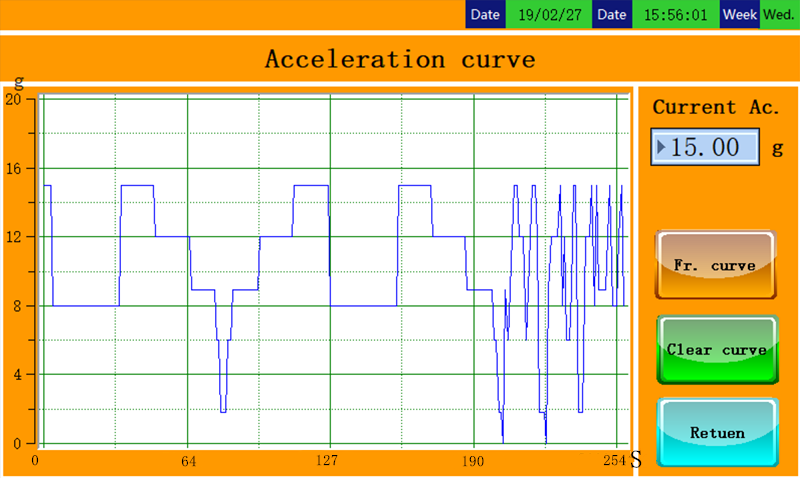

9)?? Curve display function, can view the frequency waveform changes at any time

10)Curve direct export function

11)The working direction is automatically switched

12)With USB interface to export test data to a file.

?

?

?

?

?

One direction

?

?

Three directions

?

?

?

?

Technical parameters:

Model	ZH-500DC/B/A
Max load	60KG
Frequency range	2-600HZ adjustable

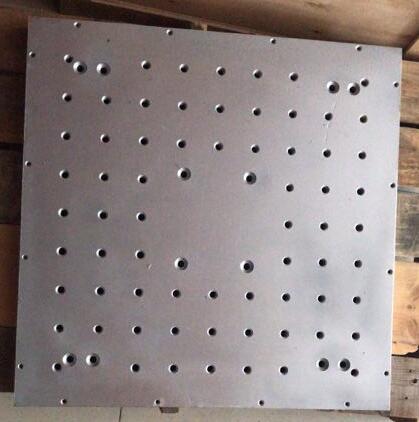

Testing table size	500*500mm
Amplitude	0-5mm adjustable
Time set	0-99hr adjustable
Frequency adjustment	Rotary knob
Vibration direction	X+Y shaft horizontal + Vertical + front and rear
Machine body	Spray painting by static electricity
Power	1.2KW
Machine body	Spray painting by static electricity
Max. accelerated speed	20G
Auto option	Action shift from X and Y direction until set time
Power supply	0~99.99hour
Motor power	220V/50Hz
Weight	150kg
Cooling method	Weed cooling

?

?

?
