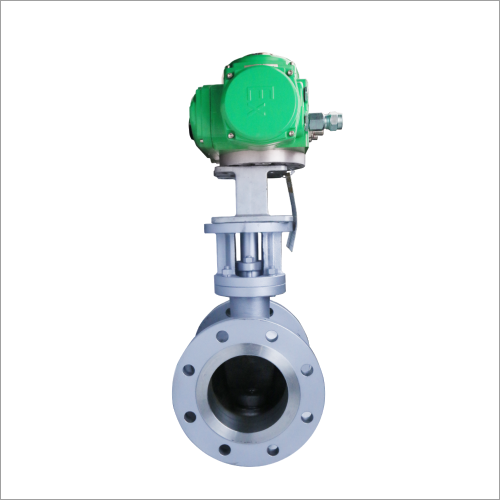

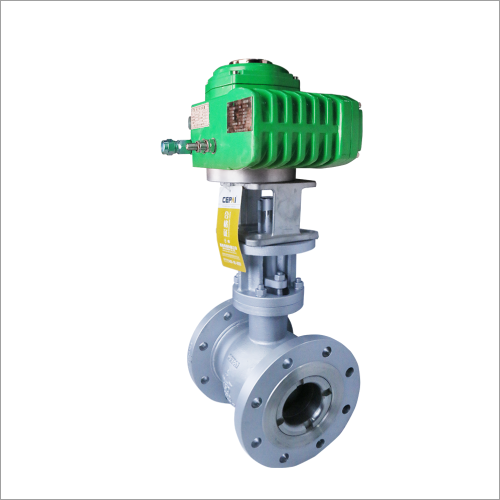

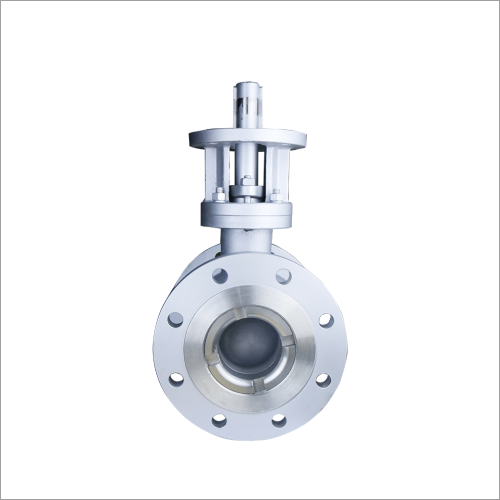

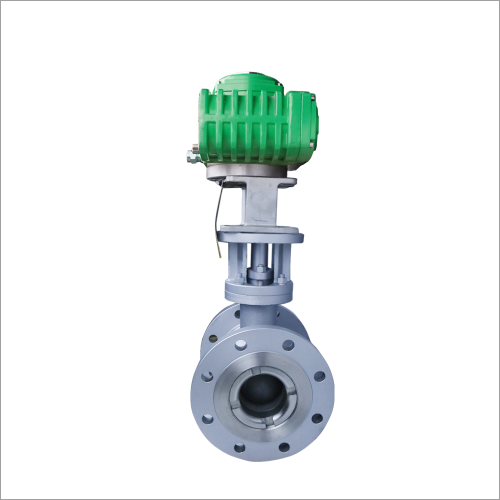

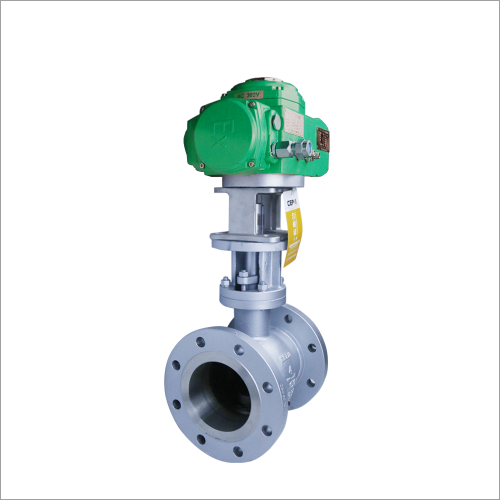

Electric Stainless Steel V-type Ball Valve
Basic Info
| Brand Name | Cepai |
|---|
Product description
Control mode: Select the appropriate control mode as required. Electric V-type ball valve usually has manual control, automatic control and remote control,
Size and connection method: Select the right ball valve according to the pipe size and connection method. Ensure that the ball valve matches the connection
Brand and quality: Choose well-known brands and have a good reputation of ball valves to ensure reliable product quality and long service life.
Price: Select the right electric V-ball valve according to the budget. The price will be affected by factors such as brand, material and size, and it is necessary to
This is one of the highest quality products our company produces. Our company also produces Pneumatic Ball Valve, Electric Ball Valve, and Pneumatic Butterfly Valve, Electric Butterfly Valve, Fluorine Lined Valve, etc. You can buy according to your needs, or you can contact us on the home page.
| Ball core form: | full-bore V-shaped |
| Nominal diameter: | DN15-450mm |
| Nominal pressure: | PN16, 40, 64; ANSI150, 300, 600 |
| Connection type: | flange type. Clamp type |
| Valve body material:? | WCB, WC6, WC9, LCB, CF8, CF8M, etc. |
| Filling: | PTFE, flexible graphite |
| Valve core form:? | metal seal, soft seal |
| Flow characteristics: | equal percentage |
| Internal materials:? | 304+PTFE, 316+PTFE, 304, 316, 304L, 316L |
| Model:? | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal: | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
| Leakage: Metal Seal: | Meets ANSI B16.104 Level IV |
| Non-metallic valve seat:? | Meets ANSI B16.104 Level VI |
| Accessories (configured upon request) | Positioner, filter pressure reducing valve, handwheel mechanism, limit switch, solenoid valve, valve position transmitter, pneumatic accelerator, locking valve, etc. |
?
Electric Stainless Steel V-type Ball Valve
