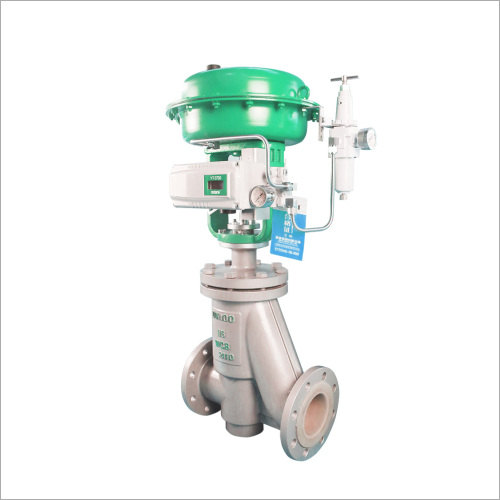

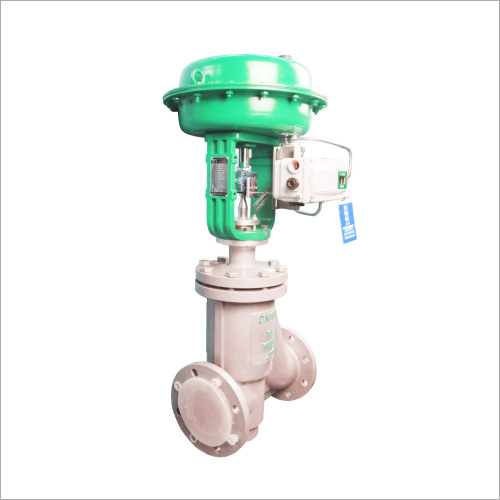

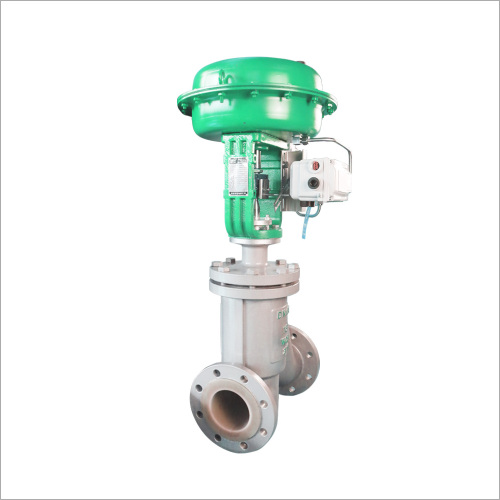

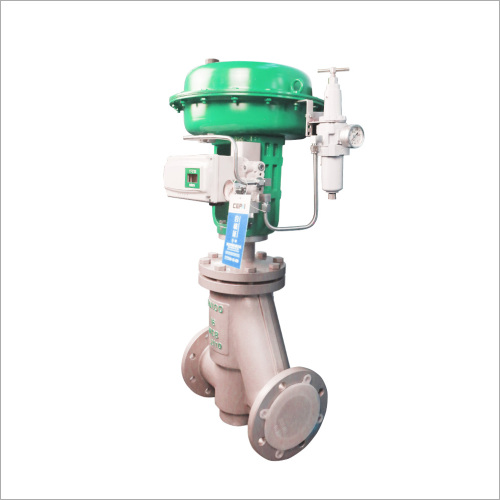

High Safety Pneumatic Fluorine Lined Control Valve
Size:
- 1/2" 150LB
- 3/4" 150LB
- 1" 150LB
- 1 1/2" 150LB
- 2" 150LB
- 3" 150LB
- 4" 150LB
- 5" 150LB
- 6" 150LB
- 8" 150LB
Material:
- 304+F46 stainless steel
pressure:
- Low Pressure
Options:
- Please contact customer service for details
Basic Info
| Brand Name | Cepai |
|---|---|
| Types of | Globe Valves |
| Support customization | Oem |
| place of origin | China |
| Medium temperature | Normal Temperature |
| power | Pneumatic |
Product description
The main features of pneumatic fluorine-lined control valve are as follows:
1. Fluorine-lined material: The valve body and valve cover are made of fluorine-lined material, which has excellent corrosion resistance and can adapt to the control requirements of various corrosive media.
?
2. Precision adjustment: The pneumatic fluorine-lined control valve adopts a precision adjustment mechanism, which can achieve precise flow and pressure adjustment to meet the control needs under different working conditions.
?
3. Quick response: The pneumatic actuator has the characteristics of quick response, which can quickly adjust the opening degree of the valve to achieve rapid flow and pressure regulation.
?
4. High reliability: The pneumatic fluorine-lined regulating valve adopts high-quality materials and advanced manufacturing technology, and has good sealing and durability, ensuring the reliability and long life of the valve.
?
5. Good safety performance: Pneumatic fluorine-lined control valve has good safety performance and can work normally under high temperature, high pressure and corrosive media without causing harm to the working environment and operators.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.

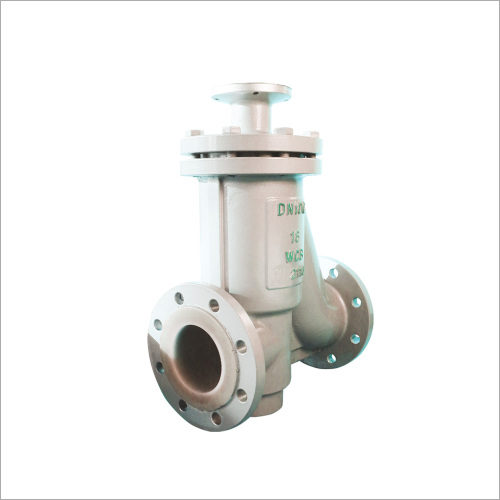

VALVE BODY
| Type | straight single seat ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection type: | Flange type |
| Body material:? | WCB lined F46, 304 lined F46, WCB lined PFA, 304 lined PFA |
| Packing:? | V-type PTFE packing |
| Spool form: | single seat plunger spool |
| Adjustment characteristics: | equal percentage, linear |
| Internal? materials:? | WCB lined F46, CF8 lined F46, WCB lined PFA, CF8 lined PFA, etc |
Executive mechanism
| Model: | Piston actuator |
| Gas supply pressure: | 400~700KPa |
| Air source connector:? | G1/8, G1/4, G3/8, G1/2 |
| Ambient temperature:? | -30 ~ +70℃ |
| Action form: | single action, double action? |
| Leakage:? | Meet ANSI B16.104 Class VI |
?
