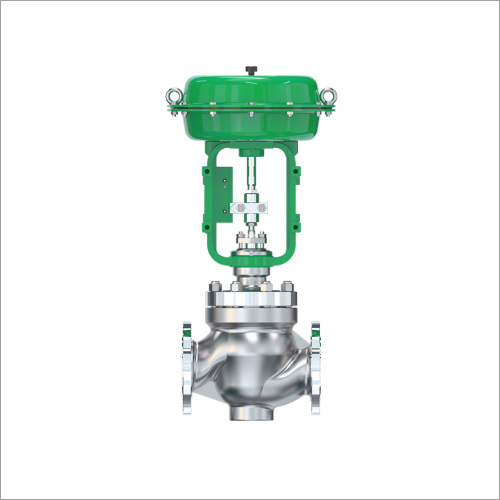

Safe and Reliable Pneumatic Single Seat Control Valve
Size:
- 1/2" 150LB
- 3/4" 150LB
- 1" 150LB
- 1-1/4" 150LB
- 1-1/2" 150LB
- 2" 150LB
- 2-1/2" 150LB
- 3" 150LB
- 4" 150LB
- 5" 150LB
- 6" 150LB
- 8" 150LB
- 10" 150LB
- 12" 150LB
- 14" 150LB
Material:
- 304 stainless steel
pressure:
- Low Pressure
Get Latest Price
You might also like
Basic Info
| Model No. | 5610 |
|---|---|
| Brand Name | Cepai |
| Types of | Globe Valves |
| Support customization | Oem |
| place of origin | China |
| Medium temperature | Normal Temperature |
| power | Pneumatic |
Show More
Product description
Pneumatic single-seat control valve is a control valve widely used in industrial automation control systems. It uses the pressure of the air source to control the position of the valve disc in the valve body through a pneumatic actuator, thereby regulating the flow and pressure of the medium.
The main features of pneumatic single-seat control valve include the following aspects:
1. Simple structure: The pneumatic single-seat control valve is composed of a valve body, a valve disc, a valve seat and a pneumatic actuator. It has a simple and compact structure and is easy to install and maintain.
2. Quick response: The pneumatic actuator can quickly respond to the control signal to achieve rapid opening and closing of the valve disc, thereby achieving rapid adjustment of the medium flow and pressure.
3. High adjustment accuracy: The pneumatic single-seat control valve adopts precise valve disc and valve seat design, which can achieve precise adjustment of medium flow and pressure and meet the accuracy requirements of industrial automation control systems.
4. Strong corrosion resistance: The valve body, valve disc and valve seat of the pneumatic single-seat control valve are usually made of corrosion-resistant materials, which can adapt to the control requirements of various corrosive media.
5. High reliability: The pneumatic single-seat control valve adopts a reliable pneumatic actuator, which has good sealing performance and stability and can work stably for a long time.
The main features of pneumatic single-seat control valve include the following aspects:
1. Simple structure: The pneumatic single-seat control valve is composed of a valve body, a valve disc, a valve seat and a pneumatic actuator. It has a simple and compact structure and is easy to install and maintain.
2. Quick response: The pneumatic actuator can quickly respond to the control signal to achieve rapid opening and closing of the valve disc, thereby achieving rapid adjustment of the medium flow and pressure.
3. High adjustment accuracy: The pneumatic single-seat control valve adopts precise valve disc and valve seat design, which can achieve precise adjustment of medium flow and pressure and meet the accuracy requirements of industrial automation control systems.
4. Strong corrosion resistance: The valve body, valve disc and valve seat of the pneumatic single-seat control valve are usually made of corrosion-resistant materials, which can adapt to the control requirements of various corrosive media.
5. High reliability: The pneumatic single-seat control valve adopts a reliable pneumatic actuator, which has good sealing performance and stability and can work stably for a long time.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY
| Type | straight single seat ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection form: | Flange type |
| Valve body material:?? | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Valve cover form: | Standard type (P):? -17-+230℃ |
| Gland type: | Bolt pressing type |
| Filling:? | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
?
Valve inner assembly
| Spool form: | upper guide single seat plunger spool |
| Adjustment characteristics: | equal percentage, linear, fast opening |
| Internal parts materials:? | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, 17-4PH, etc |
?
Executive mechanism
| Pneumatic actuator | ? |
| Model: | Film type |
| Film material: | ethylene propylene rubber sandwiched nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Gas supply pressure:? | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Action form: | gas open (reaction), gas close (positive action) |
| Note： | ① This type of large diameter or high pressure difference regulating valve can also be equipped with straight stroke piston actuators. |
| ? | ② If the ambient temperature is lower than -30 ° C, please contact the western technical personnel. |
?
Performance
| Leakage:? | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat:? | conforms to ANSI B16.104 Class VI? |
?
?
?
Video
Single seat control valve
Single seat control valve
Single seat control valve
