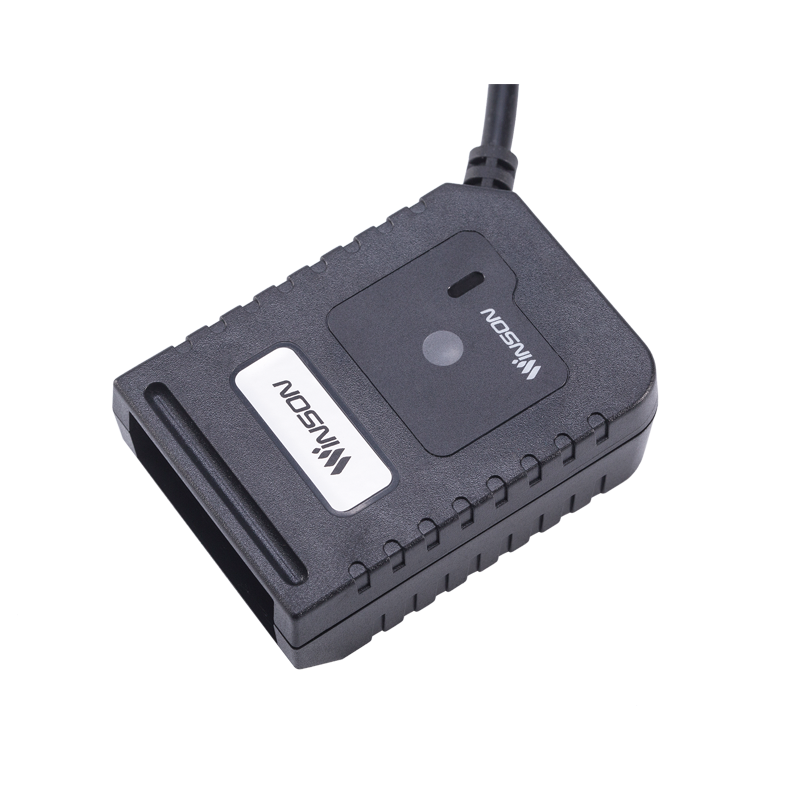

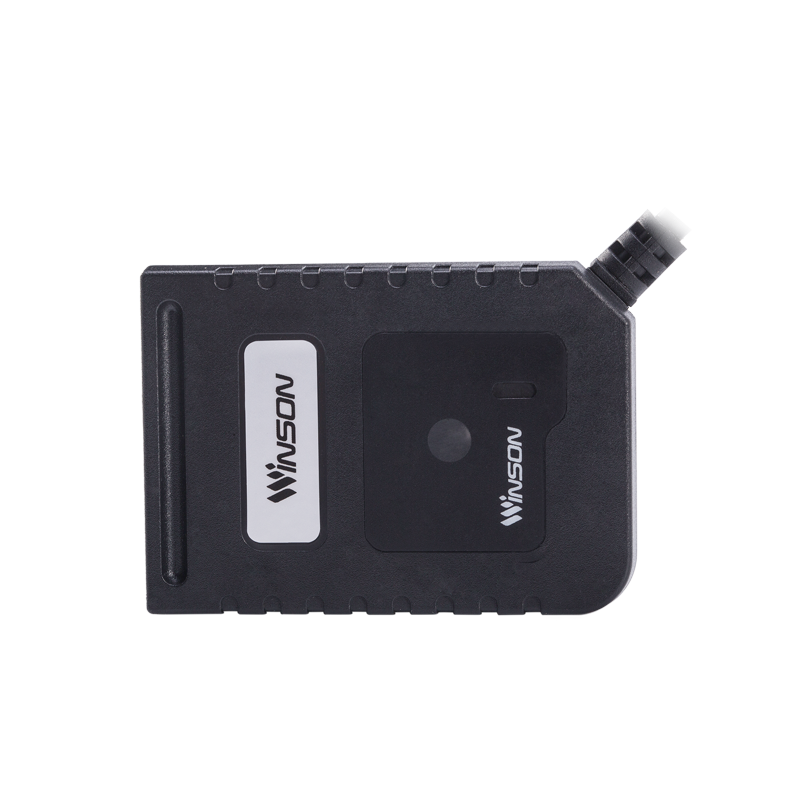

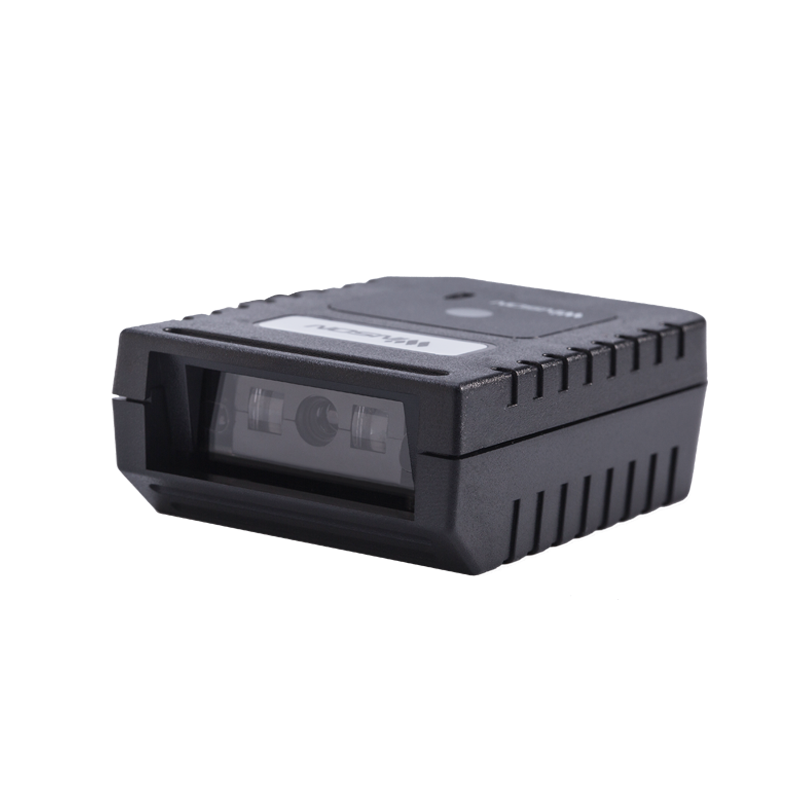

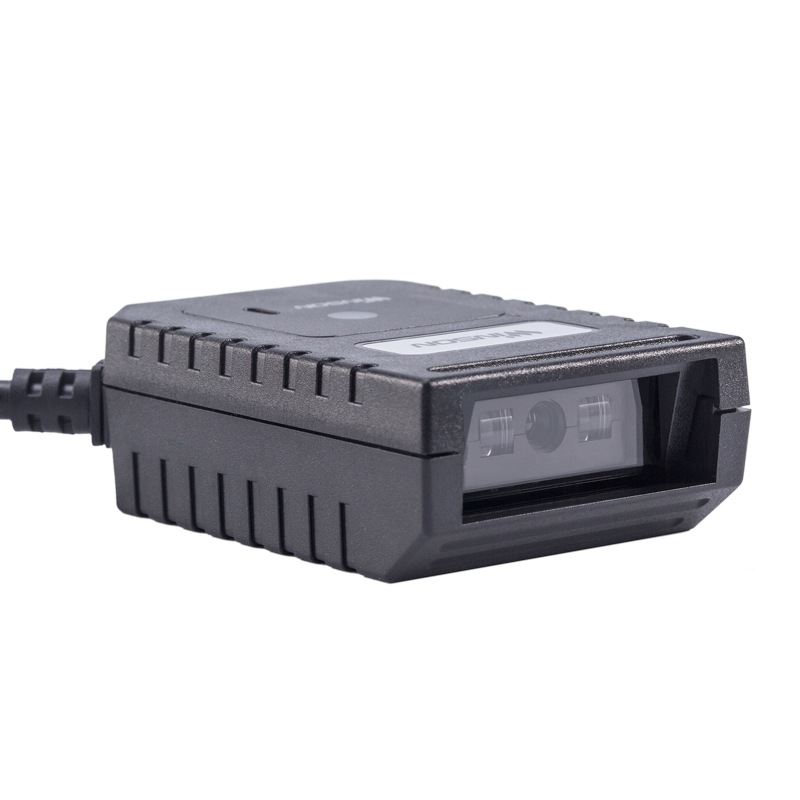

Fixed Mount Barcode barcode scanner Scan Head

Options:

Get Latest Price

You might also like

Basic Info

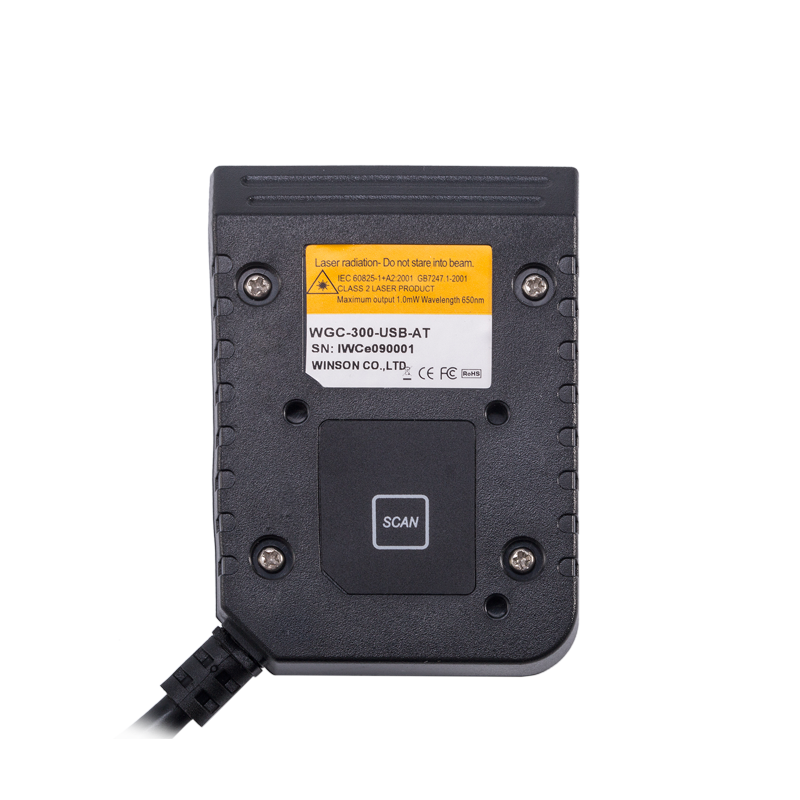

Model No.	WGC-300-USB
Brand Name	wionson
Certification	Ce
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd, Cmos
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Private Mold	Yes
Products Status	Stock
Type	Scanner Module
Scan Element Type	Ccd
Colour Depth	32 Bit
Interface Type	usb, SCSI, IEEE 1394, COM, PS/2, Other
Max Paper Size	N/A
Optical Resolution	5mil
Scan Speed	300 Scans/Sec
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Color	Black

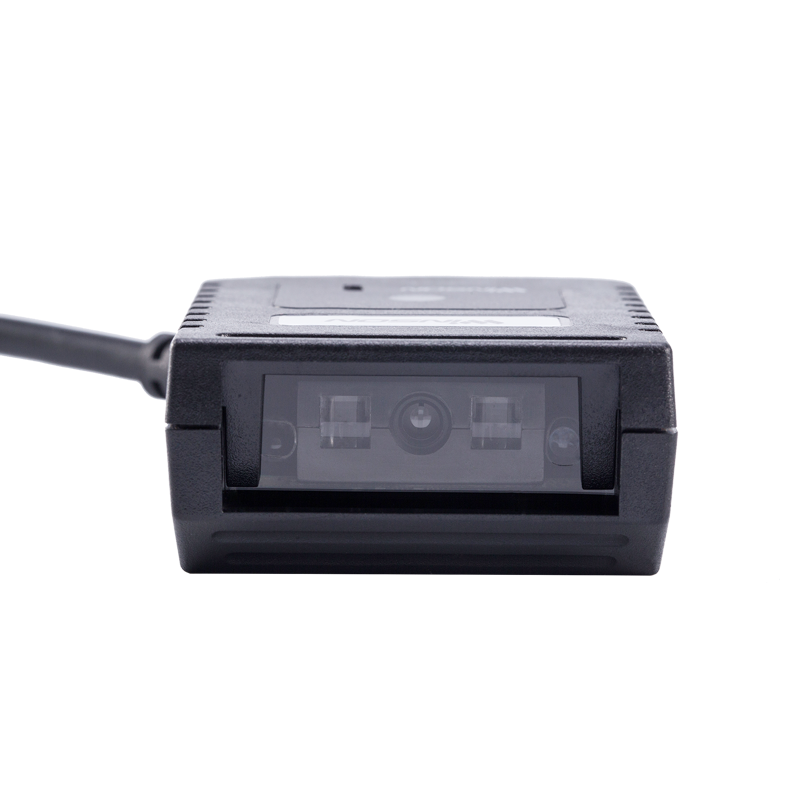

Product Name	WGC-300 CCD Scanner Module
Interface	USB HID KEYBOARD/USB VCP/RS-232
Voltage requirement	DC 5V±10%
Current Consumption	Max:118mA
Photo sensor	CCD linear sensor
Decode angle	Pitch angle:±30° Skew angle:±70° Tilt angle:±40°
Min X Dimension	0.127mm/5mil(PCS 0.9)
Print Contrast	>25%UPC/EAN 13(13mil)
Dimension	30mm26mm12mm(LWH)
Certification	Ce

Product description

Product Description

Specification

Technical Specifications
Electrical Characteristics

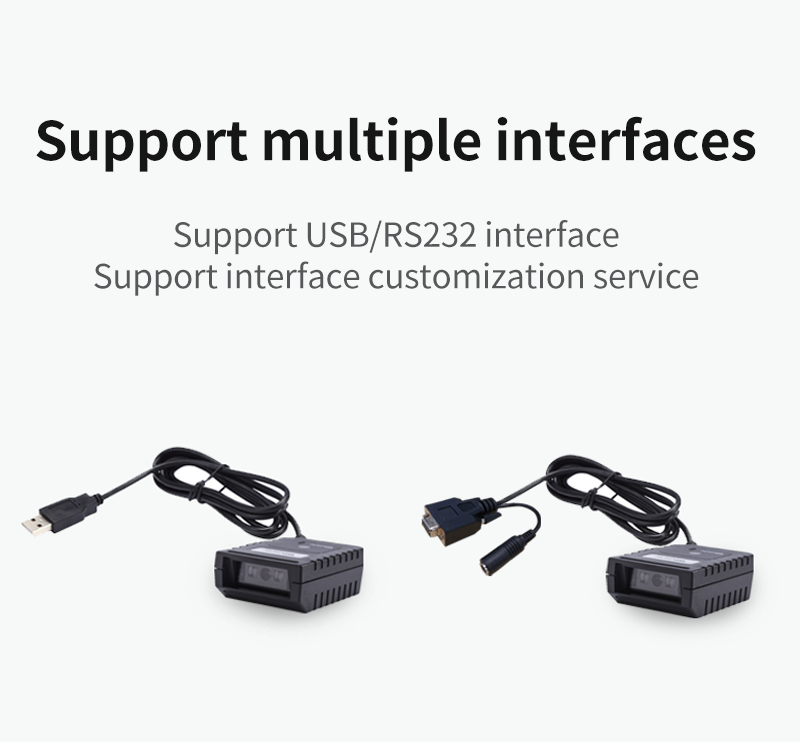

Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:118mA
Optical Characteristics
Image Sensor	CCD Linear Sensor
Sensor Resolution	2500pixels
Light Source	Red LED
Performance Characteristics
Decoding rate:	350 scans/second±50 scans/second
Scanning Angle	Pitch angle:±30°;Skew angle:±70°;Tilt angle:±40°
Min Resolution	0.127/5mil（PCS 0.9）
Min .PCS value	〉25%UPC/EAN 13（13mil）
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
