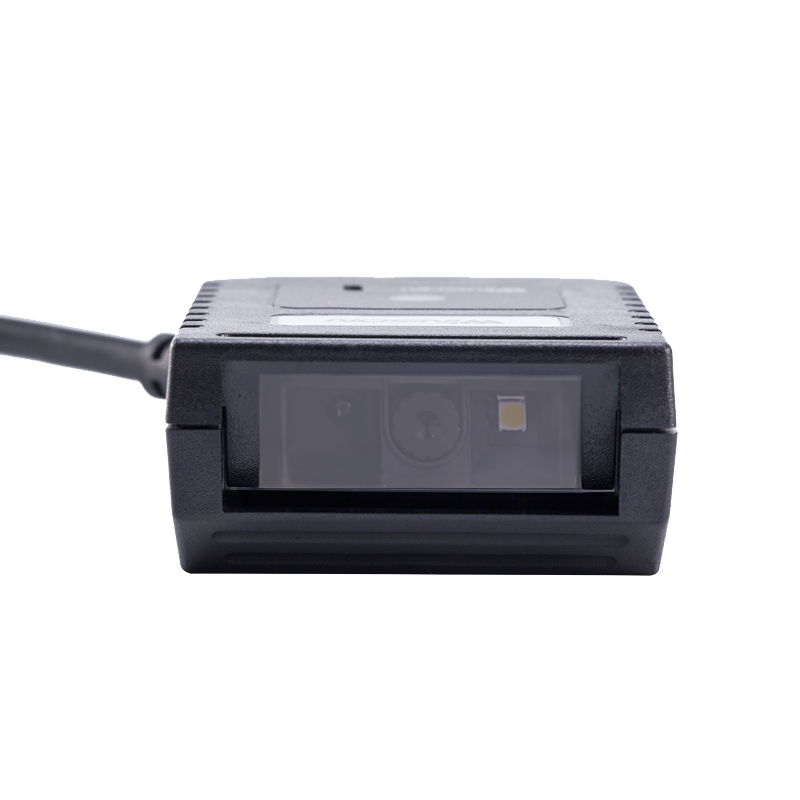

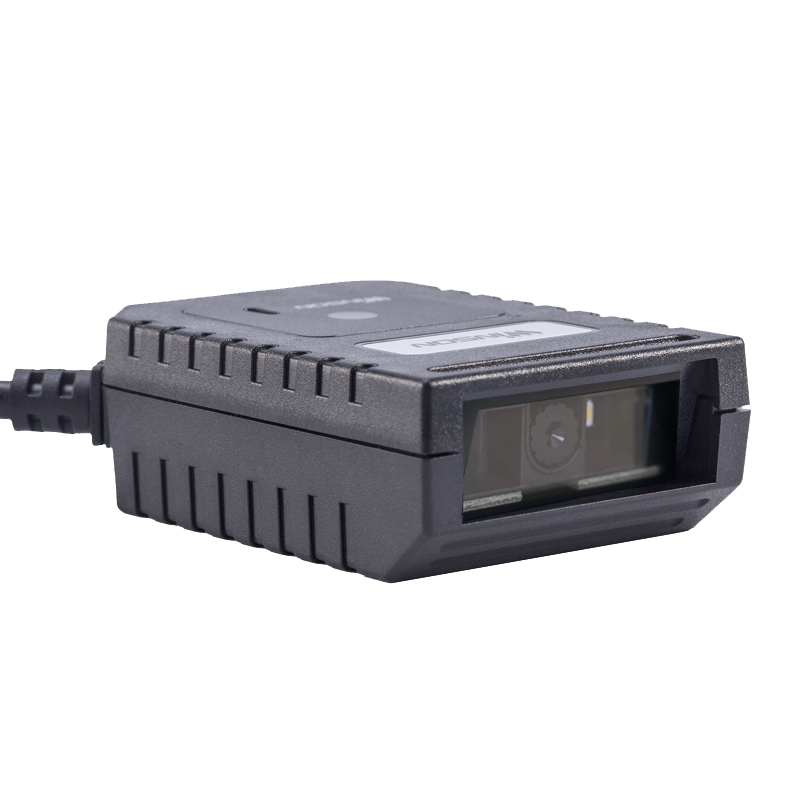

Fixed Mount Barcode Scanner Module Mobile Payment

Options:

Get Latest Price

You might also like

Basic Info

Model No.	WGI-3220
Brand Name	WINSON
Certification	Ce
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd, Cmos
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Private Mold	Yes
Products Status	Stock
Type	Mini Scan Engine
Scan Element Type	Cmos
Colour Depth	32 Bit
Interface Type	usb, SCSI, IEEE 1394, COM, PS/2, Other
Max Paper Size	N/A
Optical Resolution	1280X800 pixels
Scan Speed	60fps
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Software development kit (SDK)	NO
Color	Black
Product Name	Mini Scan Engine
Interface	RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement	DC 5V±10%
Current Consumption	Max :250mA
Photo sensor	CMOS array sensor
Operating Temperature	-20°to 65°C /5 to 90%
Storage Temperature	-30°to 70°C /5 to 90%
Seismic capacity	1.5 meters crop down to the concrete floor
Certification	Ce

Product description

Product Description

Specification

Interface Supported	USB HID KEYBOARD/USB VCP or RS-232
Input Voltage	DC 5V±10%
Current	<320mA
Image Sensor	CMOS Array Sensor
Sensor Resolution	640 X 480 Pixels
Light Source	White LED
Aim Light Source	Green Bar LED
Scanning Angle	Pitch angle:±50°;Skew angle:±50°;Tilt angle:±180°
Field of View	38°(H),28.9°(V)
Min Resolution	1D ≥ 0.050mm/2mil(PCS 0.9) 2D ≥ 0.076mm/3mil(PCS 0.9)
Min .PCS value	〉20% UPC/EAN 13（13mil）
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D:JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Dimensions	42mm40mm32mm(LWH)
Temperature	0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)
