Basic Info
| Model No. | GML668A |
|---|---|
| Brand Name | GALOCE |
| place of origin | China |
| Output | Analog Sensor |
| Theory | Resistance Sensor |
| Material | Stainless Steel |
| Place Of Origin | Shaanxi, China |
Product description

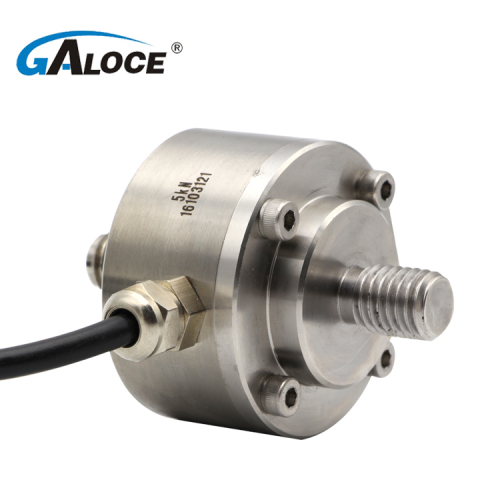

GALOCE GML668A miniature load cell is in-line force load cell, it can measure the compression and tension force sensor. stainless steel 17-4PH material, the rated capacity is from 0.1-20KN. miniature force sensor are mainly used for automonile parts assembly, automated assembly,3C product testing, new energy product assembly, medical testing,robotics,mold assembly and other industrial automation fields with small space.
|
Range (KG)
|
0.1~20(KN)
|
|
|
||
|
Comprehensive precision
|
0.3%F.S
|
Sensitivity
|
2.0mV/V
|
||
|
Zero output
|
±2%F.S
|
Creep
|
0.1%F.S/30min
|
||
|
Input resistance
|
380±10Ω
|
Output resistance
|
350±3Ω
|
||
|
Temp. effect on zero
|
±0.05%F.S/10℃
|
Temp. effect on output
|
±0.05%F.S/10℃
|
||
|
Operation temp.range
|
-20~+65℃
|
Insulation resistance
|
≥5000MΩ
|
||
|
Safe Overload
|
150%F.S
|
Excitation voltage
|
10VDC
|
||
|
Material
|
Stainless steel
|
Wiring
|
Input+: Red Input-:Black
Output+:Green Output-:White
|
||
|
Range
|
Size
|
Size
|
|
|
|
||||
|
KN
|
A
|
B
|
C
|
φ
|
M
|
||||
|
0.1~0.5
|
37.5
|
12
|
11.5
|
26
|
M5
|
||||
|
0.5~10
|
70
|
19
|
17
|
51
|
M12
|
||||
|
20
|
75
|
19
|
17
|
51
|
M12
|
||||
