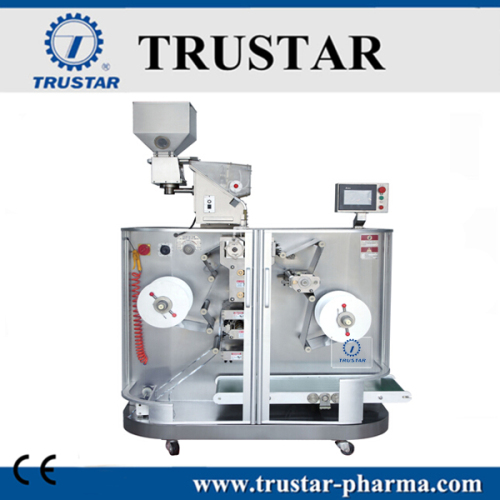

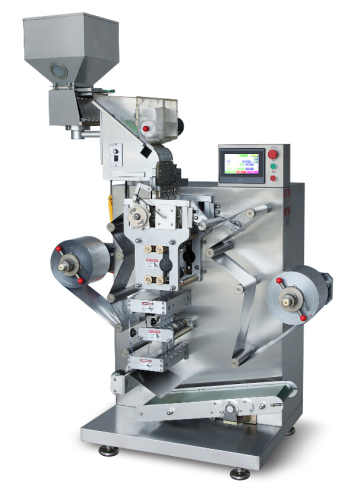

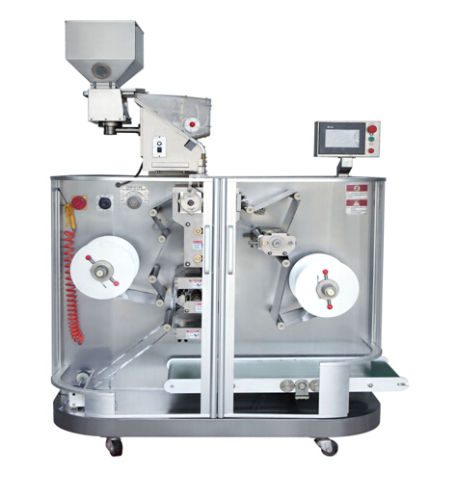

NSL-160B AUTOMATIC STRIPPING PACKAGING MACHINE

Automatic Stripping Packing Machine for Capsules

Performance Characteristics:

160B Small Automatic Packing Machine Round  Tablet NSL-260B Automatic Strip Packaging Machine,be characterized of advanced structure, high efficiency, low noise and easy to operate. It utilizes frequency control to set travel at will,increase the vibration entire column feed mechanism and optical monitoring devices, it can automatic counting,and can Auto-complete filling, sealing, tangent, batch number, cut at high-speed operation. It applies to package the Tablets, capsules and Electronic Components in the pharmaceutical industry. It can make a good sealing and lucifuge well.

ALU ALU Packing Machine Hard Capsule

The machine shell is made of welded stainless steel plate by forming, the Machine is designed reasonable and every machine configured with safe operation of protective PC board door cover which is according to "GMP" demands. It enhanced aesthetics and practicality of products.

The entire device uses programmable controller and programmable touch screen to control each action point, so it can be ensure that uncoated or coated tablets and capsules can be automatic filling into two level of Alu materials became to strip packing, the length of strip sheet (the strip traction) can be change in the touch screen as your required, you just adjusts some rollers and remove some cutter easily when you want to change the strip packing length or different sheets.
  Technical Parameters:

Capacity:30-750 thousand pcs/hour	Punch frequency:30~60times/min
Packaging area:250mm× any length	Main motor power: 0.75KW
Material roll DIA:250 mm	Heater power:3KW
Machine Dimension (L×W×H): 1600×900×1900 mm	Air compressor:0.5Mpa
Packing Dimension (L × W × H): 1800×1100× 2100mm	Gross weight:1100 kg
