Pine Nut processing machine Pine cone sheller

Pine cone thresher Pine nut sheller/cracker?

Our company has professional and mature production experience of pine nut processing line. It is?suitable for large, medium and small processing plants.

Pine nut processing steps:
1.Pine cone thresher-- 2.Removal of impurities-- 3.Size classification-- 4.Pine nut sheller-- 5.Shell and kernel separation-- 6.Drying-- 7.Peeling-- 8.Baking (or other deep processing)

?

Features of Pine cone sheller machine

1..The new structure improved by our company for many times has good mechanical stability and low noise;
2. The machine structure is compact, easy to assemble and disassemble, easy maintenance;
3.Higher shucking rate, less broken grains, higher precision, 98% cycle shucking rate, 96% integrity rate,the machine will adjust itself according to the material size, the design
4.Structure, the circulation shelling,automatically screened Unhulled and hulled ,feeding,shelling again, shell and kernel are separated from different material discharges.

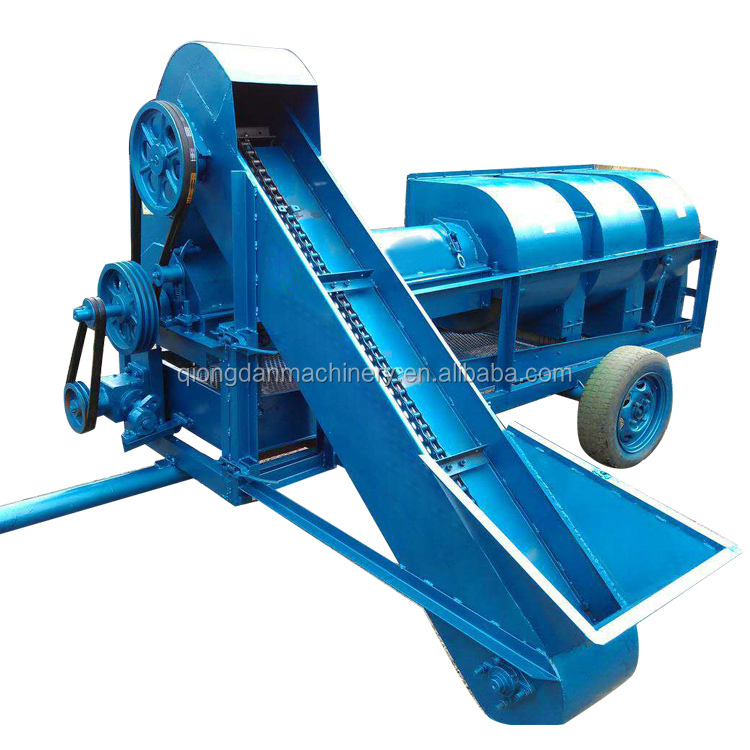

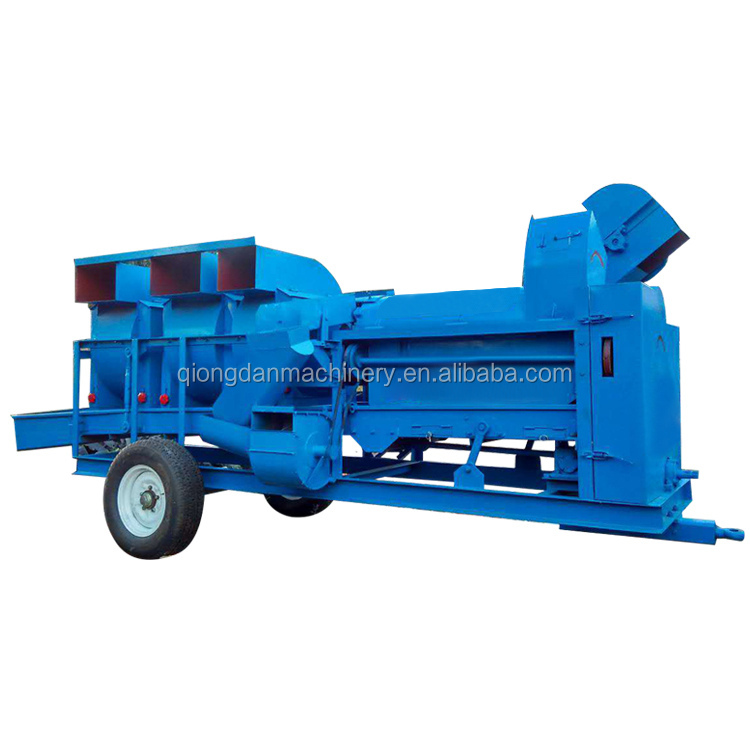

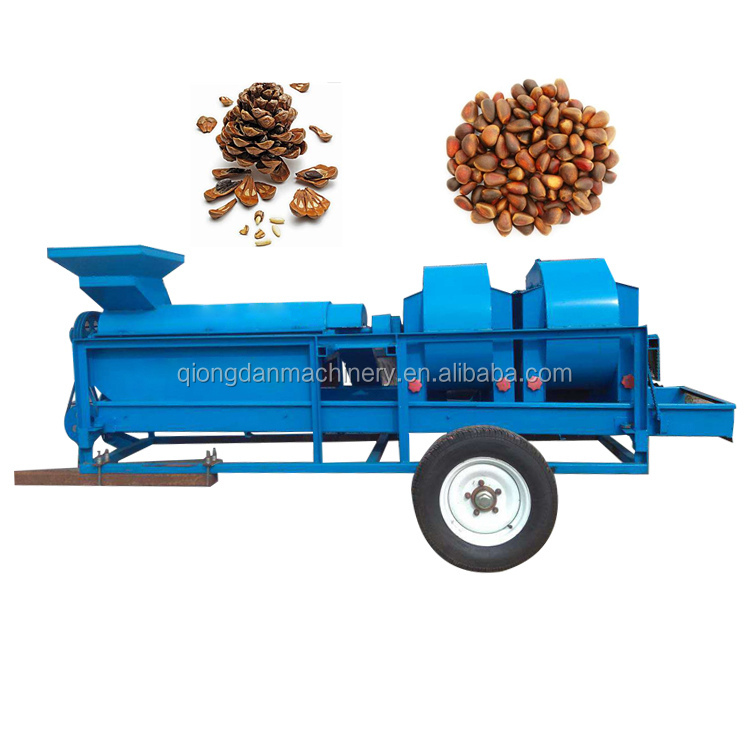

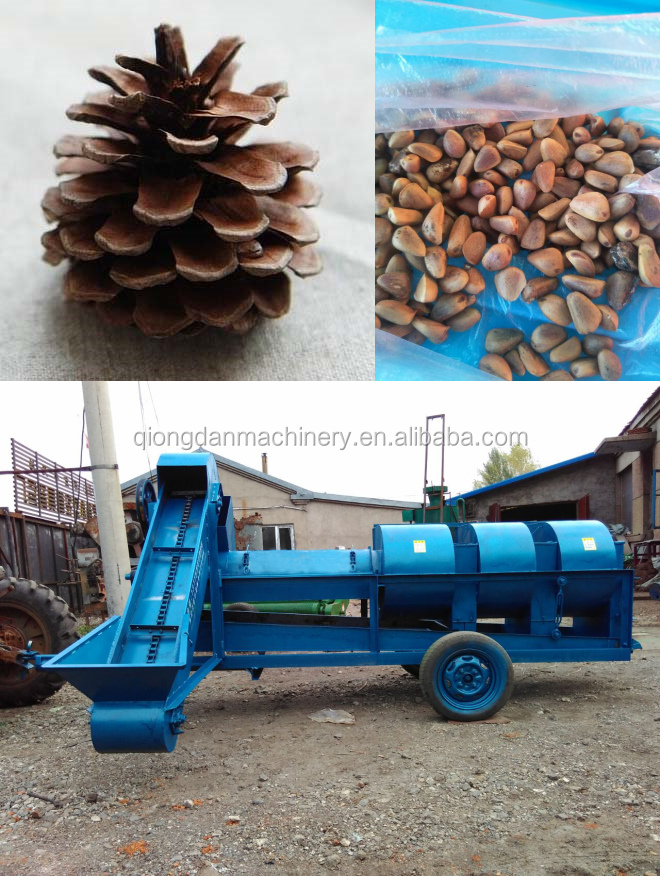

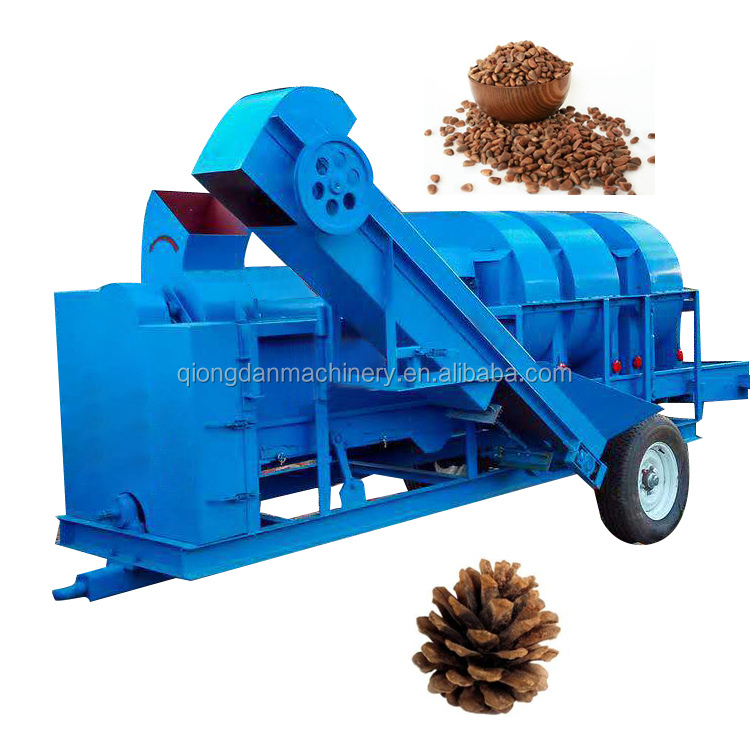

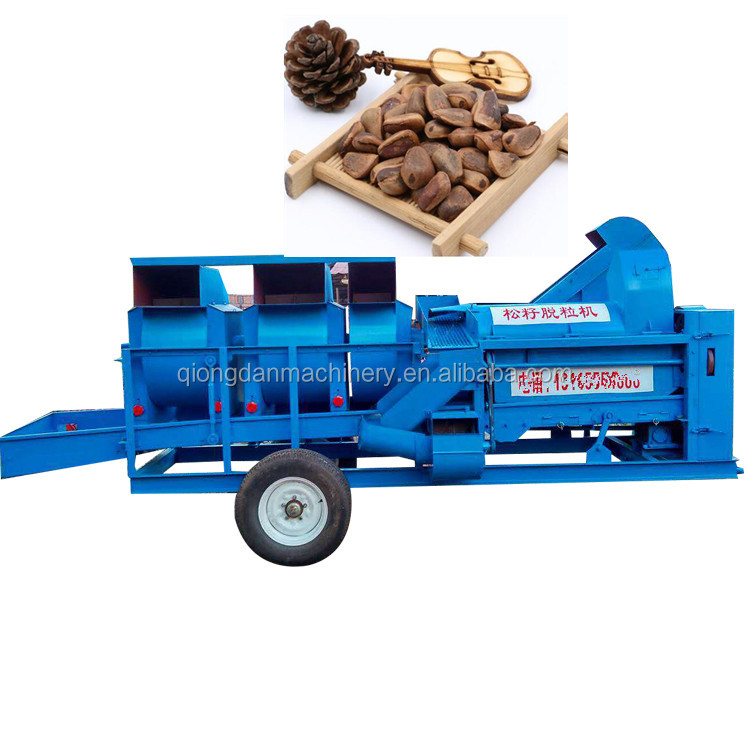

Introduction of Pine Cone thresher machine
? ? The pine cone enters between the roller and the concave plate through the hopper, and under the action of the round nail teeth, the impact and the friction are generated between the loose tower and the concave plate, so that the seeds fall off.At the same time, under the action of guide nail teeth, the material is pushed to the outlet end from the end of the feed port.And the grains and the small pieces of impurities are separated by the concave plate holes and fall to the upper surface of the sieve.A small fraction of the unseparated grains enter into the mandrel separation screen from the feed outlet at the end of the drum and are separated again.A mixture of grains and sundries that fall on the sieve,by the reciprocating movement of the sieve to the bottom of the suction duct,small debris falls to the ground in the course of transportation.When the sieve passes through the bottom of the suction duct, the lighter debris is discharged from the air outlet under the action of negative wind pressure at the air suction channel, and the grain after screening and air selection is sent out from the grain outlet.

Parameter?of Pine Cone sheller machine

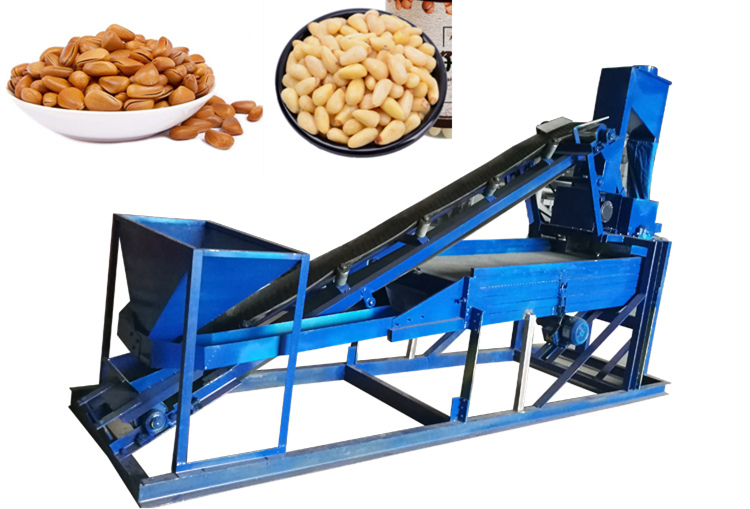

Introduction of Pine?Nut sheller machine?

This pine nut sheller can be used alone or in combination with a production line.

?

How to use? first take off the large pine nuts, then adjust the clearance and then take off the small pine nuts,cycling(re-shelling of the unshelled),until all sizes of pine nuts are shelled.
The gap between the rolls should be 1-1.5 mm smaller than the size of the loose pieces.

For example, the size of pine nut raw material is 15 mm in diameter of large pine nuts, 12 mm in diameter of medium pine nuts, and 9 mm in diameter of small pine nuts. It is adjusted according to the raw material in turn: the first roll release clearance is 14 mm, the second roll release clearance is 11 mm, the third roll release clearance is 8 mm, and the third roll release clearance is 8 mm. In practical application, the clearance should be adjusted according to the material to achieve the best effect of sheltering and non-crushing. At the same time, each level of pine nuts for dehulling, need to replace the corresponding screen.

Parameter?of Pine Nut sheller machine

?

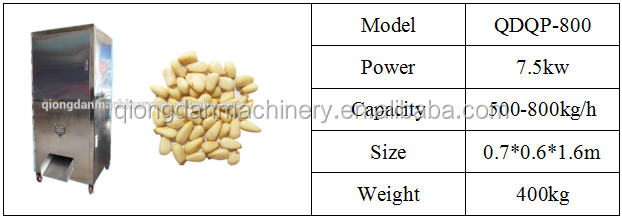

Pine nut red skin peeling machine

?

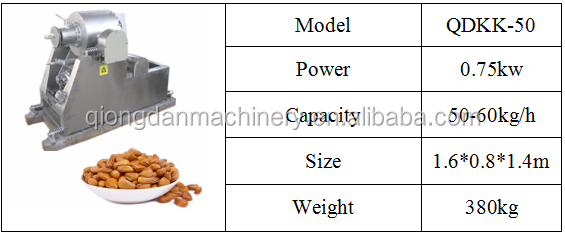

Pine nut?opening machine

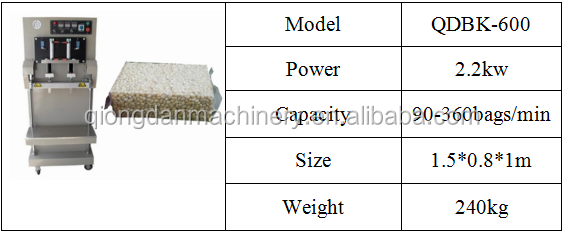

Vacuum packing machine

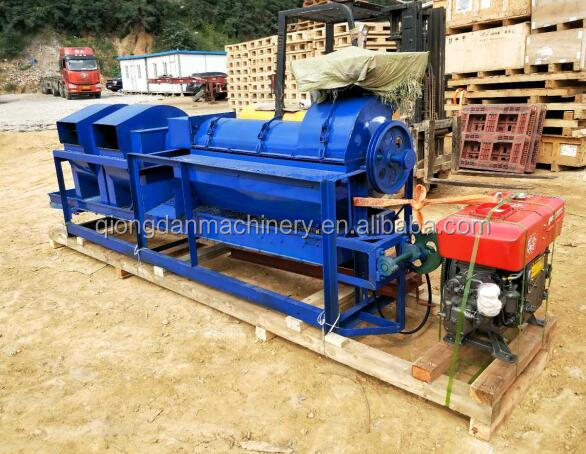

Pakistan's Pine nut?production?machine

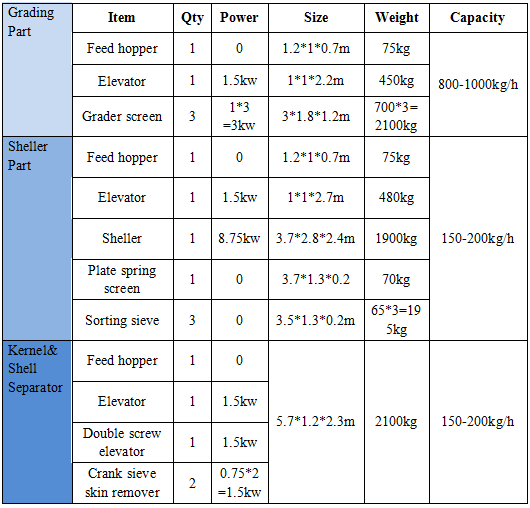

Parameter of?Pakistan's Pine nut procesing machine

?

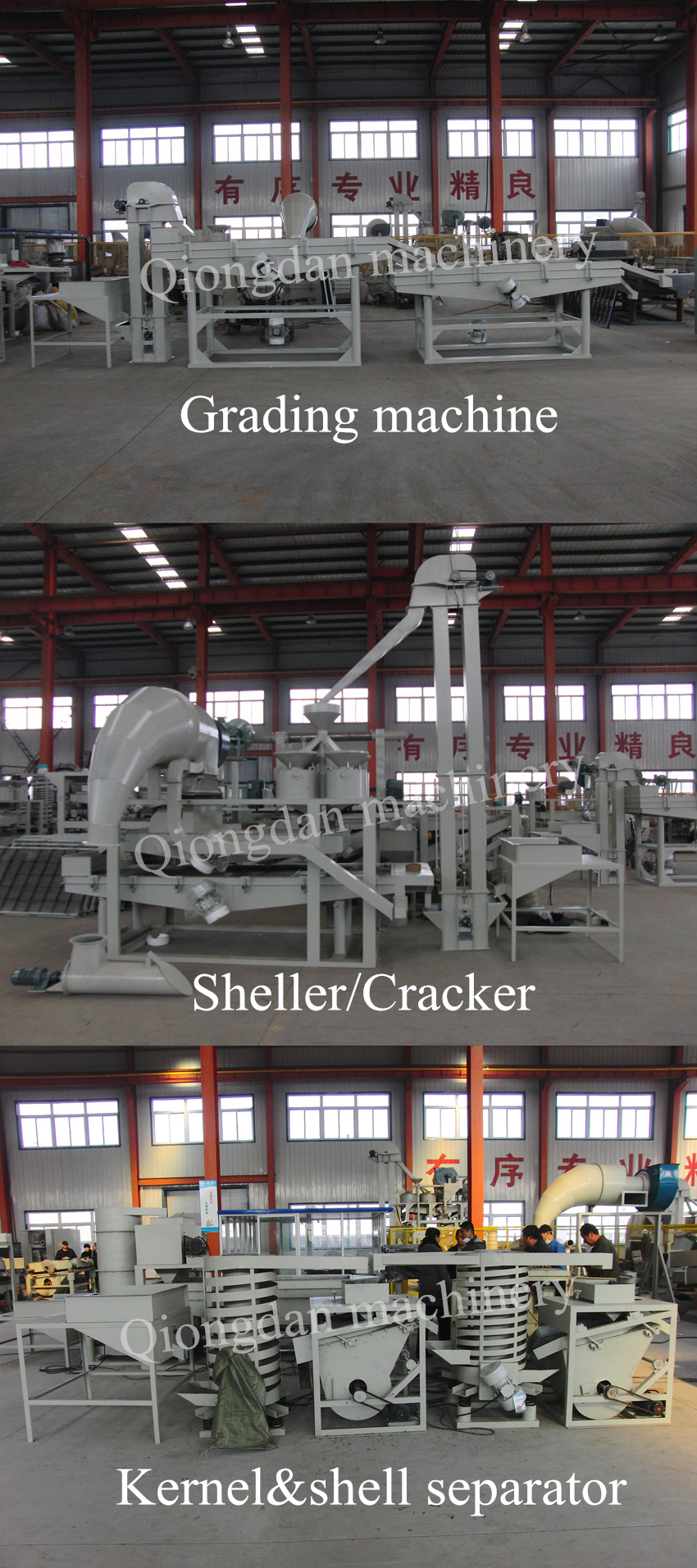

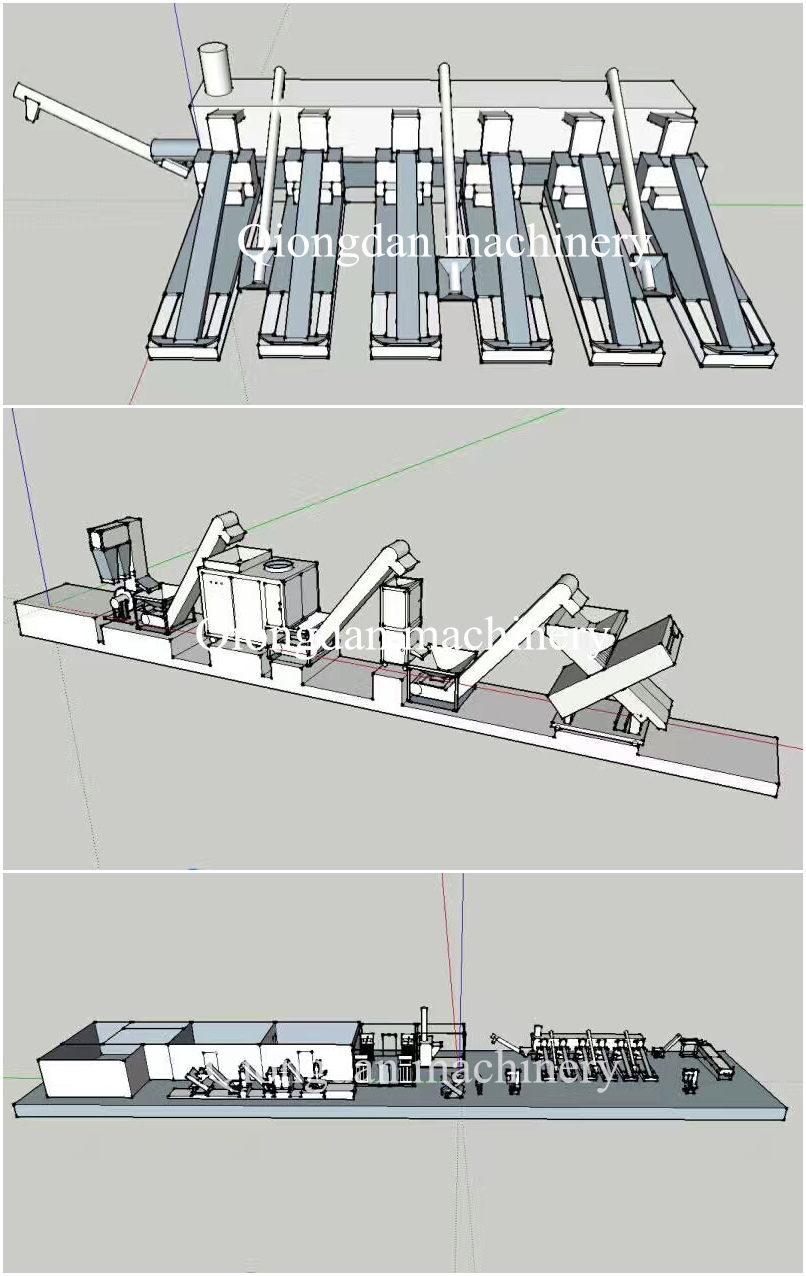

Pine nut processing production line?
