Basic Info
| Type | Automatic Pine cone sheller |
|---|---|
| Use | Automatic Pine cone thresher |
| Production capacity | 150-200kg/h |
| Place Of Origin | Henan, China |
| Brand Name | QD |
Product description
Pine Nut processing machine Pine cone thresher
Pine?nut?sheller Pine nut cracker machine
Our company has professional and mature production experience of pine nut processing line. It is?suitable for large, medium and small processing plants.
Pine nut processing steps:
1.Pine cone thresher-- 2.Removal of impurities-- 3.Size classification-- 4.Pine nut sheller-- 5.Shell and kernel separation-- 6.Drying-- 7.Peeling-- 8.Baking (or other deep processing)

?
Introduction of Pine?Nut sheller machine?
? ? This pine nut sheller can be used alone or in combination with a production line. This model is suitable for pine nut from?Korea, Mongolia, Russia;?Brazil, Pakistan, Lebanon, Afghanistan pine nut use our another type sheller machine. Before using this pine nut sheller machine, it is better to grade these pine nut, it will be reduce the shell broken rate.
?
How to use??first take off the large pine nuts, then adjust the clearance and then take off the small pine nuts,cycling(re-shelling of the unshelled),until all sizes of pine nuts are shelled.
The gap between the rolls should be 1-1.5 mm smaller than the size of the loose pieces.
For example, the size of pine nut raw material is 15 mm in diameter of large pine nuts, 12 mm in diameter of medium pine nuts, and 9 mm in diameter of small pine nuts. It is adjusted according to the raw material in turn: the first roll release clearance is 14 mm, the second roll release clearance is 11 mm, the third roll release clearance is 8 mm, and the third roll release clearance is 8 mm. In practical application, the clearance should be adjusted according to the material to achieve the best effect of sheltering and non-crushing. At the same time, each level of pine nuts for dehulling, need to replace the corresponding screen.


Parameter?of Pine Nut sheller machine
?
| Model | QDSZ-BK150 |
| Power | 1.5kw |
| Capacity | 100-150kg/h |
| Size | 4100*1100*1500mm |
| Weight | 500kg |



Features of Pine cone sheller machine
1..The new structure improved by our company for many times has good mechanical stability and low noise;
2. The machine structure is compact, easy to assemble and disassemble, easy maintenance;
3.Higher shucking rate, less broken grains, higher precision, 98% cycle shucking rate, 96% integrity rate,the machine will adjust itself according to the material size, the design
4.Structure, the circulation shelling,automatically screened Unhulled and hulled ,feeding,shelling again, shell and kernel are separated from different material discharges.
Parameter?of Pine Cone sheller machine
| Model | QDST-TL500 | QDST-TL800 |
| Capacity | 500kg/h | 800kg/h |
| Power | 11-15kw or 15-20HP | 11-15kw or 15-20HP |
| Shaft rotary speed | 700~800r/min | 700~800r/min |
| Fan rotary speed | 700~800r/min | 700~800r/min |
| Rotary drum type | Nail teeth type | Nail teeth type |
| Drum diameter | 310mm | 310mm |
| Drum length | 800mm | 1200mm |
| Concave type | Grid type and round hole type | Grid type and round hole type |
| Separating and cleaning | Screening and cleaning | Screening and cleaning |
| Fan type | Horizontal type | Horizontal type |
| Fan diameter | φ640mm | φ640mm |
| Upper layer screen size | 1500*500mm | 1500*500mm |
| Middle layer screen size | 1900*500mm | 1900*500mm |
| Lower layer screen size | 2880*500mm | 2880*500mm |
| Machine size | 3230*750*1280mm | 3630*750*1480mm |
| Weight | 380kg | 450kg |
?
?
Pine nut red skin peeling machine
?
Pine nut?opening machine

Vacuum packing machine

Brazil/Pakistan/Lebanon/Afghanistan pine nut?production?machine

Parameter of?Pakistan's Pine nut procesing machine
?

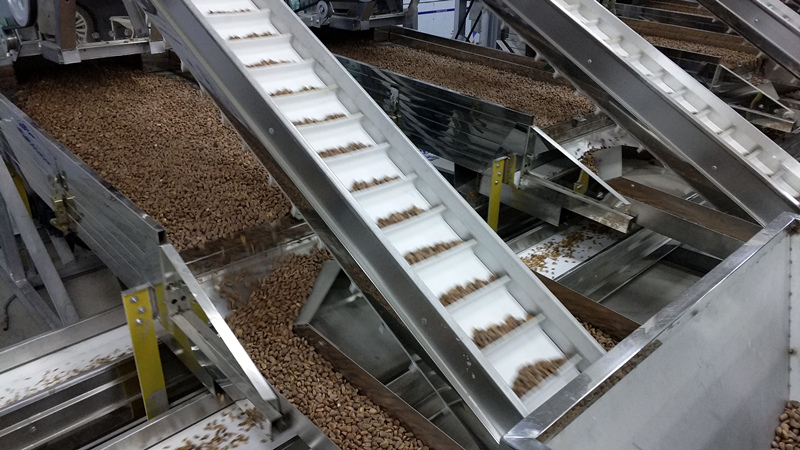

Pine nut processing production line?

Qiongdan machinery company is specialized in manufacturing? Pine?Nut processingmachine, like pine cone sheller, pine nut grading, sheller, peeling machine, etc. Our company is located in Zhengzhou City, Henan Province. The technology, trade and service is the core of global companies, and our company is committed to global customers with high standards of product manufacturing, and a full range of technical services and efficient solution.
Service before sale
24 hours online to answer questions that you want to know(Whatsapp, wechat, QQ, Skype, Trade Manager, etc), or? you can send email to my email, I will give you a satisfying answer.
1.To provide customers with the new and high quality?animal feed?pellet?machine.
2.Provide pictures that the customer desired about the?animal feed pellet?machine during production, in the warehouse and before transport.
3.Payment is determined by both parties.
4.Customers to choose the mode of transport.
We offer one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
?
