Programmable energy meter for panel

  • $53.00

    ≥1 Set/Sets

Options:

  • AMC72-E
  • AMC72L-E
  • AMC72-E4/KC
  • AMC72L-E4/KC
  • AMC96-E4/KC
  • AMC96L-E4/KC
Get Latest Price

Basic Info

Model No. AMC72L-E4/KC
Brand Name Acrel
place of origin China
Display method Analog And Digital
Phase Three Phase
Frequency 50hz/60hz
Output Voltage 230v
Place Of Origin Jiangsu, China
Brand Name Acrel
Display Type Lcd With Backlit
Measuring Energy Range 0-999999.9kwh
Communication Rs485 Port Modbus-Rtu Protocol
Display Lcd Display
Standard Iec62052-11/Iec62053-21
Type Panel Energy Meter
Rated Voltage 3*220v/380v
certificate Ce Iec Eac
Installation Panel Installation
Input Voltage Ac100v/110v/220v/230v/380v/400v
Power Supply Ac85~265v/80~300v
Model Number Amc72l-E4/Kc
Accuracy Class Better Than Cl.1
Operating Temperature -25 ~+55
Dimensions 96*96
Show More

Product description

Programmable energy meter for panel

AMC series Multifunction Programmable Power Meter is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings. Panel Mount Power Quality Meter integrates measurement of power parameters (such as three-phase current, voltage, and active power). Power, reactive power, apparent power, frequency, power factor) and power monitoring and assessment management.The three phase Ac Western Power Meter Panel has LED/LCD display,Power Meter For Electrical Panel can detect all electrical parameters,Have the function of DI/DO,3 Phase Kwh Energy Panel Meter are able to present accurate data to customers.


Specification

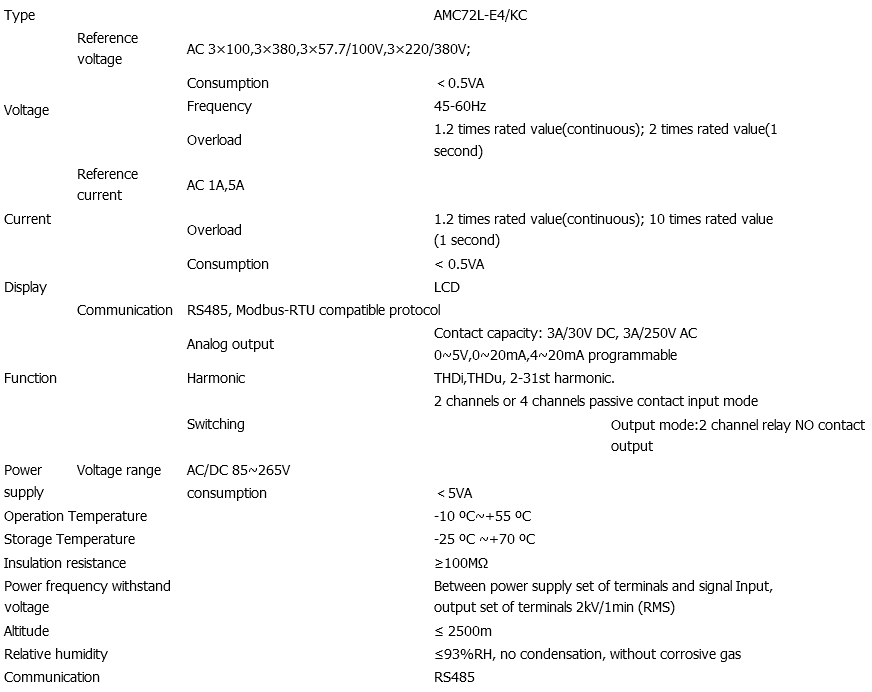

Energy Meter for Panels

Functions and parameter of 3 phase power monitor meter

*LCD display 8 digits*Measuring parameters:current,voltage,active power,reactive power,acitve energy,reactive energy,frequency,power factor,four quadrants energy(I,U,kW,kvar,kwh,kvarh,Hz,cosφ)
*RS485 modbus RTU,4DI,2DO,1 pulse output
*Optional function:2-31st harmonics measure
*SOE(Sequence Of Event)
*2M(2 channel 4-20ma output)
Dimensions
secure kwh energy panel meter
AMC72 Panel Size
panel mount power meter
AMC96 Panel Size
panel meter ac power
AMC72 Cut Out
energy meter for panel
AMC96 Cut Out
Packing & Delivery
sub panel power meter
Company Profile
power and panel mounted meter
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us.
