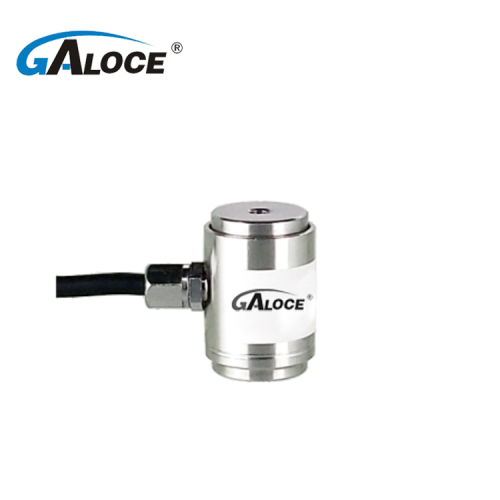

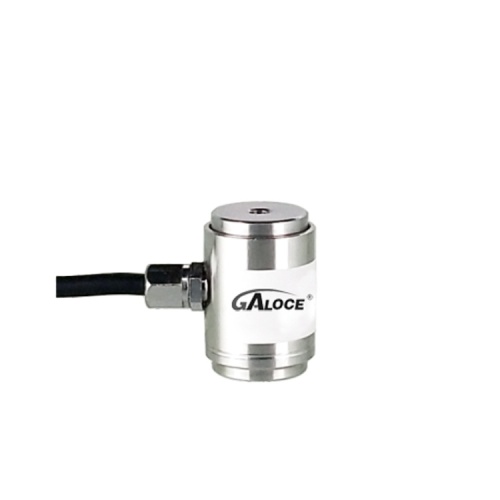

Pull Compression Force Testing Low Profile Load Cell
$58.00
≥1 Piece/Pieces
Basic Info
| Model No. | GML674 |
|---|---|
| Brand Name | GALOCE |
| place of origin | China |
| Output | Analog Sensor |
| Brand Name | Galoce |
| Creep | ±0.05%f.S/30min |
| Output | Analog Output, Analog Sensor |
Product description
GALOCE GML674 miniature load cell is button force load cell, it can measure the compression tension force sensor. stainless steel 17-4PH material, the rated capacity is 10, 20, 50, 100, 150, 200, 300, 500N. miniature force sensor are mainly used for automonile parts assembly, automated assembly,3C product testing, new energy product assembly, medical testing,robotics,mold assembly and other industrial automation fields with small space.
What features of GML674 miniature load cell ?
1. Stainless Steel;
2. Low profile, column shape, compact and strong structure;
3. Tension & compression force measurement;
4. Mainly used for the measurement of push and pull, various industrial force measurement and weighing systems, etc

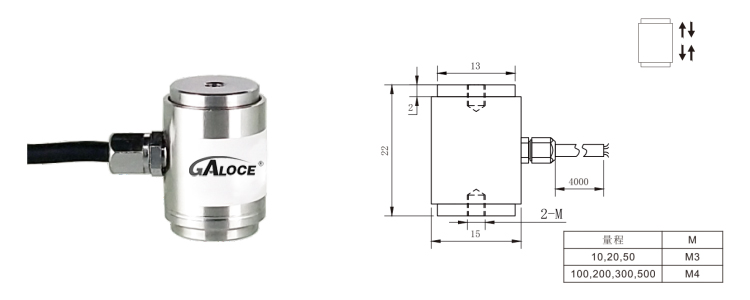

Dimension of GML674 miniature load cell ?
What specifications of GML674 miniature load cell ?
|
Specifications |
|
|
Rated Capacity : |
10, 20, 50, 100, 150, 200, 300, 500N |
|
Comprehensive error |
≤±0.05% |
|
Rated output |
2.0±10%mV/V |
|
Zero balance |
±2.0F.S |
|
Non-linearity |
0.05% |
|
Creep |
±0.05%F.S/30min |
|
Input resistance |
|
|
Output resistance |
350±5Ω |
|
Insulation resistance |
≥5000MΩ/100VDC |
|
Temp. effect on span |
±0.05%F.S/10℃ |
|
Temp. effect on zero |
±0.05%F.S/10℃ |
|
Compensated temp range |
-10~+60℃ |
|
Operating temp Range |
-20~+80℃ |
|
Excitation voltage |
5~15V |
|
Safe overload |
150%F.S |
|
Ultimate overload |
200%F.S |
|
Defend grade |
IP66 |
