RBA25/CBA25 Integrated Head for Roughing/Finishing Boring

Get Latest Price

Model No.	RBA25/CBA25
Brand Name
place of origin	China

RBA25/CBA25-LBA Integrated Head for Roughing/Finishing Boring

RBA Indexable Roughing Boring Head's RBA25/Fine Adjustment Outer Circle Finishing Boring Head's CBA25 Roughing Boring Head has a combination of roughing and finishing blades, Efficient and economical processing is possible.It is commonly used in machining operations to achieve precise and accurate bores in components such as engine cylinders, hydraulic cylinders, and pump housings. RBA25/CBA25 Integrated Head of Roughing/Finishing Boring combination of roughing and finishing capabilities, along with its adjustable cartridges and coolant-through capability, make it a reliable tool for achieving high-quality bores in various applications.
Integrated Head for Roughing/Finishing Boring is a boring tool that integrates the functions of roughing and finishing boring. ‌ its characteristics mainly show that ‌ can meet the needs of high-precision machining. ‌ wide range of application: ‌ the tool is suitable for different diameters and depths of hole processing, ‌ has strong versatility and adaptability. ‌

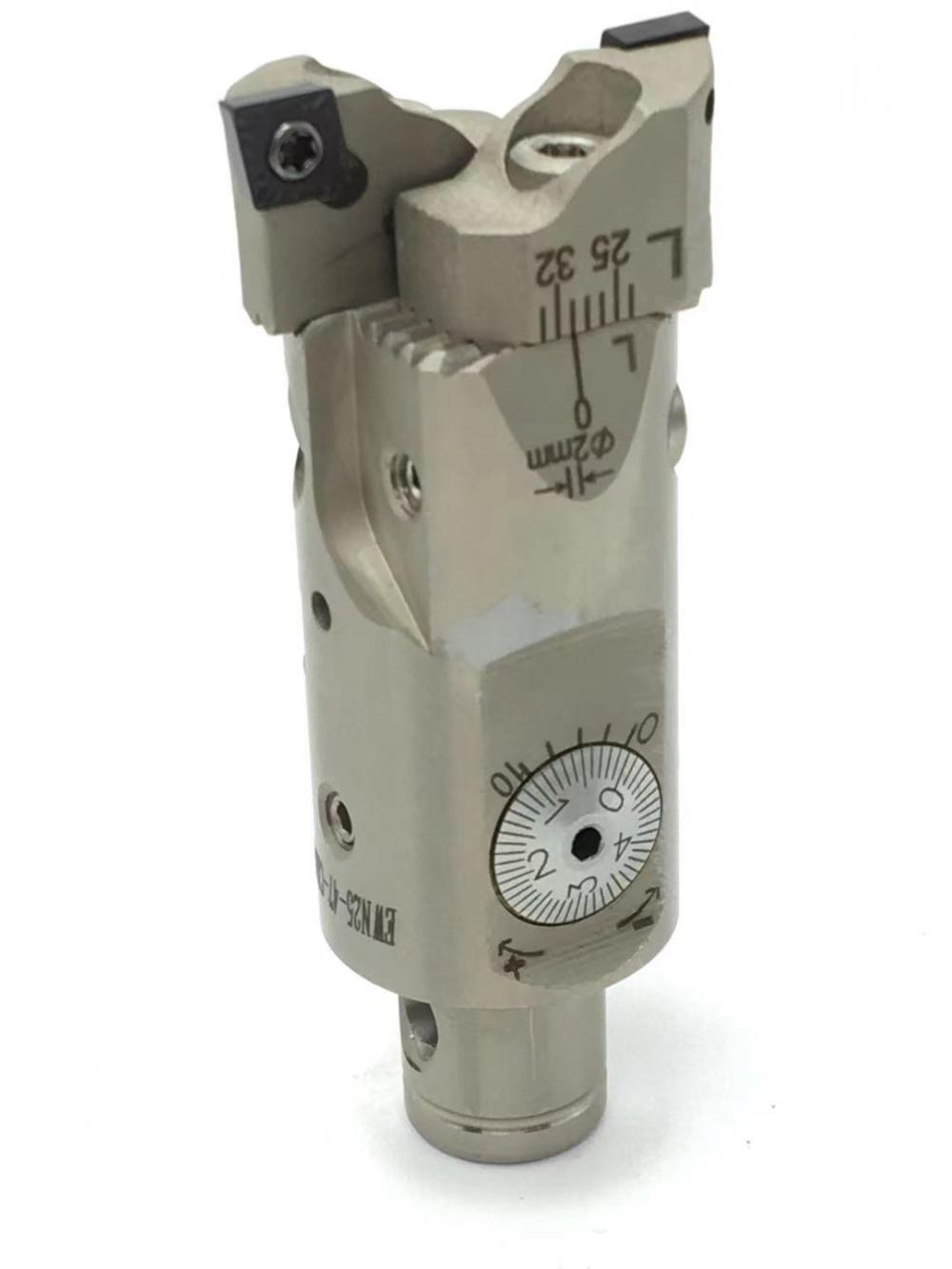

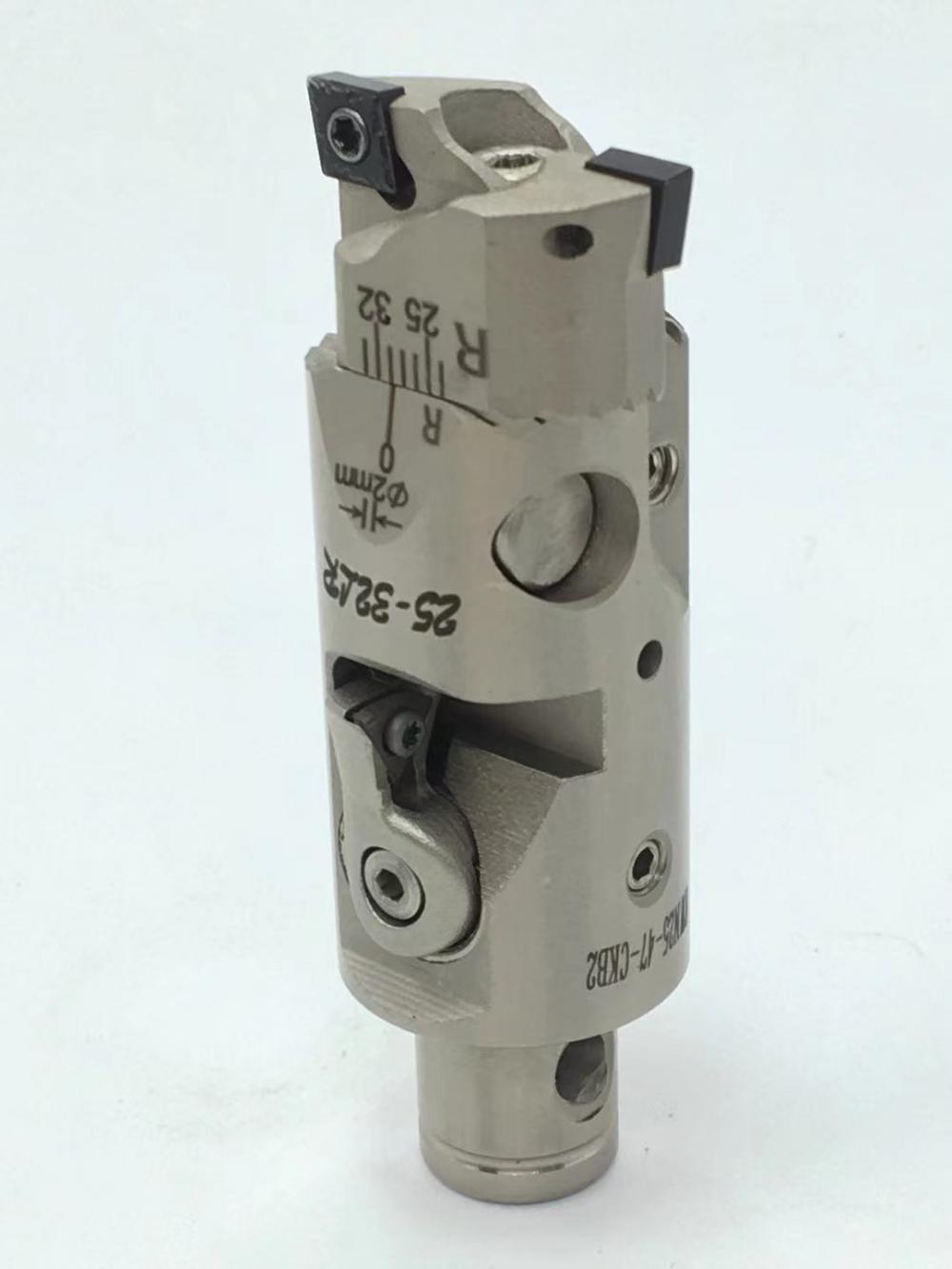

Rba25 Cba25

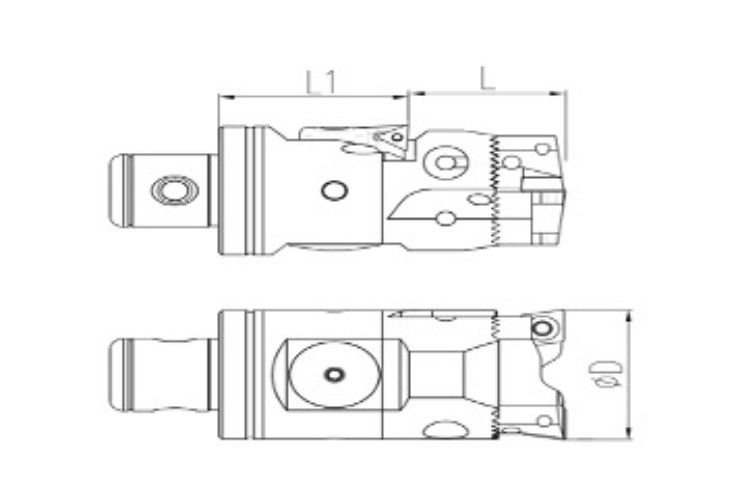

Integrated Demo

Specification	Boring range ФD	L	L1	LBA No.	Insert of Roughing Boring	Insert of Finishing Boring	Weight (kg)
RBA20/CBA20-LBA1	20-25mm	27mm	25mm	LBA1	CCMT0602	TP*0804	0.1
RBA25/CBA25-LBA2	25-33mm	34mm	24mm	LBA2			0.15
RBA32/CBA32-LBA3	32-43mm	34mm	32mm	LBA3			0.35
RBA40/CBA40-LBA4	40-55mm	34mm	42mm	LBA4			0.6
RBA52/CBA52-LBA5	52-75mm	37mm	48mm	LBA5	CCMT09T3	TC*110204	1.1
RBA68/CBA68-LBA6	No.1 Slide toolholder 68-95mm	42mm	61mm	LBA6	CCMT1208	TC*110204	2.3
	No.2 Slide toolholder 90-110mm
	No.1 Insert Seat ENH6-1 68-95mm
	No.2 Insert Seat ENH6-2 90-110mm
