RBA52/CBA52 Integrated Head for Roughing/Finishing Boring
Basic Info
| Model No. | RBA52/CBA52 |
|---|---|
| place of origin | China |
Product description

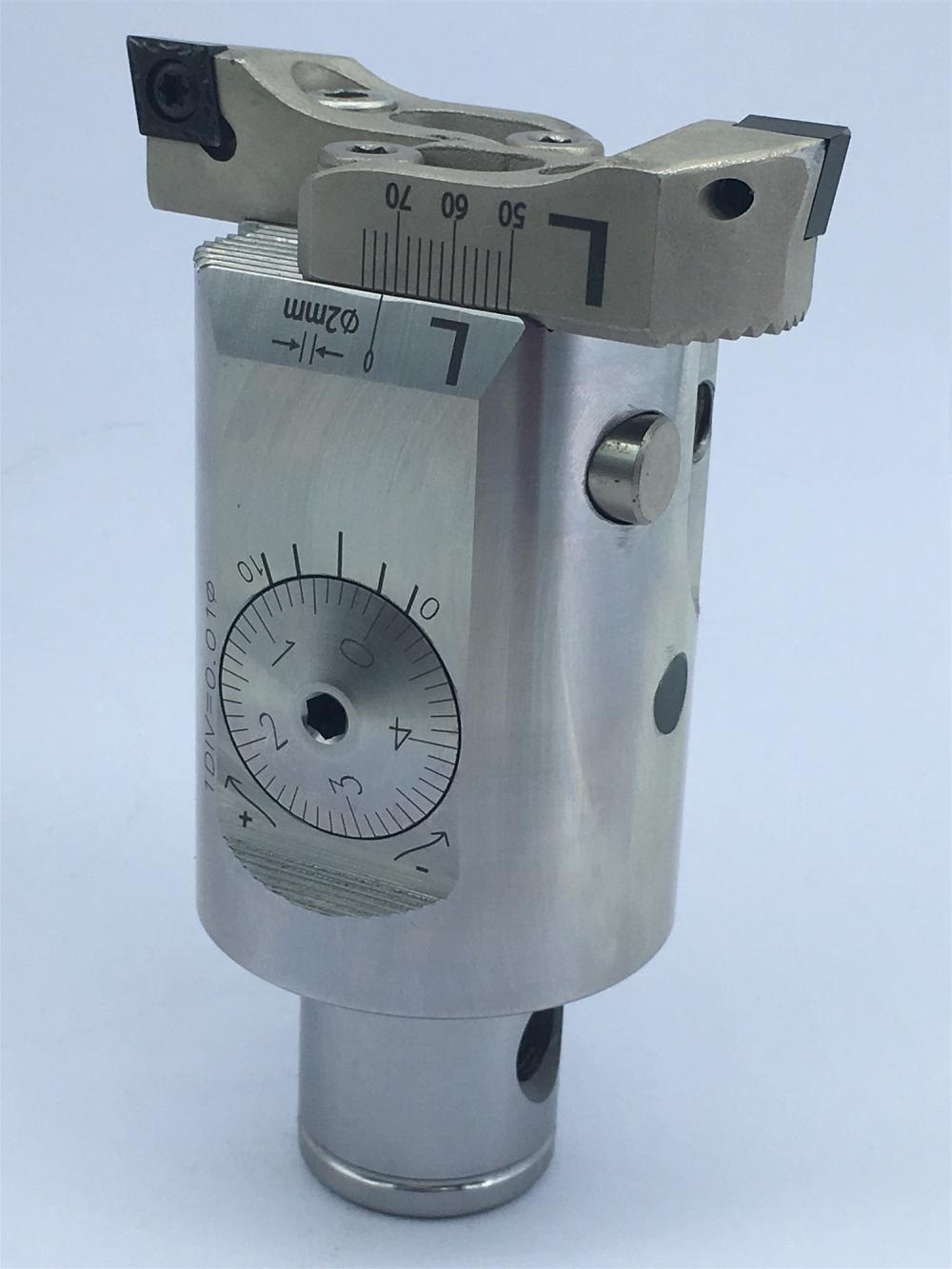

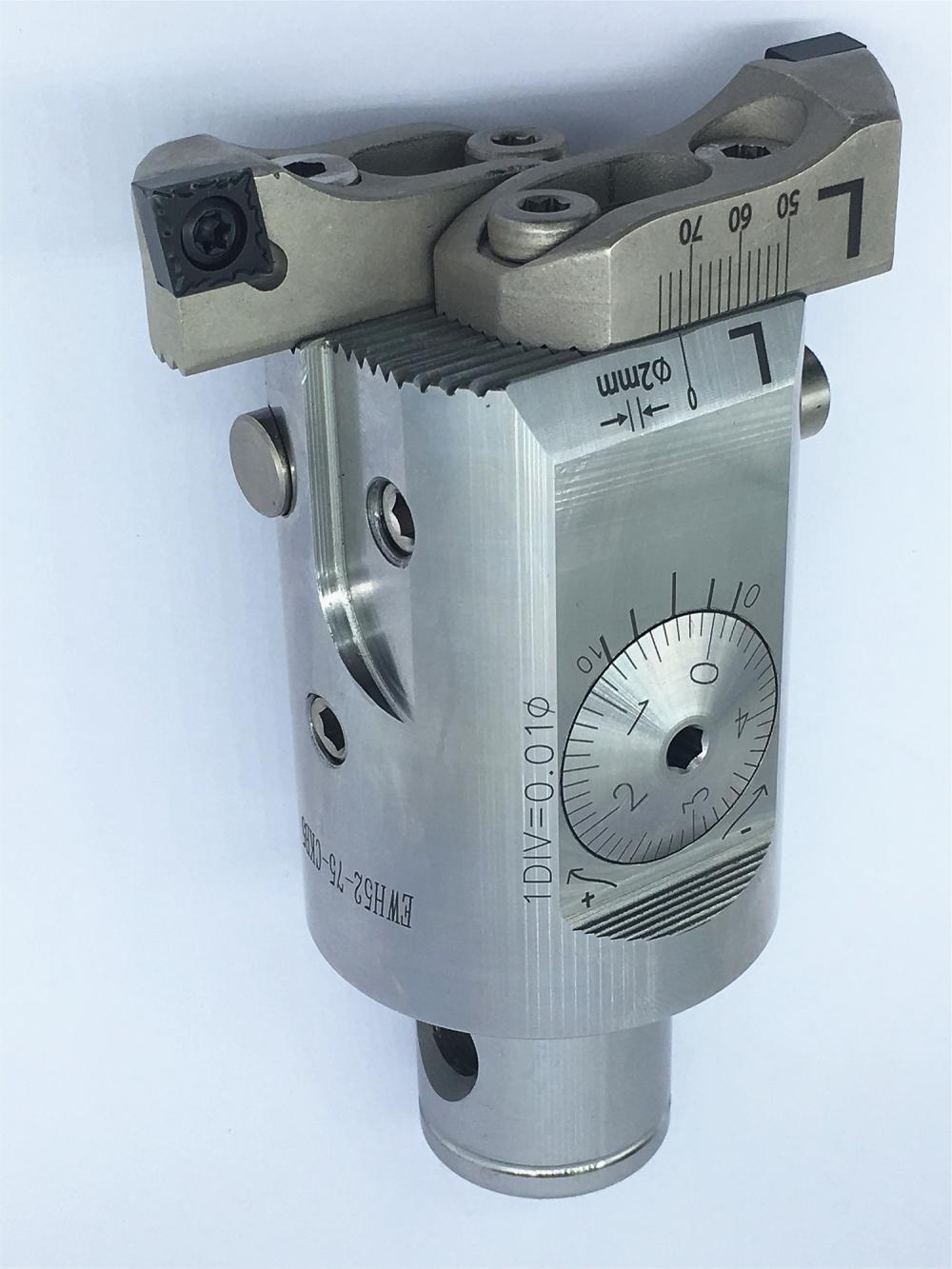

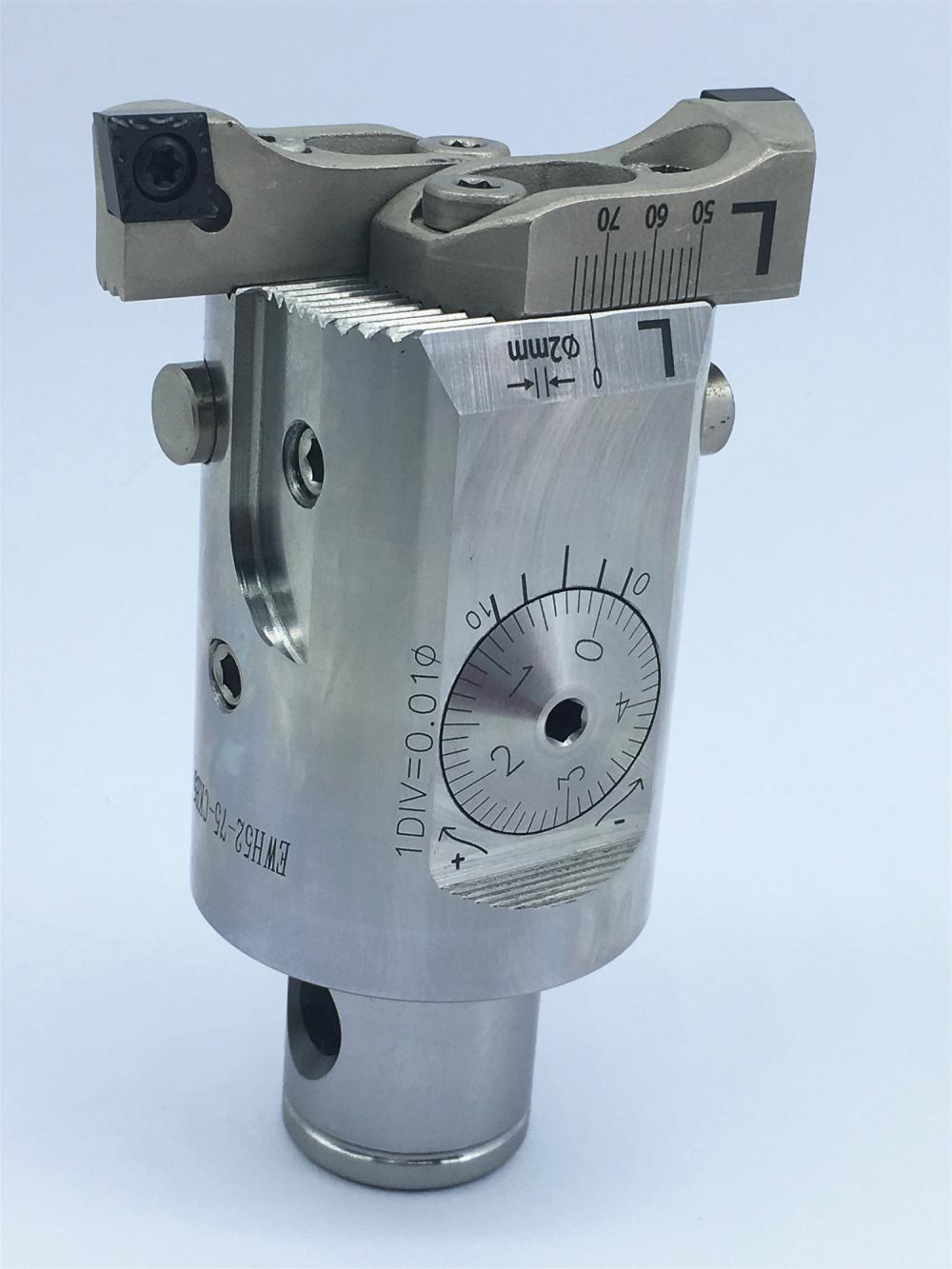

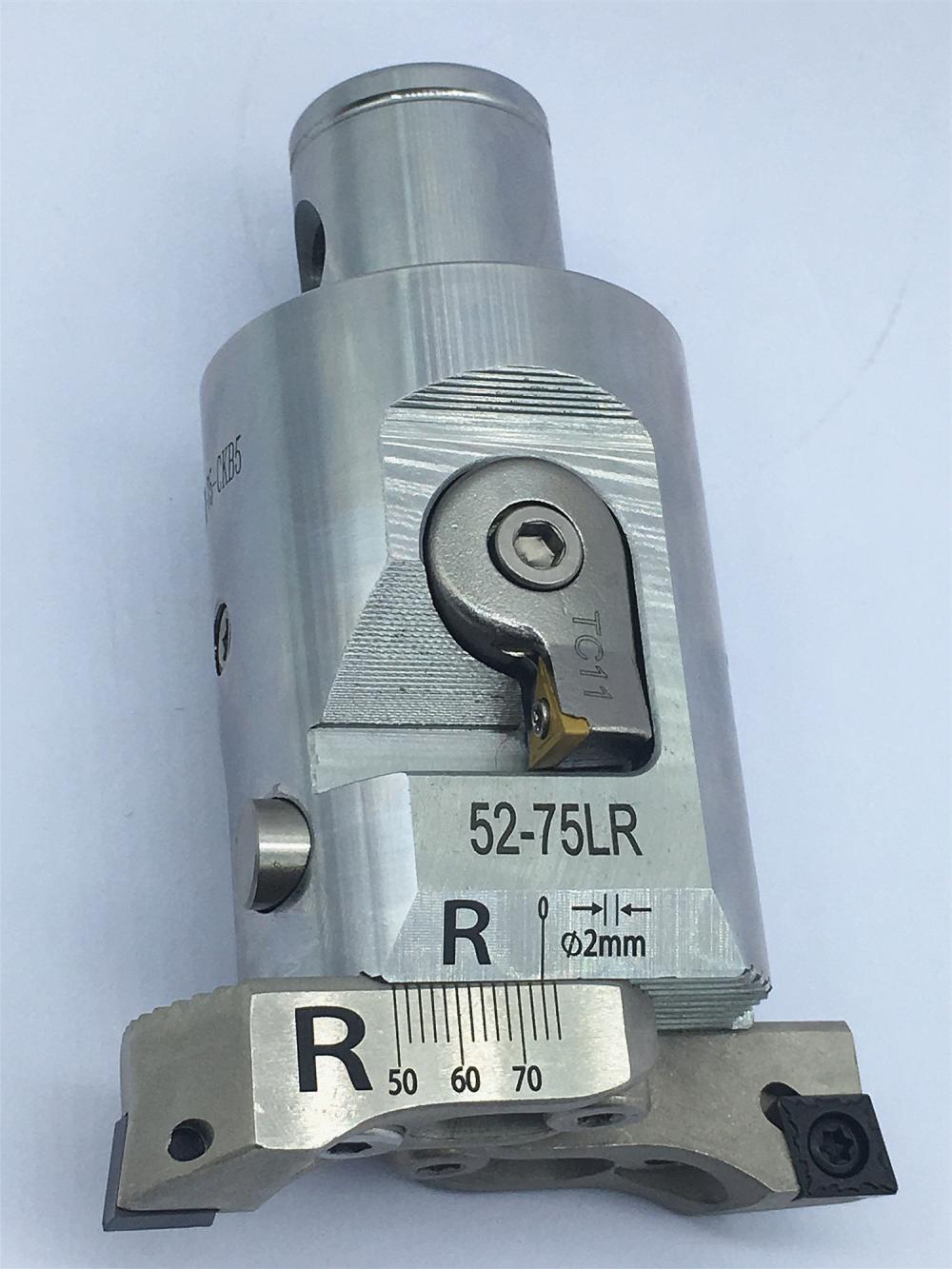

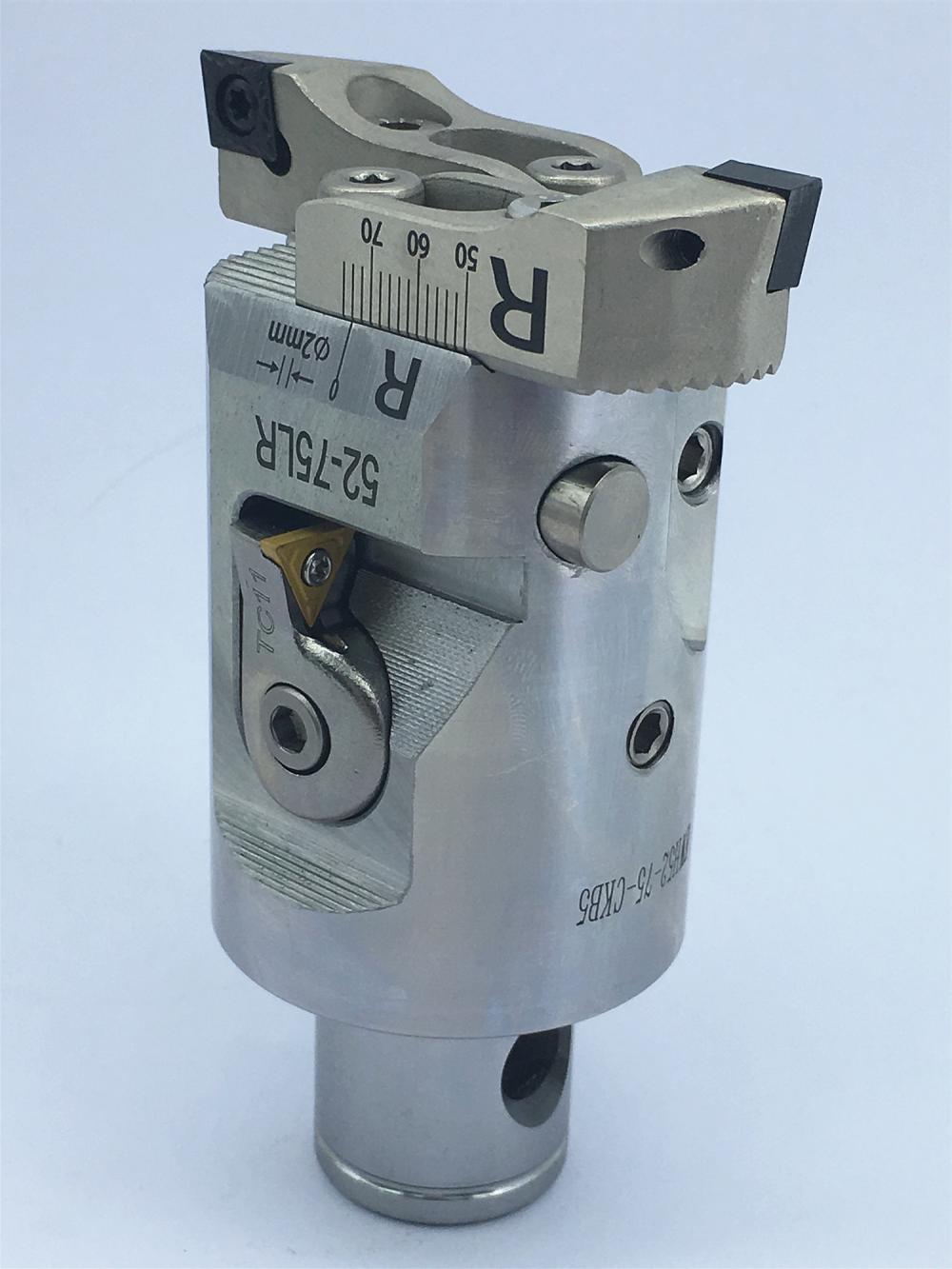

RBA52/CBA52-LBA Integrated Head for Roughing/Finishing Boring
RBA Indexable Roughing Boring Head's RBA25/Fine Adjustment Outer Circle Finishing Boring Head's CBA25 Rugged construction and advanced cutting technology, Ensures excellent stability and performance during operation. Roughing blades are designed to remove material quickly, while finishing blades provide a high-quality surface finish. This eliminates the need for multiple tool changes and reduces machining time.
| Specification | Boring range ФD | L | L1 | LBA No. | Insert of Roughing Boring | Insert of Finishing Boring | Weight (kg) |
| RBA20/CBA20-LBA1 | 20-25mm | 27mm | 25mm | LBA1 | CCMT0602 | TP*0804 | 0.1 |
| RBA25/CBA25-LBA2 | 25-33mm | 34mm | 24mm | LBA2 | 0.15 | ||
| RBA32/CBA32-LBA3 | 32-43mm | 34mm | 32mm | LBA3 | 0.35 | ||
| RBA40/CBA40-LBA4 | 40-55mm | 34mm | 42mm | LBA4 | 0.6 | ||
| RBA52/CBA52-LBA5 | 52-75mm | 37mm | 48mm | LBA5 | CCMT09T3 | TC*110204 | 1.1 |
| RBA68/CBA68-LBA6 | No.1 Slide toolholder 68-95mm | 42mm | 61mm | LBA6 | CCMT1208 | TC*110204 | 2.3 |
| No.2 Slide toolholder 90-110mm | |||||||
| No.1 Insert Seat ENH6-1 68-95mm | |||||||
| No.2 Insert Seat ENH6-2 90-110mm |
