RBA32/CBA32 Integrated Head for Roughing/Finishing Boring

Get Latest Price

Model No.	RBA32/CBA32
Brand Name
place of origin	China

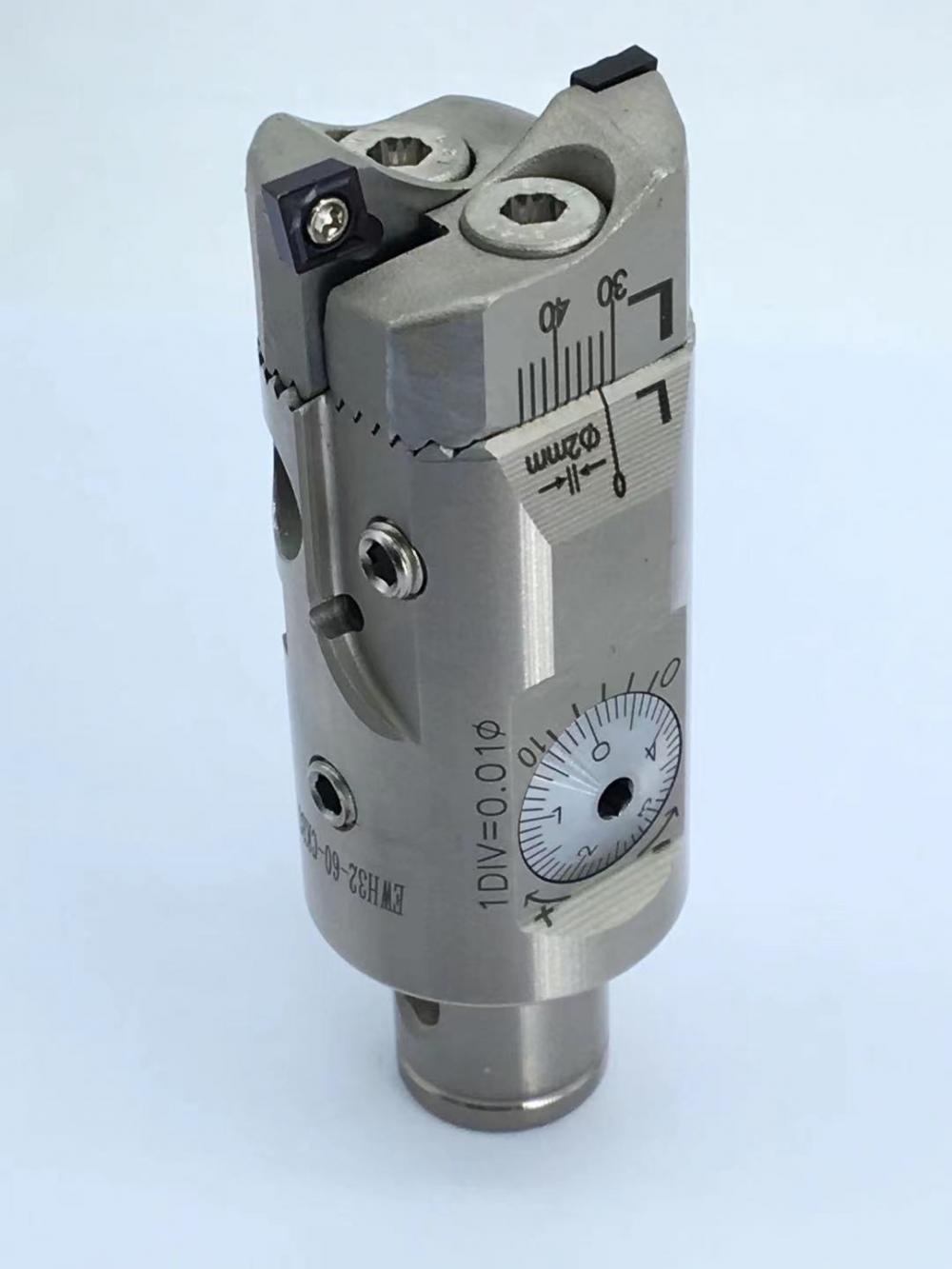

RBA32/CBA32-LBA Integrated Head for Roughing/Finishing Boring

‌Integrated Head for Roughing/Finishing Boring is a boring tool with high efficiency, ‌ high precision and ‌ wide application range ‌

High precision: ‌ through the finishing function, ‌ the tool can obtain high precision aperture size and surface roughness, ‌ to meet the needs of high precision machining.

RBA32/CBA32 Integrated Head for Roughing/Finishing Boring offers a versatile and efficient solution for machining bores. Its combination of roughing and finishing capabilities, along with its adjustable cartridges and coolant-through capability, make it a reliable tool for achieving high-quality bores in various applications.

CBJ Modular Finishing Boring Head: is a tool for metal working, commonly used for boring operations in machining. The boring head has a modular design, and different combinations of tools and accessories can be selected according to the processing needs to achieve high precision and high efficiency machining.

Finishing Boring Head can get high machining precision ‌ for boring iron and steel material, ‌ accuracy can generally reach IT9-IT7, ‌ surface roughness Ra can reach 2.5-0.6μm, ‌ even higher.

Rba32 Cba32

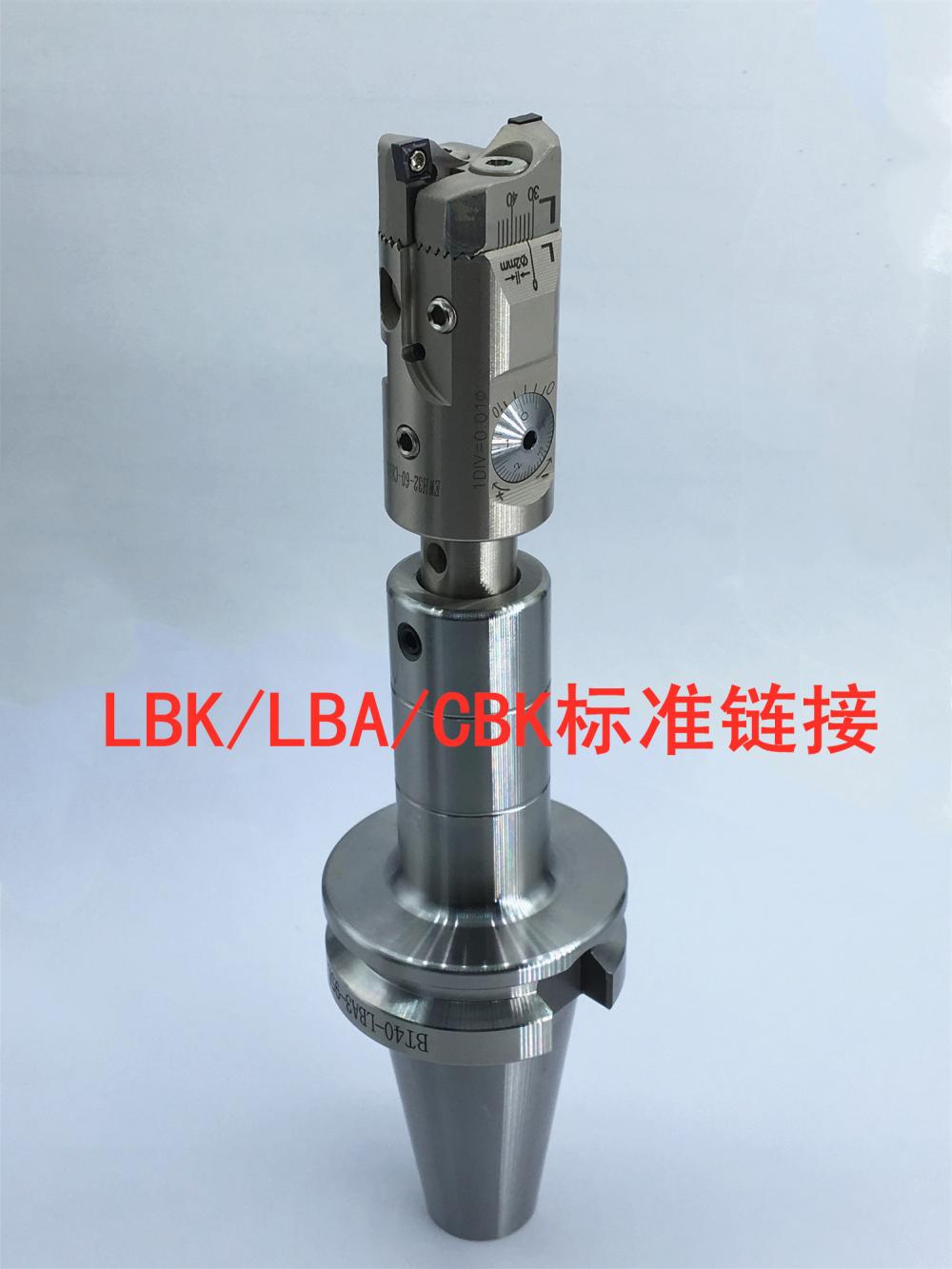

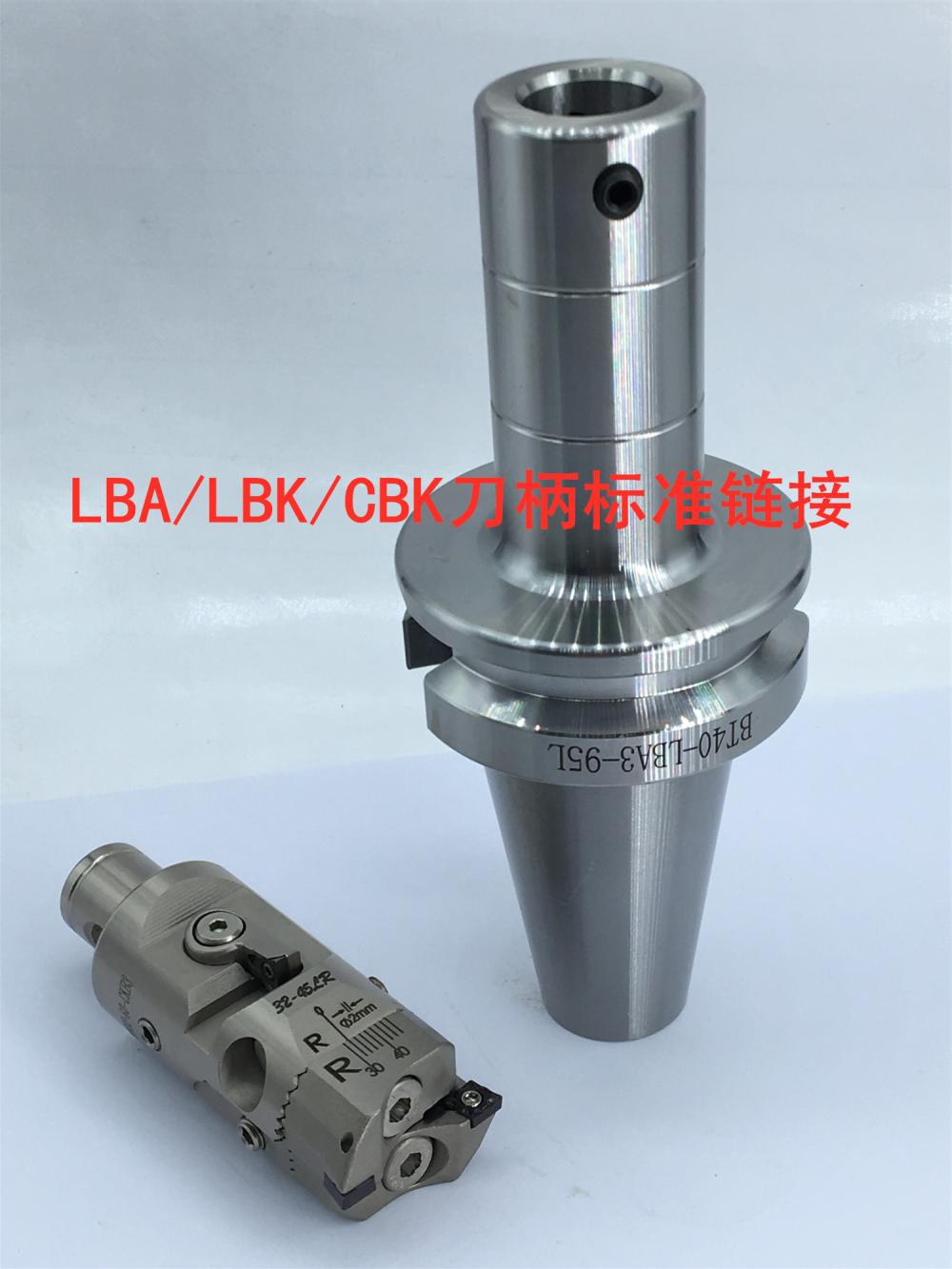

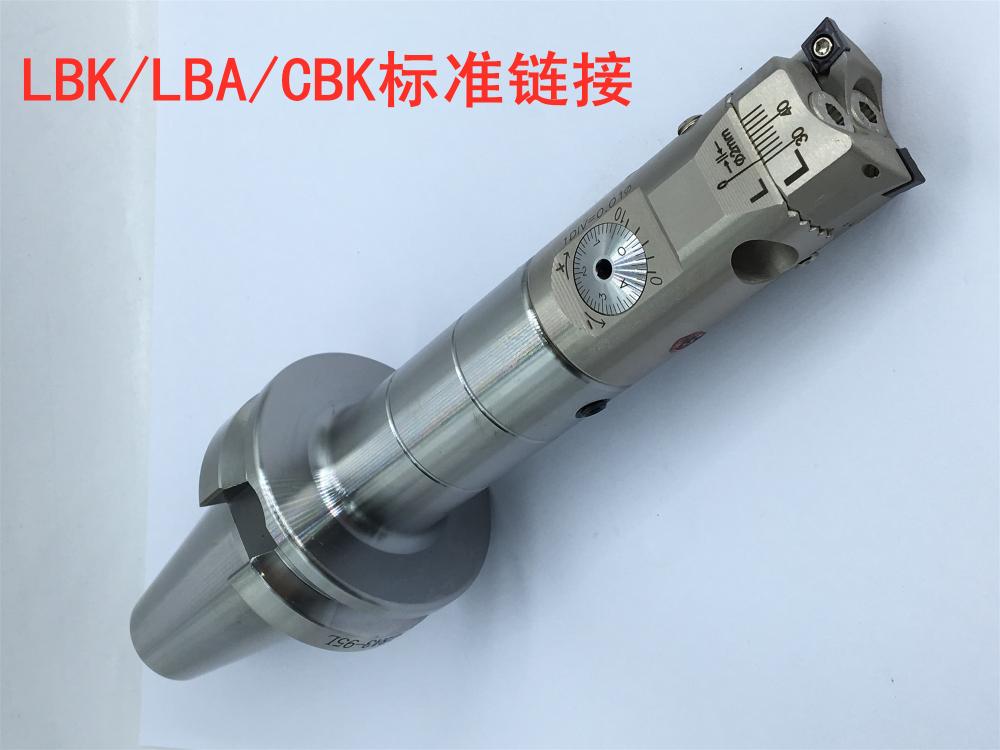

Rba32 Cba32 Lbk Lba Cbk

Integrated Demo

Specification	Boring range ФD	L	L1	LBA No.	Insert of Roughing Boring	Insert of Finishing Boring	Weight (kg)
RBA20/CBA20-LBA1	20-25mm	27mm	25mm	LBA1	CCMT0602	TP*0804	0.1
RBA25/CBA25-LBA2	25-33mm	34mm	24mm	LBA2			0.15
RBA32/CBA32-LBA3	32-43mm	34mm	32mm	LBA3			0.35
RBA40/CBA40-LBA4	40-55mm	34mm	42mm	LBA4			0.6
RBA52/CBA52-LBA5	52-75mm	37mm	48mm	LBA5	CCMT09T3	TC*110204	1.1
RBA68/CBA68-LBA6	No.1 Slide toolholder 68-95mm	42mm	61mm	LBA6	CCMT1208	TC*110204	2.3
	No.2 Slide toolholder 90-110mm
	No.1 Insert Seat ENH6-1 68-95mm
	No.2 Insert Seat ENH6-2 90-110mm
