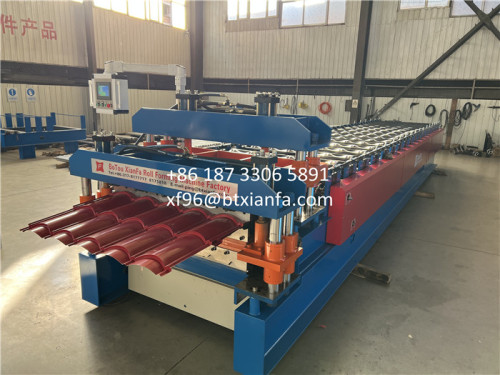

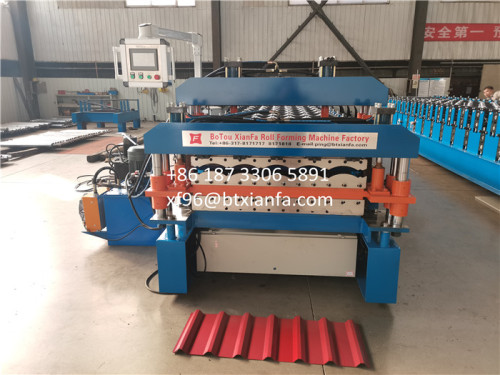

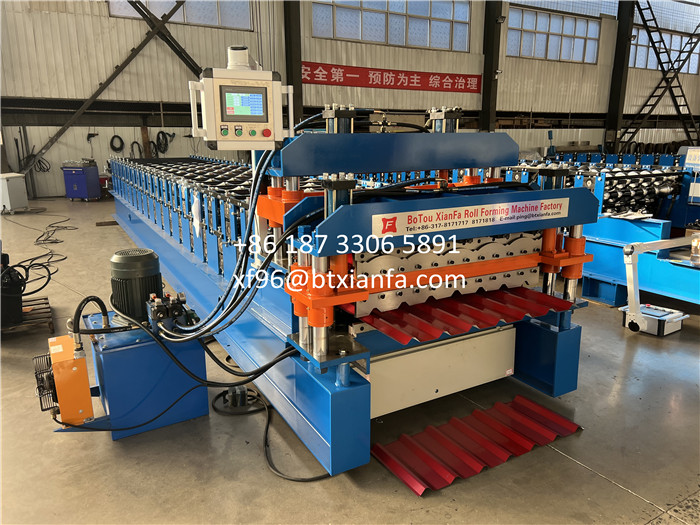

Double Layer Sheet Roll Forming Machine for Colombia. The width of coils is 1220mm and 1000mm. Double Deck Roll Forming Machine for Roof sheet, Upper Layer is for Roofing Sheet Machine, down layer is for Trapezoidal Roll Forming Machine. The speed of Sheet Metal Roll Forming Machine will up to 15m/min. There are many profiles for Tile Roof Roll Formingi Machine, if you need similar machine.pls provide the drawing or picture of machine, free estimate price for you. Roof Sheet Forming Machine

Roof Roll Forming Machine

Equipment Detailed Parameters

No
1	Suitable Material	Colored Steel plate, Galvanized Board
2	Width of the raw material	1000,1220 mm
3	Rows of rollers	Upper level :18 Rows Down level :15 Rows
4	Appearance size	About 12*1.5*1.7 m
5	Total power	5.5+5.5 Kw
6	Thickness of raw material	0.3-0.6 mm
7	Productivity	Upper level :0-4 m/min Down level:8-15 m/min
8	Diameter of shaft	￠70 mm
9	Voltage	220 V  60 Hz 3 phases

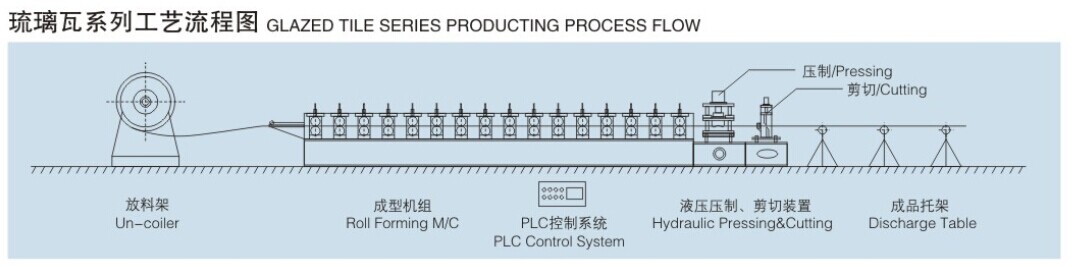

 Components and Technical Specification

Manual Uncoiler: Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity: 5 Tons       Inner diameter: 470-530 mm

Main Roll Forming Machine:Material of rollers:45# steel，roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one.

The system is easy to operate and use.

Frequency converter:Delta

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

Packaging & Shipping

1.We have professional technicians for loading

  Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 40 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

Our Services

1. Warranty :One year,and we will provide technical support for whole life of the equipment.

2. Delivery time: Within 30 days after deposit receipt your payment

3. Guarantee period: 18months free service/ pay service all the machine life

4. Installation and training If buyers visit our factory and check the machine

we will teach you how to install and use the machine and also train your workers/technician face to face.

Without visiting,we will send you user manual and video to teach you to install and operate.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
