Rubber Powder Electric Heating Devulcanizer Search Engine
$40000.00
≥1 set
$39500.00
≥10 set
Options:
- 10cbm
Basic Info
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | Everfine |
| Type | Vulcanizer |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
Product description
Rubber Powder Electric Heating Devulcanizer is the equipment for devulcanizing process during reclaimed rubber production, It is the general famous machine for reclaimed rubber production.
?
The devulcanizer adopts a new technology of devulcanizition. Compared with tradtional devulcanizing equipments, it is advanced in the following points.
?
The reclaim powder does not need to be ground so fine and the devulcanizing time is shortened; Plastifiers, reclaiming agents and rubber powder can be put together into the devulcanizer; no polluted water will be let out during the devulcanization; The quality is better; To open and lock the devulcanizing vessel is automatized during the working process.
?
The devulcanizer is a horizontal pressurized vessel with mixing paddles fixed in it. The mixing shaft with paddles can rotate dockwise and anti-clockwise. The left and right rotating paddles push the material in the vessel moving along the shaft to be well mixed and equally heated.
?
The devulcanizer employs a hydraulic system to open, close and lock up the feeding door and the discharging door.
| NAME | 3m3 | 4.5m3 | 6m3? | 8m3? | 10m3 | 12m3 |
| DATA | 4.0???????MPa | 4.0???????MPa | 4.0???????MPa | 4.0???????MPa | 4.0???????????????????MPa | 4.0???????????????????MPa |
| Working Pressure?????MPa | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Designed Pressure?????????? ? ??MPa | 4 | 4 | 4 | 4 | 4 | 4 |
| Working Temperature?????? ? ??°C | 246 | 246 | 246 | 246 | 246 | 246 |
| Designed Temperauture???????? ? ??°C | 330 | 330 | 350 | 350 | 350 | 350 |
| Working Substance | rubber powder, water, activating agent | rubber powder, water, activating agent | rubber powder, water, activating agent | rubber powder, water, activating agent | rubber powder, water, activating agent | rubber powder, water, activating agent |
| Volume???????????????m3 | 3 | 4.58 | 6.1 | 8.2 | 10 | 12 |
| Main pressure parts material | Q345R | Q345R | Q345R | Q345R | Q345R | Q345R |
| Motor Power | 18.5Kw | 22Kw | 22Kw | 30Kw | 45Kw | 55Kw |
| Mixing speed | 13r/min | 13r/min | 13r/min | 13r/min | 13r/min | 11r/min |
?
?
?

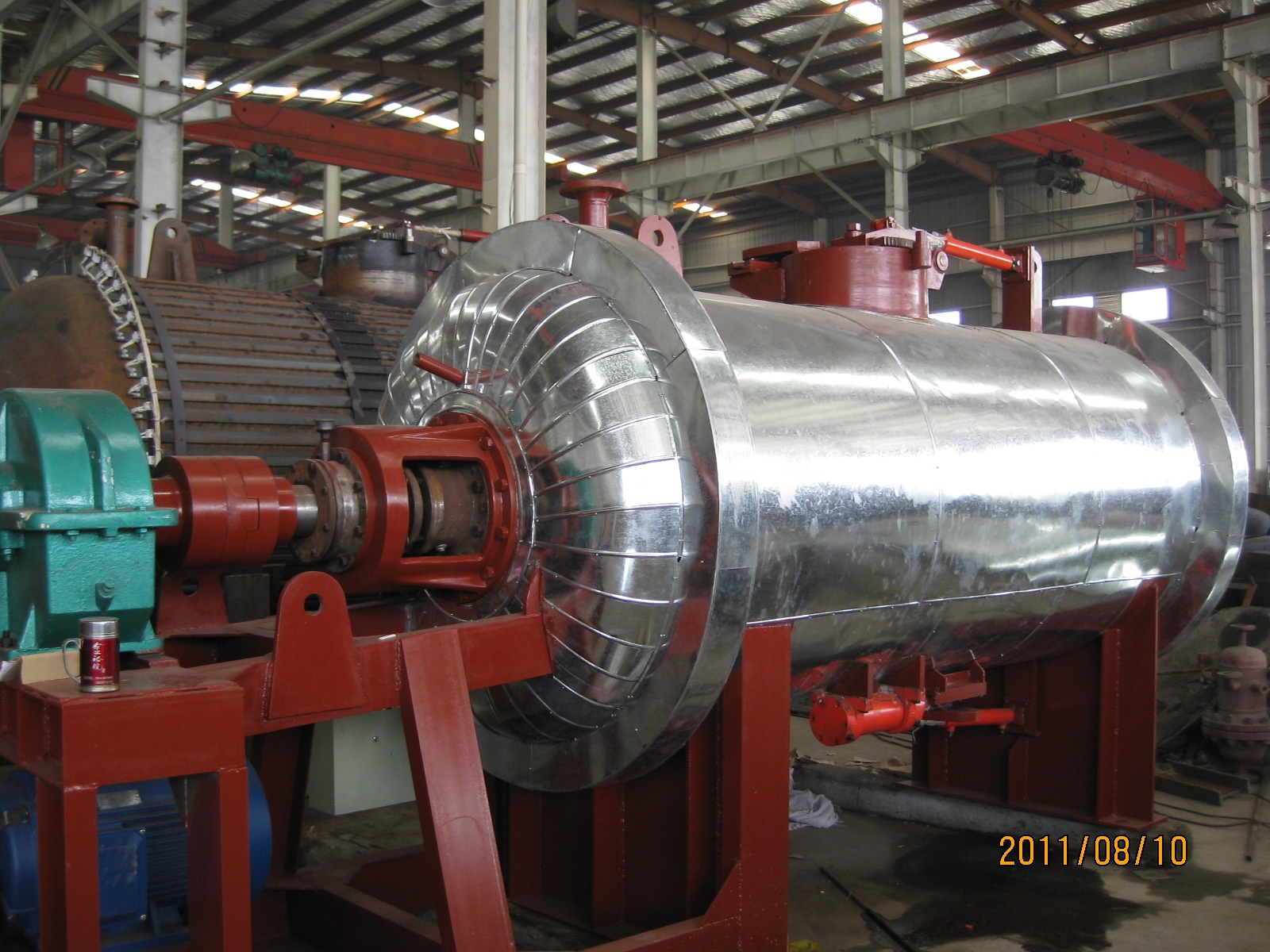

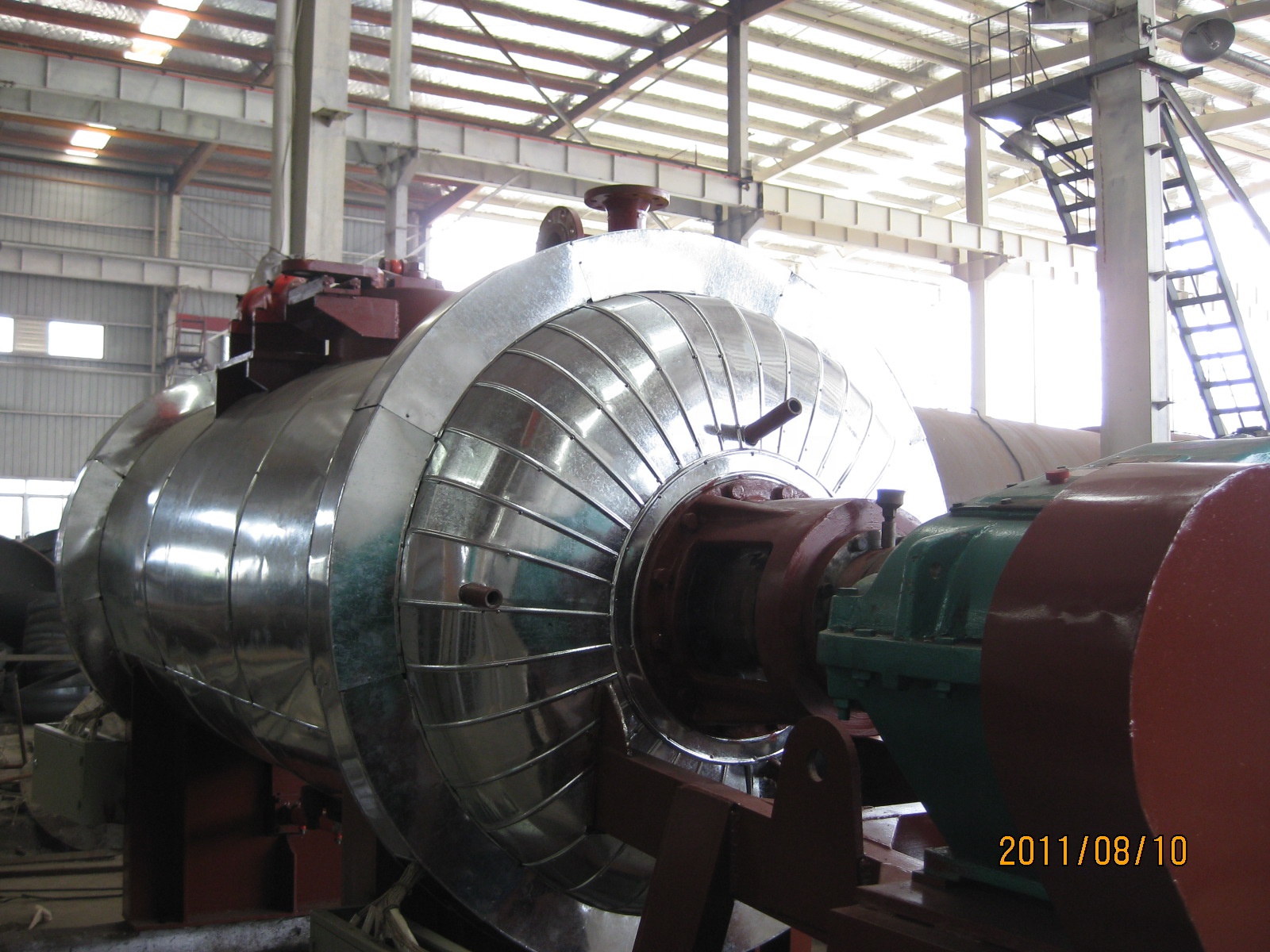

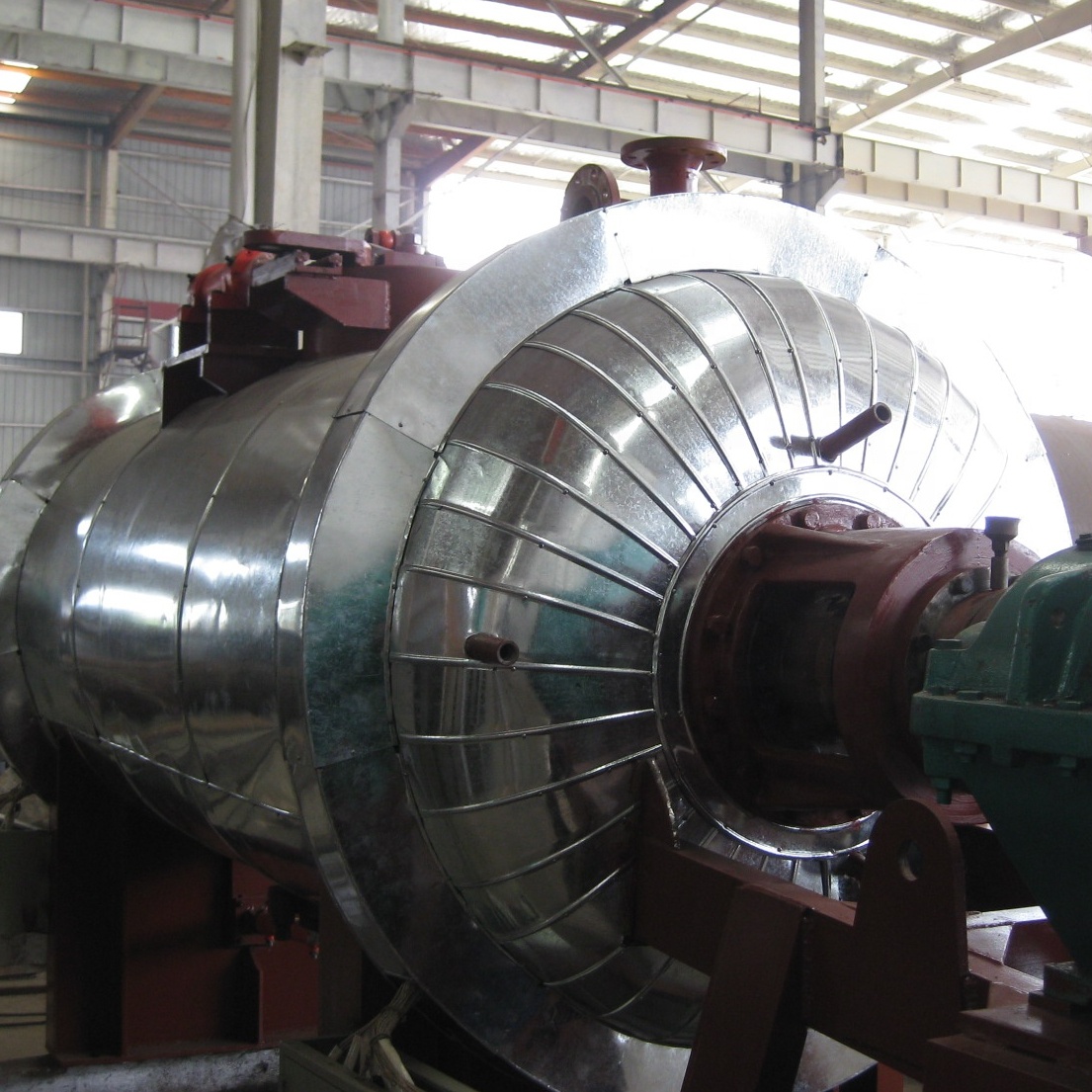

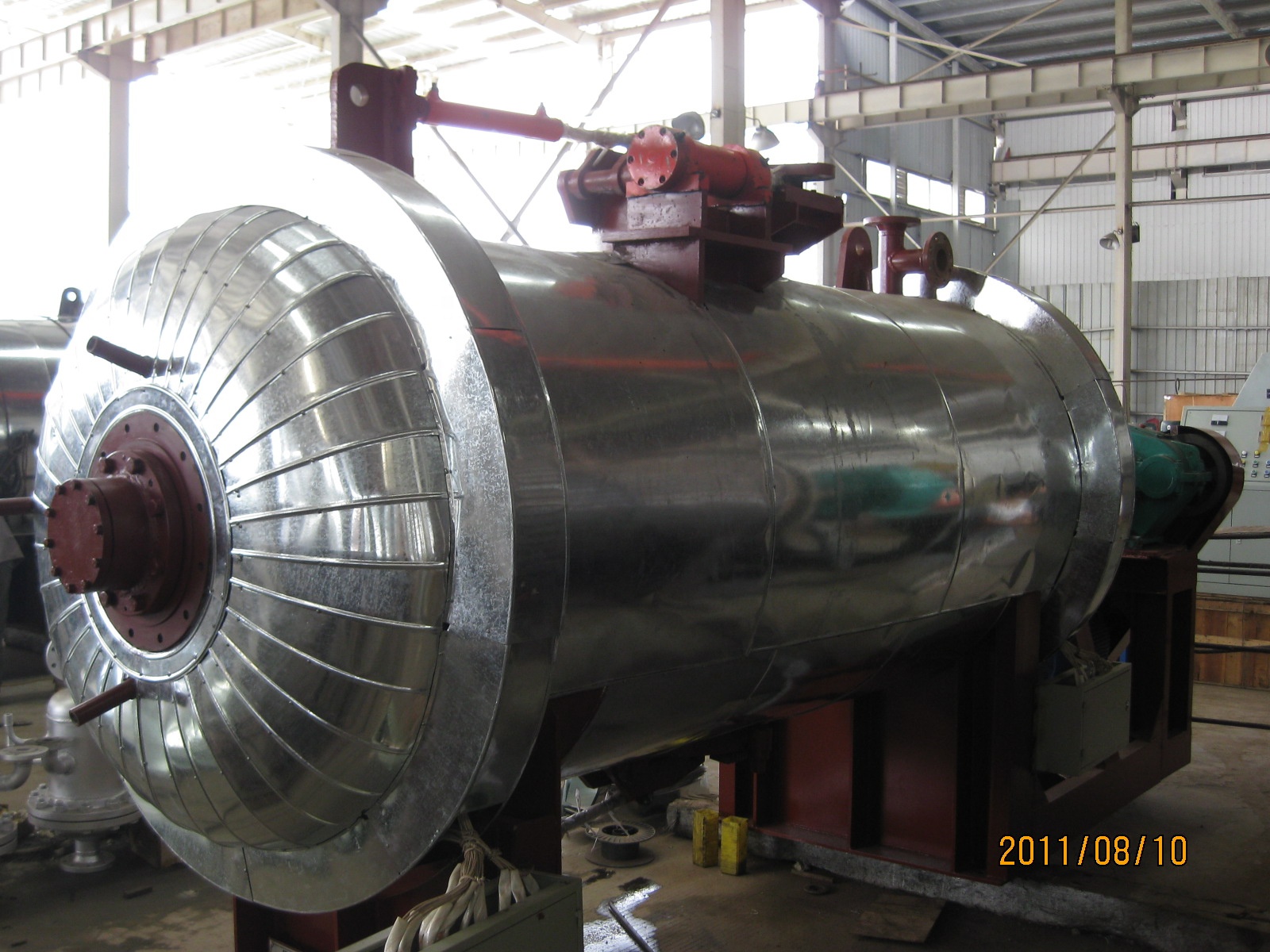

The body of Dynamic Devulcanizer:

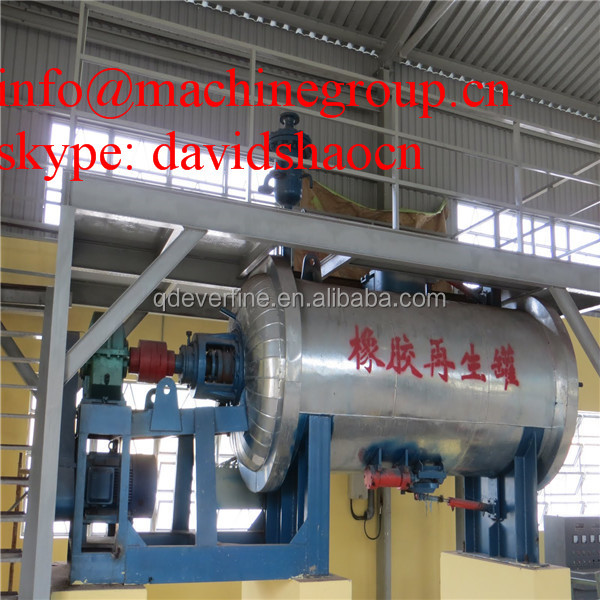

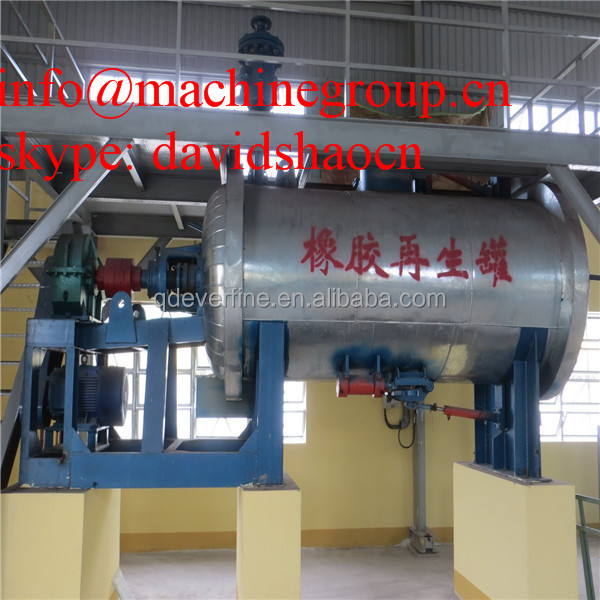

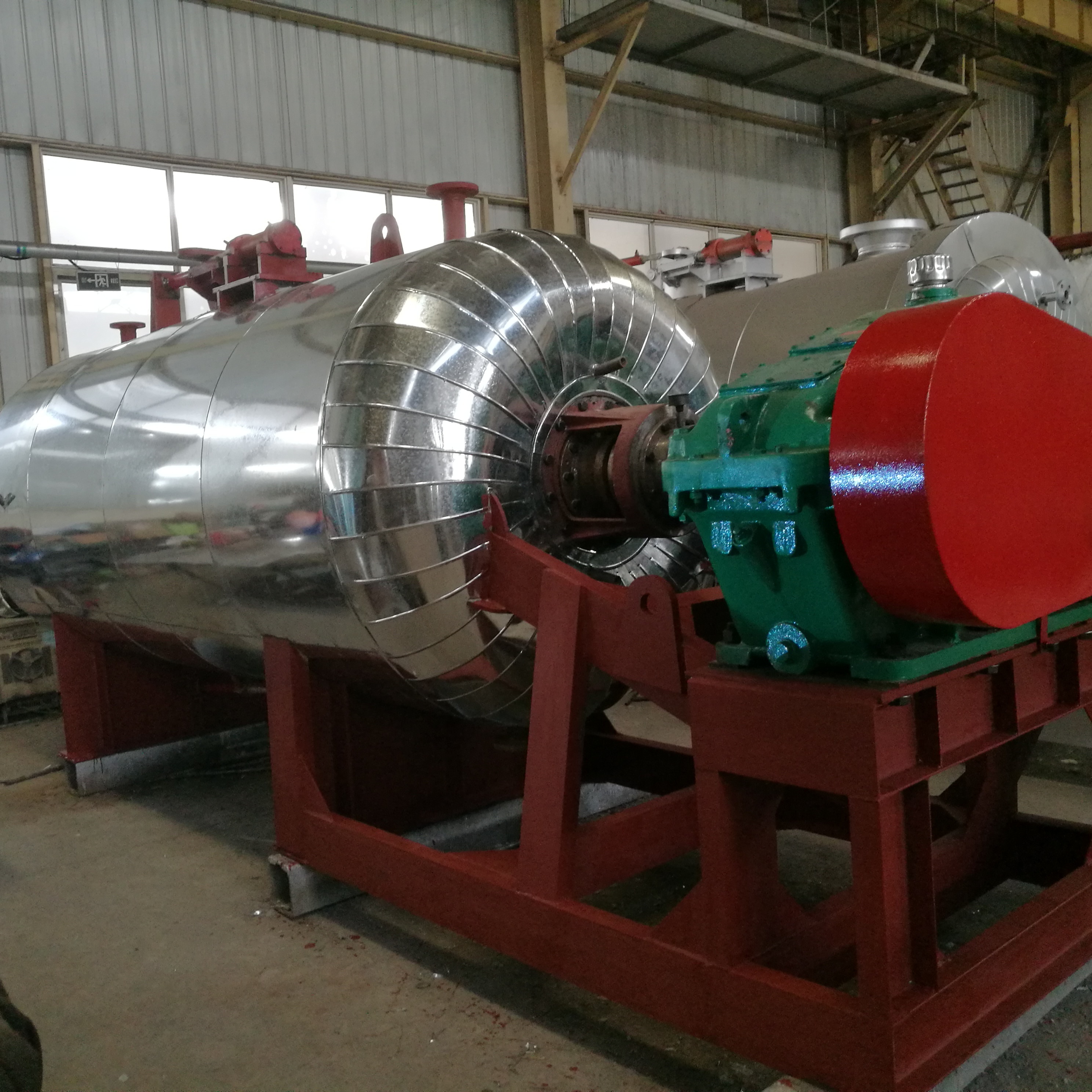

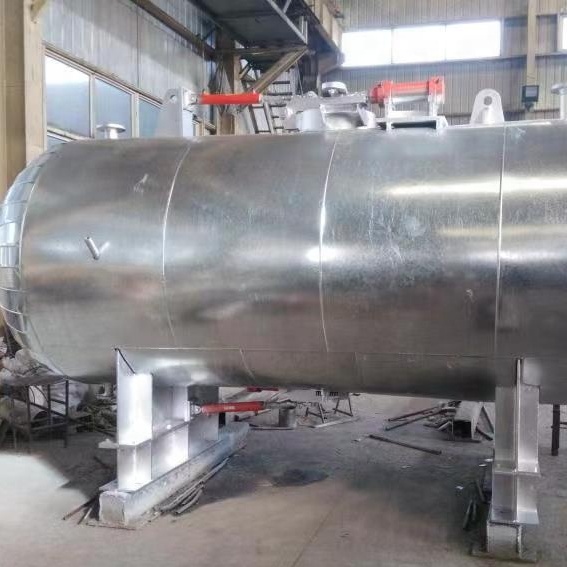

Recycled Rubber Devulcanizer Machine in factory:
