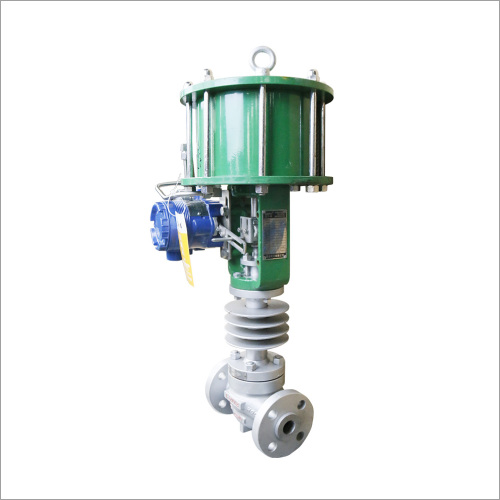

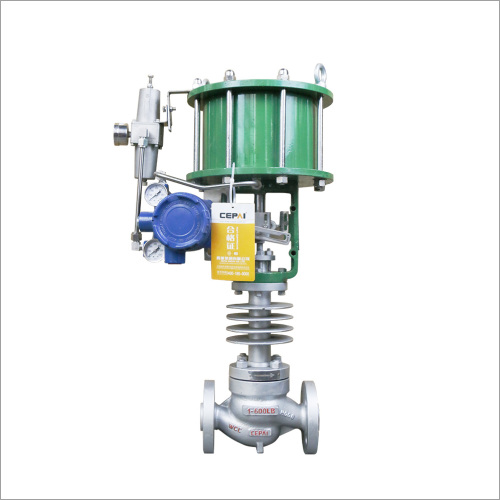

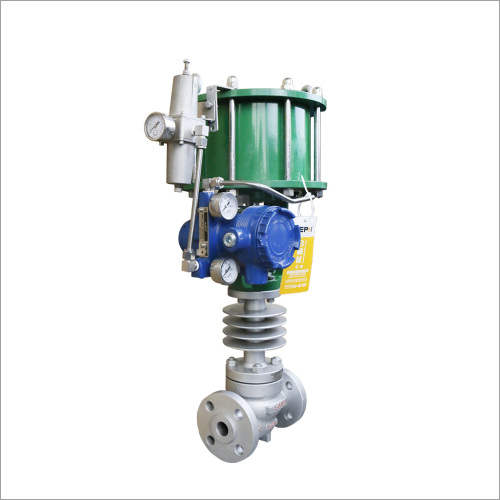

Simple Structure Pneumatic High Temperature Control Valve
Size:
- 1/2" 150LB
- 3/4" 150LB
- 1" 150LB
- 1 1/2" 150LB
- 2" 150LB
- 3" 150LB
- 4" 150LB
- 5" 150LB
- 6" 150LB
- 8" 150LB
Material:
- 304 stainless steel
pressure:
- Low Pressure
Options:
- Please contact customer service for details
Basic Info
| Brand Name | Cepai |
|---|---|
| Types of | Globe Valves |
| Support customization | Oem |
| place of origin | China |
| Medium temperature | High Temperature |
| Flow medium | Gas, Water, Oil |
Product description
Pneumatic high temperature control valve has the characteristics of high temperature adaptability, precise control, fast response, corrosion resistance, high reliability and easy maintenance. It is suitable for controlling the flow and pressure of various high temperature media.
?
Features:
1. High reliability: The valve is made of high-temperature resistant materials, has good sealing and durability, and can operate stably for a long time in high-temperature environments.
2. Good safety performance: The pneumatic high-temperature regulating valve is equipped with safety devices, such as overheating protection, overpressure protection, etc., which can ensure the safety of equipment and personnel.
3. Easy maintenance: The valve has a simple structure and is easy to maintain. It can quickly replace parts and reduce downtime and maintenance costs.
?
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
Valve?Body
| Type:? | straight-through cage ball valve |
| Nominal diameter: | DN15-400mm |
| Nominal pressure:? | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | flange type |
| Valve body material:?? | WCB, WC6, WC9, CF8, CF8M, etc. |
| Valve cover form:? | >230℃ (with heat sink) |
| Gland type: | Bolt pressing type |
| Filler:? | flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
| Model: | film type |
| Diaphragm material: | ethylene-propylene rubber sandwiched with nylon |
| Spring range:? | 20-100KPa, 40-200KPa, 80-240KPa |
| Air supply pressure:? | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector:? | Rc1/4, Rc3/8 |
| Ambient temperature:? | ?-30 ~ +70℃ |
| Mode of action:? | ?air-opening type (reaction), air-closing type (direct action) |
| Remarks:? | ? |
| ? | ① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator. |
| ? | ② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel. |
Performance
| Leakage amount:? | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat:? | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve,speed increaser, position keeping valve, etc. |
?
Simple Structure Pneumatic High Temperature Control Valve
Size:
- 1/2" 150LB
- 3/4" 150LB
- 1" 150LB
- 1 1/2" 150LB
- 2" 150LB
- 3" 150LB
- 4" 150LB
- 5" 150LB
- 6" 150LB
- 8" 150LB
Material:
- 304 stainless steel
pressure:
- Low Pressure
Options:
- Please contact customer service for details
