Softgel encapsulation machine price

1. Machine description

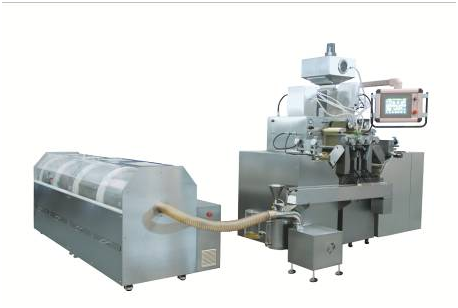

HTSYS-5 soft capsule machine is my company in 2010, the latest development of new products,the machine is only the smallest model laboratory soft capsule machine, carefully designed in full accordance with GMP requirements. The single-phase 220V power supply, mainly used in soft capsule product development laboratories and drug research institutions and colleges teaching demo.

The aircraft use a variety of automatic control technology, simple operation, stable performance, reliable work. The whole machine adopts optimal design, full-featured, compact structure. The equipment package includes a host computer and control system, a dryer, a plastic tank, a mold and a movable platform, the whole equipment elegant wood, in full compliance with the GMP requirements, small footprint package of equipment (2m2), applicable to a variety of industries such as medicine, food, cosmetics, health care products.

2. The main purpose of the device, only functions and features
Soft capsule machine with health care products, drugs stereotypes trial production, health products and drugs packaged into different size and loading amount of soft gelatin capsules and stereotypes dry, you can increase the bio availability of inclusiveness was to extend the validity period, and the sleek,the recipe is versatile stools, mainly for the school students internships operation and the new product research and development services.

1) Food, health care products, new dosage forms of Chinese medicine soft capsule technology.

2) teaching internship students demo.

3) the soft capsules varieties of trial

4) Soft capsule production line simulation experiments to obtain new varieties of soft capsules to produce a full set of process parameters guiding mass production.

3. Technical parameters

(1)host (Pill System)

The host computer control system, PLC touch screen operation

Production capacity	>3,000 / hour
Roller die size	Φ64*75mm
Die roller speed	0-4rpm continuously variable transmission
fluid single plunger supply	0-1.5ml
Finished Capsule Filling precision	±2%
Device power	1.5Kw, machine requirements in line with the pharmaceutical and health Standards
Dimensions	800*650*1100mm
weight	200kg

(2) dryer (setting system)

Drying cage size	φ320*450mm
drying cage speed	16rpm
The equipment power	0.4kW
Fan Power	AC220V 50HZ 40W
size	750*400*760mm
Weight	40kg

(3) of plastic cans (of dispensing systems)

(4) a colloid mill

Colloid Mill	materials processing fineness 2-70um
Motor power	5.5 kW
No-load speed	3000 ± 100r/min
Dimensions	320*320*760mm
weight	26 kg

(5) dry turning

drying capacity	100-3000 / disc
Cart size	755* 489 * 20mm
Pallet size	750*485*55mm
Overall Dimensions	750*490*750mm
weight	28kg

4. Sets of configuration

1) soft capsules host: 1 se

2) Stereotypes dryer:1set

3) 40 liters plastic cans :1set

4) JTM-50 colloid mill :1set

5) Mold:1set

6) Cranking:1set(10/car)
