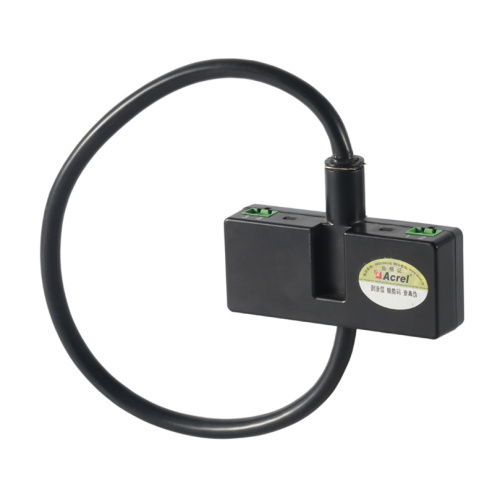

Split core transducer current sensor

$204.00 ~ $458.00 / Piece/Pieces

Options:

BR-AI AC200-1000A
BR-AI AC1200-2000A
BR-AI AC2500-6300A
BR-AI AC8000-20000A
BR-AI AC200-2000A
BR-AI AC2500-20000A

Get Latest Price

Model No.	BR-AI
Brand Name	Acrel
place of origin	China
use	Power, Current, Electronic, High Frequency
Coil structure	Toroidal
Number of coils	Autotransformer
Brand Name	Acrel
Certification	Ce Rohs
Place of origin	Jiangsu, China
Input	Ac200a-20ka
Output	Dc 4-20ma
Accuracy	Class 0.5
Model Number	Br-Ai
Application	Metallurgy,Electroplating,Welding
Power Supply	Dc24v
Product Name	Split Core Transducer Current Sensor

Split core transducer current sensor

1. General

BR-AI series Electrcial Transducer 5A split core rogowski coil Power Transducer conduct the real-time measurement on the alternating current in power grid according to the electromangetic induction rogowski coil 5a utilize the RMS and the linear compensation technology to isolate and convert the measured Current into the standard DC signal 24VDC safety source features high precision,isolation and safety and low power consumption.split core rogowski coil Electrcial Transducer is widely used inmetallurgical,electroplating,welding and other fields.Acrel Single Phase Current Transducer is hot sale around the world,we can product 5000 pcs Power Sensors per month.

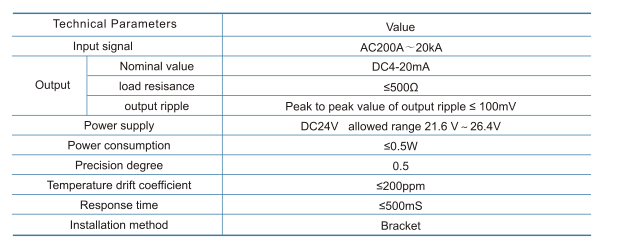

2. Technical Features

Type	Input Current
BR-AI	AC200-1000A
	AC1200-2000A
	AC2500-6300A
	AC8000-20000A

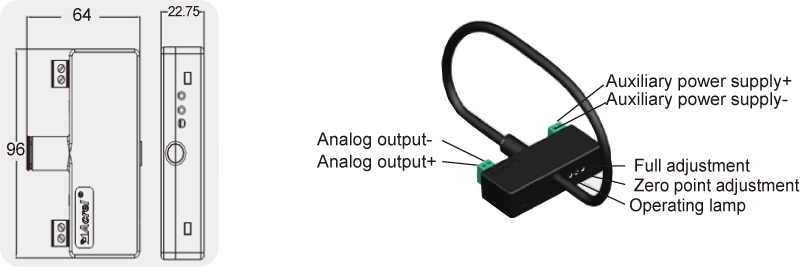

3.Dimension

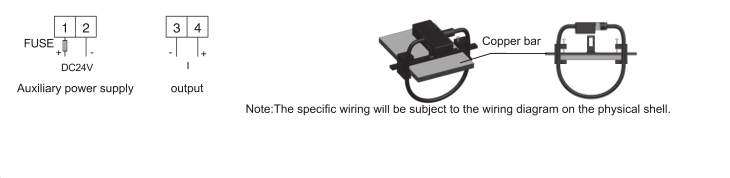

4.Typical Applications

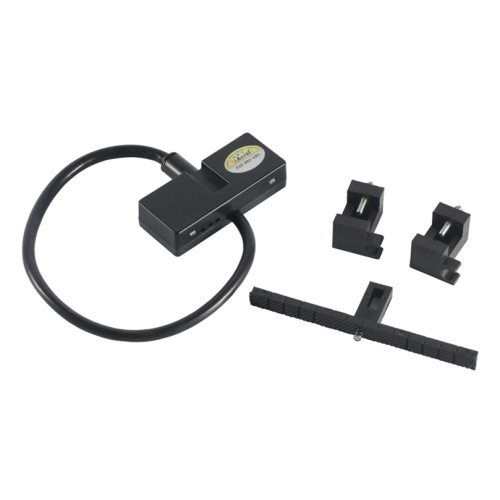

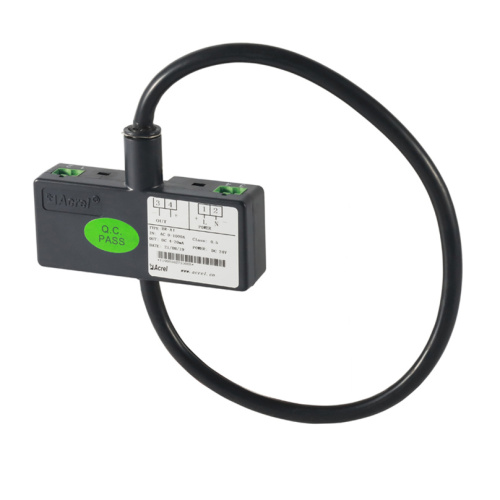

5.Appearance.

single phase rogowski coil current sensor

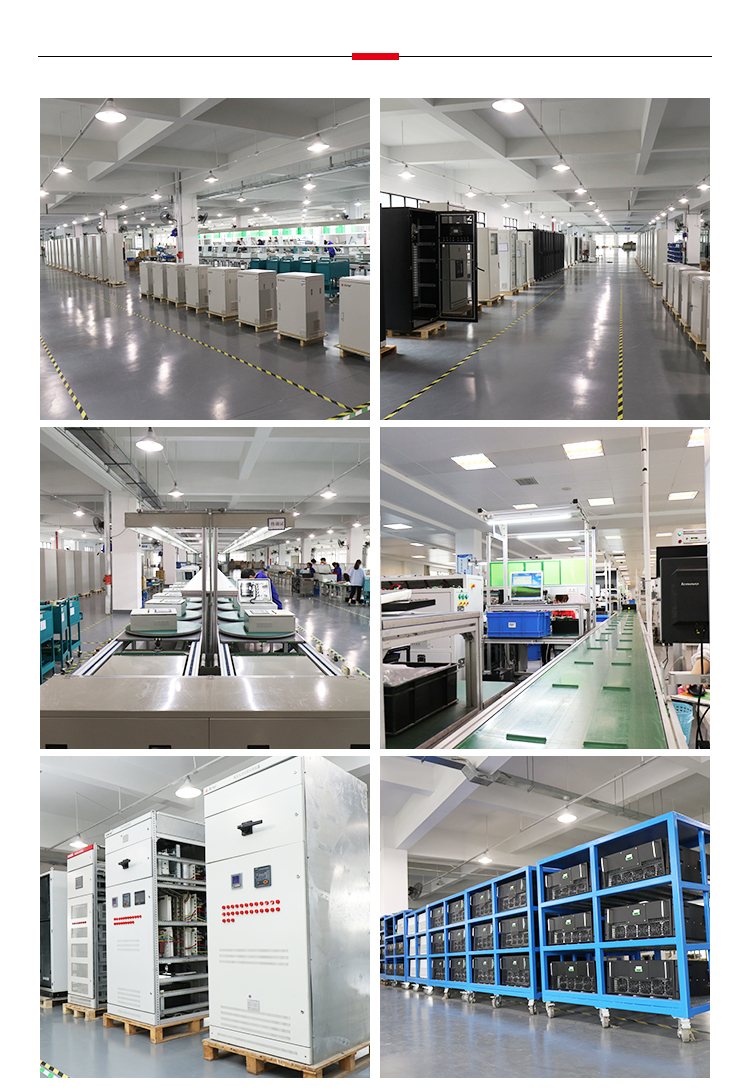

6. Manufacture

Rogowski Coil Current Transformer CT Sensor

7.FAQ

We are highly aprreciate for your visiting! Hereafter may help you understand more about us.

1.
Q: Where is your factory located ? How can I visit here ? Can your factory arrange transportation for me?
A: Our production base is located in Jiangyin City, Jiangsu Province, China;
Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel
when you arrive Shanghai.

2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?
A: The staffs in our R&D department are well experienced in the Electric industry, with more than 10 years’ experience.
We can make customized products especially for you; please kindly contact us for more

3. Q: How long could I get my order?
A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.

4. Q: How is your production management and quality control system?
A: All our product process follows up ISO9001. The strict implementation of ISO9001 assures to provide error–free products to
our customers. We will show you these in our workshop during your visiting.

5. Q: How can I get a sample to check the quality?
A: We are glad to offer you samples for test. Leave us message of the item you want and your city address.
We will offer you detail sample packing information, and select the best way to deliver it.
