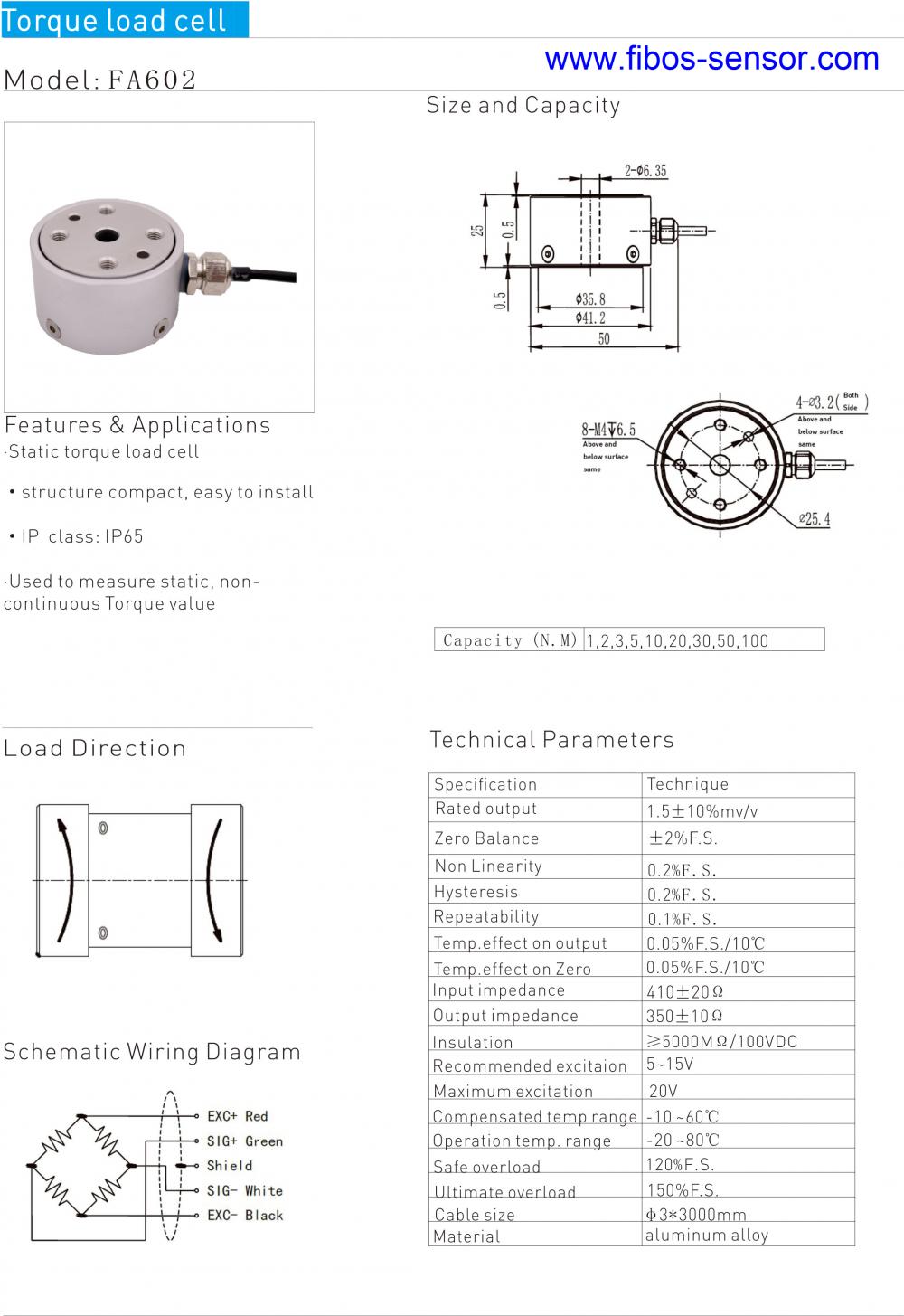

Static torque load cell sensor

·Static torque load cell

·structure compact, easy to install

·IP class: IP65

·Used to measure static, non-continuous Torque value

technical parameters
Specifications	Technique
Capacity	1,2,3,5,10,20,30,50,100N.M
Rated output	1.5±10%mV/V
Zero balance	±2%F.S.
Non-linearity	0.2%F.S.
Hysteresis	0.2%F.S.
Repeatability	0.1%F.S.
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Input impedance	410±20Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5-15V
Maximum excitation	20V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	120%F.S.
Ultimate overload	150%F.S.
Cable size	φ3*3000mm
Material	aluminum alloy
