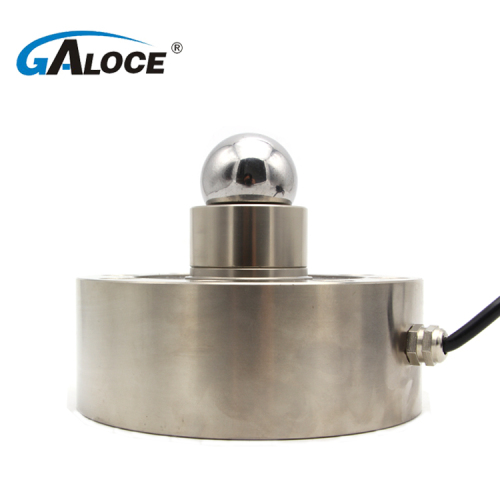

Testing Machine Compression Tension Force Sensor
Basic Info
| Model No. | GSS406 |
|---|---|
| Brand Name | GALOCE |
| place of origin | China |
| Output | Analog Sensor |
| Place Of Origin | Shaanxi, China |
| Type | Load Cell |
| Brand Name | Galoce |
Product description

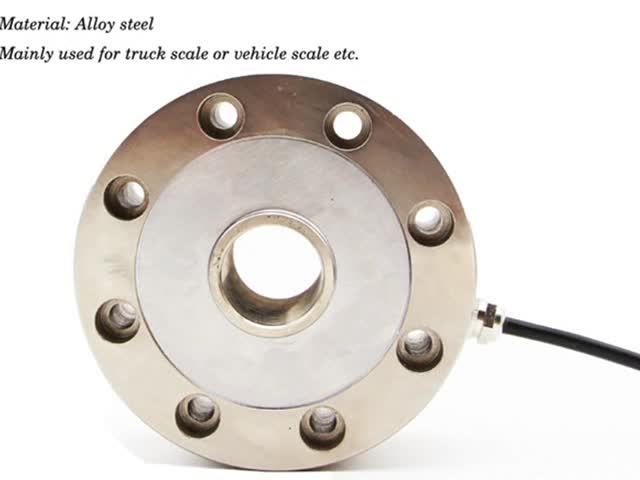

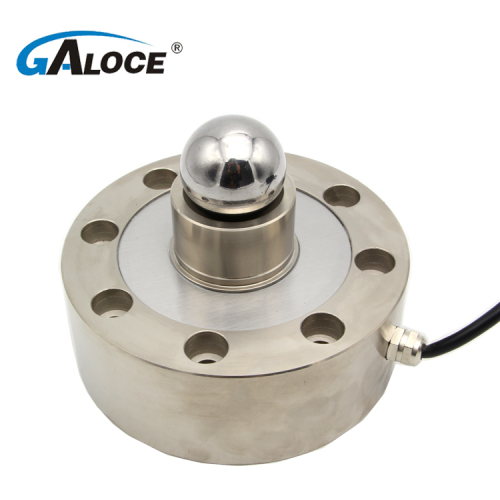

GALOCE GSS406 model sensor is high precison spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP66. the capacity is from 500kg to 100Ton. custom load cell. The compression load cell is suitable for compression testing machines , tank weighing. hopper scale and special measuring equipment. Stainless steel 17-4PH material construction is optional. Contact us if you are interested in the spoken weighing module and weight indicator.
What is strength of GSS406 Load cell?
1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Good steel performance and high accuracy
What is specifications of GSS406 Load cell?
|
Specification |
|
|
Range (T): 0.5-100 |
|
|
Comprehensive error (%F.S): ±0.05 |
Insulation resistance (MΩ): ≥5000 |
|
Rated output (mV/ V): 2.0 |
Temp. effect on span (%F.S/10℃): ±0.05 |
|
Creep (%F.S/30min): ±0.05 |
Temp. effect on zero (%F.S/10℃): ±0.05 |
|
Zero balance (%F.S): ±1.0 |
Operation temp. range (℃): -20~+65 |
|
Input resistance (Ω): 380±10 or 750±15 |
Excitation voltage (V): 10 (DC) |
|
Output resistance (Ω): 350±3 or 700±5 |
Safe overload (%F.S): 150 |
|
Wiring information: |
Red: Input (+) White: Output (-) Black: Input (-) Green: Output (+) |
What is Dimension of GSS406 Load cell?
|
Range |
Size (mm) |
||||||
|
T |
φA |
φB |
φC |
φF |
MD |
H |
E |
|
0.5-7 |
105 |
88.9 |
6.5 |
32 |
M16x1.5 |
37 |
34 |
|
10-25 |
125 |
101.6 |
8.5 |
39 |
M32x1.5 |
52 |
48 |
|
30-50 |
145 |
116.8 |
10.5 |
50 |
M40x1.5 |
58 |
54 |
|
60-100 |
205 |
162 |
12.5 |
80 |
M60x2 |
85 |
78 |
|
Range (T) |
Size(mm) |
||||
|
φ |
L1 |
L |
M |
SR |
|
|
0.5-7 |
31 |
13 |
28 |
M16*1.5 |
80 |
|
10-25 |
38 |
24 |
51 |
M32*1.5 |
120 |
|
30-50 |
50 |
32 |
62 |
M40*1.5 |
200 |
|
60-100 |
80 |
42 |
80 |
M60*2 |
280 |
What is Product Details of GSS406 Load cell?
What is application of GSS406 Load cell?

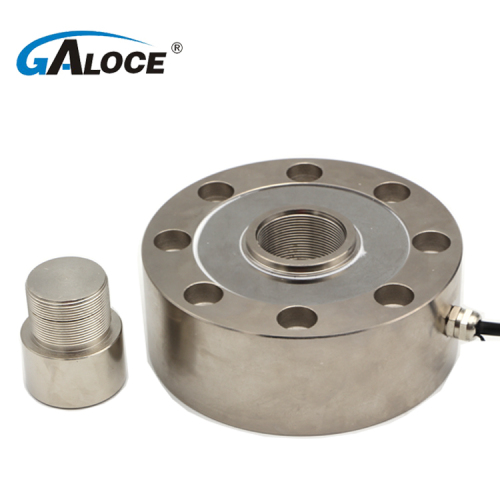

Spoken type load cells have a mounting rig and female center-thread, which makes them suitable for compression and tension applications.It is used for electronic, tension testing.impact testing, tank and silo level monitoring, and other industrial weighing system.
Q: What are the applications of spoke type load cell?
A: Belt scale, batching scale, cement mixing plant, reaction kettle weighing system, tank weighing system, silo scale, etc.
Q: What is the raw material?
A: Alloy steel
Q: What is the load range?
A: 1-470T
Q: What is the accuracy/precision?
A: C2 0.03% and C3 0.02%
Q: How to install?
A: Install them under the tank, then connect all the load cells with junction box and connect junction box with controller indicator or display indicator
