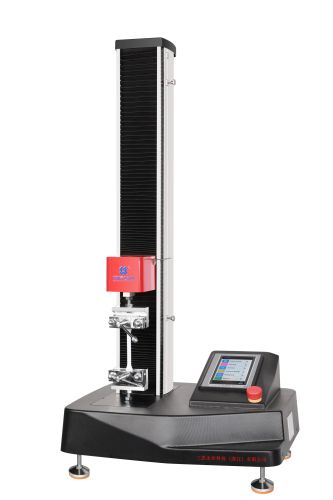

Touch-screen Single Column Universal Testing Machine-50N

Get Latest Price

You might also like

XBD4000 Electronic Universal Testing Machine 2000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-5000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-2000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-1000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-500N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-200N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-100N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-50N

1 (MOQ)

Basic Info

Model No.	XBD1501A
Brand Name	XINBIAO

Product description

Touch-screen Single Column Universal Testing Machine (50N) - Product Details for Trading Platforms1. Product Overview The Touch-screen Single Column Universal Testing Machine (50N) is a next-generation benchtop testing system engineered for precision low-force mechanical characterization. Designed for compact laboratory environments, this single-column unit integrates a high-sensitivity 50N load cell with an intuitive touch-screen control interface, delivering accurate, repeatable results for tensile, compression, bending, peeling, and puncture tests. Ideal for R&D labs, quality control departments, educational institutions, and medical device manufacturing, it complies with international standards including ISO 7500-1 (Class 0.5), ASTM E4, GB/T 16491, and DIN standards, ensuring global acceptance of test data. Its space-saving design (580×520×1580mm) maximizes bench space while maintaining structural rigidity, making it perfect for small to medium-scale testing facilities with limited space.

2. Core Technical Specifications | Parameter | Value | Accuracy | |-----------|-------|----------| | Max Test Force | 50N (11.24 lbf) | ±0.5% of indicated value | | Force Measurement Range | 2%–100% FS | ±0.5% FS | | Force Resolution | 1/600,000 FS | - | | Test Speed Range | 0.00005–2400 mm/min | ±0.2% of set speed | | Position Resolution | 0.0133 μm | ±0.2% of set position | | Crosshead Travel | 960 mm (vertical) | - | | Test Width | 100 mm | - | | Touch Screen | 7-inch industrial multi-touch | Multi-language support | | Power Supply | AC 220V±10%, 50/60Hz, 600W | - | | Net Weight | 108 kg (238 lbs) | - | | Safety Standards | Overload protection (103% FS), stroke limit, emergency stop | - | Key design features include a **FEA-optimized single-column frame** with dual linear guide rails, ensuring minimal deflection under load and precise alignment throughout the test stroke. The direct-drive servo system eliminates transmission backlash, enabling ultra-slow micro-displacement testing (0.00005 mm/min) for delicate materials like thin films and medical sutures. ## 3. Key Features & Advantages ### 3.1 High-Precision Control System - **Touch-screen Interface**: 7-inch industrial touch panel with real-time force-displacement/stress-strain curve display, allowing one-click test parameter setup, data review, and report generation. - **Multi-standard Compatibility**: Preloaded test method templates for ASTM, ISO, GB/T, EN, and DIN standards, supporting custom test program creation for specialized applications. - **Dual Control Modes**: Operate via touch-screen or handheld remote controller (3.5-inch color touchscreen) for flexible workflow adaptation. ### 3.2 Advanced Mechanical Design - **High-Stiffness Structure**: Preloaded precision ball screw and reinforced column supports ensure long-term alignment stability, critical for accurate modulus and yield strength measurements. - **Low-Vibration Drive System**: Servo motor with high-rigidity synchronous belt delivers smooth, quiet operation with rapid return speed (3000 mm/min), boosting testing efficiency. - **Modular Accessory Integration**: Universal plug-in interface for grips, extensometers, temperature/humidity chambers, and torsional fixtures, enabling quick setup for diverse test types. 3.3 Safety & Data Management - Comprehensive Safety Protection**: Hardware-level overload stop (103% FS), dual-layer stroke limit protection, and emergency stop buttons prevent equipment damage and operator injury. - Data Security**: USB/Ethernet connectivity for fast data transfer; supports CSV, Excel, PDF, and PNG export of test results and curves, facilitating compliance reporting and data sharing. - Auto-Calibration & Diagnostics**: TEDS auto-recognition for load cells and automated self-diagnostics reduce maintenance downtime and ensure measurement traceability. 4. Typical Applications This 50N single-column testing machine is ideal for evaluating **low-force, high-precision materials** across multiple industries: 4.1 Medical Device Industry - Tensile strength of surgical sutures, catheter tubes, and medical films (compliant with ISO 13485) - Puncture force testing of hypodermic needles and medical packaging seals - Adhesion strength of medical dressings and implantable coatings

4.2 Packaging & Material Science - Tear resistance of thin plastic films, aluminum foil, and composite packaging materials (ASTM D882, ISO 1924) - Peeling strength of adhesive tapes, labels, and flexible packaging (ASTM D903, ISO 8510) - Compression testing of foam materials and soft tissue substitutes (ASTM D3574, ISO 2439) 4.3 Electronics & Consumer Goods - Tensile strength of micro-wires, solder joints, and electronic component leads (ASTM E8, ISO 6892-1) - Bending resistance of optical films, flexible displays, and circuit board substrates - Force-displacement testing of small springs, plastic clips, and consumer product components 4.4 Textiles & Nonwovens - Tensile and elongation testing of yarns, woven fabrics, and nonwoven materials (ISO 13934, ASTM D5034) - Bursting strength of geotextiles and protective clothing materials 5. Standard Configuration & Optional Accessories 5.1 Standard Package - Touch-screen single column universal testing machine main unit - 50N high-precision load cell (TEDS-enabled) - 7-inch industrial touch-screen control panel - Handheld remote controller (3.5-inch color touchscreen) - Manual grips (upper/lower) - Power cable & connection accessories - User manual & calibration certificate - Software with multi-standard templates (ASTM/ISO/GB/T) 5.2 Optional Upgrades | Accessory | Function | Application | |-----------|----------|-------------| | Pneumatic Grip Module | Programmable grip force control, preventing sample slippage | Adhesive materials, thin films, textiles | | Laser Extensometer | Non-contact strain measurement for flexible materials | Plastic films, rubber, composites | | Temperature/Humidity Chamber | Environmental simulation (-70°C to 150°C, 10–98% RH) | High-low temperature testing, moisture effect analysis | | Protective Shield | Safety interlock, debris resistance | High-risk sample tests (e.g., brittle materials) | | Custom Fixtures | Specialized grips for unique sample geometries | Medical components, electronic parts, custom specimens | 6. Quality Assurance & Certification - Manufacturing Standards**: Complies with ISO 9001 quality management system, GB/T 2611, and GB/T 16825.1 calibration standards. - Calibration & Traceability**: Each unit undergoes 100% factory calibration with traceable standard weights, accompanied by a calibration certificate valid for 12 months. - Warranty & Support**: 2-year comprehensive warranty for main unit, lifetime technical support, and on-site installation/ training available upon request. - Third-Party Certification**: Optional CE, FCC, and RoHS certification for global market compliance. 7. Installation & Operation Guidelines 7.1 Pre-Installation Requirements - Stable workbench with load capacity ≥150 kg, free from vibration and direct sunlight - Power supply: AC 220V±10%, 50/60Hz, dedicated circuit with grounding - Working environment: Temperature 5–40°C, relative humidity 10–90% (non-condensing) - Clearance around the machine: ≥500mm on all sides for maintenance and safety 7.2 Quick Setup Process 1. Unpack and place the machine on the workbench, adjusting leveling feet for stability 2. Connect power cable and communication interface (USB/Ethernet) 3. Power on and perform auto-calibration via the touch-screen interface 4. Install appropriate grips/ fixtures based on test requirements 5. Load test sample and set parameters (speed, force range, test type) 6. Start test and monitor real-time curves; auto-stop at completion or overload 7. Export and save test data/reports for documentation 7.3 Maintenance Tips - Weekly: Clean touch-screen and frame with dry cloth; check grip alignment - Monthly: Lubricate linear guide rails (use provided silicone grease) - Annually: Professional calibration by certified technicians; inspect load cell and servo system - Storage: Keep in dry environment; cover with dust cover when not in use 8. Pricing & Shipping Terms - **FOB Price**: $1,800–$2,200 per unit (varies with configuration and order quantity) - **MOQ**: 1 unit - **Lead Time**: 7–15 days for standard models; 20–30 days for custom configurations - **Packaging**: Fumigation-free wooden case for shock protection; custom export packaging available - **Shipping Ports**: Ningbo, Shanghai, or Shenzhen (flexible for your logistics needs) - **Delivery Terms**: FOB, CIF, or EXW; door-to-door delivery service optional 9. Why Choose Our 50N Touch-screen Universal Testing Machine? 1. **Precision Beyond Expectations**: 0.5% accuracy class and 1/600,000 force resolution ensure reliable data for even the most delicate materials, meeting global testing standards. 2. **User-Centric Design**: Intuitive touch-screen interface eliminates complex training needs, while dual control modes adapt to diverse operator preferences and workflow requirements. 3. **Space-Efficient Performance**: Compact benchtop footprint maximizes lab space without compromising structural rigidity or testing capacity, ideal for small to medium facilities. 4. **Comprehensive Support**: 2-year warranty, lifetime technical support, and global calibration services ensure long-term operational reliability and compliance. 5. **Customization Flexibility**: Wide range of optional accessories and custom fixture options allow tailored configuration for specific industry applications, from medical devices to packaging testing. 10. Contact & After-Sales Service - **Pre-sales Support**: Professional technical team provides customized testing solutions, sample testing, and detailed quotation based on your application needs. - **On-Site Service**: Installment, debugging, and operator training available in major Chinese cities; international on-site support negotiable. - **After-Sales Service**: 24/7 technical support via phone/email; spare parts supply for 10+ years; regular follow-up to ensure optimal performance. - **Global Service Network**: Partner with local agents in Europe, North America, Southeast Asia, and the Middle East for fast response and localized support. This product is trusted by over 1,000 laboratories and manufacturing facilities worldwide for its precision, reliability, and cost-effectiveness. Whether you're performing routine quality control or advanced R&D testing, our Touch-screen Single Column Universal Testing Machine (50N) delivers the accuracy and flexibility you need to meet your testing goals. Contact us today for a free sample test, detailed catalog, or customized quotation tailored to your specific application requirements!
