Touch-screen Single Column Universal Testing Machine-1000N

use:

Paper Testing Instrument
Compression Testing Machine
Strength Testing Machine
Process Testing Machine
Vibration Testing Machine
Bending Testing Machine
Universal Testing Machine

Get Latest Price

You might also like

XBD4000 Electronic Universal Testing Machine 2000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-5000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-2000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-1000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-500N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-200N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-100N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-50N

1 (MOQ)

Basic Info

Model No.	XBD1103A
Brand Name	XINBIAO
Support customization	Oem
power	Electronic

Product description

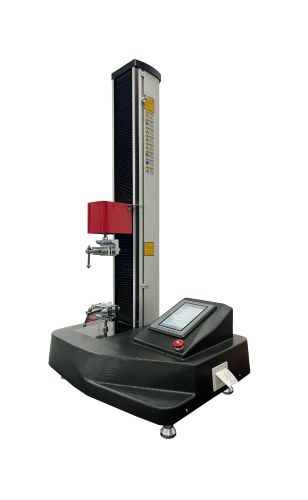

Touch-screen Single Column Universal Testing Machine 1000N The Touch-screen Single Column Universal Testing Machine 1000N is a high-performance benchtop testing system designed for tension, compression, peeling, tearing, bending, puncture, and adhesive strength testing. It is widely used in quality control, laboratory research, material development, and production inspection across industries such as plastics, packaging, electronics, automotive parts, textiles, adhesives, medical devices, and small hardware components. Built with a rigid single-column structure, high-precision load cell, and intelligent touch-screen control, this machine ensures stable operation, high test repeatability, and simple operation. It conforms to international testing standards including ISO 7500-1, ASTM E4, and GB/T 16491, providing accurate and globally recognized test data. Technical Specifications - Maximum Test Force: 1000N (100kgf) - Force Accuracy: Class 0.5 / ±0.5% of indicated value - Force Resolution: 1/500,000 FS - Test Speed Range: 0.001–500 mm/min - Speed Accuracy: ±0.2% - Displacement Resolution: 0.001 mm - Effective Stroke: 800 mm - Effective Test Width: 120 mm - Display: 7-inch industrial HD touch screen - Control Mode: Standalone touch control + optional PC control - Safety: Overload protection, upper/lower travel limits, emergency stop - Power Supply: AC 220V 50/60Hz - Dimensions: 500×550×1600 mm - Net Weight: 115 kg Key Features High Precision & Stable Structure Adopting a high-rigidity single-column frame, precision ball screw, and dual linear guide rails, the machine ensures minimal deformation and consistent alignment. The high-sensitivity 1000N load cell captures subtle force changes, delivering reliable and repeatable test results for both delicate and medium-load samples. Simple Touch-screen Operation The 7-inch user-friendly touch screen supports one-key parameter setup, real-time force-displacement curve display, and automatic calculation of tensile strength, elongation, peel force, tear strength, and modulus. Operators can complete tests with minimal training, greatly improving work efficiency. Strong Versatility With interchangeable fixtures, the machine can quickly switch between different test types. It supports manual grips, pneumatic grips, peel jigs, puncture probes, three-point bending fixtures, and extensometers, adapting to various materials and sample shapes. Comprehensive Safety Protection Full-range overload protection automatically stops the machine when the load exceeds the limit. Dual mechanical limit switches prevent overtravel damage. A prominent emergency stop button ensures instant shutdown, protecting both operators and equipment. Convenient Data Management Test data and curves can be exported via USB in Excel, PDF, or image formats for archiving, printing, and quality tracking. The system supports historical data query and batch test management to meet modern quality management requirements. Typical Applications Plastics & Rubber Industry - Tensile, bending, and tearing testing of plastic sheets, profiles, and rubber parts - Elongation and modulus testing of polymer materials Packaging & Adhesives - Tensile, peel, and tear testing of films, composite materials, and aluminum foil - Adhesive strength of tapes, labels, laminates, and packaging seals Electronics & Automotive Components - Tensile testing of wires, cables, terminals, and connectors - Pull-out force of plugs, springs, fasteners, and small structural parts - Bending testing of flexible circuits, optical films, and thin substrates Textiles & Medical Materials - Tensile and tearing strength of fabrics, nonwovens, and geotextiles - Tensile and adhesion testing of medical dressings, sutures, and packaging materials Standard Configuration - Main testing machine with 1000N high-precision load cell - 7-inch touch-screen control system - Standard manual tensile grips - Handheld controller - Power cable and USB data cable - English user manual - Factory calibration certificate Optional Accessories - Pneumatic grips - Peel fixture, puncture probe, 3-point bending jig - Contact or laser extensometer - Temperature test chamber - Custom special fixtures - Safety protective cover Quality & Service - Manufactured under ISO 9001 quality management system - Full factory calibration with traceable standard weights - CE certification available - 2-year warranty for main parts - Lifetime technical support and online training Trade Information - MOQ: 1 set - Lead Time: 5–12 working days - Packaging: Export fumigation-free wooden case - Shipping Ports: Ningbo, Shanghai - Payment Terms: T/T, L/C, Western Union - After-sales: Online guidance, remote troubleshooting, video support This 1000N touch-screen universal testing machine features stable performance, easy operation, and high cost-effectiveness. It is an ideal testing solution for laboratories, factories, and trading companies seeking professional and reliable material testing equipment.
