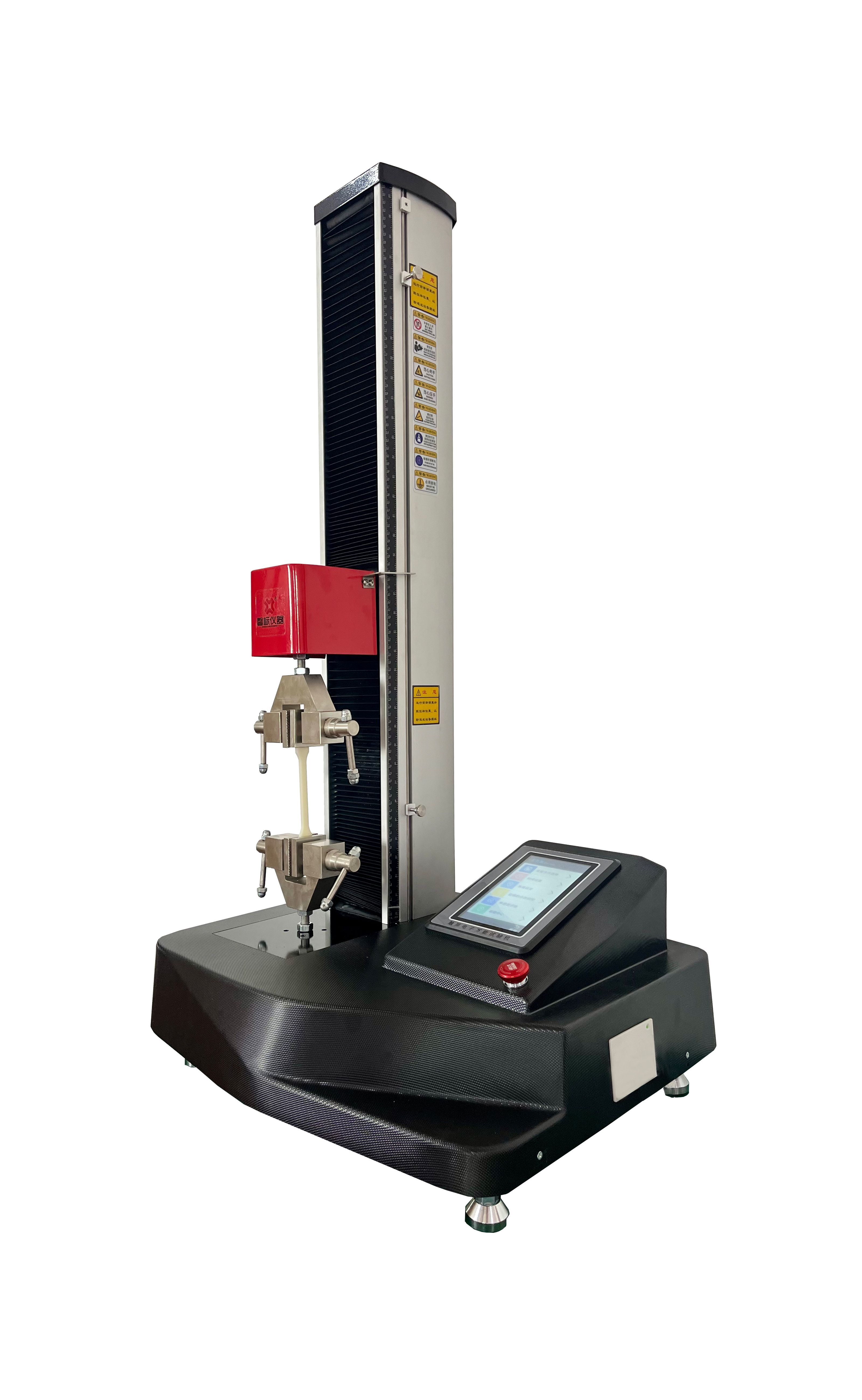

Touch-screen Single Column Universal Testing Machine-100N

use:

Paper Testing Instrument
Other

Get Latest Price

You might also like

XBD4000 Electronic Universal Testing Machine 2000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-5000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-2000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-1000N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-500N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-200N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-100N

1 (MOQ)

Touch-screen Single Column Universal Testing Machine-50N

1 (MOQ)

Basic Info

Model No.	XBD1102A
Brand Name	XINBIAO
Support customization	Oem
place of origin	China
power	Electronic

Product description

# Touch?screen Single Column Universal Testing Machine – 100N **Product Description for B2B Trading Platform** ## Product Overview

The **100N Touch?screen Single Column Universal Testing Machine** is a precision benchtop mechanical tester engineered for low?force material characterization in quality control, research labs, manufacturing inspection, and educational institutions. Built with a rigid single?column frame, high?precision load sensor, and intuitive touchscreen operation, it performs stable and repeatable tests including tension, compression, peeling, tearing, bending, puncture, and adhesive force measurement. Unlike basic force gauges, this integrated system delivers laboratory?grade accuracy, automatic data calculation, and standardized reporting to meet global testing norms. Designed for small?profile samples and delicate materials, it occupies minimal bench space while maintaining structural stability and alignment accuracy. The standalone touchscreen controller eliminates the need for an external computer, simplifying operation and lowering setup costs. It is widely applied in medical devices, flexible packaging, electronics, adhesives, textiles, nonwovens, plastics, rubber, fine wires, foam, and micro?components where precise low?force measurement is critical. Fully compliant with ISO 7500?1 Class 0.5, ASTM E4, GB/T 16491, and DIN testing standards, it ensures test data is recognized internationally for certification and compliance. ## Key Technical Specifications - **Maximum Test Force**: 100N (22.5 lbf) - **Force Accuracy**: ±0.5% of reading from 2%–100% FS - **Force Resolution**: 1/500,000 of full scale - **Test Speed Range**: 0.001–1000 mm/min - **Speed Accuracy**: ±0.2% of set value - **Displacement Resolution**: 0.001 mm - **Max Stroke of Crosshead**: 900 mm - **Effective Test Width**: 110 mm - **Display**: 7?inch industrial HD multi?touch screen - **Data Sampling Rate**: Up to 1000 Hz - **Machine Dimensions**: Approx. 450 × 500 × 1500 mm - **Net Weight**: Approx. 95 kg - **Power Supply**: AC 220V 50/60Hz - **Safety Features**: Overload protection, travel limit, emergency stop, overload auto?stop ## Core Performance Features ### High?precision Mechanical Structure The machine adopts a high?rigidity single?column frame optimized by finite element analysis, paired with dual linear guide rails and a precision ball screw to minimize deflection and ensure consistent alignment. The servo drive system offers smooth motion with zero backlash, supporting ultra?low speed testing for fragile samples such as thin films, medical sutures, and micro?parts. The rigid structure ensures long?term stability, reducing drift and improving repeatability across continuous production testing. ### Intelligent Touch?screen Control System Equipped with a 7?inch industrial touch panel, the system provides real?time display of force?displacement curves, test status, and key parameters. Operators can quickly select test modes, set speeds, define limits, and start tests with one touch. Built?in templates for common standards allow instant setup without manual programming. The system automatically calculates tensile strength, elongation, peel force, tear strength, modulus, and maximum force, and generates professional reports directly on the screen. It supports multiple languages and customizable test programs for specialized applications. ### Flexible Control & Data Management The machine supports both standalone touchscreen operation and optional external computer connection for advanced data analysis. Test results can be exported via USB in PDF, Excel, CSV, or image formats for archiving, printing, or sharing. The system records batch data, supports historical query, and ensures traceability for quality management systems. Automatic calibration prompts and self?diagnostic functions simplify maintenance and ensure ongoing measurement accuracy. ### Comprehensive Safety & Reliability Multiple safety mechanisms protect operators and equipment: hardware overload protection at 110% FS, dual?stage travel limits, and a physical emergency stop button. The enclosed drive design reduces noise and extends service life. Each unit undergoes factory calibration with traceable standards and includes a calibration certificate. The durable construction ensures stable performance even under high?frequency daily use. ## Typical Applications ### Medical Industry - Tensile and knot strength of surgical sutures - Peel and adhesion force of medical dressings, tapes, and patches - Puncture and insertion force of needles, catheters, and soft tubes - Tensile properties of polymer films for medical packaging - Compression behavior of foam and implant materials ### Packaging & Flexible Materials - Tensile and elongation of plastic films, aluminum foil, and composite films - Peel strength of adhesive tapes, labels, laminates, and sealants - Tear resistance of flexible packaging, plastic bags, and nonwovens - Compression and deflection of foam, gaskets, and cushioning materials ### Electronics & Micro?components - Tensile strength of ultra?fine wires, enameled wires, and cables - Pull?out force of connectors, pins, terminals, and small springs - Bending strength of flexible circuits, optical films, and display materials - Force?displacement testing of micro?switches, buttons, and fasteners ### Textiles & Adhesives - Tensile and peel properties of fabrics, nonwovens, and geotextiles - Adhesive strength of tapes, labels, stickers, and bonding layers - Bursting and tearing strength of textile products and industrial fabrics ### Plastics, Rubber & Soft Materials - Tensile, tear, and compression properties of films, sheets, and profiles - Elongation and modulus of elastomers, silicone, and soft plastics - Bond strength of laminated materials and composite components ## Standard Configuration - Main unit of 100N single?column universal testing machine - 100N high?precision load cell with TEDS - 7?inch touch?screen control system - Standard manual tensile grips - Handheld controller for fine adjustment - Power cable and connection accessories - Calibration certificate and user manual - Built?in test software with standard templates ## Optional Accessories - Pneumatic grips for consistent clamping and non?slip testing - Peel fixtures, needle puncture probes, and bending fixtures - Non?contact laser extensometer for high?precision elongation measurement - Temperature test chamber for environmental simulation - Custom fixtures for special samples and industry?specific tests - Protective safety enclosure and alarm system ## Quality & Compliance - Manufactured under ISO 9001 quality management system - Force sensor accuracy meets ISO 7500?1 Class 0.5 - Full factory calibration with traceable standards - Optional CE certification for global market access - 2?year warranty on the main unit - Lifetime technical support and repair service ## Why Choose This 100N Model 1. **Balanced Precision & Affordability**: Ideal for low?force testing with laboratory?grade accuracy at a competitive cost, suitable for both small labs and mass production QC. 2. **Standalone Touchscreen Convenience**: No external computer required; easy to learn, operate, and maintain, reducing training time and labor cost. 3. **Wide Application Versatility**: Supports tension, compression, peel, tear, puncture, and bending with interchangeable fixtures to cover multiple material tests. 4. **Stable & Durable Design**: Rigid frame, high?quality components, and safety protections ensure long service life and consistent performance. 5. **Standardized & Export?ready**: Complies with major international standards, supports multilingual interface, and provides professional reports for global customers. ## Usage & Maintenance The machine requires a stable, vibration?free workbench and a grounded power supply. Routine maintenance includes regular cleaning, guide rail lubrication, and annual recalibration to maintain accuracy. The user?friendly design allows quick fixture replacement and simple parameter setup, supporting high?efficiency continuous testing. With compact size and low noise, it fits well in laboratories, workshops, and inspection rooms. ## Trade & Supply Terms - **MOQ**: 1 unit - **Lead Time**: 7–12 working days for standard models - **Packing**: Export?grade wooden case with shockproof padding - **Shipping Ports**: Ningbo, Shanghai, Shenzhen - **Payment Terms**: T/T, L/C, Western Union, etc. - **Warranty**: 2 years for main parts, lifelong technical support - **After?sales**: Online guidance, video support, and available on?site service This 100N Touch?screen Single Column Universal Testing Machine combines accuracy, convenience, and reliability to satisfy the mechanical testing needs of global buyers in medical, packaging, electronics, textiles, and material manufacturing. It is a cost?effective solution for quality control, product development, and regulatory compliance, helping businesses improve product quality and enhance market competitiveness. 需要我把這篇**精簡到800詞左右**，或換成更偏**SEO關鍵詞密集型**的貿易通版本嗎？
