11.4mm Hole Diameter MP-C-146 Solenoid Valve Coil 238513-006
Basic Info
| Model No. | BB11436248 |
|---|---|
| Brand Name | BRANDO |
| Connection Type | Din43650a |
| Insulation Class | F, H |
| Type | Fittings |
| Protection Class | Ip65, Ip67, Ip68 |
| Hole Size | 11.0mm |
Product description
11.4mm Hole Diameter MP-C-146 Solenoid Valve Coil 238513-006
Applicable Industries:Solenoid valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Hole size:11mm
Height:35.9mm
Width:43mm
Voltage:DC24V, DC48V, AC24V, AC48V, AC115V, AC230V
Power:6.1W, 8.1W, 10.6W, 11.1W, 18.6W
Connection:DIN43650A
Insulation class:F, H
Enameled wire material:Copper
Suitable valve series:8353 series solenoid valve

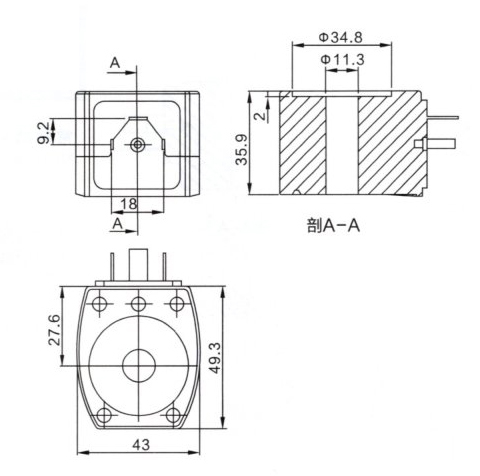

Dimension of BB11436248 Solenoid Coil:
Technical Data:
|
Size and Class
|
24V DC
|
48V DC
|
24V AC
|
48V AC
|
115V AC
|
230V AC
|
|
M6-HT
|
238513-006
|
238513-017
|
-
|
-
|
-
|
-
|
|
M6-FT
|
-
|
-
|
238213-006
|
238513-016
|
238513-033
|
238513-0059
|
|
M6-HB
|
238513-106
|
238513-117
|
-
|
-
|
-
|
-
|
|
M6-FB
|
-
|
-
|
238213-106
|
238213-116
|
238213-133
|
238213-157
|
|
MXX-HT
|
238913-006
|
238913-017
|
-
|
-
|
-
|
-
|
|
MXX-FT
|
238713-006
|
238713-017
|
238613-006
|
238613-016
|
238613-033
|
238613-059
|
|
MXX-HB
|
238913-106
|
238913-117
|
-
|
-
|
-
|
-
|
|
MXX-FB
|
-
|
-
|
238613-106
|
238613-116
|
238613-133
|
238613-159
|
Details:
Hole Size 11.0mm

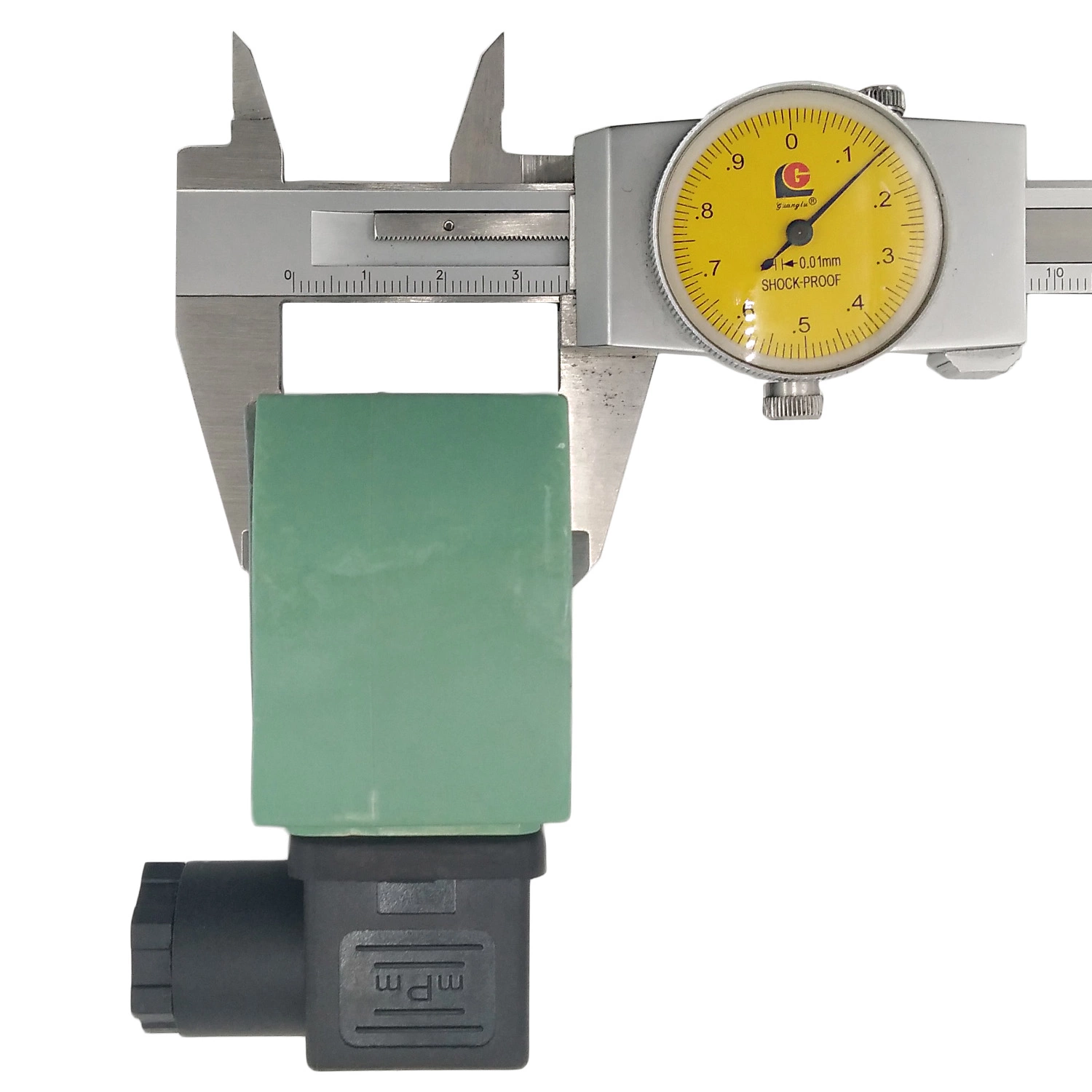

Height 35.9mm
Width 43mm
Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
