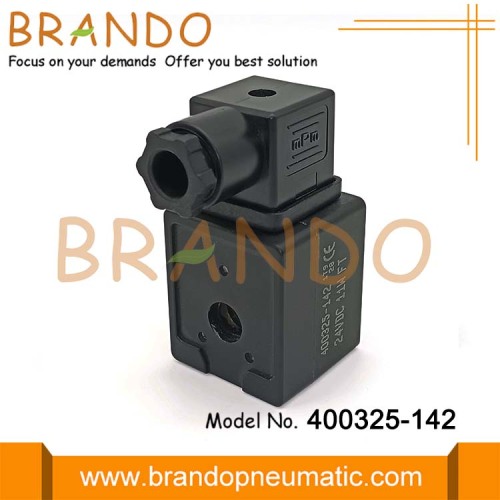

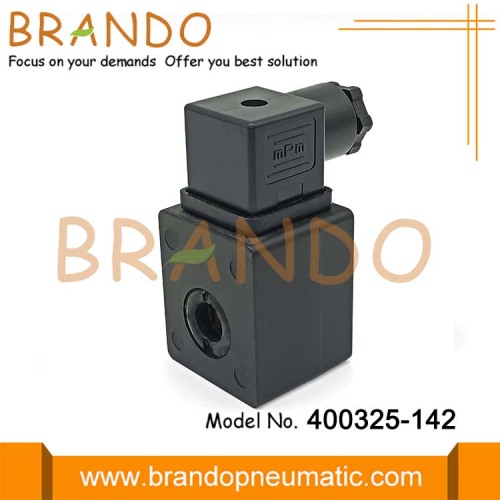

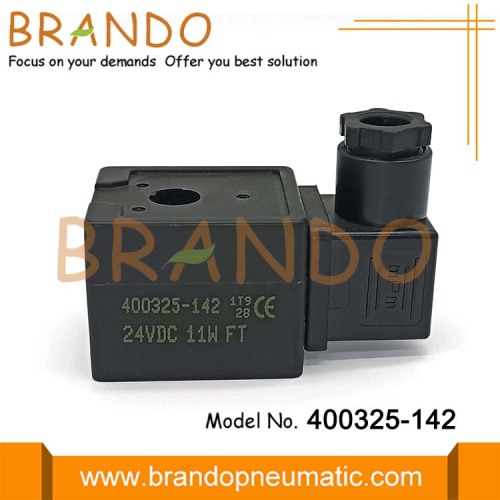

ASCO Type 400325-142 Numatics Coil 24VDC Coil
Basic Info
| Model No. | BB11036001 |
|---|---|
| Brand Name | BRANDO |
| Product Name | Pulse Valve Solenoid Coil |
| Ordering Code | 400325-142 |
| Suitable Pulse Valve Model | SCG353A043, SCG353A044 |
| Connector | DIN 43650 Form A |
| Power | 9W, 10W, 11W |
Product description
Product Description:
Model No.: BB11036001
Normal Voltage: AC220V AC110V DC24V DC12V; Other voltage can be customized
Normal Power: AC18VA DC21W; Other power can be customized
Insulation Class: F H
Connection Type: DIN43650A
Installation Dimension: Ø11.0XH38.5
Application Example: Pulse Jet Diaphragm Valve for dust collector

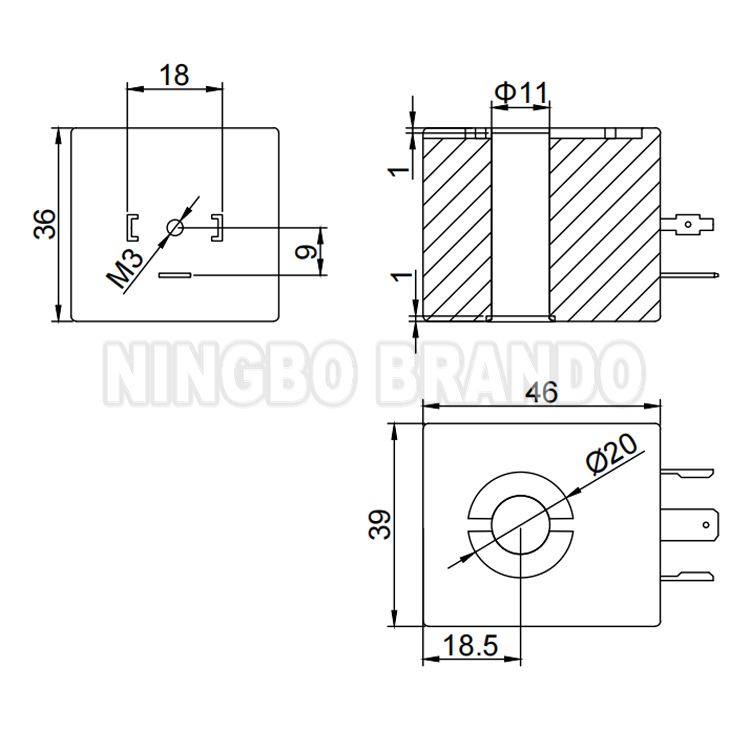

Main Dimension:
| Ordering No | BB11036001 |
| Hole Size | 11mm |
| Height | 36mm |
| Width | 38.5mm |
| Connector | DIN 43650A |
| Insulation Class | F, H |
| Voltages | AC220V, DC24V |
| Powers | 25VA, 21Watt |
| Application | ASCO Pulse Solenoid Valve |
|

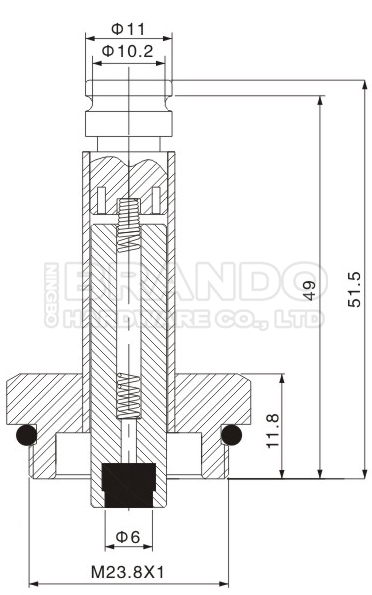

BRANDO Model
|
BAPC211037301
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR
|
|
Fitted Pulse Valve Model
|
SCG353A043
SCG353A044 |
Related Products:
 |
 |
 |
| Pulse Valve Armature | Pulse Valve Diaphragm | Pulse Valve Coil |
BRANDO Solenoid Pulse Valve Coil Production Video:
