2.54 mm Pitch Latch Ejector Header

$0.50

≥500 Piece/Pieces

Get Latest Price

You might also like

2.54mm Ejector Header 180

1000 (MOQ)

LHDM01 2.54mm Ejector Header SMT

1000 (MOQ)

2.54mm Ejector Header 90°

1 (MOQ)

2.54mm 180 Degrees Ejector Header

1 (MOQ)

2.54mm IDC Ejector Header Connector Without Mounting Ears

1 Piece/Pieces (MOQ)

2.54mm/.100" Ejector Header IDC Type With Mounting Ears

500 Piece/Pieces (MOQ)

2.54mm(.100") Ejector Header SMT Straight/Vertical With Plastic Latch

500 Piece/Pieces (MOQ)

2.54 mm Pitch Latch Ejector Header

500 Piece/Pieces (MOQ)

2.54mm Ejector Header SMT 180° With Special Short Latch

500 Piece/Pieces (MOQ)

2.54mm(0.100") Pitch Ejector Header SMT with Metal Latch

Basic Info

Model No.	LHDM04
Brand Name	Antenk
species	Headers And Pcb Receptacles, Contact Connector, Power Connector
package	Tape &Amp; Reel (Tr), Tray, Tube
Supply Type	Original Manufacturer
place of origin	China
Pin or socket	Pin

Company Overview Company Photos Production Certification Packing and Shipping

Product description

Product Overview:

Ejector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.

Classification of Ejector Header: according to the spacing of PIN pins, Ejector Header with spacing of 1.27MM, Ejector Header with spacing of 2.0MM, Ejector Header with spacing of 2.54MM; According to the connection mode, it can be divided in o direct insrtion (180 degrees), bent insrtion (90 degrees) and SMT

Application of Ejector Header: Mainly used in computer equipment, industrial automation equipment, digital products, security equipment, electronic instruments, new energy products, medical devices and other fields

Connector Category: Latch Eject Header丨1.27mm(.050") Latch Eject Header丨2.00mm(.079") Latch Eject Header丨2.54mm (0.100")Pitch Latch Eject Header丨

2.54 mm (0.100") Pitch Latch Ejector Header SMT With Lever SPECIFICATION
Current Rating: 3.0Amp
Insulation Resistance: 1000MΩ min
Contact Resistance: 20MΩ max
Withstand Voltage: 1000V AC/DC
Operating Temperature: -40°C to +105°C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: PBT or PA6T+30%GF UL 94V-0

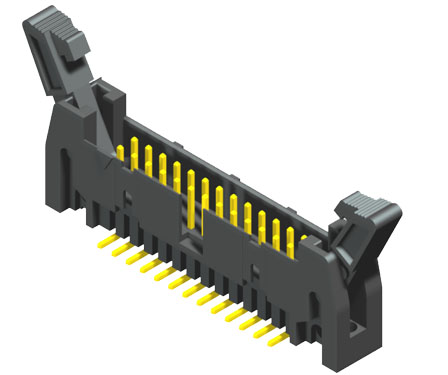

LHDM04

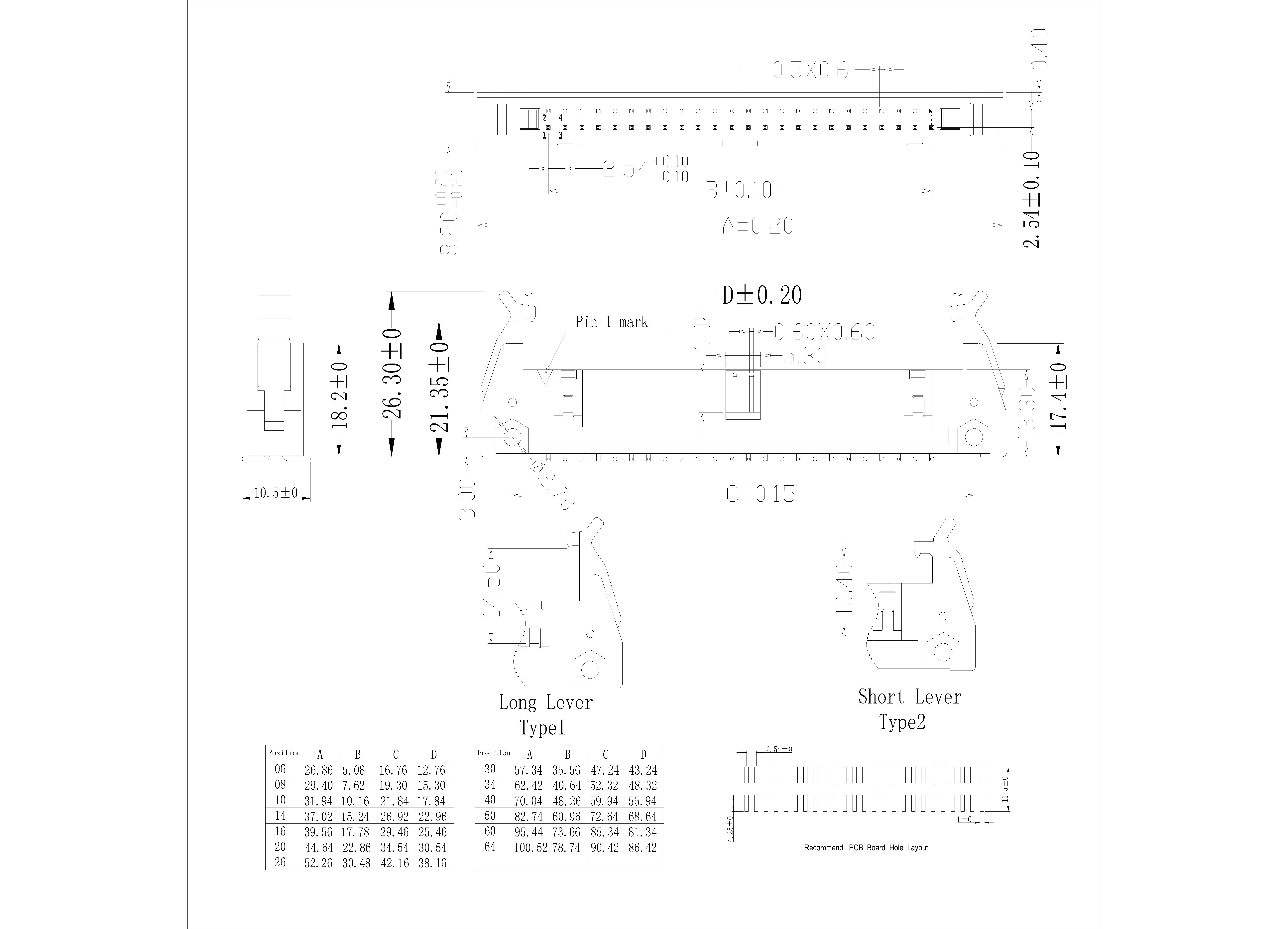

LHDM04 2.54mm Ejector Header SMT Type With Lever

Q: Can we use our own logo?
A: Yes, we can make your private logo with custom service according to your request.

Q: How many different types of products your company manufactures? A: Now we have more than 10,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q:How can we get a quote?
A:Contact us by email or online connection with specification: such as material, design, size, shape, color, quantity, surface finishing, etc.

Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
