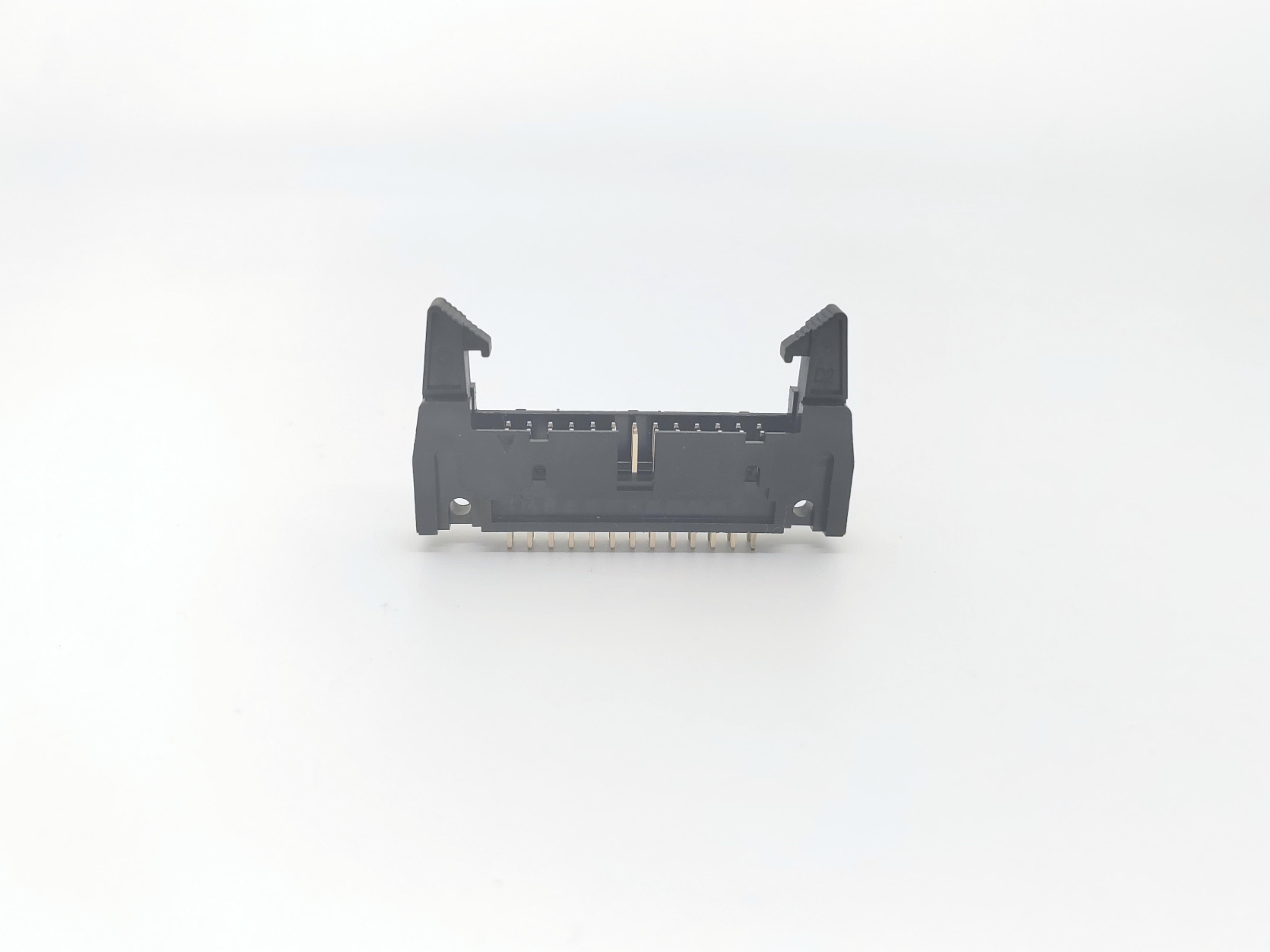

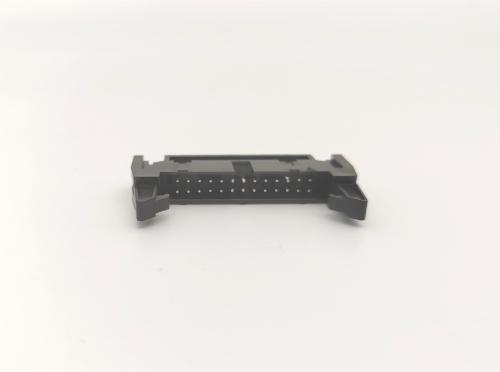

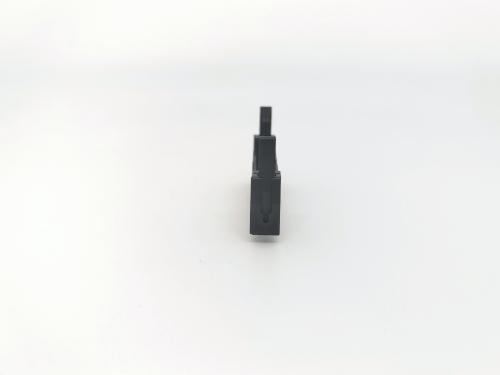

The 2.54mm Ejector Header 180° is a board-to-board connector featuring an ejection mechanism, designed with a 180° parallel mating configuration specifically for applications requiring frequent disassembly or highly reliable connections. The "2.54mm" in its name refers to the pin pitch, while "180°" indicates its parallel mounting orientation relative to the PCB. The term "Ejector" denotes its unique ejection and unlocking mechanism. Comprising three main components—a plastic housing, metal terminals, and an ejection device—this connector plays an indispensable role in demanding fields such as servers and telecommunications equipment.

?

The connector's housing is typically constructed from high-temperature-resistant nylon (PA66) or LCP material, offering exceptional heat resistance (capable of withstanding 260°C reflow soldering temperatures) and flame-retardant properties (UL94 V-0 rated). The metal terminals are made of phosphor bronze with gold plating, featuring a gold layer thickness of 0.5-1.0μm at contact points to ensure low contact resistance (<20mΩ) and superior corrosion resistance. The ejection mechanism is generally crafted from stainless steel, undergoing specialized heat treatment to guarantee a stable ejection lifespan exceeding 5,000 cycles. High-end models may incorporate dual-contact designs in the contact area to further enhance connection reliability.

?

The standout feature of the 2.54mm Ejector Header 180° lies in its optimal combination of mechanical and electrical performance. The ejection mechanism enables one-handed unlocking, significantly improving maintenance efficiency while preventing PCB damage caused by forceful insertion or removal. The 180° parallel mating design saves space, making it particularly suitable for high-density installations. Gold-plated terminals and precision-molded plastic housings ensure stable contact even in vibrating environments. Compared to standard connectors, its mating durability is 3-5 times greater, making it ideal for equipment requiring regular maintenance and upgrades.

?

Manufacturers typically offer various customization services: pin counts ranging from 20 to 120 pins; customizable housing colors (commonly black or blue); adjustable ejection force (0.5-2.5kgf); optional mating guides for improved alignment accuracy; and specialized versions with sealing (IP67 rating) or high-temperature resistance (continuous operation at 150°C) for harsh environments. Terminal crimping lengths can be adjusted (1.6-3.2mm range) to accommodate different PCB thicknesses. Military-grade products may also offer thick gold plating (1.27μm or more).

?

These connectors are primarily used in fields demanding exceptional reliability and maintainability: data center server memory module slots for hot-swappable maintenance; backplane connections in telecommunications equipment to ensure long-term stability in 5G base stations; modular designs in industrial control systems for rapid on-site replacements; and board-to-board connections in military electronics to meet stringent vibration requirements. They are also widely used in critical systems such as rail transit signaling and medical imaging equipment, where the ejection mechanism effectively prevents system failures caused by connector jamming.

?

?
