Product Introduction:

Ejector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.

Classification of Ejector Header: according to the spacing of PIN pins, Ejector Header with spacing of 1.27MM, Ejector Header with spacing of 2.0MM, Ejector Header with spacing of 2.54MM; According to the connection mode, it can be divided in o direct insrtion (180 degrees), bent insrtion (90 degrees) and SMT

Application of Ejector Header: Mainly used in computer equipment, industrial automation equipment, digital products, security equipment, electronic instruments, new energy products, medical devices and other fields

 Connector Category: Latch Eject Header丨1.27mm(.050") Latch Eject Header丨2.00mm(.079") Latch Eject Header丨2.54mm (0.100")Pitch Latch Eject Header丨

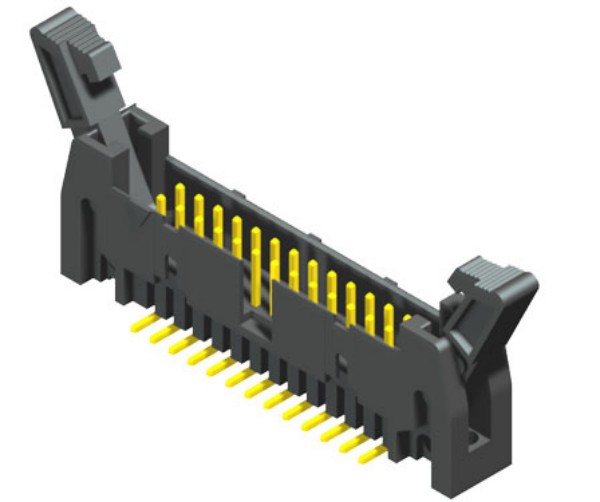

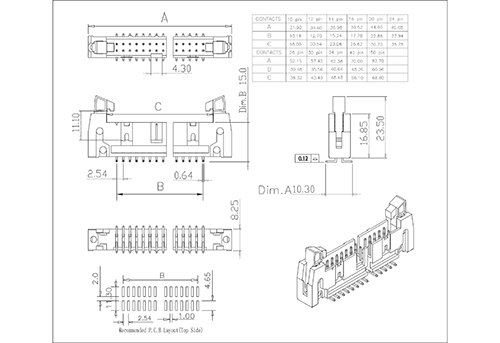

2.54mm Latch Ejector Header SMT 180°/Straight/Vertical With Special Short Latch SPECIFICATION

Current Rating: 3.0Amp

Voltage Rating: 350V

Insulation Resistance: 1000MΩ min

Contact Resistance: 20MΩ max

Withstand Voltage: 1000V AC/DC

Operating Temperature: -40°C to +105°C

Contact Material: Brass

Contact Plating: Au or Sn Over Ni

Latch Material: Zinc Alloy

Latch plating: Ni

Insulator Material: PA6T+30%GF UL 94V-0
