CNC Wood musical instrument 3D engraving Router machine

Overview:

Advantages:

--1300*2500*200mm working area.

--3 KW Hanqi water cooling spindle.

--3.7kw Fuling Inverter.

--NC Studio control system.

--Leadshine drive and FL118 Stepper motor.

Technical Parameter:

Description	Parameter
Model	JX-MT1325	JX-ST1530	JX-TT2030	JX-Customize
Working area(X*Y*Z)	1300*2500*200mm	1500*3000*200mm	2000*3000*200mm	Customize
Table Surface	T-slot Table  /  Vacuum & T-slot Table
Frame	Heavy-duty Industrial class square tube strong structure
X, Y Structure	Helical Rack and Pinion Drive, Taiwan PMI linear guide rails
Z Structure	Taiwan TBI Ball Screw Drive, Taiwan PMI linear guide rails
Spindle Power	3KW / 4.5KW / 5.5KW / 6KW / 7.5KW / 9KW-ATC
VFD Power	3.7KW / 5.5KW / 7.5KW / 11KW
Operating System	DSP control system / Nc Studio control system
Drive Motors	Leadshine drive and FL118 stepper motors
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	23000mm/min
Cutting accuracy	±0.03/1000mm
Working Voltage	AC380V, 50Hz, 3PH (Option: 220V)
Command Language	G Code

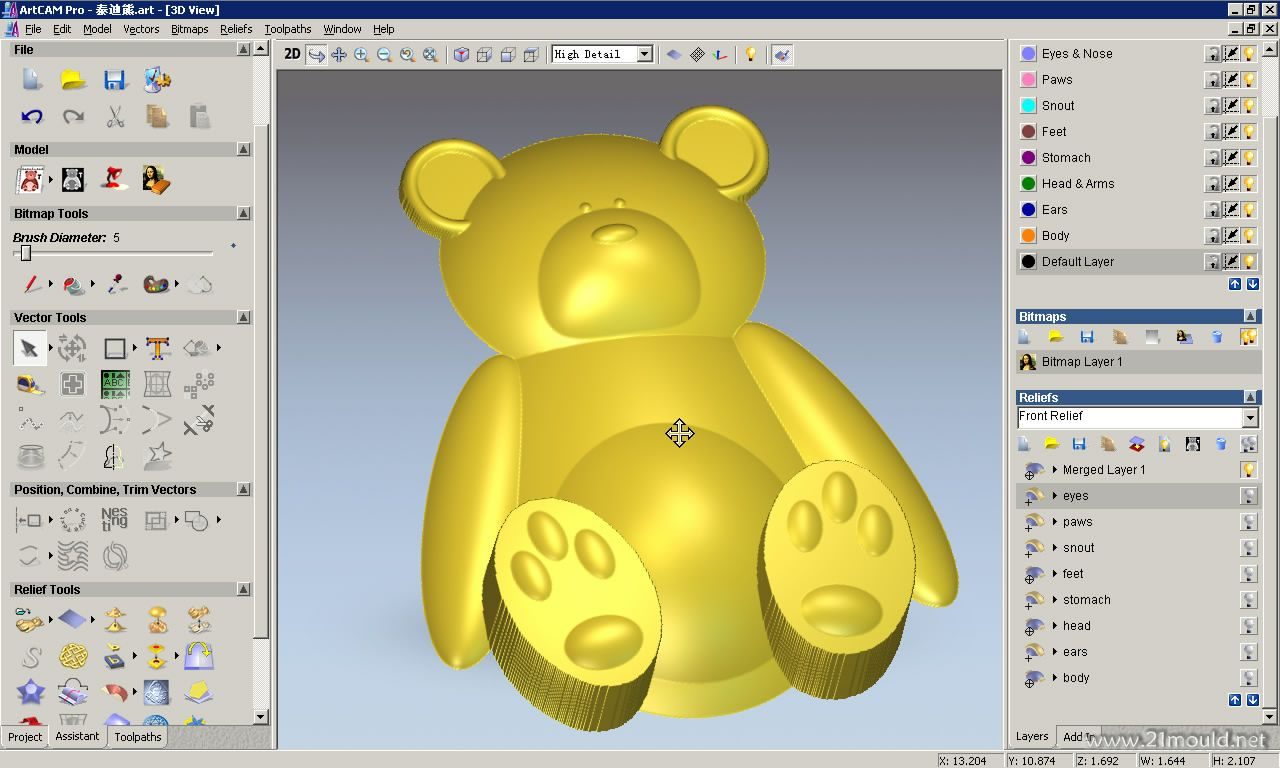

Software Compatibility	Artcam / Power mill / Type 3 / Ucancam

Optional parts:

1. Rotary device: Dimensions can be customized

2. Lubrication system:Manual or automatic lubrication system

3. Vacuum pump:Water circulation pump/Germany Becker/Tongyou vacuum pump

4. Dust collector:Single or double packet dust collector

5. Reducer:Germany Eisele/Japan Shimpo/Taiwan APEX

6. Configure more spindles according to customer requirement

Machine Function:

1.Adopt domestic 5.5KW water cooling spindle of large power (Option: Italy 7.5KW HSD air cooling spindle).
2.High accuracy, long service time, steady and smooth movement, and good starting performance, great torque, fulfilling the advantage of working with fast speed and high accuracy.
3.Japan Yaskawa Servo motor ensures machine to run with fast speed, low noise, and high position accuracy.
4.Auto lubricating system, one touch can finish periodic maintenance easily.
5. Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage .

Machine operation method：

Application of cnc router wood :

1.Mould: wood,wax, wood, gypsum,foams,wax   1325 cnc router   wood working machine  wood machine

2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.

client feedback：

Shipping:

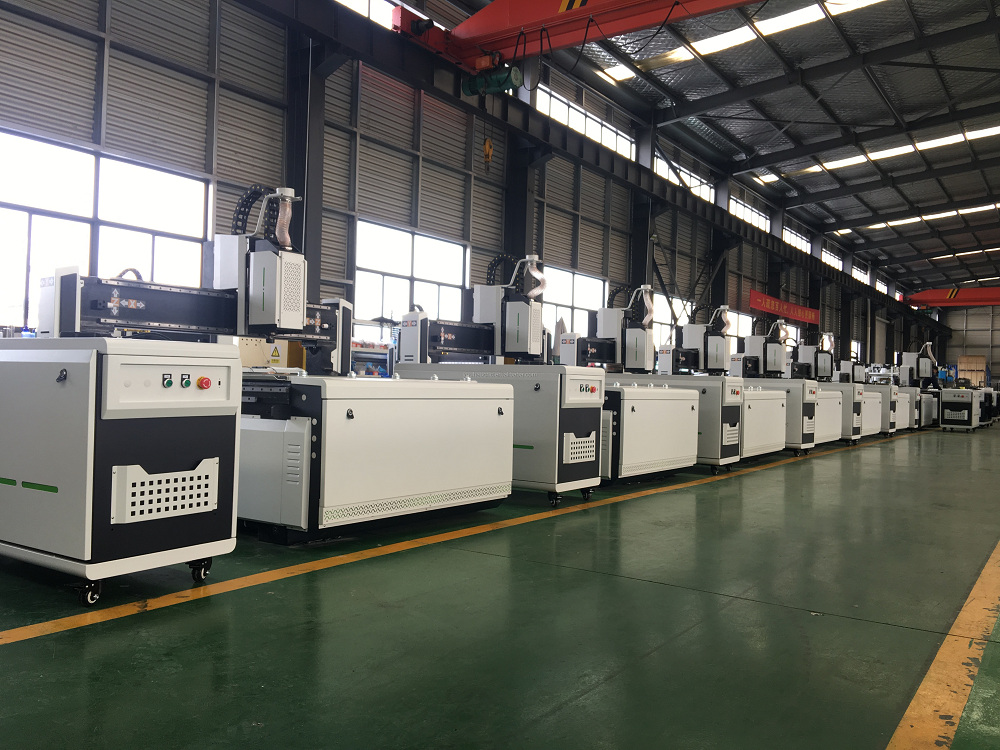

JINAN JINGXUN MACHINEY CO.,LTD,a professional machinery manufacturing company, with 20000 square meters factory，a highly specialized workforce and more than 20 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.
