EY2200PPS-BT-AU Heavy Duty Rolls Stretch Wrapping Machine

Heavy Duty Rolls Stretch Wrapper is ideal solution for packing heavy paper rolls. The weight capacity is up to 3000kgs.

It provides a cocoon type packing and protect the product from damage, moisture and dust. Ensure your rolls are properly wrapped and arrive at your customers  locations in "as made" conditions.

And also we can custom made according your rolls width & diameter. And optional can be choose depend on your roll specification.E.g.

SPECIFICATIONS

Size of The Rolls to be Wrapped
Paper roll diameter	500mm - 1800mm
Paper roll width	500mm - 2200mm
Max weight capacity	3000kgs
Film Delivery System
Carriage	Power pre-stretch Film Delivery System, stretch ratio up to 300%. Help you save Packing cost= Save money!! Carriage door opens for effortless roll change and thread film  Film tension adjustable
Machine Performance
Packing efficiency	20-40rolls/hour
Turntable diameter	2200mm
Turntable roller center distance	600mm
Turntable roller diameter	130mm
Turntable height	400mm
Turntable soft start&soft stop	YES
Turntable rotation speed:	3-10rpm adjustable
Turntable drive	Slew bearing drive
Carriage Up/down speed	Adjustable
Electrical Features
Power supply voltage	380 V 3 Phase - 50/60 Hz
Power	2.4Kw
Machine weight & size
Machine size	3025mm (L) x 2000mm (W) x 2260mm (H)
Approximate Machine net weight	1000kg

Specification:

• Advanced Siemens PLC control system .
• Parameters setting from Siemens 7`` touch screen  (Roll diameter, Roll width, Packing layer)
• Film tension, Turntable speed, Roller speed
• Motorised separately top platen lift tower, more reliable
• Counter to count the numbers of pallets be wrapped
• Separate Auto-Start/Reset, Pause & E/S buttons
•  Emergency Stop Button
• Reel Wrapper pause automatically if the film breaks during wrapping

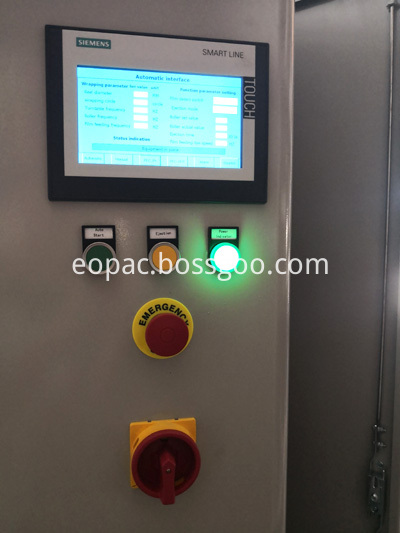

Advanced Siemens 7' Colorful touch screen & Siemens control system

Easy to operation and setting the parameters

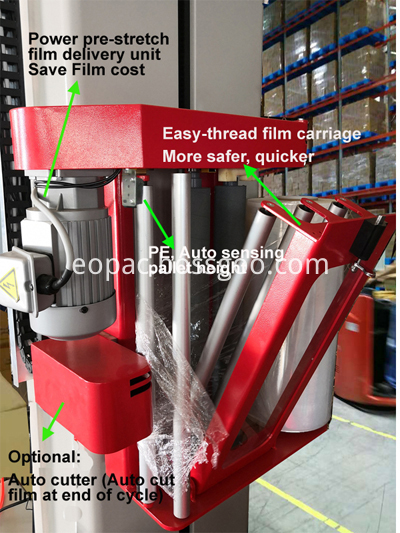

Power pre-stretch film head

Save film cost; Easy-thread film carriage, more safer and quicker to thread film

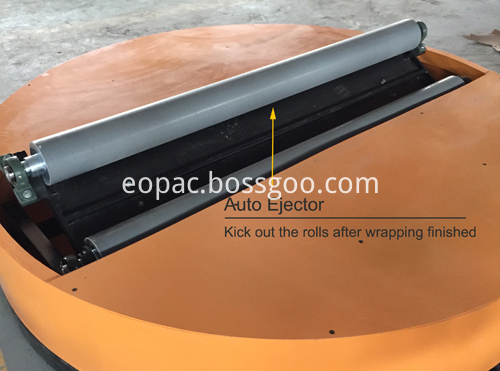

Option: Auto-ejection unit （Kick out the rolls after wrapping finished）

Option:1. Top platen unit （Hold the light rolls during wrapping）

             2. Integrated Scale to weighing the rolls

             3. Two-in-one machine ( Machine can wrap both rolls and pallet)

Safety sea-worthy package
