EY2000PPS Rolls Stretch Wrapping Machine

Rolls Stretch Wrapper is ideal solution for packing paper rolls, woven fabrics and similar rolls. It provides a cocoon type packing and protect the product from damage, moisture and

dust. Ensure your rolls are properly wrapped and arrive at your customers  locations in "as made" conditions.

EY2000PPS is the most popular Reel Wrapper in paper mill . Turntable dia=2000mm, it suitable most of rolls size.

And also we can custom made according your rolls width & diameter. And optional can be choose depend on your roll specification.E.g. Top Platen (EY2000PPS-TP), Auto Ejector

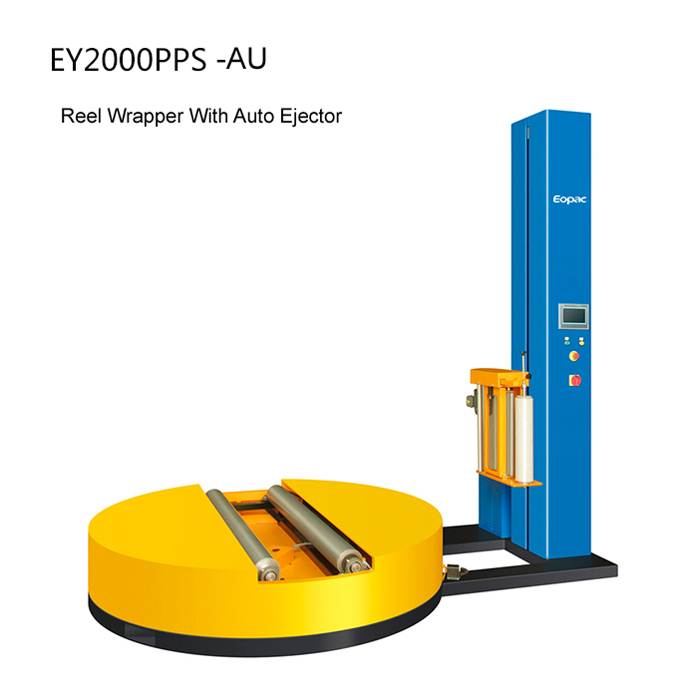

(EY2000PPS-AU) , Heavy rolls up to 3000kgs (EY2000PPS-BT)

SPECIFICATIONS

Size of The Rolls to be Wrapped
Paper roll diameter	500mm - 1800mm
Paper roll width	500mm - 2000mm
Max weight capacity	2000kgs
Film Delivery System
Carriage	Power pre-stretch Film Delivery System, stretch ratio up to 300%. Help you save Packing cost= Save money!! Carriage door opens for effortless roll change and thread film  Film tension adjustable
Machine Performance
Packing efficiency	20-40rolls/hour
Turntable diameter	2000mm
Turntable roller center distance	420mm
Turntable roller diameter	130mm
Turntable height	400mm
Turntable soft start&soft stop	YES
Turntable rotation speed:	3-12 rpm adjustable
Turntable drive	Chain drive
Carriage Up/down speed	Adjustable
Electrical Features
Power supply voltage	220 V 1 Phase - 50/60 Hz
Power	2.4Kw
Machine weight & size
Machine size	3025mm (L) x 2000mm (W) x 2260mm (H)
Approximate Machine net weight	1000kg



Specification:

• Advanced Siemens PLC control system .
• Parameters setting from Siemens 7`` touch screen  (Roll diameter, Roll width, Packing layer)
• Film tension, Turntable speed, Roller speed
• Motorised separately top platen lift tower, more reliable
• Counter to count the numbers of pallets be wrapped
• Separate Auto-Start/Reset, Pause & E/S buttons
•  Emergency Stop Button
• Reel Wrapper pause automatically if the film breaks during wrapping

Advanced Siemens 7' Colorful touch screen & Siemens control system

Easy to operation and setting the parameters

Power pre-stretch film head

Save film cost; Easy-thread film carriage, more safer and quicker to thread film

Option: Auto-ejection unit （Kick out the rolls after wrapping finished）

Option:1. Top platen unit （Hold the light rolls during wrapping）

             2. Integrated Scale to weighing the rolls

             3. Two-in-one machine ( Machine can wrap both rolls and pallet)

Safety sea-worthy package
