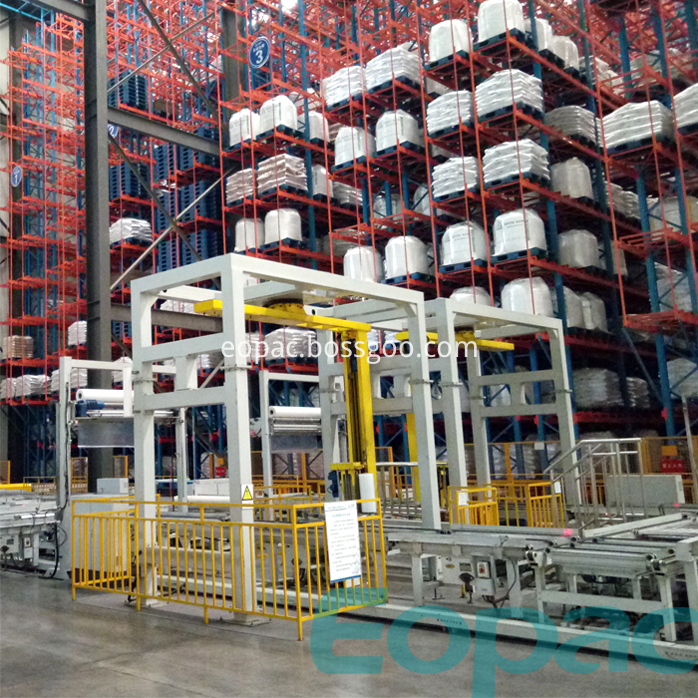

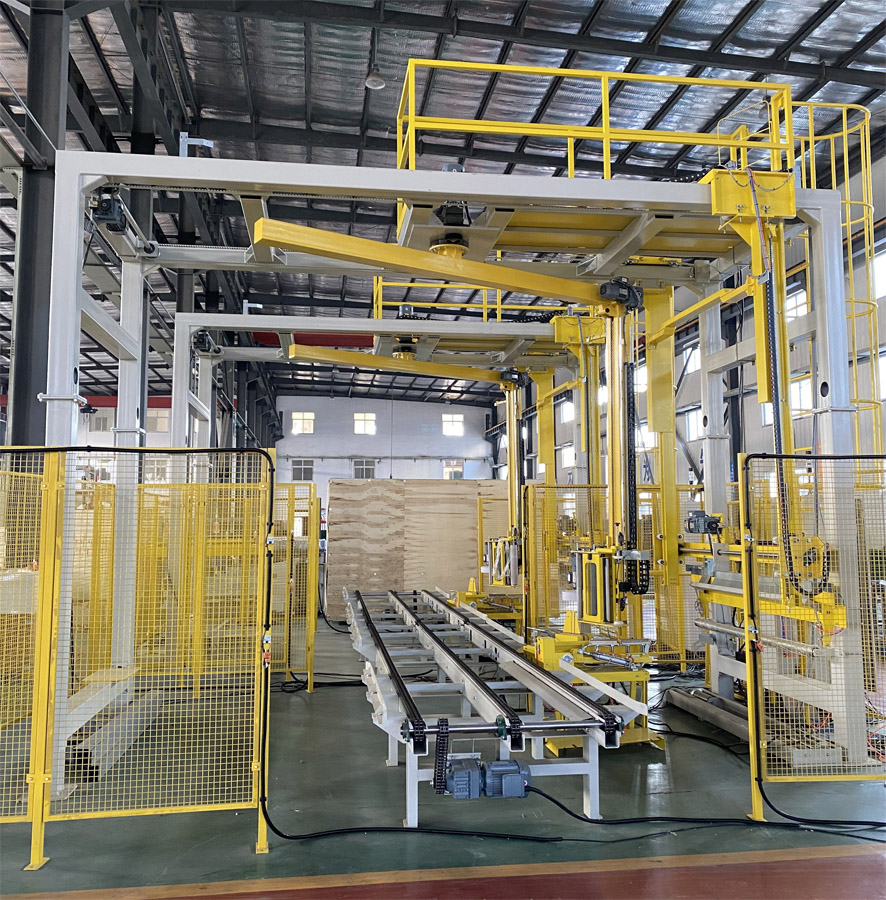

Rotary Arm Wrapper with Top Sheet Dispenser
Basic Info
| Model No. | EAR400PPS-ATR-TSD |
|---|---|
| Brand Name | EOPAC |
Product description
EAR400PPS-ATR-TSD(15rpm)
Fully
Automatic Online Rotation Arm Stretch
Wrapping Machine Built in Top Sheet Dispenser
Fully Automatic Rotary Arm Stretch Wrapper with Top Sheet Dispenser,can connect with the your current robot ( or we provide the robot), and combine with all kinds of conveyors to realize pallet travel, pallet packing automatically. Siemens Advanced Control system and world famous parts ensure high quality of whole line.
Integrated Top Sheet Dispenser apply top sheet during wrapping, protect the load from dust, moisture, water...
The end-of-line solution will be tailor make according your application.We also make Chain Conveyor , Roller Conveyor , Pallet Rotating Turntable, Pallet Pop-up Transfer, Pallet Lifting Device etc to complete the whole line.
Looking for the suitable end-of-line solution? Contact us soon. And our experienced technicians will design the end- of -solutions based on your applications.
Technical Data
|
Machine Control System: |
Siemens PLC + Siemens 7'' Touch screen |
|
Size of The Loads ( Pallets) to be Wrapped |
|
|
Packing efficiency |
20-30 loads/hour based on 1100mmx1100mmx1500mm pallet size
|
|
Min load size |
800mm (L) X 600mm (W) |
|
Max load size |
1300mm (L) X 1200mm (W) |
|
Max load height |
2000mm (Option: 2400,2800mm, 3000mm) |
|
Max load weight |
Depend on the conveyor capacity |
|
Film Delivery System |
|
|
Carriage |
Power pre-stretch Film Delivery System, stretch ratio up to 300%. |
|
Arm Drive and Conveyor System |
|
|
Turntable rotation speed |
3-25rpm ( adjustable) |
|
Arm drive |
Slew bearing drive (More reliable and easy to maintenance) SEW Motors |
|
Arm rotating inner diameter |
2180mm |
|
Wrap Arm safety |
Rotary arm stop by safety bumper and reflection PE sensing any obstacle in the rotating area. |
|
Arm soft start & stop |
YES |
|
Carriage up/down speed |
Adjustable |
|
Other Performance |
|
|
Load height sensing by photocell |
YES |
|
Move machine with forklift |
Front & Rear |
|
Carriage Up/down Speed |
Adjustable |
|
Film Automatic Clamp & Cut Unit |
|
|
Cutter |
Yes (Hot wire cutter) |
|
Film tail wipe unit |
Yes ( Pneumatic control) |
|
Film tail clamp unit |
Yes ( Pneumatic control) |
|
Pneumatic system (customer supply) |
0.6-0.8Mpa |
|
Electrical Features |
|
|
Power supply voltage |
380 V 3 Phase - 50/60 Hz |
|
Power |
2.5Kw |
|
Machine weight & size |
|
|
Machine size |
4025mm (L) x 1800mm (W) x 3100mm (H) |
|
Approximate Machine net weight |
1000kg |
Specification:
? Advanced Siemens PLC & Touch screen Control system, easy to operation
? Pneumatic cut & grab film unit to realize automatic wrapping cycle, labor saving
? Easy to set parameters via touch screen and can save 4 packing recipe parameters
? Photo-eye on the wrapper conveyor inspect pallet travel in and travel out
? Machine automatic start when the pallet travel to the turntable conveyor
? Over-wrap provide more wrap over the top of loads
? Counter to record pallets Qty be wrapped
? Automatic load height detection by photo-eye
? Powered pre-stretch film carriage up to 300% (1:3)
? Cycle pause capacity
? 3 packing pattern : Online status, Stand Alone, By Pass Cycle pause capacity
? The machine is equipped with running warning light.
? Rotary arm stop by safety bumper and reflection PE sensing any obstacle in the rotating area.
