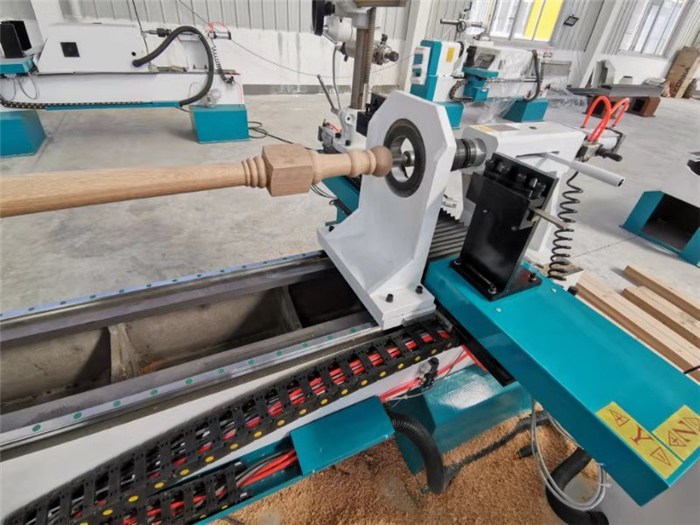

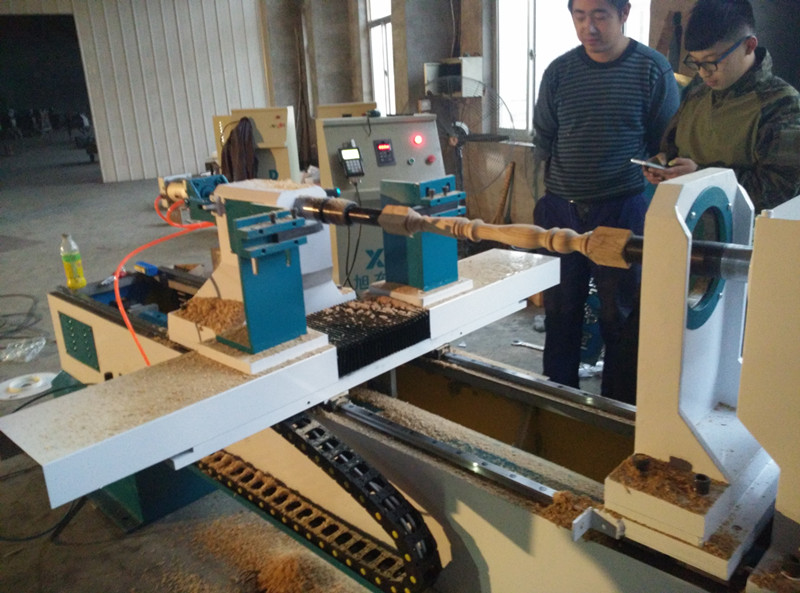

CNC Wood Turning Lathe Machine CNC Wood Lathe

Overview:

CNC wood lathe is a machine tool that uses turning tools to turn rotating workpieces. On CNC lathes, drills, reamers, reamers, taps, molds and knurling tools can also be used for corresponding processing. CNC lathes are mainly used to process workpieces with rotating surfaces such as shafts, disks, and sleeves. They are the most widely used processing machine tools in machinery manufacturing and maintenance plants.
CNC lathes are usually designed to use modern versions of carbide tools and processes. Parts can be designed for customization, and the tool path of the machine is usually programmed using a CAD or CAM process. However, programmers can also manually design parts or tool paths. Then upload the generated coding computer file to the CNC machine tool equipment, and then the CNC lathe will automatically produce the required parts and program them.

Main Features:

Technical Parameter:

Items	JX-150-HD
Max.Swing over bed of Single axis(mm)	300
Max.Swing over bed of double axis(mm)	195
Max. Machining length(mm)	1500
Min.cutting length	20mm
Min. Work diameter	10mm
Main motor(KW)	5.5
Total power (KW)	12
Dimension(mm)L×W×H	2900*1000*1300
Weight(kg)	1700
Voltage	3 phase 380V

Application:

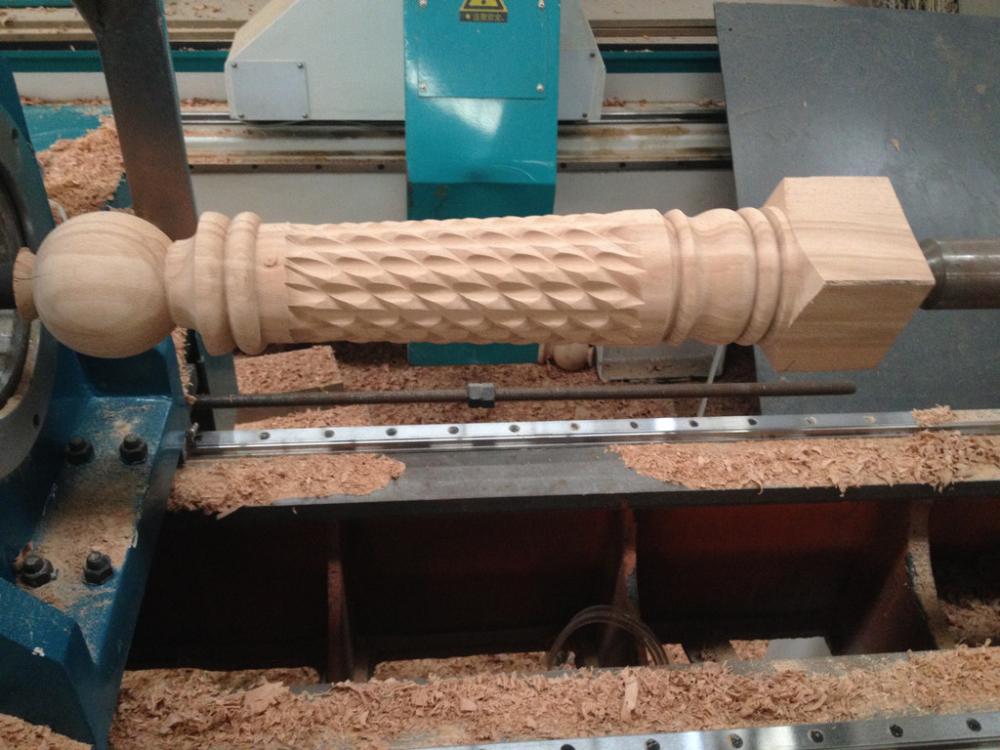

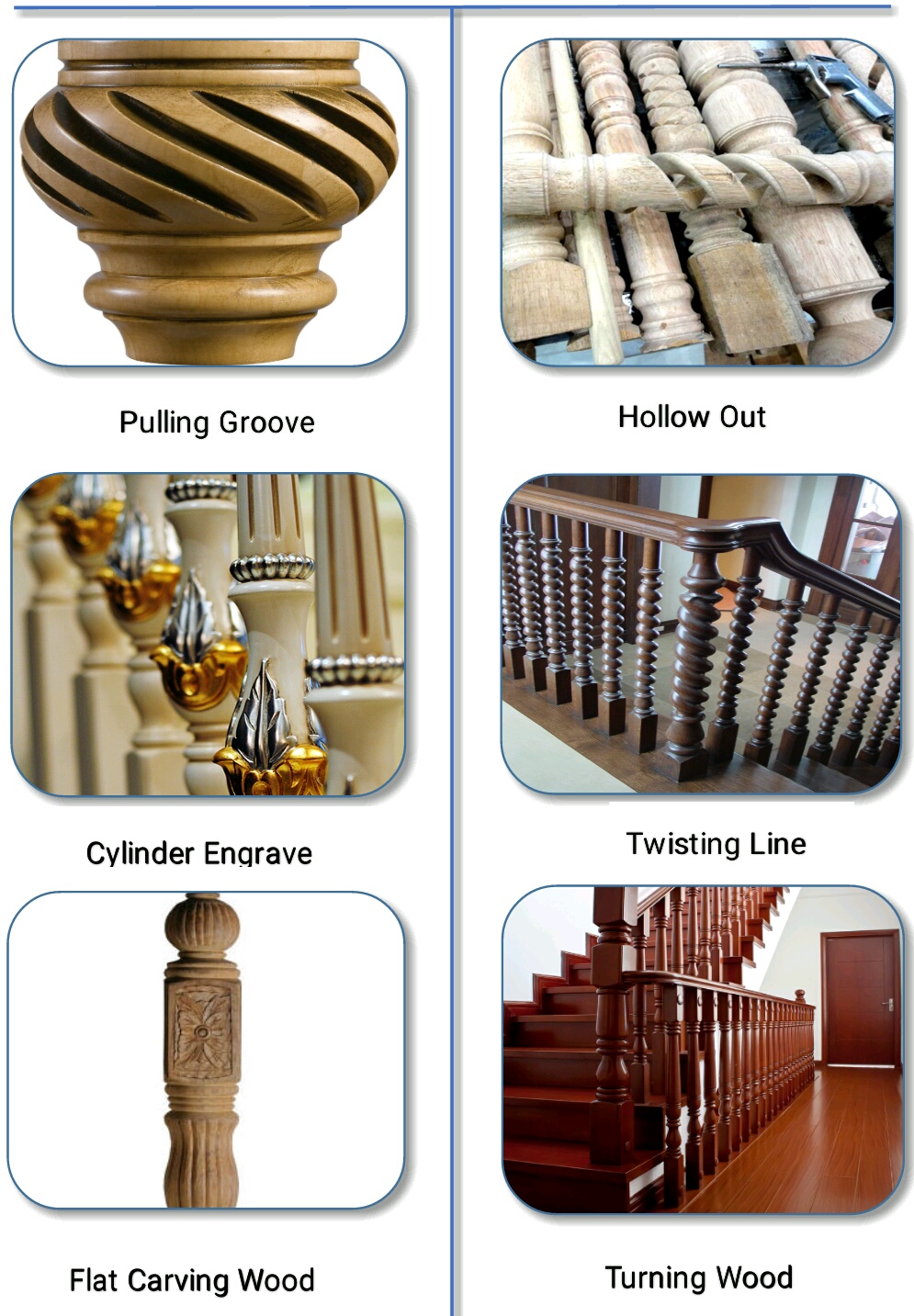

Various cylindrical workpiece,wooden handle,baseball bat,bowl sharp, tubular sharp and vehicle wood crafts,

various staircase column,stairway balusters,stairway newel posts,dining table legs,end table legs,sofa table legs,bar stool legs,Roman column,General column,washstand,wooden vase,wooden table,basebal bat,car wooden furniture,children's bed column,chair arm  posts;chair stretchers;sofa and bun feet;bed rails;lamp posts and so on.

Functions:

1.Precision configuration: JX-1516-S2 multifunctional dual-axis CNC woodworking lathe adopts variable frequency speed regulation, imported ball screws, linear slides, stepping motors and other high-efficiency and precise electromechanical components to make the accuracy and efficiency of the machine tool Significantly improved.
2.Efficient production: Compared with traditional woodworking lathes, the LR-1516-S2 multifunctional dual-axis CNC woodworking lathe not only saves labor, but also greatly improves work efficiency. With dual-axis design, two workpieces can be processed at the same time to double the efficiency when producing wood products of general specifications.
3.Humanized design: The automatic centering system is used when the square timber is clamped. Before use, adjust the height of the pallet according to the size of the square. Before clamping, push it to the left position and use the V-shaped notch to position the square. One-time positioning, convenient and fast, push it to the right after clamping to facilitate safe turning.
4.Humanized operation: In order to meet the needs of different users, we have designed two systems, CNC intelligent numerical control and PLC Chinese numerical control, which can be used by users when purchasing.
5.CNC intelligent numerical control system: adopts industrial intelligent all-in-one machine control system, does not require manual input, supports U disk operation, avoids computer virus interference, can control the processing speed, has the characteristics of high reliability and high efficiency, and effectively guarantees all-weather work The machining accuracy is simple and easy to learn, so that customers can quickly and flexibly master the use of equipment.
6.PLC numerical control system: equipped with a high-performance PLC compact Chinese numerical control system, English menu display, simple programming, no special training is required, the CNC programming is changed to directly input the processing size, the system can store more than 100 sets of processing data, one input can be used at any time; Suitable for users who are not good at computer operations.

Placing order:

If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures.

Start to produce:

As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc.

Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery.

Delivery:

After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom

Docusments:

After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc.

Package：
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port
Manufacturing Technique
Company Profile：
JINAN JINGXUN MACHINEY CO.,LTD,a professional machinery manufacturing company, with 20000 square meters factory，a highly specialized workforce and more than 20 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.

We comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting Equipments, Fiber laser cutting machine and Edge banding machine etc., Our wide variety products used in the field of Woodworking, Sign Making, Panel Furniture Production, Metal cutting etc.,High quality products with the high production efficiency. All our products are precision engineered to ensure the high standard expected from ourselves. The whole manufacturing process is meticulously and systematically controlled to guarantee the precision and quality
