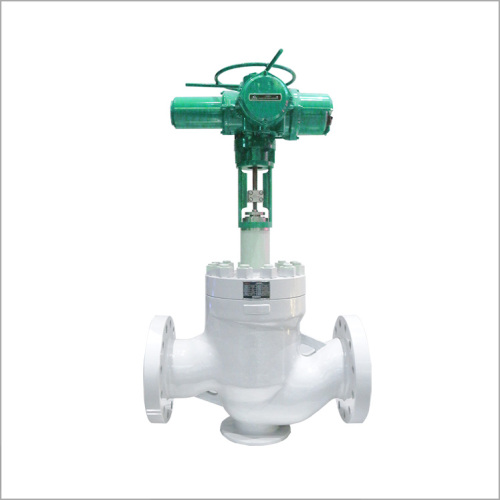

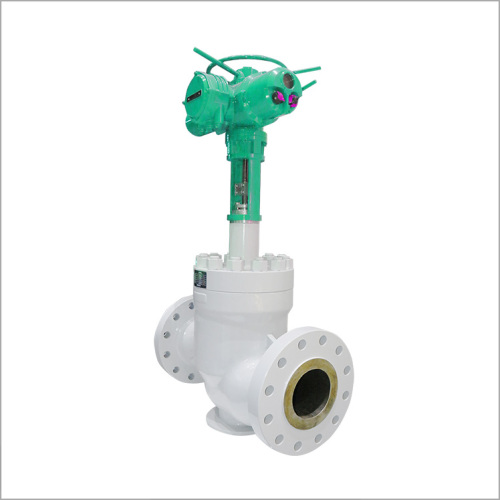

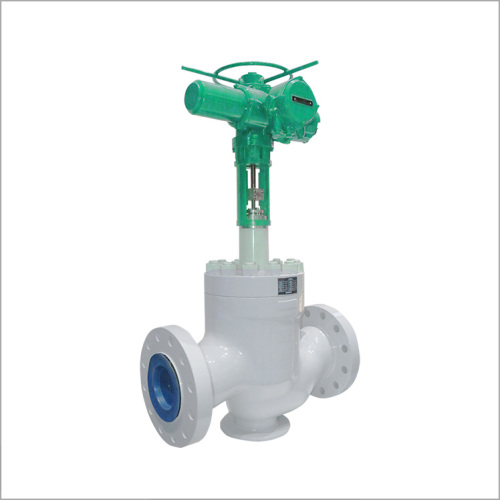

Electric Explosion-proof Low Temperature Control Valve
Size:
- 1/2" 150LB
- 3/4" 150LB
- 1" 150LB
- 1 1/2" 150LB
- 2" 150LB
- 3" 150LB
- 4" 150LB
- 5" 150LB
- 6" 150LB
- 8" 150LB
Material:
- 304 stainless steel
Options:
- Please contact customer service for details
Basic Info
| Brand Name | Cepai |
|---|---|
| Types of | Globe Valves |
| Support customization | Oem |
| place of origin | China |
| Medium temperature | Low Temperature |
| power | Electric |
Product description
1. Suitable for low temperature conditions: the valve body and the internal sealing parts of the valve are made of special materials, which can maintain good
2. Precise adjustment function: the electric actuator has high-precision control ability, which can adjust the opening of the valve in real time according to the needs,
3. High reliability: The regulator adopts high-quality materials and advanced manufacturing technology, has good corrosion resistance and low temperature
our company in addition to Electric low-temperature valve, It also produces Pnenmatic control valve,? ?Pneumatic Ball Valve, Electric Ball Valve, and Pneumatic Butterfly Valve, Electric Butterfly Valve,? Fluorine Lined Valve, etc.
Electric low temperature control valve operating specification
?
Power requirements: electric low-temperature regulating valve usually uses AC power supply, rated voltage is 220V or 380V, frequency is 50Hz or 60Hz.
Control signal: Electric low-temperature regulator usually uses 4-20mA current signal or 0-10V voltage signal for control. The input range of the control signal
should match the control range of the valve.
Opening range: The opening range of electric low temperature regulating valve is usually 0-90 degrees or 0-180 degrees. The selection of the opening range
should be determined according to the specific application requirements.
Temperature range: electric low temperature control valve is suitable for low temperature media, usually working temperature range of -60℃ to -20℃.
?
our company in addition to Electric low-temperature valve, It also produces?Pnenmatic control valve, Pneumatic Ball Valve, Electric Ball Valve, and Pneumatic Butterfly Valve, Electric Butterfly Valve, Fluorine Lined Valve, etc.
| Type | straight cage type ball valve |
| Nominal diameter | DN15-400mm |
| Nominal pressure | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | Flange type |
| Body material:? | WCB, CF8, CF8M, etc |
| Valve cover form:? | ?-40~-196℃ extended type |
| Gland form:?? | bolt pressing type |
| Packing:? | flexible graphite, PTFE Valve inner assembly |
| Spool type:? | pressure balance spool |
| Adjustment characteristics:? | equal percentage, linear |
| Internal materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc |
| Model:? | Electric actuator |
| Voltage:?? | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal:? | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
| Leakage amount:? | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat:? | conforms to ANSI B 16.104 Class VI? |
| Accessories (as required): | Position, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, gas control valve, speed regulator, holding valve, etc. |
Electric Explosion-proof Low Temperature Control Valve
Size:
- 1/2" 150LB
- 3/4" 150LB
- 1" 150LB
- 1 1/2" 150LB
- 2" 150LB
- 3" 150LB
- 4" 150LB
- 5" 150LB
- 6" 150LB
- 8" 150LB
Material:
- 304 stainless steel
Options:
- Please contact customer service for details
