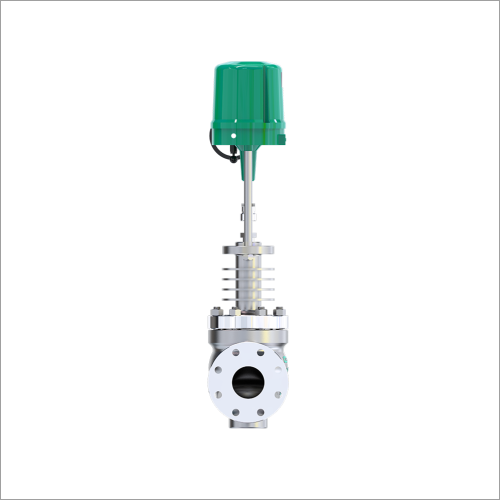

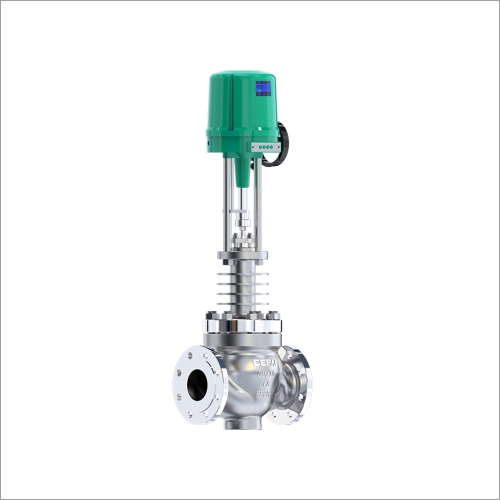

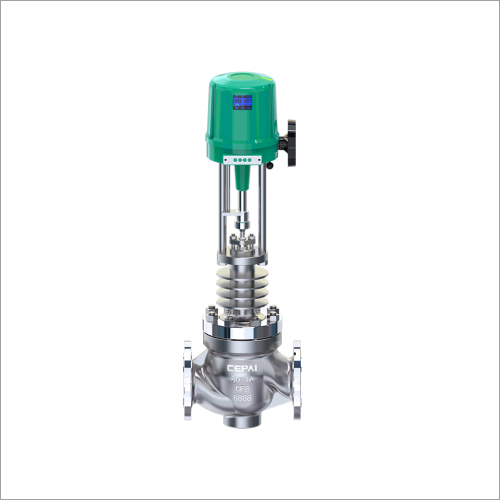

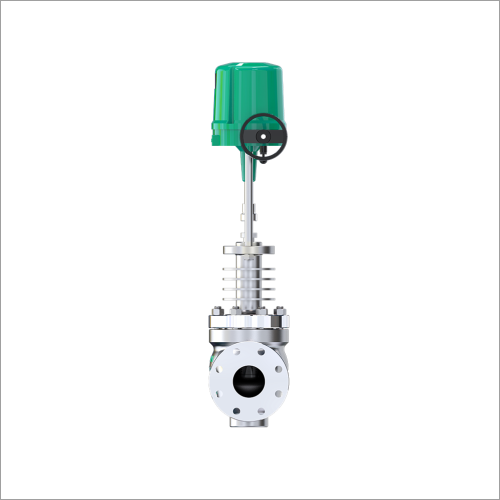

High Temperature Steam Electric Control Valve
Size:
- 1/2" 150LB
- 3/4" 150LB
- 1" 150LB
- 1-1/4" 150LB
- 1-1/2" 150LB
- 2" 150LB
- 2-1/2" 150LB
- 3" 150LB
- 4" 150LB
- 5" 150LB
- 6" 150LB
- 8" 150LB
- 10" 150LB
- 12" 150LB
- 14" 150LB
Material:
- 304 stainless steel
pressure:
- Low Pressure
Basic Info
| Model No. | 5610 |
|---|---|
| Brand Name | Cepai |
| Types of | Globe Valves |
| Support customization | Oem |
| place of origin | China |
| Medium temperature | High Temperature |
| power | Pneumatic |
Product description
High temperature steam control valve selection guide
?
Temperature range: First determine the desired temperature range. High temperature steam control valves need to be able to withstand high temperature environments, so choose a valve that can withstand the required temperature.
Pressure level: Determine the required pressure level. High temperature steam control valves need to be able to withstand high pressures, so choose a valve that is suitable for the required pressure class.
Traffic requirements: Determine the required traffic range. Select the appropriate valve size and flow coefficient for the desired flow range.
?
Our company has many kinds of valves for you to choose, such as: Pneumatic Control Valve, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Fluorine Lined Valve, Electric Butterfly Valve and so on.
Valve?Body
| Type:? | straight-through cage ball valve |
| Nominal diameter: | DN15-400mm |
| Nominal pressure:? | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | flange type |
| Valve body material:?? | WCB, WC6, WC9, CF8, CF8M, etc. |
| Valve cover form:? | >230℃ (with heat sink) |
| Gland type: | Bolt pressing type |
| Filler:? | flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
| Electric actuator | ? |
| Model: | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | ?-30-+70℃ |
| Control signal: | ?4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
| Leakage amount:? | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat:? | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve,speed increaser, position keeping valve, etc. |
High Temperature Steam Electric Control Valve
Size:
- 1/2" 150LB
- 3/4" 150LB
- 1" 150LB
- 1-1/4" 150LB
- 1-1/2" 150LB
- 2" 150LB
- 2-1/2" 150LB
- 3" 150LB
- 4" 150LB
- 5" 150LB
- 6" 150LB
- 8" 150LB
- 10" 150LB
- 12" 150LB
- 14" 150LB
Material:
- 304 stainless steel
pressure:
- Low Pressure
