Microcomputer-controlled Electronic Testing Machine 100N

Get Latest Price

Model No.	CMT6102
Brand Name	XINBIAO
place of origin	China

100N Microcomputer-controlled Electronic Testing Machine | High Precision Small Force Tester

100N Microcomputer-controlled Electronic Testing Machine for tensile, compression, peeling, tearing and adhesive strength tests. High precision, stable performance, compliant with ISO/ASTM/GB standards, ideal for plastic film, tape, textile, electronics and medical materials. Contact us for custom fixtures and fast quote.

What is 100N Microcomputer-controlled Electronic Testing Machine

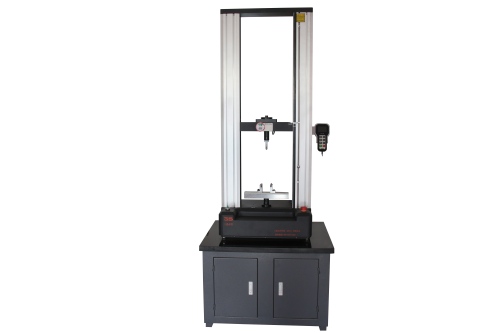

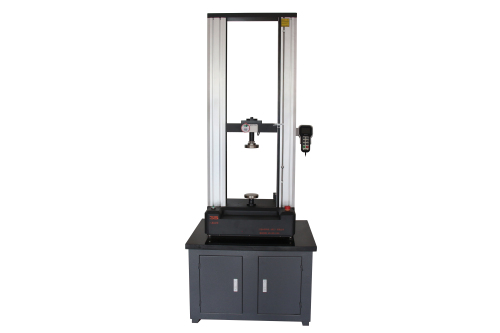

The 100N microcomputer-controlled electronic testing machine is a desktop high-precision universal material testing instrument designed for small-force mechanical property testing. It adopts an advanced closed-loop servo control system, high-precision load cell and precision ball screw drive structure, realizing automatic loading, real-time data collection, dynamic curve drawing and automatic result analysis throughout the test process. As a cost-effective small-force testing solution, it is widely used in material research, product development, quality control and factory inspection across various industries, providing accurate and repeatable test data for manufacturers, laboratories, scientific research institutions and universities.

Unlike traditional mechanical testing equipment, this microcomputer-controlled tester integrates intelligent control software and a user-friendly human-computer interaction interface, simplifying operation and improving test efficiency. With a maximum test force of 100N, it is particularly suitable for testing thin films, soft materials, micro parts, adhesive products and small components that require high-precision small-force measurement. It can meet diversified testing needs—including tensile strength, peeling strength, tearing strength, compression performance and adhesive force—with stable performance and reliable data output.

As key equipment in quality management systems, this 100N tester strictly follows international and domestic testing standards, ensuring test results are recognized by third-party inspection institutions and certification bodies. Its compact desktop design saves space, making it ideal for laboratories and production lines with limited area. With a long service life, low failure rate and simple maintenance, it helps users reduce equipment investment and daily operating costs while improving product quality and market competitiveness.

Core Features of 100N Microcomputer-controlled Electronic Testing Machine

High Precision Force Measurement System

Equipped with a high-resolution 100N load cell with an accuracy class of 0.5, this tester ensures accurate force collection across the full measuring range. The force resolution reaches 1/200000 of the full scale, and the force measurement error is controlled within ±0.5% of the reading, meeting strict precision requirements for small-force material testing. The high-stability sensor eliminates external environmental interference, ensuring consistent and repeatable test results even during long-term continuous operation.

Advanced Closed-loop Servo Control Technology

Adopting a microcomputer closed-loop servo control system, the tester achieves smooth stepless speed regulation in the range of 0.001–500 mm/min, with speed accuracy controlled within ±0.5% of the set value. There is no impact or jitter during loading, and the control system automatically adjusts loading speed and force output according to test settings, ensuring a stable test process and accurate data collection. It supports multiple control modes (force control, displacement control, deformation control) to adapt to different test standards and sample characteristics.

High-rigidity Mechanical Structure & Long Service Life

The main body adopts a high-strength rigid frame design, minimizing deformation under maximum load to ensure stable test results. Precision ball screws and linear guide rails are used for transmission, featuring low friction, low noise and high motion accuracy. High-quality mechanical components and a reasonable structural design ensure a long service life and maintenance-free operation, reducing the frequency of maintenance and replacement.

Professional Test Software & Intelligent Data Processing

Equipped with dedicated test analysis software, the tester supports real-time display of force-displacement, force-time and deformation-force curves. The intuitive, user-friendly interface offers powerful functions: automatic data storage, test result calculation, report generation, curve comparison, data export and printing. It automatically calculates key indicators (tensile strength, elongation, yield strength, peeling strength, tearing strength) and supports custom test templates and standard test programs. The software is compatible with Windows systems, easy to install and operate, meeting data management needs of different users.

Comprehensive Safety Protection Functions

To ensure the safety of operators, samples and equipment, the tester is equipped with multiple safety protection features: overload protection, over-travel protection, over-voltage protection, over-current protection and an emergency stop button. Overload protection automatically stops loading when the test force exceeds the set value, preventing damage to the sensor and mechanical structure. Over-travel protection limits the crosshead’s moving range to avoid collisions. These designs ensure safe and reliable operation in all testing scenarios.

Wide Compatibility & Customizable Fixtures

By replacing different fixtures, the tester supports various test modes: tensile, compression, peeling, tearing, adhesive strength, bending and pull-out force tests. We provide standard fixtures for common samples and offer custom fixture design based on users’ specific sample shapes and testing needs. It can stably clamp and test plastic films, adhesive tapes, textiles, wires, electronic components and medical materials, realizing multi-purpose use in one machine.

Easy Operation & User-friendly Design

The humanized design allows operators to master the tester quickly without professional training. The computer control interface simplifies complex test settings, and one-key operation starts standard tests. The desktop design saves laboratory space, and the lightweight structure is easy to place and move. With low power consumption, it can work stably for a long time, suitable for daily batch testing in laboratories and factories.

Compliance with International Testing Standards

This 100N electronic universal testing machine meets the requirements of international and domestic standards, including ISO, ASTM, GB and DIN. It is suitable for factory quality control, third-party testing, material research and teaching experiments, with test results widely recognized in the industry. The standard-compliant design ensures users can conduct tests in accordance with official specifications, providing reliable data support for quality control and research.

Technical Parameters

? Model: Microcomputer-controlled Electronic Testing Machine (100N) ? Maximum Test Force: 100N ? Force Measurement Accuracy: ±0.5% of reading ? Force Resolution: 1/200000 of full scale ? Test Speed Range: 0.001–500 mm/min (adjustable) ? Speed Accuracy: ±0.5% of set value ? Effective Test Stroke: Customizable (standard configuration for most small samples) ? Load Cell: High-precision 100N sensor ? Control Mode: Microcomputer closed-loop control, automatic loading ? Display Mode: Computer real-time display, curve drawing ? Data Output: Excel, PDF, test report printing ? Safety Device: Overload protection, over-travel protection, emergency stop ? Power Supply: AC220V 50/60Hz (customizable for other regions) ? Machine Structure: Desktop high-rigidity frame ? Application Environment: Temperature 10–35°C, humidity 20%–80% RH

Application Scope

This 100N microcomputer-controlled electronic testing machine is specially designed for small-force precision testing, widely used in the following fields:

? Plastics & Rubber Industry: Tensile, peeling and tearing tests of films, sheets, foams and seals. ? Adhesive & Tape Industry: Peeling strength, adhesive strength and shear strength tests of tapes, adhesives, labels and protective films. ? Textile & Paper Industry: Tensile strength and elongation tests of fibers, yarns, fabrics, non-woven fabrics, paper and cardboard. ? Wire & Cable Industry: Tensile and pull-off force tests of micro wires, enameled wires and cable cores. ? Electronic & Electrical Industry: Pull-out force tests of connectors, terminals, pins, small springs and switches. ? Medical Device Industry: Mechanical performance tests of medical consumables (catheters, packaging materials, disposable products). ? Packaging Industry: Tensile, peeling and compression tests of packaging films, blister packs and sealing strips. ? Scientific Research & Teaching: Material mechanics experiments and teaching tests in colleges and universities. ? Quality Inspection & Supervision: Incoming inspection, finished product inspection and quality control testing.

Product Advantages

1. High Testing Accuracy: High-precision sensor and advanced control system ensure accurate, repeatable test data, supporting product quality judgment and material research. 2. Easy to Operate: User-friendly software and simple operation process reduce training time and labor costs, no professional skills required. 3. Compact & Space-saving: Desktop design with small footprint, suitable for limited-space laboratories and workshops. 4. Strong Versatility: Multi-purpose in one machine by replacing fixtures, saving equipment investment costs. 5. Long Service Life: High-quality components and rigid structure ensure stable performance and low failure rate. 6. Standard Compliance: Meets ISO/ASTM/GB/DIN standards, suitable for factory quality control, third-party testing and research.

After-sales & Service

? Provide complete operation manual, software installation package and standard accessories. ? One-year warranty, free maintenance and replacement of non-artificial damaged parts. ? Professional technical support for software upgrade, fixture customization and operation training. ? Timely technical consultation to solve on-site operation problems.
