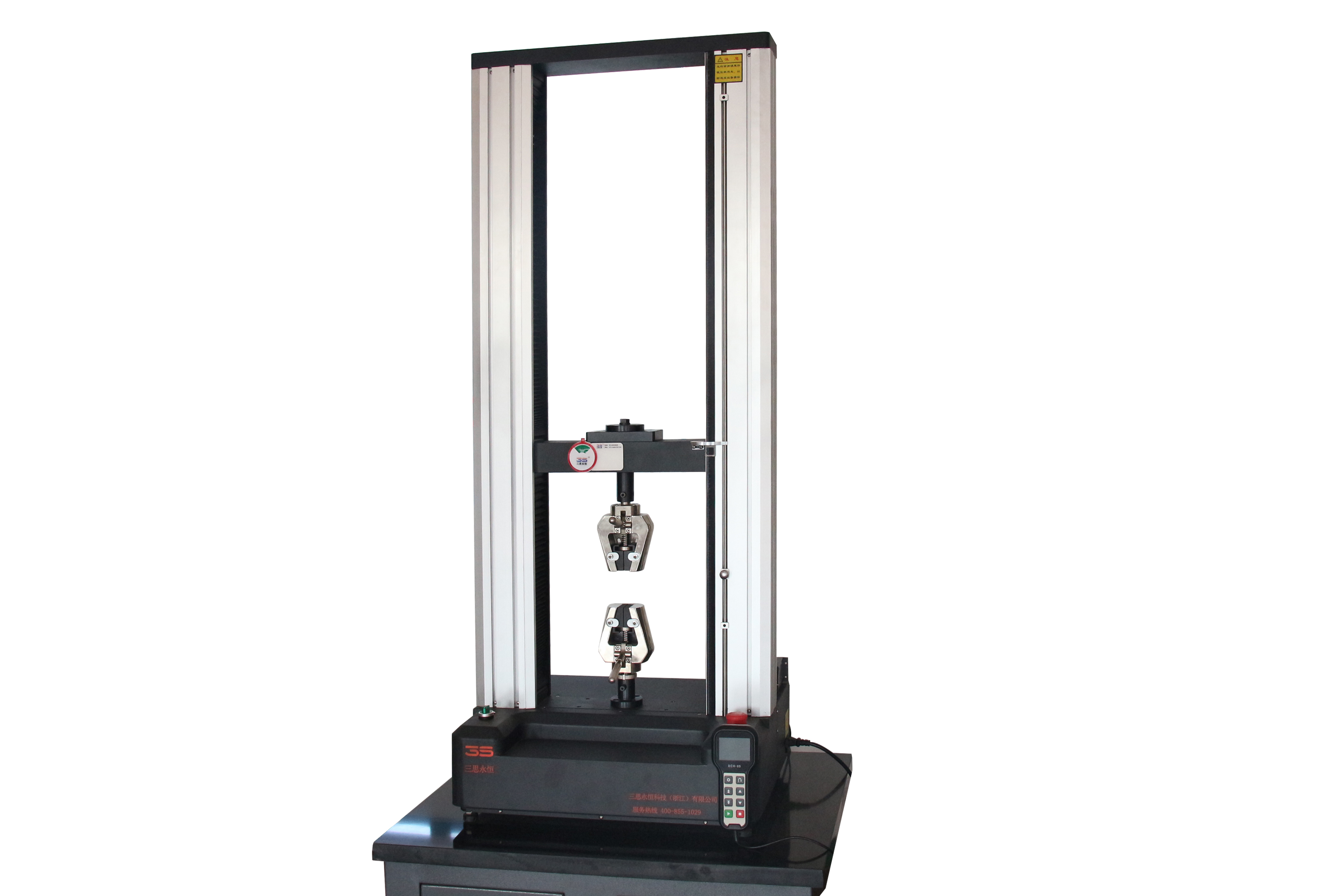

Microcomputer-controlled Electronic Testing Machine 500N

Get Latest Price

Model No.	CMT6502
Brand Name	SANSI
place of origin	China

Microcomputer-Controlled Electronic Universal Testing Machine 500N

Meta Title:? 500N Microcomputer-Controlled Electronic Universal Testing Machine | Precision Mini-Tester

Meta Description:? Compact 500N Electronic Universal Testing Machine? with PC control for micro-tension, compression, and bending tests. Ideal for Thin Films, Fibers, and Fine Wire Testing. Complies with ISO 6892-1? and ASTM D882? standards.

Product Overview

The 500N Microcomputer-Controlled Electronic Universal Testing Machine is a compact, high-precision system designed for the detailed mechanical analysis of small, low-strength, and delicate materials. Governed by advanced PC software, it performs accurate tensile, compression, bending, shear, and peel tests, establishing itself as a critical piece of Laboratory Testing Equipment. It is particularly specialized for Fine Wire and Fiber Testing, Thin Film and Foil Characterization, and the evaluation of Biomedical Materials and Micro-Components? in R&D, quality assurance, and educational settings. The integration of a high-resolution servo-electric drive, a sensitive 500N load cell, and intelligent data analysis software ensures exceptional measurement sensitivity, stability, and compliance with stringent international testing protocols.

Key Technical Specifications

Parameter	Specification
Maximum Test Force?	500 N
Force Accuracy?	≤ ±0.5% (Class 0.5)
Force Resolution?	1/500,000 of full scale
Test Speed Range?	0.001 – 500 mm/min (stepless)
Speed Accuracy?	±0.2% of setting
Crosshead Travel?	≥ 800 mm
Effective Test Width?	≥ 120 mm (compact frame)
Displacement Resolution?	0.0005 mm
Control System?	Dedicated PC-based microcomputer control software
Drive System?	Micro-stepping servo motor & precision ball screw
Frame Structure?	High-rigidity single-column or compact dual-column design
Data Sampling Rate?	Up to 1000 Hz
Power Supply?	AC 220V, 50/60Hz, Single-phase
Machine Weight?	Approx. 100 kg

Core Features & Advantages

Ultra-Precise Micro-Control Platform:? The dedicated PC software provides an intuitive interface for programming complex test sequences, displaying real-time multi-parameter curves (e.g., Stress-Strain, Force-Displacement), and performing automated calculations of elastic modulus, yield point, and fracture energy. This Electronic Universal Testing Machine? platform is ideal for Precision Materials Research? requiring high data fidelity.
High-Sensitivity Drive & Measurement:? The micro-stepping servo motor and precision ball screw drive system enable ultra-smooth motion control, essential for testing delicate specimens like thin films and fine wires. Its high-resolution measurement system makes it an excellent Electronic Tensile Testing Machine? for Micro-Mechanical Property Analysis, capturing subtle material behaviors.
Specialized Application Versatility:? The system supports a wide array of specialized fixtures, including low-force pneumatic grips, film grips, fiber/wire twister grips, micro-peel fixtures, and puncture probes. This adaptability makes it a versatile Laboratory Universal Testing? tool for industries ranging from Packaging (Seal Strength Testing)? and Electronics (Connector Pin Pull-Force)? to Textiles (Yarn Strength).
Comprehensive Data Management & Safety:? The system integrates software-based overload protection, emergency stop functionality, and displacement limits. All test data, curves, and statistical reports are automatically saved and can be exported in standard formats (CSV, PDF) for seamless integration into laboratory information systems, supporting rigorous Quality Control Testing? documentation.

Typical Industry Applications

Packaging & Flexible Films:? Tensile, elongation, and tear strength testing of plastic films, laminates, and aluminum foil.
Electronics & Semiconductors:? Wire bond strength, connector retention force, and flex circuit bending tests.
Medical Devices & Biomaterials:? Suture tensile strength, adhesive bandage peel, and catheter tube compression.
Textiles & Nonwovens:? Single fiber tensile strength, yarn tenacity, and fabric grab tests.
Adhesives & Sealants:? Low-force peel adhesion and lap shear strength testing.

Standard & Optional Configuration

Standard Package:? Main testing frame, 500N precision load cell, PC control software and interface, standard tensile/compression fixtures, and calibration certificate.

Available Accessories:? Non-contact video extensometer, environmental test chamber (small volume), specialized grips for delicate samples, 3-point bending fixture, and transparent safety enclosure.

Quality Assurance & Compliance

Manufactured under a certified quality management system, with calibration traceable to national standards.
Compliant with key international test standards such as ISO 6892-1? (metals), ASTM D882? (plastic sheets), ASTM D5035? (fabric strip), and GB/T 1040? (plastics).
Provides reliable, high-resolution data suitable for sensitive R&D projects and critical quality control in precision manufacturing.

The 500N Microcomputer-Controlled Electronic Universal Testing Machine is the definitive solution for laboratories requiring unparalleled precision in the mechanical testing of delicate and small-scale materials. It combines micro-scale sensitivity with macro-scale reliability, making it an indispensable Laboratory Testing Equipment? for cutting-edge research and quality assurance.
