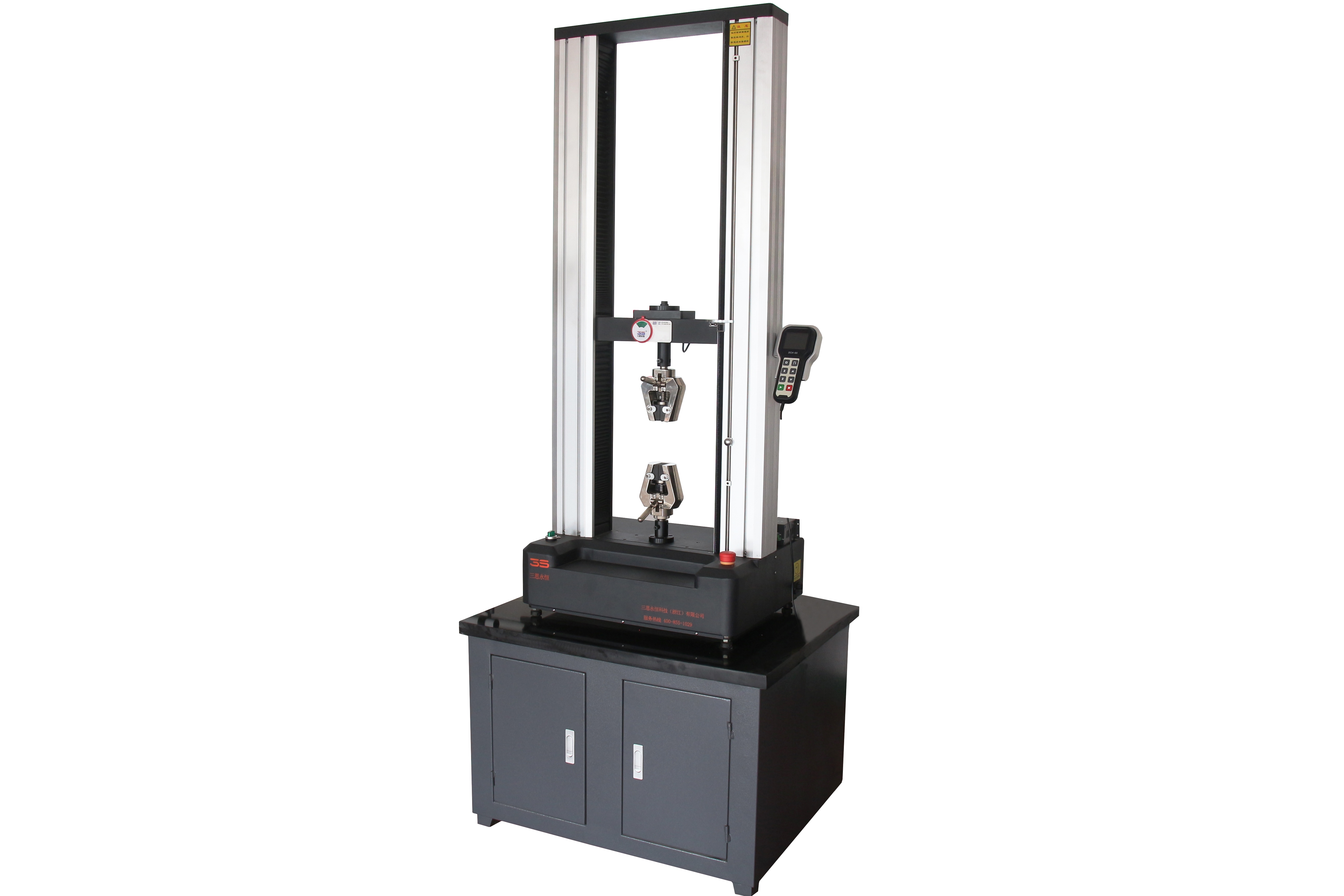

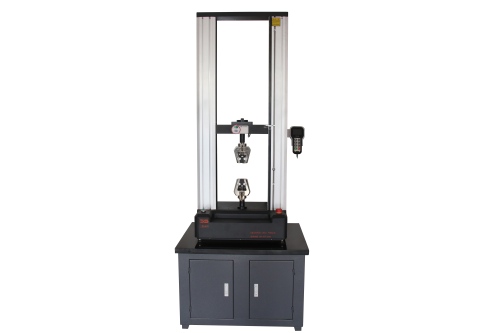

Microcomputer-controlled Electronic Testing Machine 10kN

Get Latest Price

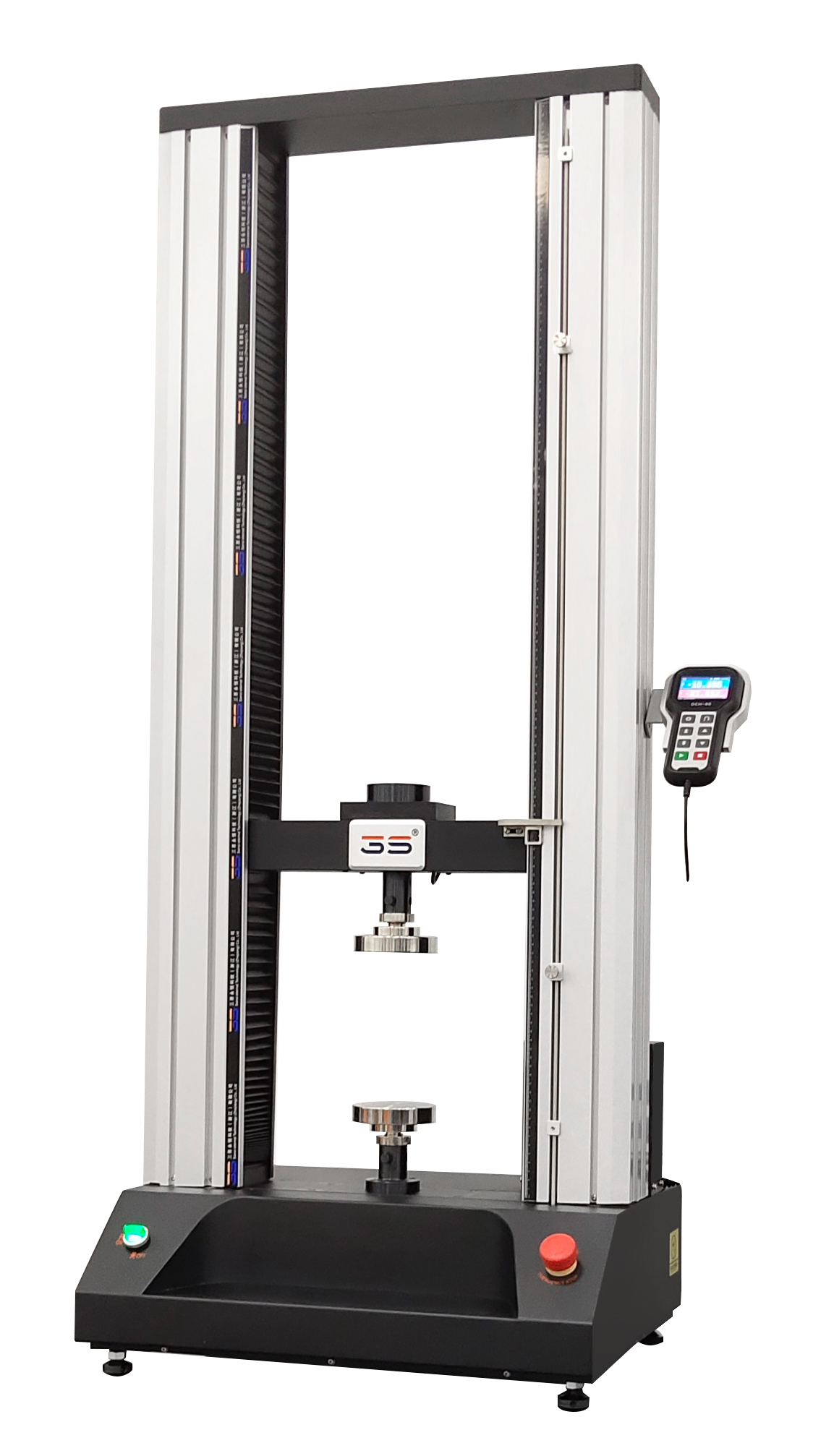

Model No.	CMT6104
Brand Name	SANSI
place of origin	China

Microcomputer-Controlled Electronic Universal Testing Machine 10kN

Meta Title:? 10kN Microcomputer-Controlled Electronic Universal Testing Machine | Precision Material Tester

Meta Description:? High-precision 10kN Electronic Universal Testing Machine? with PC control for advanced tension, compression, bending, and fatigue analysis. Ideal for Metals, Plastics, and Composites Testing? according to ISO, ASTM, and GB? standards.

Product Overview

The 10kN Microcomputer-Controlled Electronic Universal Testing Machine represents a high-capacity, intelligent testing solution engineered for rigorous material characterization and quality validation. This PC-driven system delivers exceptional accuracy in performing tensile, compression, flexural, shear, and low-cycle fatigue tests, establishing itself as a cornerstone of advanced Materials Testing Equipment. It is particularly suited for Metals and Alloys Testing, Engineering Plastics Evaluation, and Composite Material Analysis? in R&D centers, third-party certification labs, and high-standard production facilities. The integration of a robust electromechanical drive, a high-resolution 10kN load cell, and sophisticated analytical software ensures reliable, repeatable data that meets global quality assurance protocols.

Key Technical Specifications

Parameter	Specification
Maximum Test Force?	10 kN
Force Accuracy?	≤ ±0.5% (Class 0.5)
Force Resolution?	1/500,000 of full scale
Test Speed Range?	0.001 – 500 mm/min (stepless)
Speed Accuracy?	±0.2% of setting
Crosshead Travel?	≥ 1000 mm (standard)
Effective Test Width?	≥ 400 mm
Displacement Resolution?	0.001 mm
Control System?	Full PC-based microcomputer control with dedicated software
Drive System?	High-performance AC servo motor & precision ball screw
Data Sampling Rate?	Up to 1000 Hz
Frame Structure?	Rigid dual-column design
Power Supply?	AC 220V ±10%, 50/60Hz, Single-phase
Data Interface?	Standard USB/RS232/Ethernet

Core Features & Advantages

Advanced Intelligent Control Platform:? The system is powered by comprehensive PC software, enabling programmable multi-stage tests, real-time graphical display of stress-strain curves, and automatic calculation of key mechanical properties (modulus, yield strength, tensile strength, elongation). This Intelligent Universal Testing Machine? platform supports complex waveform generation for basic Fatigue Testing Machine? studies and advanced data export for analysis.
High-Precision Servo-Electric Drive:? The clean, responsive drive system powered by an AC servo motor and ball screw provides superior speed control and positioning accuracy. This Electronic Universal Testing Machine? design is ideal for Ambient Temperature Material Testing, offering maintenance-free operation, low noise, and no hydraulic fluid requirements, making it perfect for laboratory environments.
Versatile Testing Capability & Fixture System:? Designed as a true Universal Testing Machine, it accommodates a wide range of interchangeable fixtures for tensile (wedge, pneumatic, rope grips), compression, bending (3-point, 4-point), and shear tests. This makes it exceptionally suitable for the Testing Machine for Composite Material Industry? and for conducting Fastener Industry Testing Machine? evaluations on bolts and connectors.
Robust Data Integrity & Safety Management:? The system features integrated overload protection, emergency stop functions, and software-based limits. Test data and comprehensive reports are automatically generated and can be exported in multiple formats (Excel, PDF) for seamless integration into quality management systems, ensuring full traceability for Industrial Production Universal Testing? and certification purposes.

Typical Industry Applications

Automotive & Aerospace:? Component validation, material certification for metals and advanced composites.
Construction & Building Materials:? Testing of rebar, structural plastics, and composite reinforcements.
Plastics & Polymers:? High-accuracy tensile, flexural, and compression testing of engineering plastics and plastic products.
Fasteners & Metal Components:? Tensile and proof load testing of bolts, screws, and small metal parts.
Academic & Government Research:? Fundamental material science research and standardized testing education.

Standard & Optional Configuration

Standard Package:? Mainframe with 10kN load cell, PC control software and interface, standard tensile/compression fixtures, crosshead displacement encoder, and operation manual.

Optional Accessories:? Extensometers (contact, video), environmental chambers (high/low temperature), specialized fixtures for films, foams, and textiles, and round specimen grips.

Quality Assurance & Compliance

Manufactured under strict quality controls, with factory calibration traceable to national standards.
Full compliance with international standards including ISO 7500-1, ASTM E4, GB/T 16491, and other relevant material test methods (e.g., ASTM D638, ISO 527).
Ideal for laboratories requiring precise, auditable data for both internal quality control and external accreditation.

The 10kN Microcomputer-Controlled Electronic Universal Testing Machine stands as a versatile, precise, and intelligent core instrument for any facility dedicated to advanced material characterization, quality assurance, and research, delivering dependable performance for a vast spectrum of Materials Testing Equipment? applications.
