Microcomputer-controlled Electronic Testing Machine 2000N

Get Latest Price

Model No.	CMT6203
Brand Name	SANSI
place of origin	China

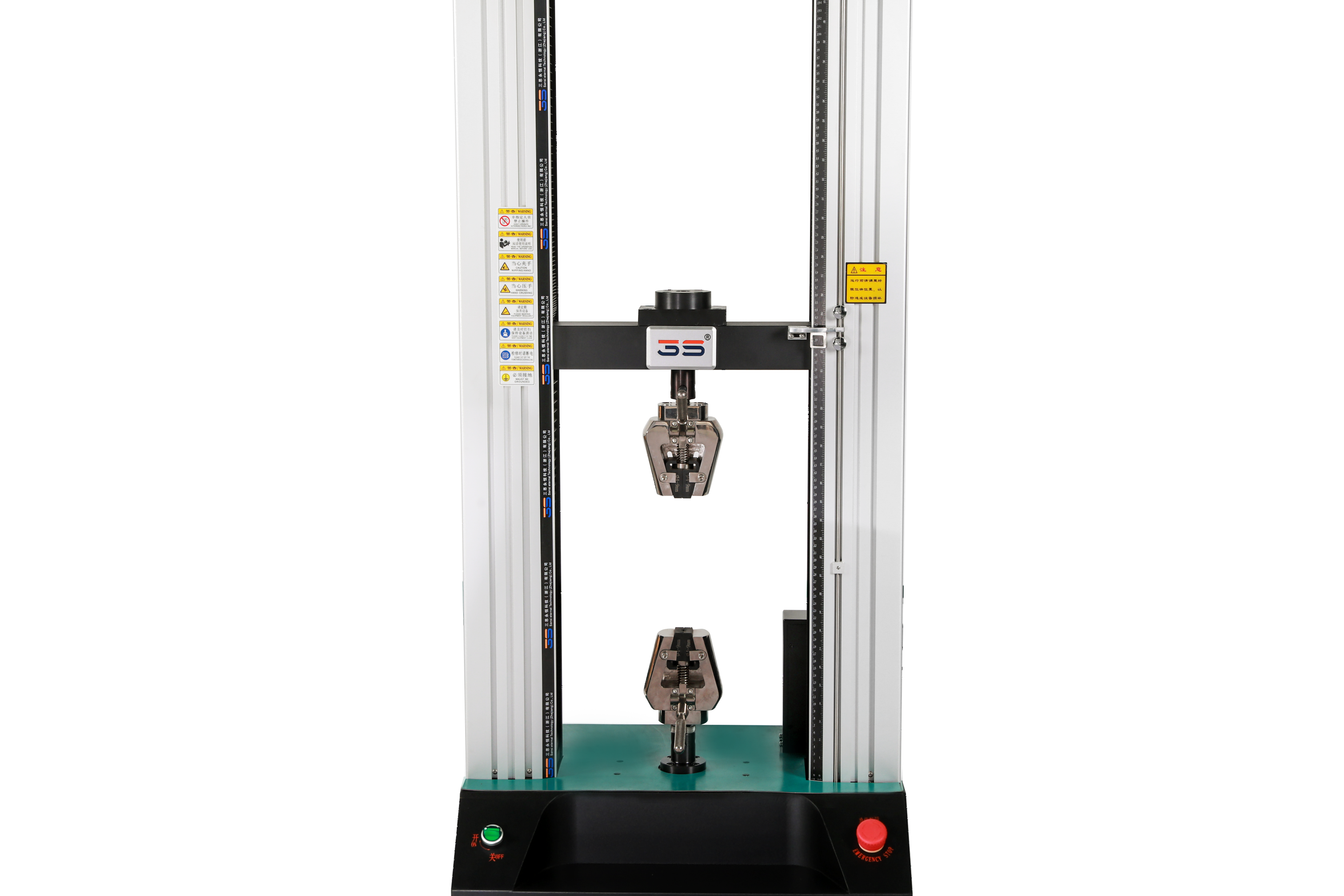

Microcomputer-Controlled Electronic Universal Testing Machine 2000N

Meta Title:? 2000N Microcomputer-Controlled Electronic Universal Testing Machine | High-Capacity Benchtop Tester

Meta Description:? Robust 2000N Electronic Universal Testing Machine? with PC control for advanced tensile, compression, and bending analysis. Ideal for Engineering Plastics, Metals, and Composites Testing? per ISO, ASTM, and GB? standards.

Product Overview

The 2000N Microcomputer-Controlled Electronic Universal Testing Machine is a powerful, precision-engineered system designed for comprehensive mechanical property evaluation of medium-strength materials. Operating under sophisticated PC software control, it executes a full spectrum of tests including tensile, compression, flexural, shear, and peel measurements, serving as a core component of modern Materials Testing Equipment. This system is particularly effective for Engineering Plastics Verification, Non-Ferrous Metal Testing, and Fiber-Reinforced Composite Analysis? in R&D laboratories, quality control departments, and educational institutions. Combining a high-torque servo-electric drive, a robust 2000N load cell, and intelligent data processing software, it delivers exceptional control, accuracy, and repeatability for demanding testing protocols.

Key Technical Specifications

Parameter	Specification
Maximum Test Force?	2000 N (2 kN)
Force Accuracy?	≤ ±0.5% (Class 0.5)
Force Resolution?	1/500,000 of full scale
Test Speed Range?	0.001 – 500 mm/min (stepless)
Speed Accuracy?	±0.2% of setting
Crosshead Travel?	≥ 1100 mm
Effective Test Width?	≥ 400 mm
Displacement Resolution?	0.001 mm
Control System?	Dedicated PC-based microcomputer control software
Drive System?	High-torque AC servo motor & precision ground ball screw
Frame Structure?	Rigid dual-column or high-stability four-column design
Data Sampling Rate?	Up to 1000 Hz
Power Supply?	AC 220V, 50/60Hz, Single-phase
Data Interface?	Standard USB, Ethernet

Core Features & Advantages

Advanced PC-Based Control & Analysis:? The system is managed by comprehensive software that allows for fully programmable multi-stage testing, real-time display of stress-strain and force-displacement curves, and automatic calculation of key parameters (Young's Modulus, yield strength, tensile strength, flexural modulus). This Intelligent Universal Testing Machine? capability supports complex test sequences and detailed data analysis for Precision Material Characterization.
High-Power Servo-Electric Drive System:? The robust AC servo motor and precision ball screw mechanism provide smooth, responsive, and powerful force application. This Electronic Universal Testing Machine? design is perfectly suited for Ambient Temperature Material Testing, offering clean, maintenance-friendly, and quiet operation without the complexities of hydraulic systems, ideal for standard laboratory environments.
Versatile Fixture System for Diverse Applications:? The machine supports a wide array of interchangeable fixtures, including wedge grips, pneumatic grips, compression plates, bending fixtures, and shear tools. This versatility makes it a true Universal Testing Machine, capable of adapting to test a broad range of specimen types, from plastic rods and metal sheets to composite laminates and small structural components, aligning with needs in the Testing Machine for Composite Material Industry.
Integrated Safety & Data Integrity Protocols:? The system incorporates both hardware and software safety features, including overload protection, emergency stop buttons, and programmable travel limits. All test data and comprehensive reports are automatically generated, stored, and can be exported in multiple formats (Excel, PDF) for easy integration into quality management systems, ensuring full traceability for Industrial Production Universal Testing? and certification.

Typical Industry Applications

Plastics & Polymers:? Tensile, flexural, and compression testing of engineering plastics (e.g., Nylon, PC, POM) and plastic products.
Metals & Light Alloys:? Tensile testing of aluminum, copper alloys, and small-diameter steel rods or wires.
Composites & Advanced Materials:? Characterization of carbon fiber, glass fiber laminates, and other reinforced plastics.
Rubber & Elastomers:? Tensile strength, elongation, and compression set testing.
Automotive & Consumer Goods:? Component validation and material qualification for interior and exterior parts.

Standard & Optional Configuration

Standard Package:? Main testing frame with 2000N load cell, PC control software and interface, standard tensile grips and compression plates, crosshead displacement encoder, and operation manual.

Optional Accessories:? Extensometers (contact or video), environmental test chambers, specialized fixtures for films, foams, and adhesives, and round specimen grips.

Quality Assurance & Compliance

Manufactured under strict quality control systems, with factory calibration traceable to national metrology standards.
Fully compliant with international testing standards including ISO 7500-1, ASTM E4, GB/T 16491, and relevant material-specific methods (e.g., ISO 527, ASTM D638).
Ideal for laboratories and production facilities requiring accurate, auditable test data for quality assurance, R&D, and compliance reporting.

The 2000N Microcomputer-Controlled Electronic Universal Testing Machine represents an optimal blend of high capacity, precision, and intelligent operation. It is a fundamental and reliable Materials Testing Equipment? solution for modern laboratories and industries engaged in rigorous material characterization, product validation, and quality control.
