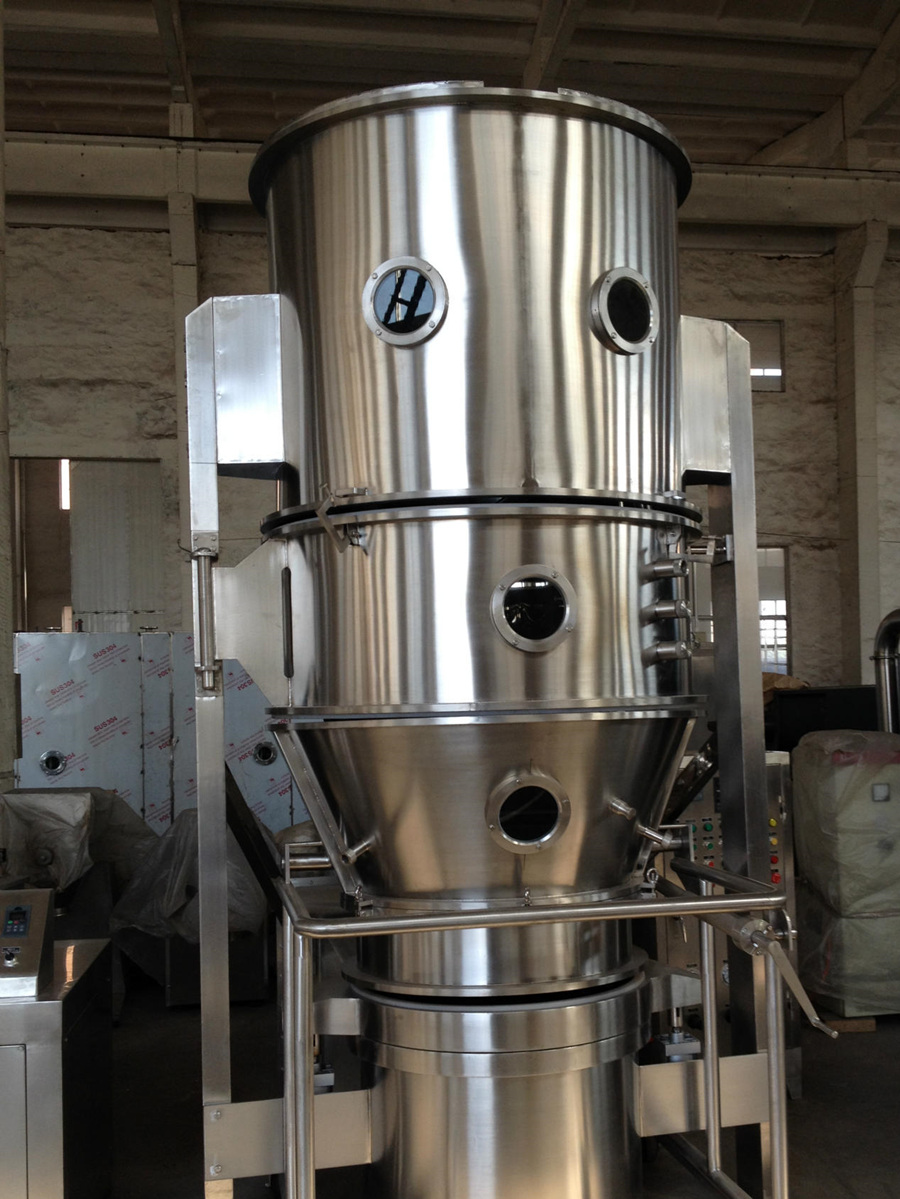

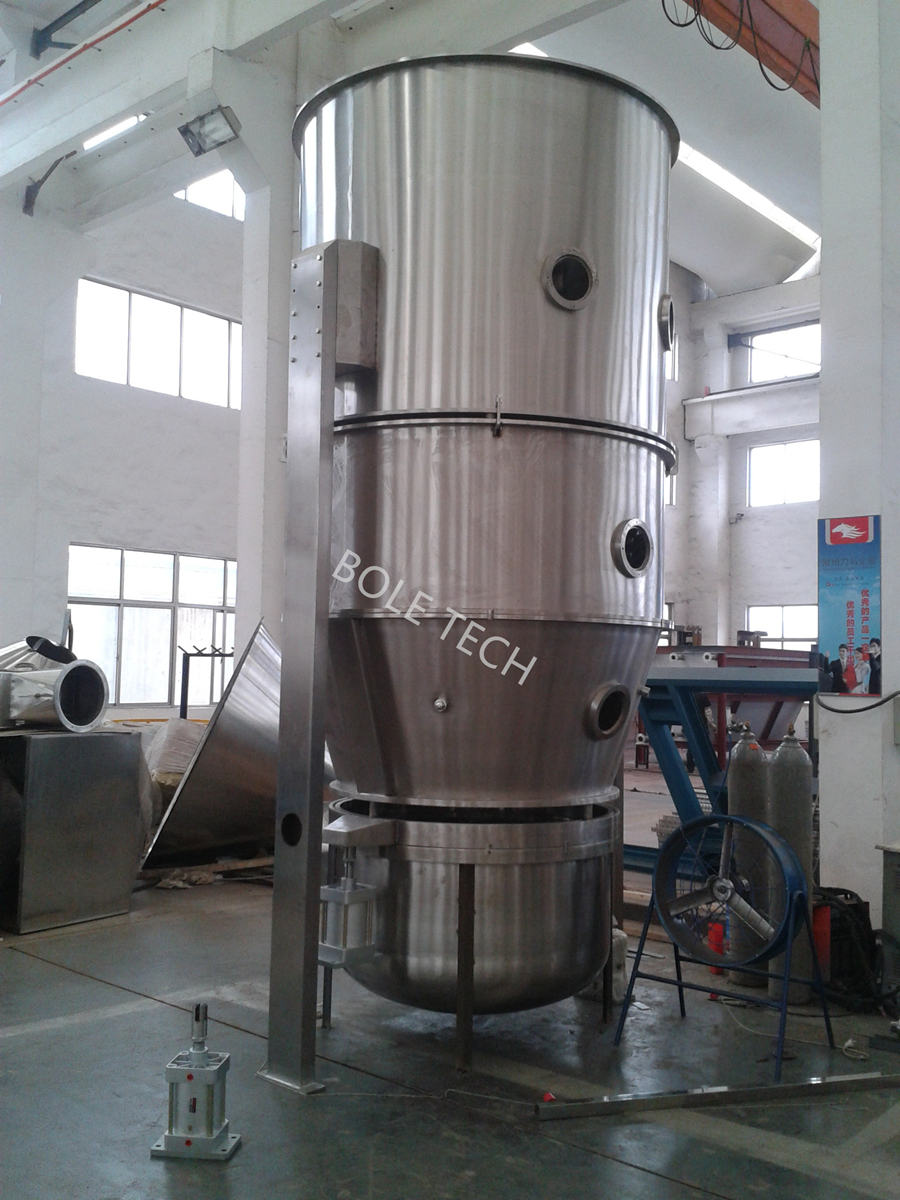

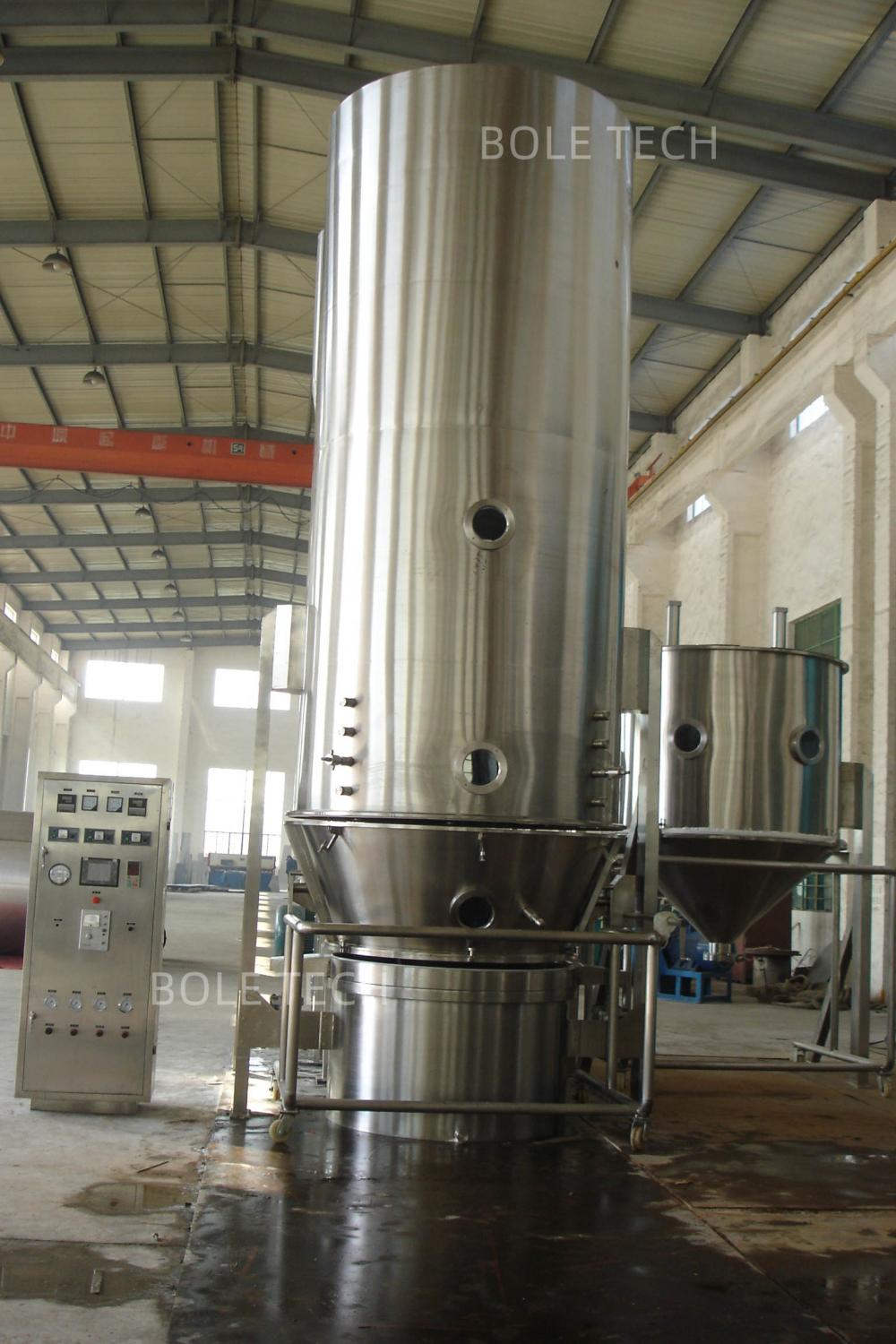

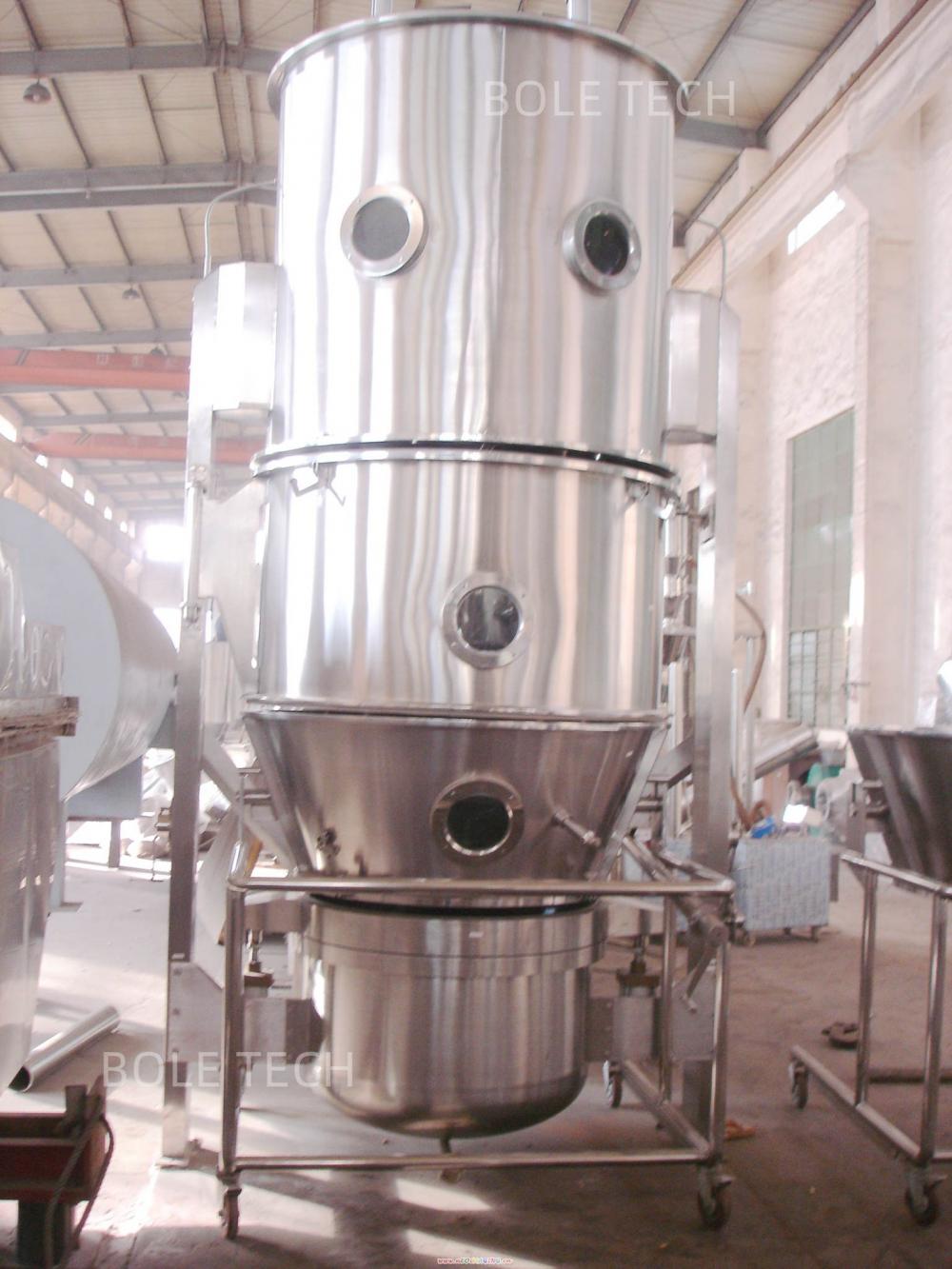

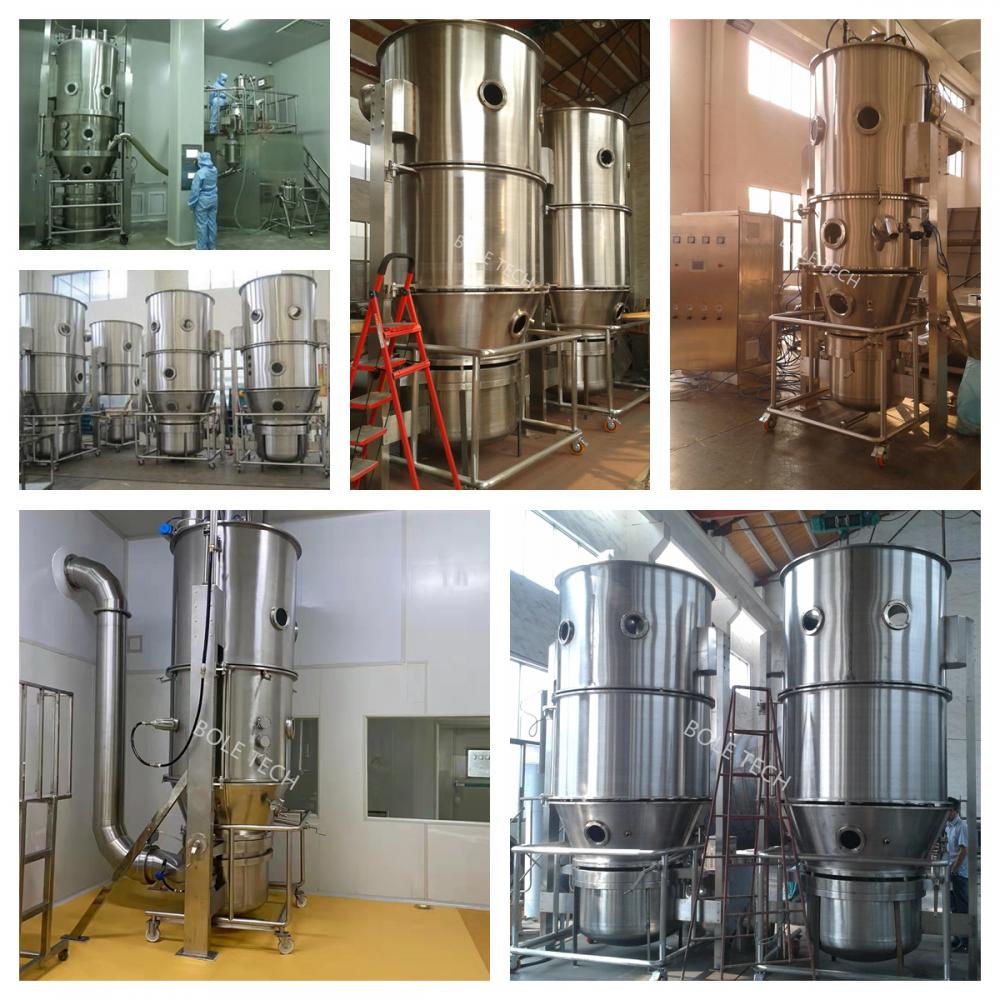

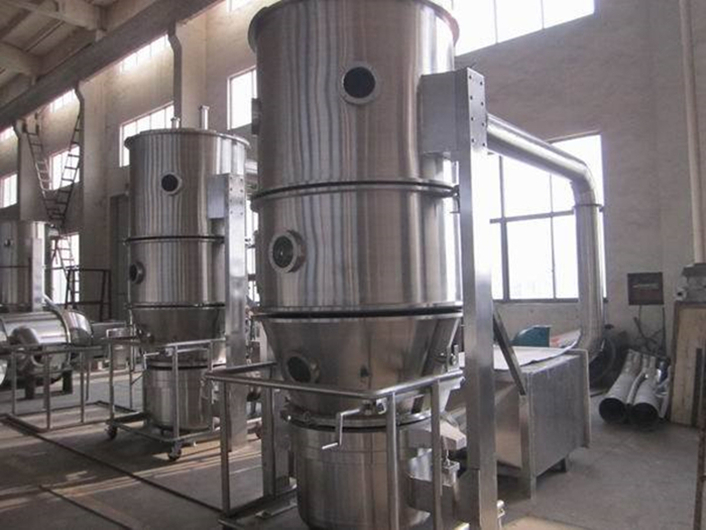

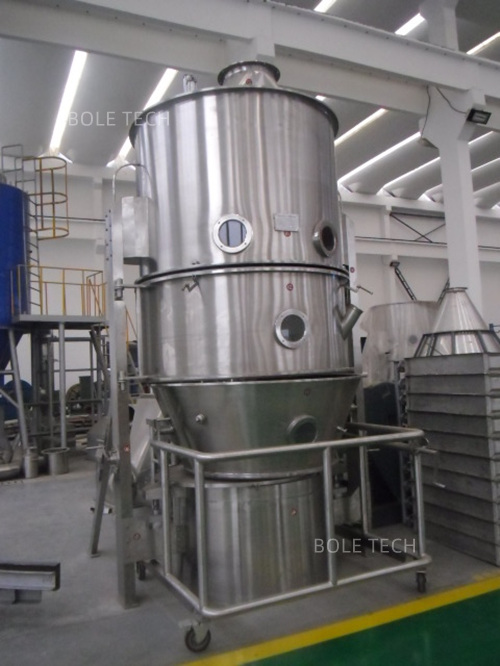

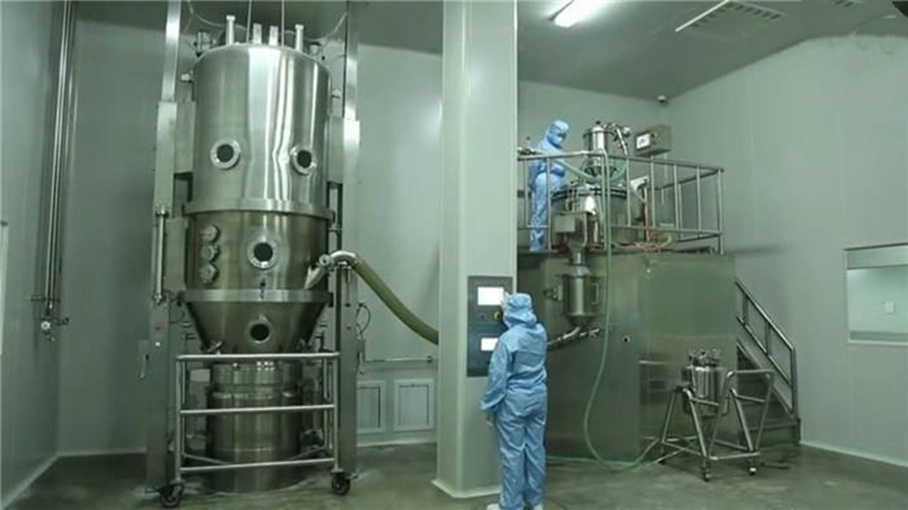

Fluid bed dryer is also called fluidized bed dryer. It is a high efficiency drying machine for powder and granular materials. It is often used in agrochemical industry, pharmaceutical industry, food industry, nutriceutical industry, chemical industry, feed industry, animal medicine industry and so on.

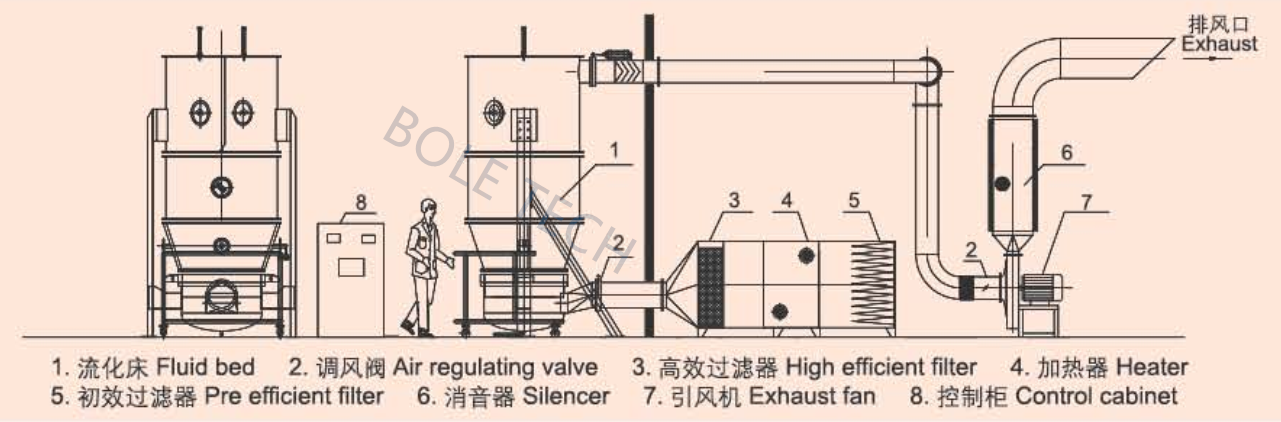

                                                                                 Flow chart of fluidized bed dryer

Features of Bole Fluid bed dryer:

·       Models available of capacity ranging from 10/30/60/120/150/200/250/300/500 Kgs., with steam heating/electrical heating & thermal heating facility.

·       PLC based power panel with touch screen based operating panel for process automation.

·       Flameproof motor with flameproof operating panel.

·       Uniformity in drying and reduction in drying time.

·       Micro filter to prevent any fine dust to pass through the products with inlet air.

·       An explosion safety flap of adequate capacity at the rear of dryer and an earthing point to prevent static charge in the machine.

·       Timer provided to set process time.

·       Temperature indicator cum controller for inlet and outlet air temperature.

·       HEPA filters can be provided on demand on extra cost to prevent any fine dust to pass through the products.

·       Digital temperature indicator are provided for inlet & outlet air, in steam/thermic fluid heated model.

·       Machine is suitable to use in Pharmaceuticals, Dyes & Chemicals, Food Products, Starch Derivatives, Pesticides, Phyto Chemicals and Catalysts.

Parameters of fluid bed dryer:

Model	FG-3	FG-5	FG-30	FG-60	FG-120	FG-200	FG-300	FG-500
Volume of container (L)	12	22	100	220	420	670	1000	1500
Capacity (kg/batch)	3	5	30	60	120	200	300	500
Power of fan (kW)	3	4	7.5	15	22	20	30	45
Steam consumption (kg/h)	15	42	70	141	211	282	366	451
Steam pressure (Mpa)	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6
Consumption of compressed air (m3/min)	0.3	0.3	0.3	0.6	0.6	0.9	1.1	1.3
Pressure of compressed air (MPa)	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
