Fluid bed dryer is suitable for drying powder and granular materials. High-pressure hot air is forced through a perforated bed of moistened particulate during fluid bed processing. The solid matter is subjected to controlled pressure which causes the particles to function like a fluid which is then lifted and suspended in a current of air. The contact between the particulate and hot gases generates the transfer of heat. The resulting heat dries the gases and carries away the vaporized liquid. Fluid bed dryer can be used with either heat-sensitive or non-heat-sensitive particles.

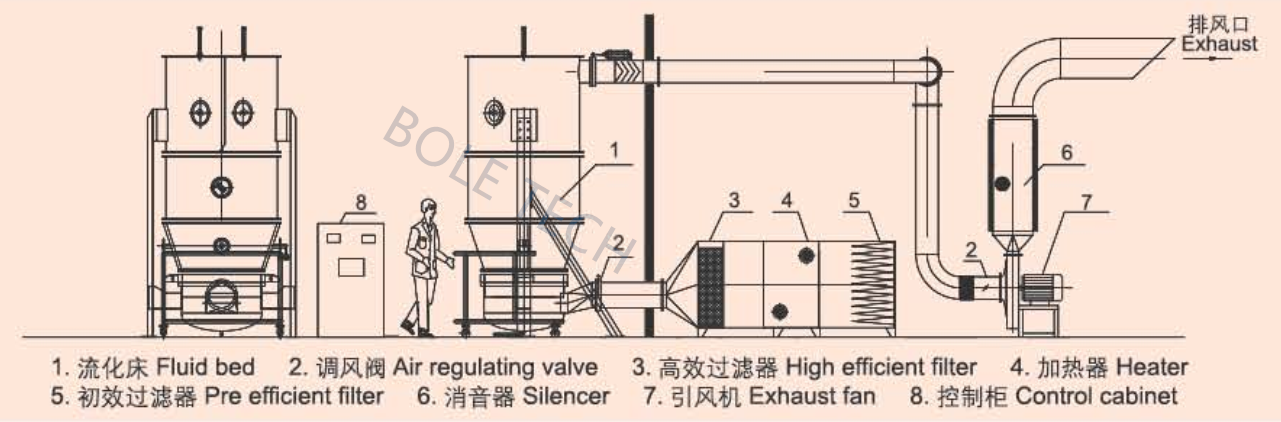

                                                                            Flow chart of fluidized bed dryer

Fluidized bed dryer has the following features:

? Equipped with primary, secondary and HEPA filter
? Inlet air and high precision temperature PID control with hot & cold air mixing valve
? Lifting turnover or vacuum discharging is available
? Meet dust free production requirement, no cross contamination
? GMP compliant design guarantee easy maintain and cleaning without dead angle
? 2 bar, 10 bar or 12 bar anti-explosion grade are optional
? Ensure the safety of people and equipment
? Dehumidification & WIP online washing system as optional item

Parameters of fluid bed dryer:
