Wooden Door Making Machine Atc Cnc Cutting Machine

Overview:

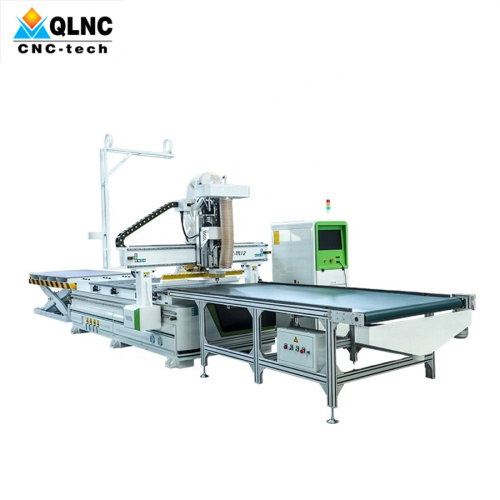

Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time. World’s first class components--Italian high-frequency electro spindle, controller system and drill bank, German helical rack and pinion drives, Japanese self-lubricating and dust-proof square linear guides and high precision planetary gear reducers, etc.Truly versatile--nesting, routering, vertical drilling and engraving all in one.  It is well-suited for panel furniture, office furniture, cabinets production.
ATC cnc router Automatic barcode labeling machine with printer available upon request.
Top of its range, this solution has the great advantage of not requiring the constant presence of an operator.The suction cups equipped on the gantry travels to the rear of the machine to pick up the workpiece from the scissor lift, which is then nested and drilled at the flat table.At the completion of the work cycle, the pusher transports the completed workpiece out of the working area allowing simultaneous loading of the next cycle.
Features world's top class components.The enclosure over the gantry with LED light strip for display of the machine statue prevents flying out of materials and greatly enhance safety.

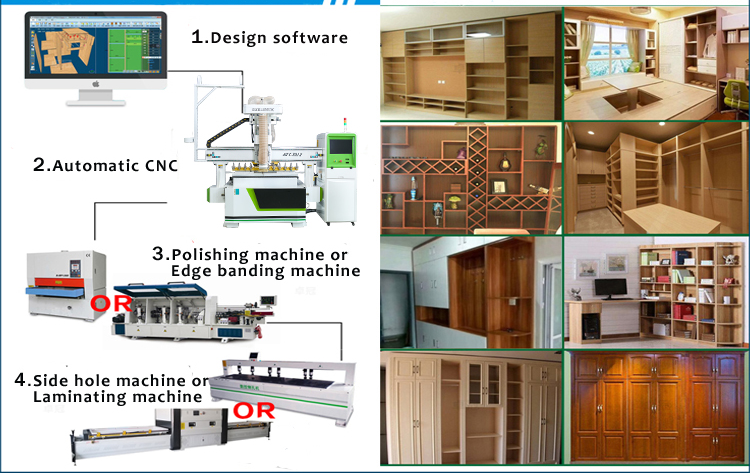

Truly versatile -nesting, routering, vertical drilling and engraving all in one. It is well -suitable for panel furniture, office furniture, kitchen, cabinets production.

Technical Parameter:

Machine name	wood engraving machine JX-1325ATC
Working table	Vaccum table
Workable size	1300x2500x200mm
Spindle motor	HQD 9.0kw air cooling spindle
X Y Z traveling Positioning accuracy	±0.03/300mm
Max Working Speed	20000mm/min
Working Voltage	AC380V/50/60HZ
Command language	G Code,*uoo,*mmg,*plt
Operating system	YASKAWA servo motor
X,Y,Z Guide Rail	Taiwan HIWIN Square Rail
Computer Interface	USB
Flash memory	128M(U Disk)
Collet	ER25
Software	Type3/Wentai/Artcam

Machine Function:

1.series nesting cnc router machine

The series has an automatic loading panel lift system, an automatic advance unloading conveyer table, an extremely strong welded steel beam frame with a rotary tool changer on the gantry.  The series is extremely fast and allows the operator to simply stand at the end of the unload table and remove cut parts as they unload from the machine.

2.The loading lift system allows the operator to load a lift of panels at one time on a heavy steel platform with automatic rise indexing. Using a vacuum cup loading system the machine pulls each panel onto the CNC table for machining while at the same time unloads the previous machined parts and vacuums the machining table clean at the same time. The lift will automatically index the next panel to the correct height for the four 6” vacuum cups to pick it up for the next machining process. The machined parts are pushed onto an automatic advancing conveyer table which senses the panels to be removed. Once the parts at the end of the conveyer are removed by the operator the conveyer will automatically advance the next cut parts to the end of the table and wait for the operator to remove them. An optional printer is available to label parts for tracking throughout the customer’s factory.

3.The base of the machine is a 6000 pound very heavy duty welded steel beam floor model frame. The phenolic vacuum table is then mounted to the steel frame for an excellent working surface and comes with an MDF spoilboard machined at the factory and bolted down to the table. We use plastic bolts to ensure no damage to cutters from contact. The spoilboard is bolted to the table to ensure stability during the loading and unloading process.

4.Drilling units .(For fast vertical & side drilling works.)

5.Oscillating knife .(For soft material cutting works like foam ,packing box leather etc.)

6.CCD camera .(For recognizing the position of graphic during graphic's cutting works.)

Appliable fields:

Applied material & work & industriy
Applied material
1.Non-metal material . Non-metal like wood ,mdf,plywood ,acrylic ,pvc ,foam ,packing boxes etc .
2.Metal material .Aluminum .
Applied work

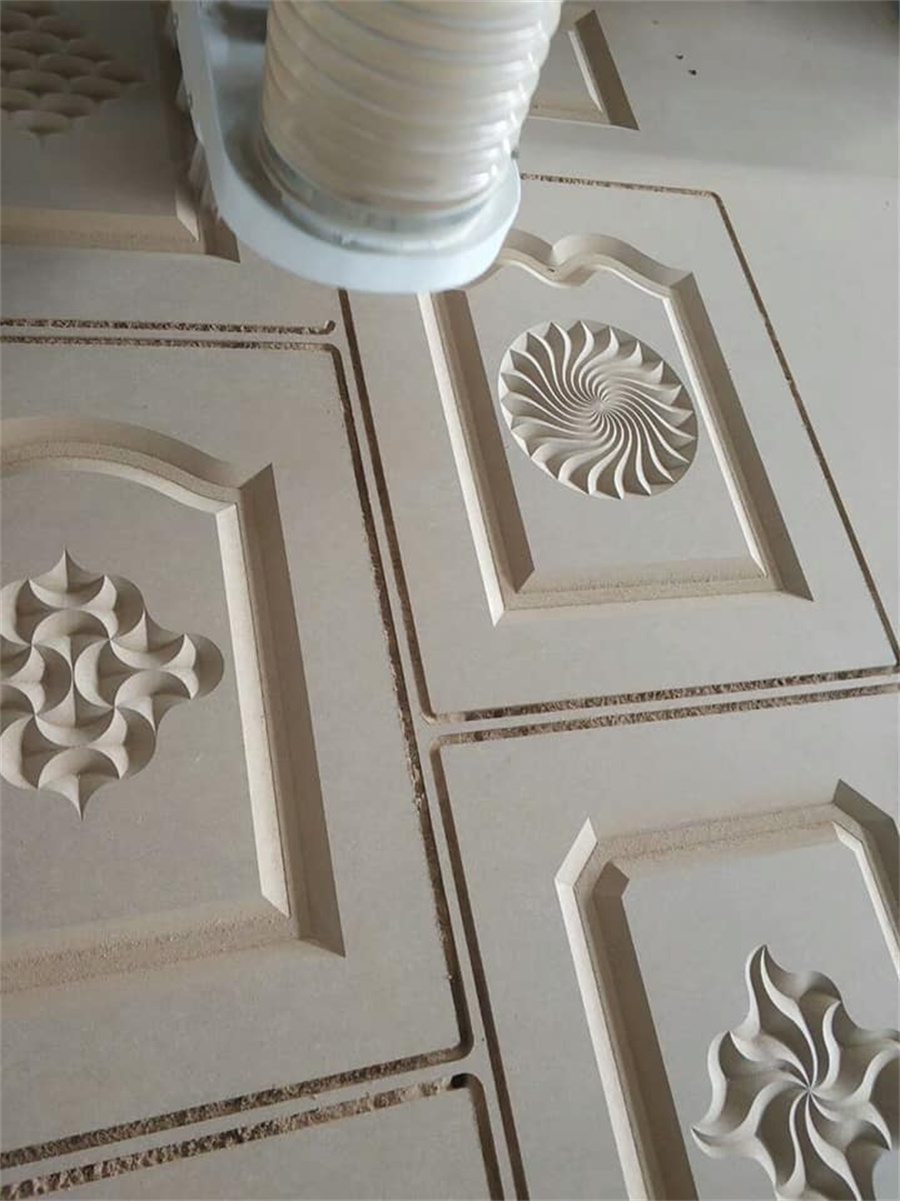

1.Vertical works are basic .Vertical cutting  ,2d or 3d engraving (milling /carving) and drilling are basic functions .
2.Horizontal or angle works or other functions could be optional .We could upgrade the specification according to your needs based on the standard specification like the following optional parts shows ,for example ,if you want to handle the side drilling works via this machine ,we could add a drilling units or a C axis&aggregate head for you  ; if you want to cut packing box ,we could add an oscillating knife for you ...
Applied industry
1. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
3. Wood working industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.
4. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers,
