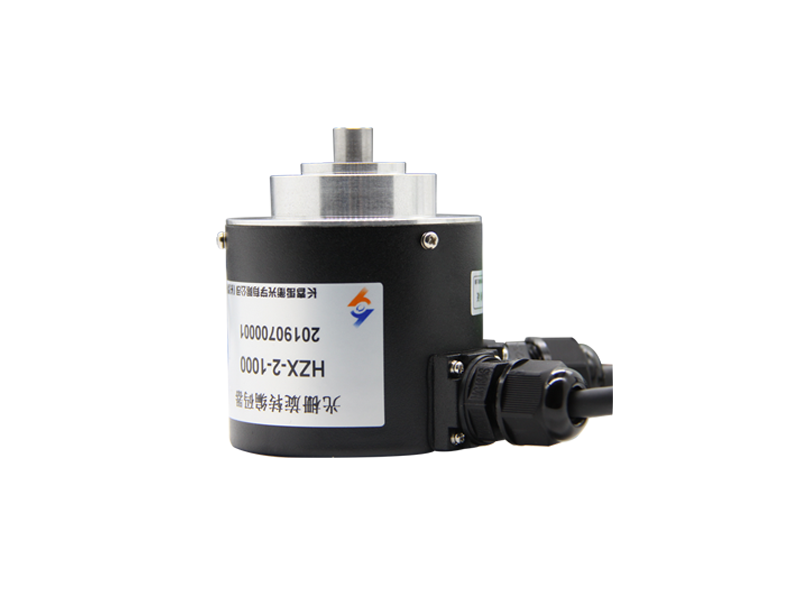

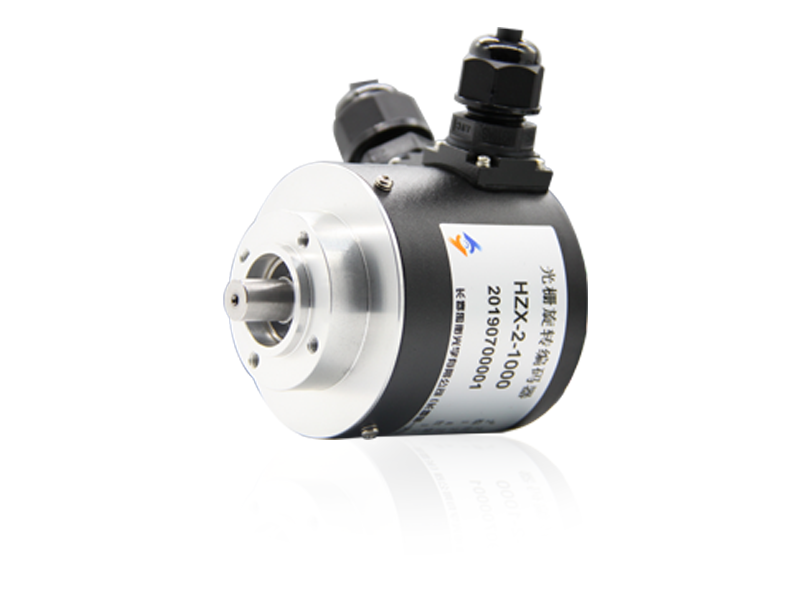

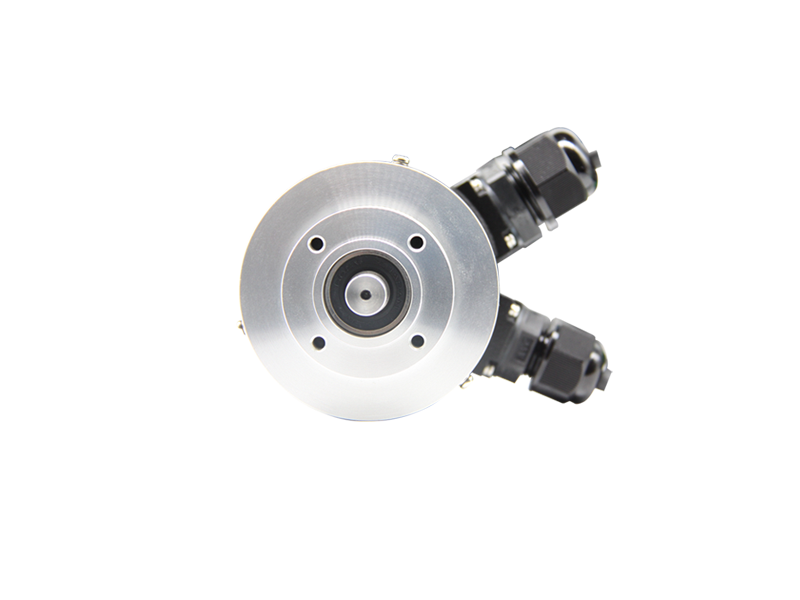

Absolute angle encoder encoder
Options:
- Supply voltage :DC［V］ 5
- Response frequency / Response rate :［KHz］ 20
- Shaft size /aperture :φ［mm］ 10
- Max. rotate speed :［r/min］ 5000
- Operating temperature :［℃］ -30～+85
- resolution :［P/r］ 28/1000
Basic Info
| Model No. | HZX-2 |
|---|---|
| Brand Name | Yuheng |
| Application | Textile machinery |
| Feature | output incremental signal and absolute value signal |
| Model | ［unit］ HZX-2-1000 |
| Dimension | ［mm］ φ66*81.5 |
| Shaft type | Solid shaft |
Product description
The encoder corrects the reference position into the memory position of the counting device every time it passes the reference point. Before the reference point, the accuracy of the position cannot be guaranteed. For this reason, in industrial control, there are methods such as finding the reference point first, turning on the machine and changing it.
Application
Textile machinery
Feature
output incremental signal and absolute value signal
Model
［unit］
HZX-2-1000
Mechanical parameter
Dimension
［mm］
φ66*81.5
Shaft type
Solid shaft
Shaft size /aperture
φ［mm］
10
Max. rotate speed
［r/min］
5000
Max. shaft load
Axial / Radial
［N］
49/49
Operating temperature
［℃］
-30～+85
Protection level
IP55
Connection type
shut up positioning/ Coupling
resolution
［P/r］
28/1000
Electrical parameter
Output pattern
Line driver
Supply voltage
DC［V］
5
Response frequency / Response rate
［KHz］
20
Optional
Absolute angle encoder encoder
Options:
- Supply voltage :DC［V］ 5
- Response frequency / Response rate :［KHz］ 20
- Shaft size /aperture :φ［mm］ 10
- Max. rotate speed :［r/min］ 5000
- Operating temperature :［℃］ -30～+85
- resolution :［P/r］ 28/1000
